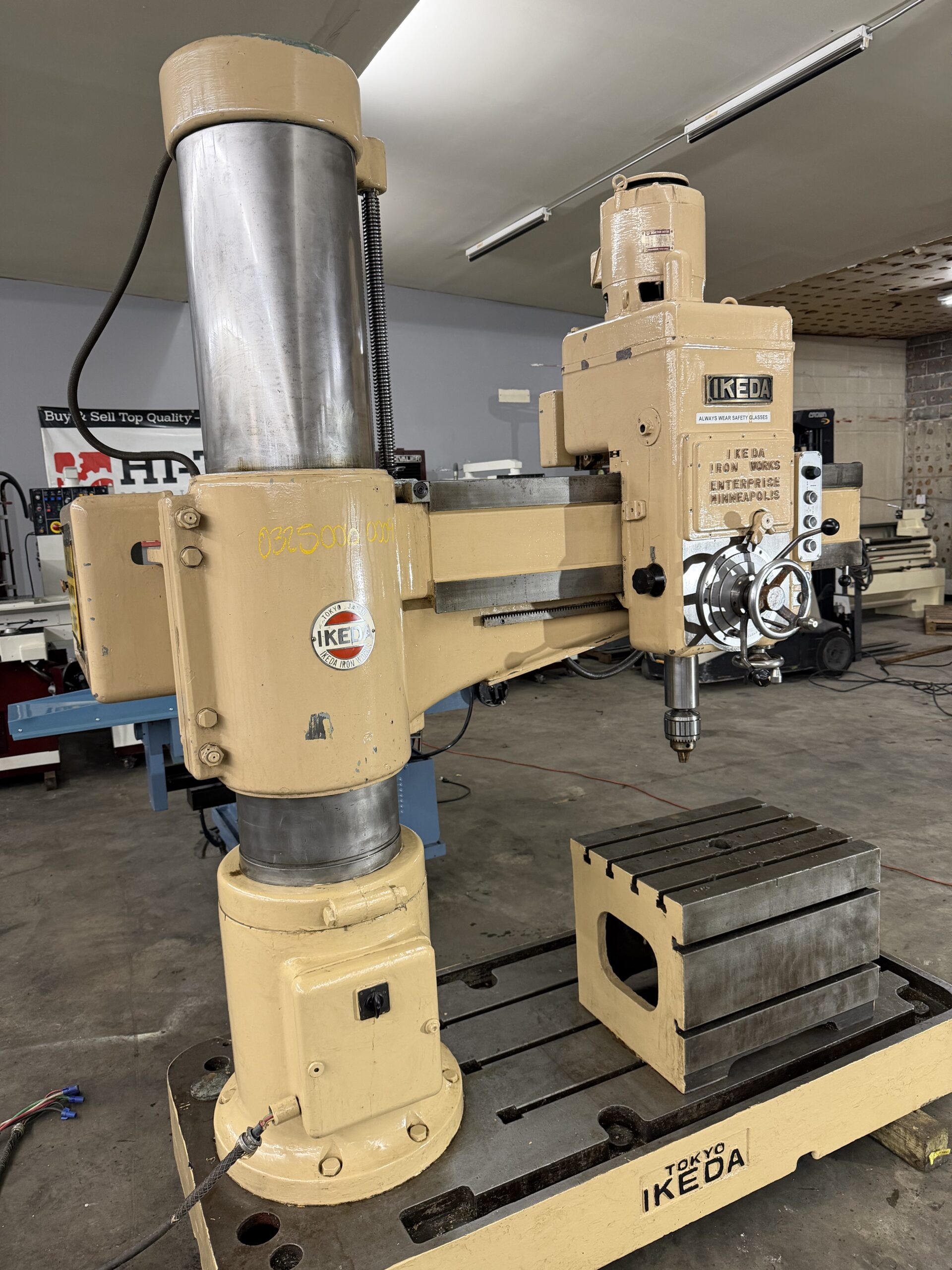

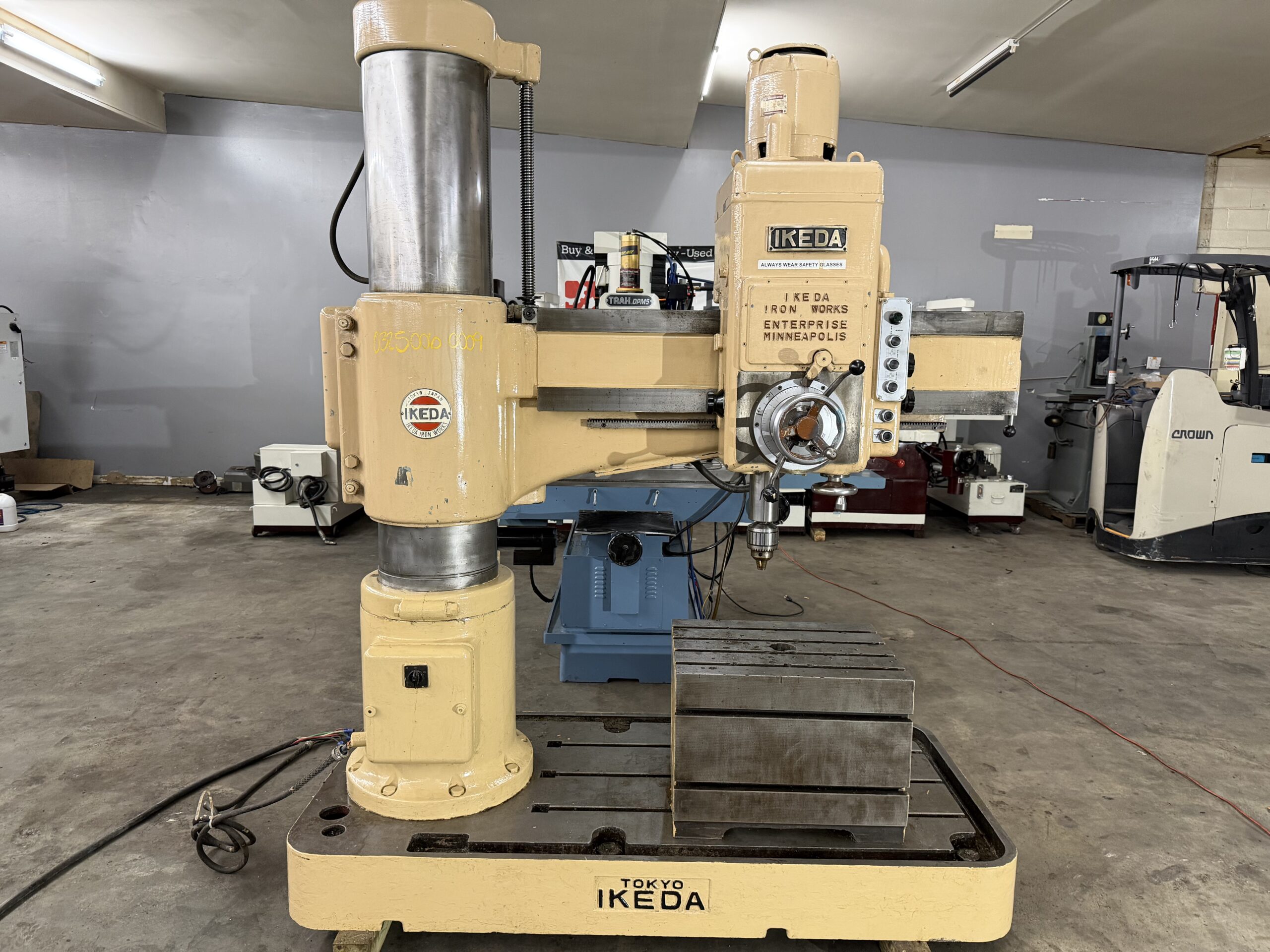

Ikeda Radial Arm Drill

Model : RM1300

Serial # 6832

VIDEO LINK :

Specifications:

Column Diameter: 13-5/8 inches

Arm Length: 54-1/2 inches

Spindle Speeds: 12 speeds ranging from 30 to 1,440 RPM

Spindle Taper: #5 Morse taper

Spindle Travel: 12 inches

Spindle Diameter: 3-5/8 inches

Distance from Column to Spindle Center:

Minimum: 9 inches

Maximum: 52-5/8 inches

Distance from Spindle to Base:

Minimum: 15-1/4 inches

Maximum: 56-3/4 inches

Base Working Surface: 57-1/4 x 36 inches

Base Height: 8-1/2 inches

Head Traverse on Arm: 47 inches

Feeds and Tap Leads: Four options ranging from 0.004 to 0.021 inches per revolution

Drive Motor: 5 HP

Drilling Capacity:

Steel: 2-1/4 inches

Iron: 2-5/8 inches


Tapping Capacity:

Steel: 1-3/4 inches

Iron: 2 inches


Boring Capacity:

Steel: 4 inches

Iron: 6 inches

Approximate Dimensions: 82 x 36 x 96 inches

Approximate Weight: 7,700 pounds (excluding motor)

Machine is in excellent condition and it can be inspected under power at our warehouse in Independence, Missouri.
