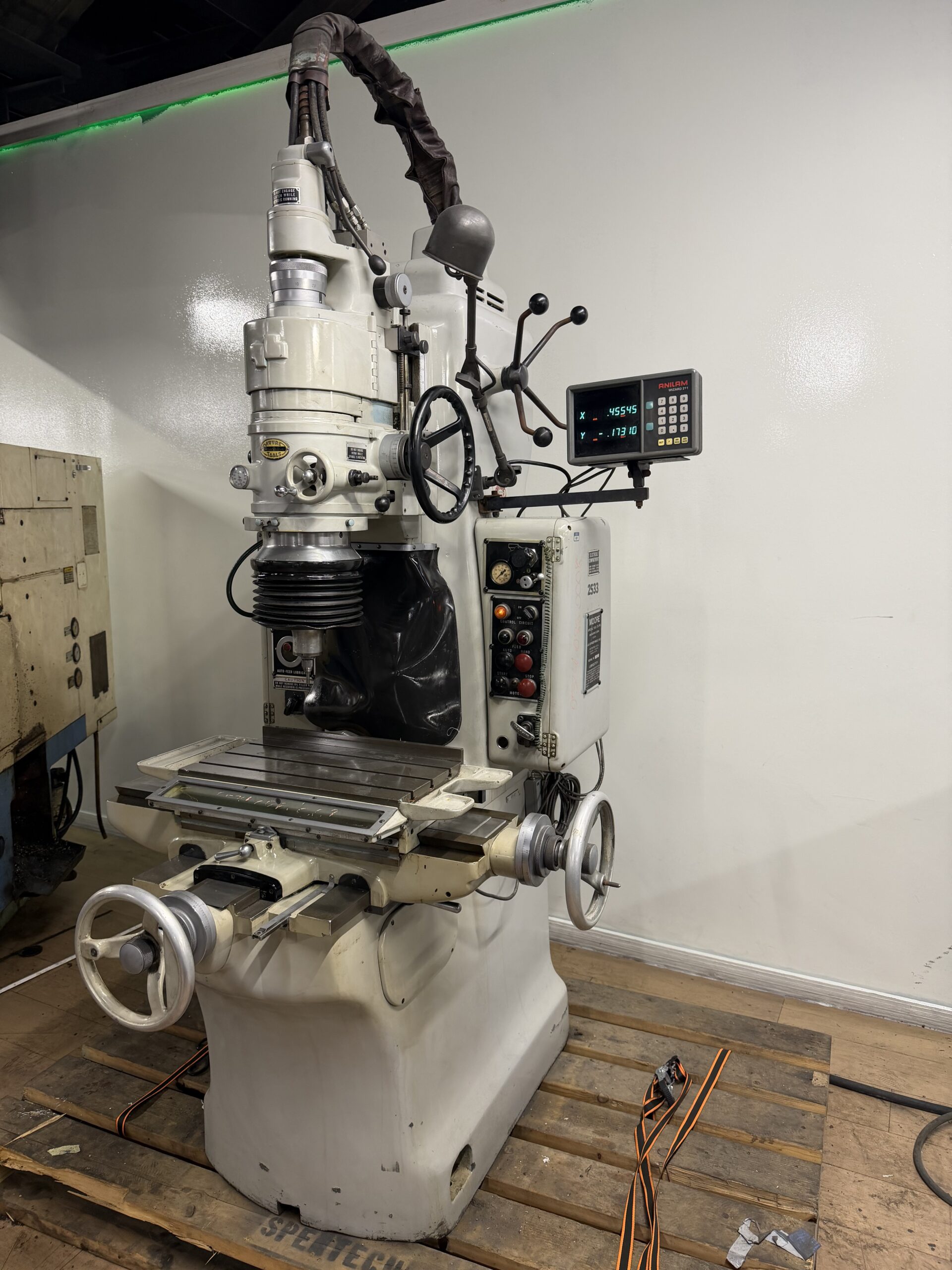

S/N: 7471

VIDEO LINK :

SPECIFICATIONS:

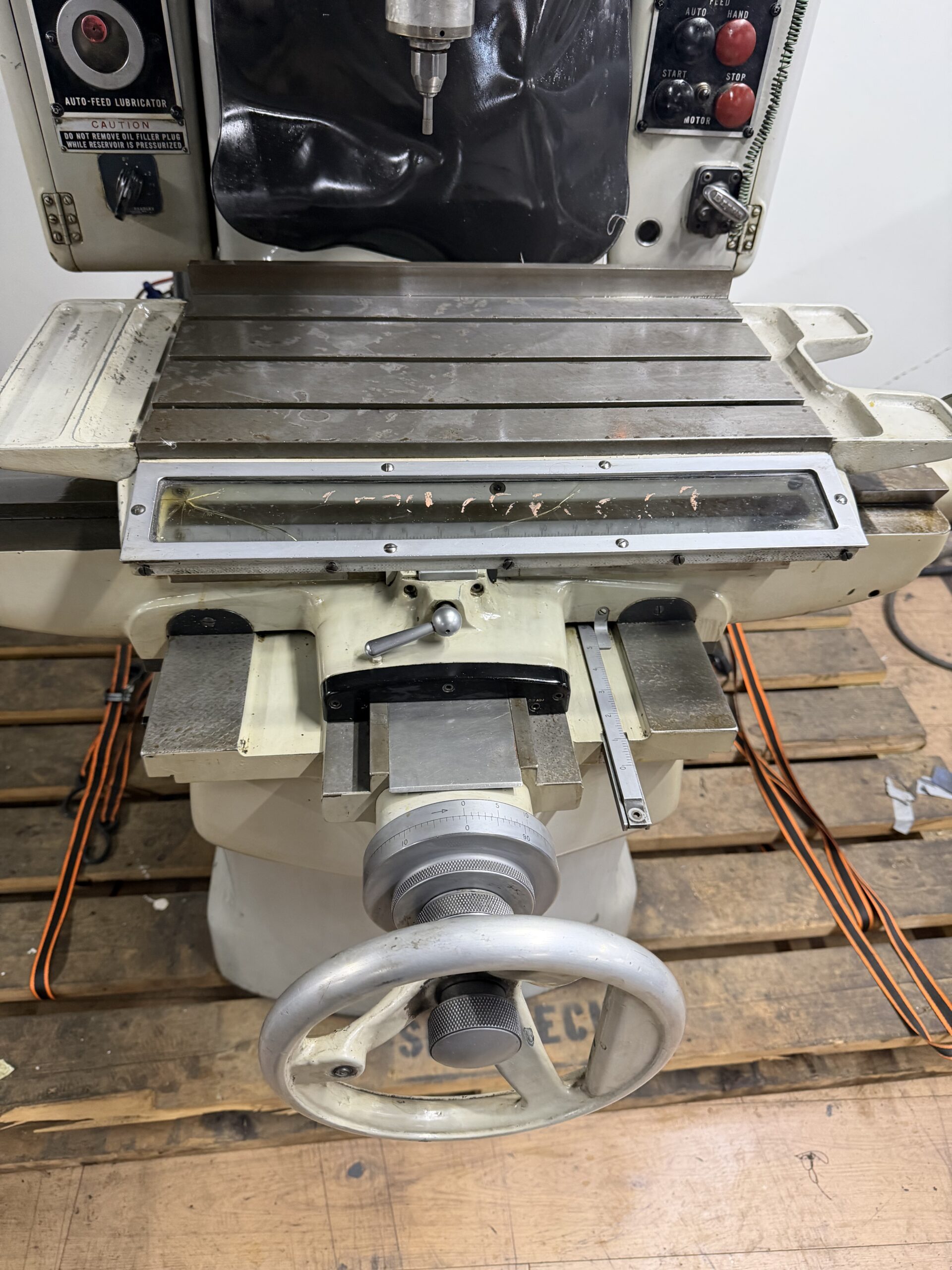

TABLE SIZE ……………………………… 10″ X 19″

TABLE MOVEMENT ……………………………. 10-1/2″ X 16-1/2″

TABLE TOP TO WHEEL COLLET ………………….. 0 TO 16″

SPINDLE TO COLUMN WAYS …………………….. 10″

SPINDLE COLUMN BELOW WAYS ………………….. 12-1/2″

SPINDLE SPEEDS ……………………………. INFINITELY VARIABLE

INFINITELY VARIABLE SPINDLE FEEDS …………… 0 TO 120 STROKES

MAIN SPINDLE SLIDE TRAVEL ………………….. 3-5/8″

ANGULAR ADJUSTMENT OF SPINDLE UP TO …………. 1-1/2 DEG. 3 DEGREES INCLUDED ANGLE

APPROXIMATE WEIGHT ………………………… 3,150 LBS

EQUIPPED WITH:

METRIC DIALS

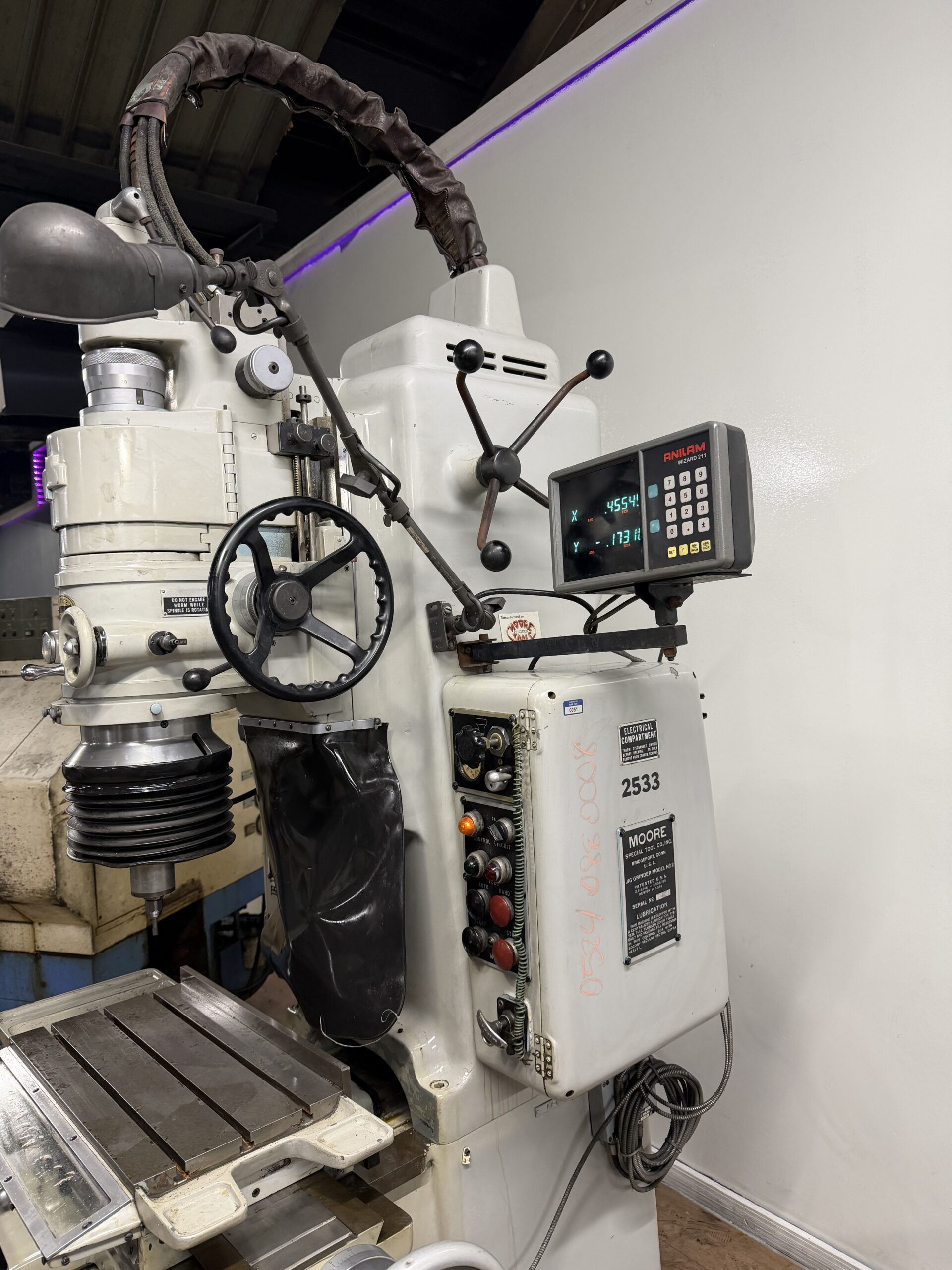

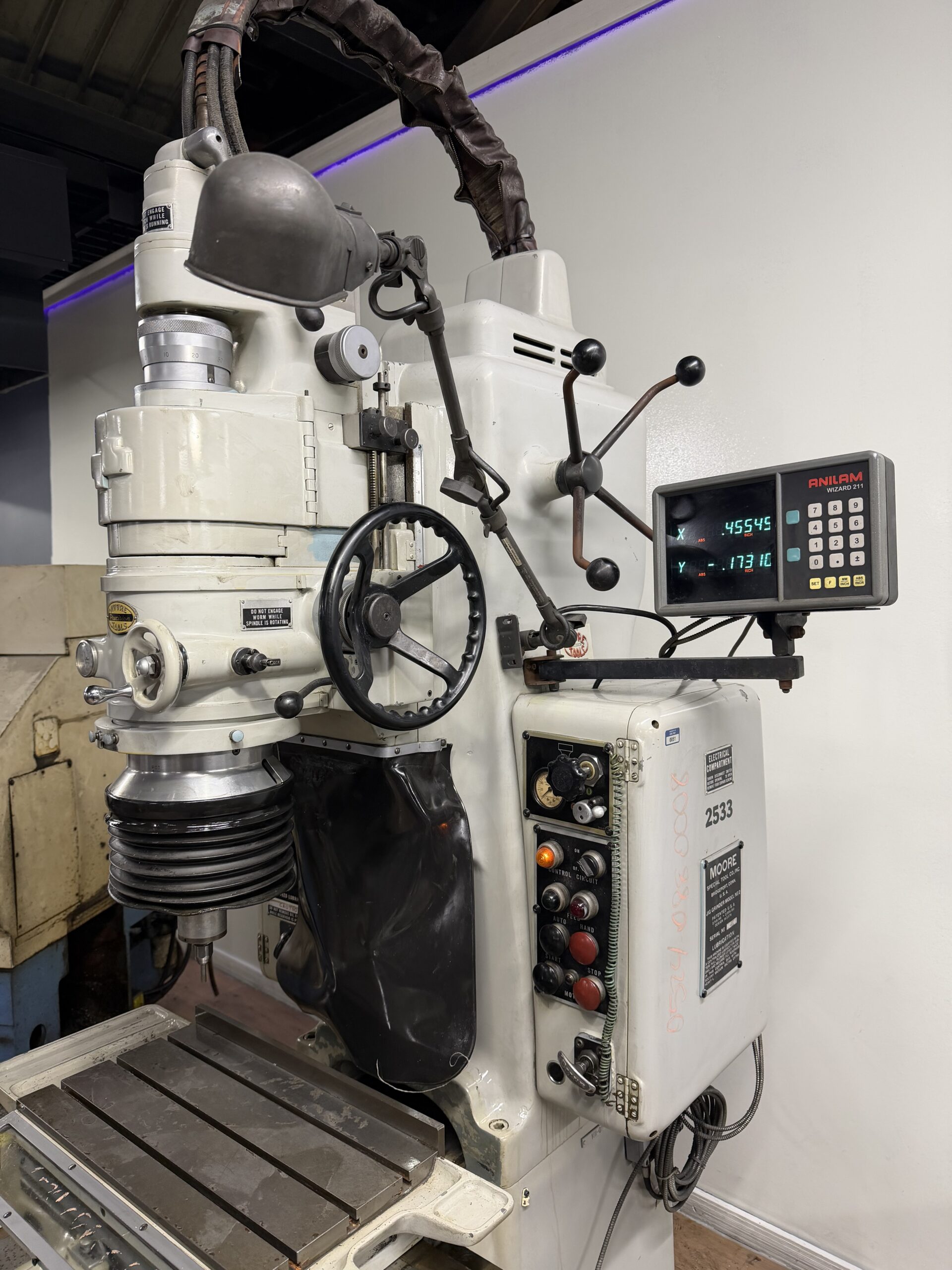

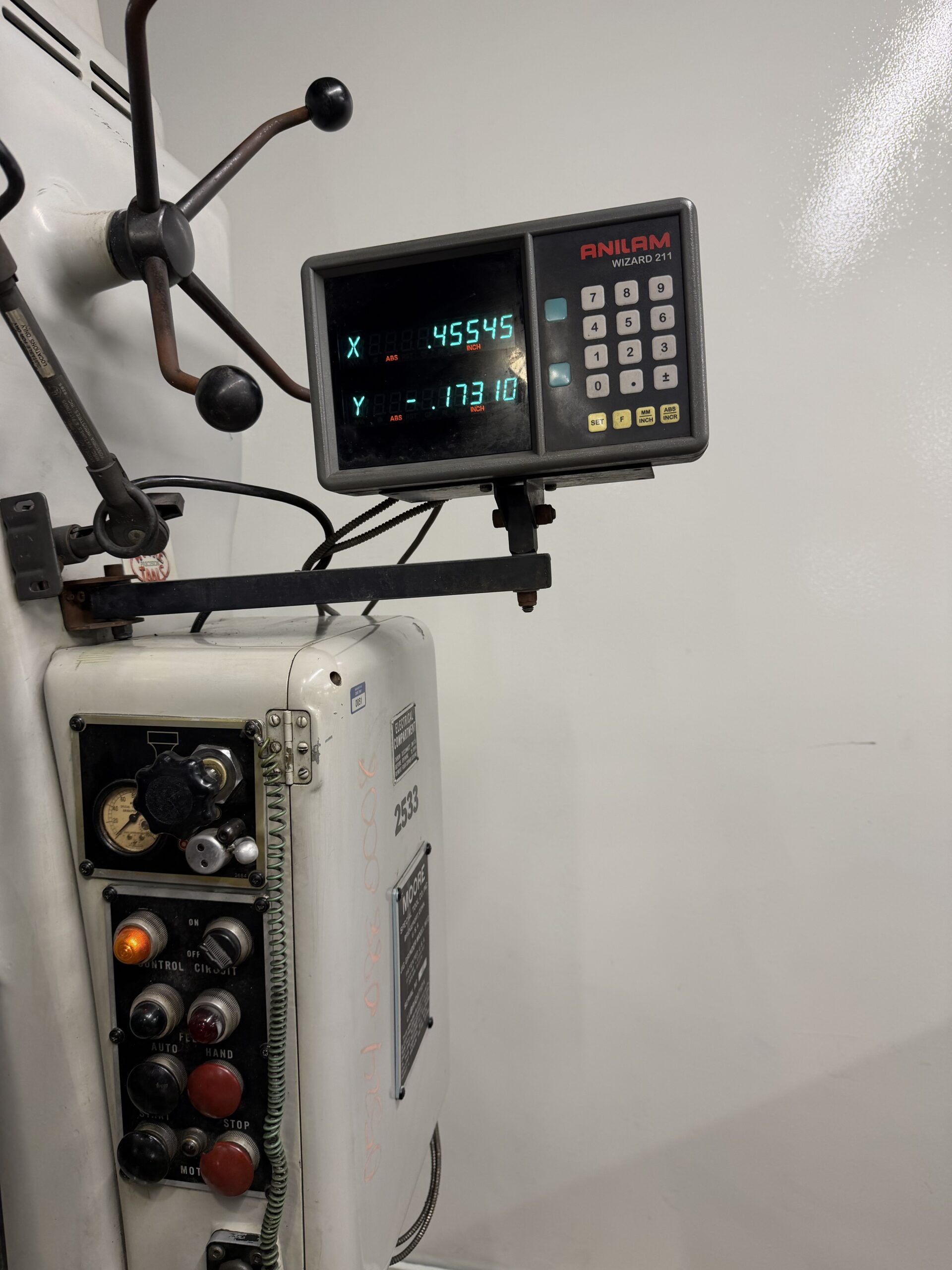

ANILAM 2-AXIS DRO, READS IN BOTH INCH & METRIC

SPINDLE SPEEDS BY AIR-POWERED HYDRAULIC CONTROL

1/4 HP 4-SPEED MOTOR

MACHINE IS SET UP FOR 3/60/220 VOLTS

MACHINE IS IN EXCELLENT CONDITION AND CAN BE INSPECTED UNDER POWER AT OUR WAREHOUSE IN INDEPENDENCE, MISSOURI.
