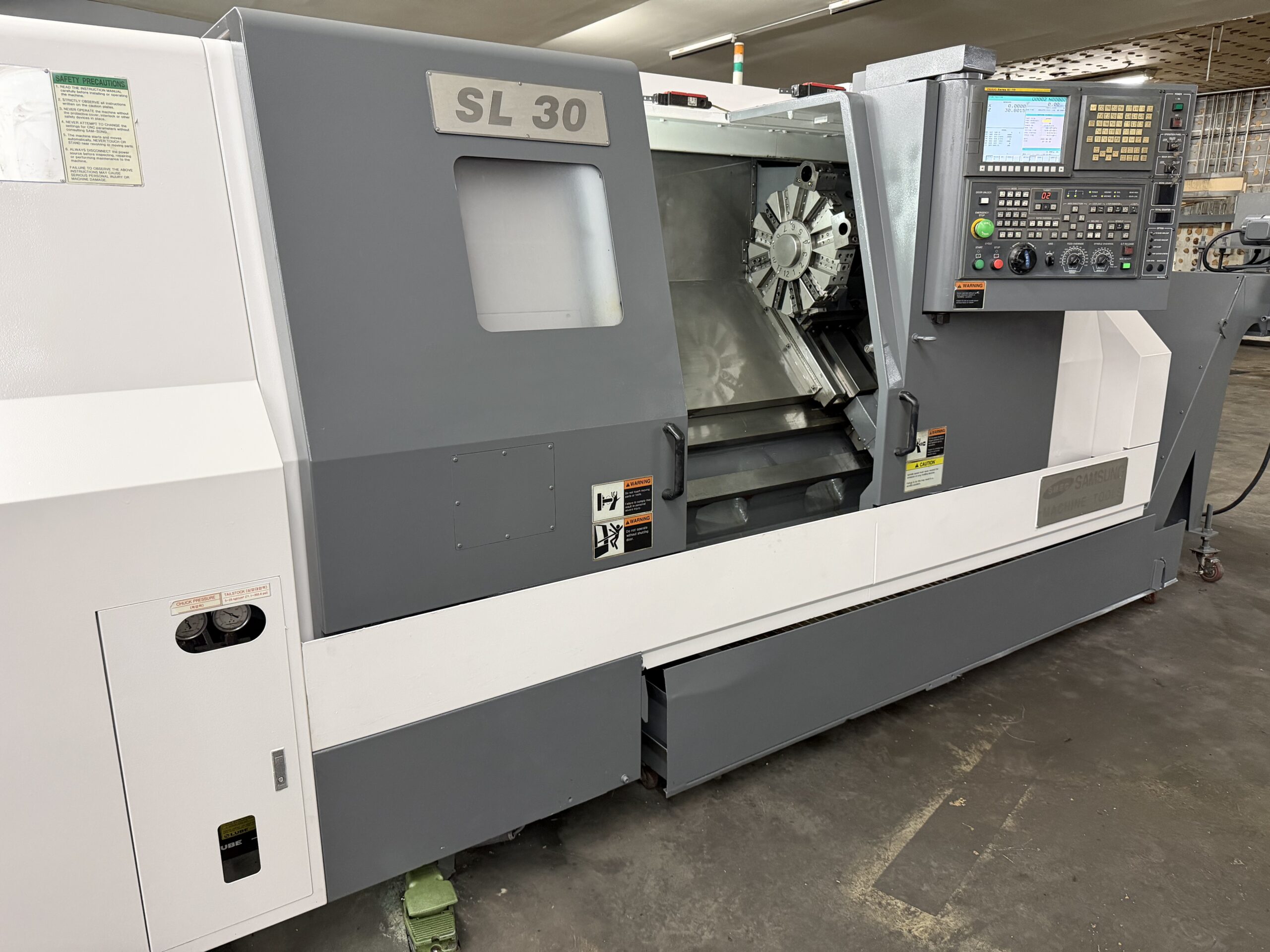

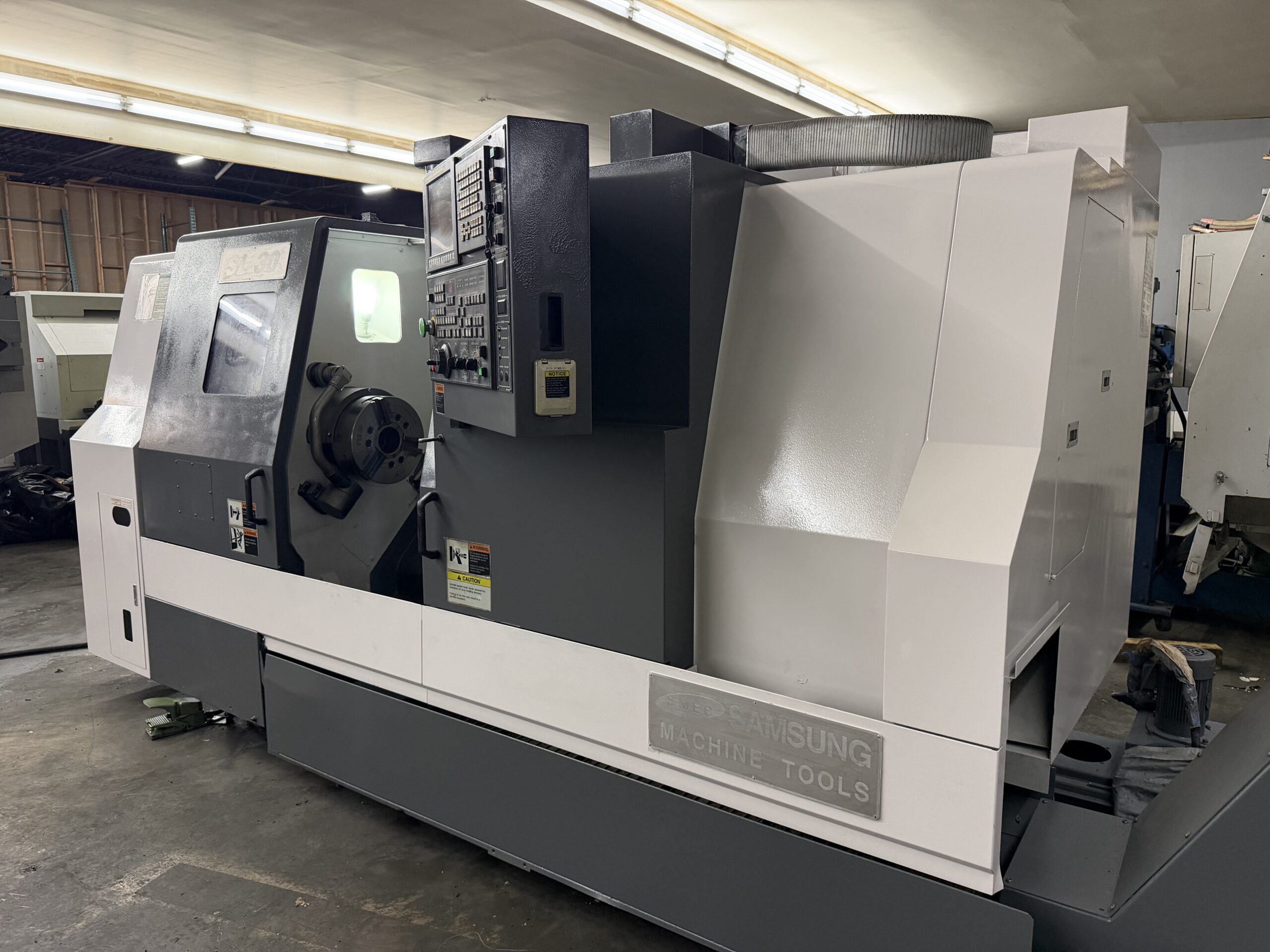

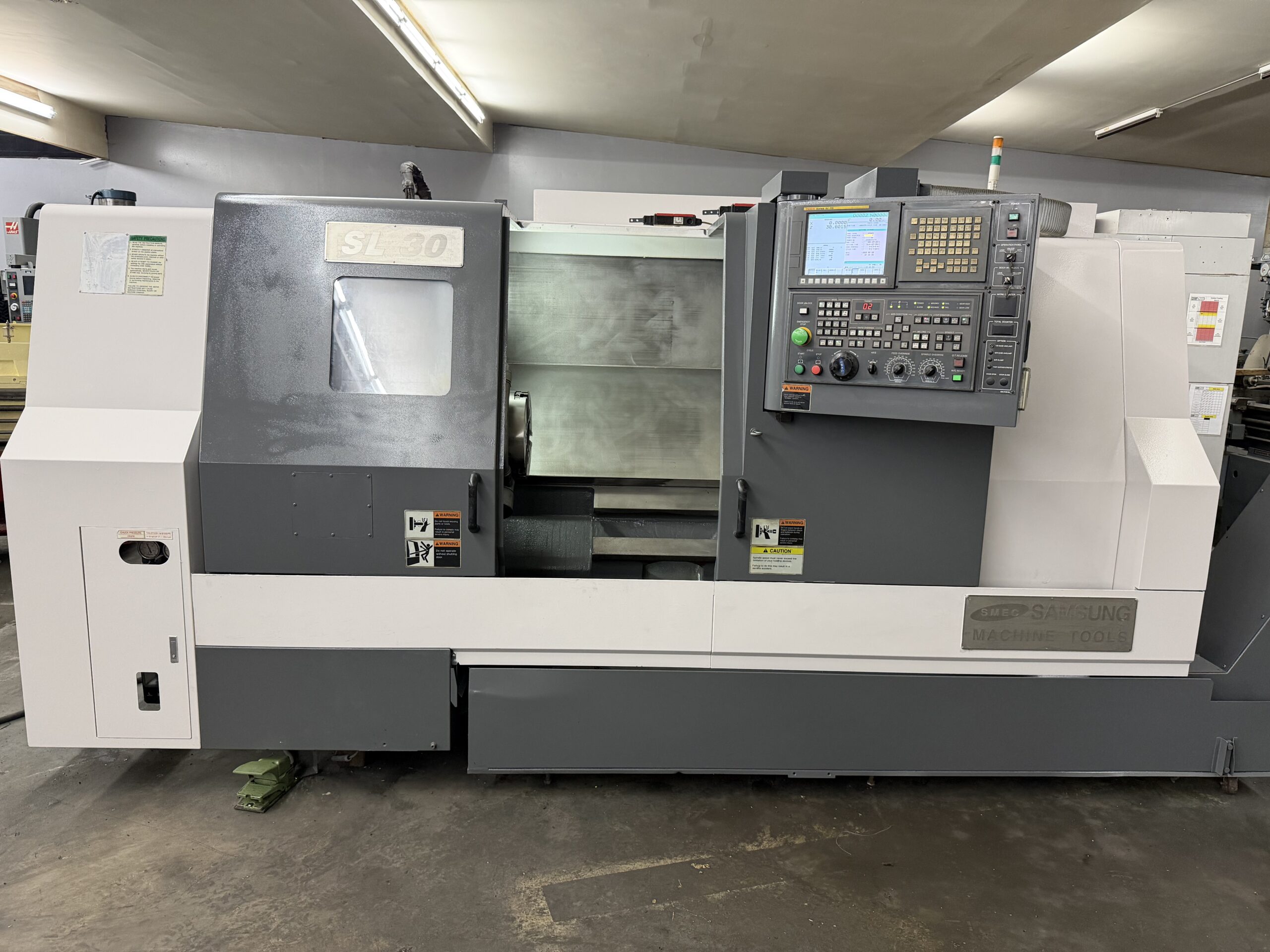

2013 Samsung SL30/1000 CNC Lathe
VIDEO LINK :
Description :

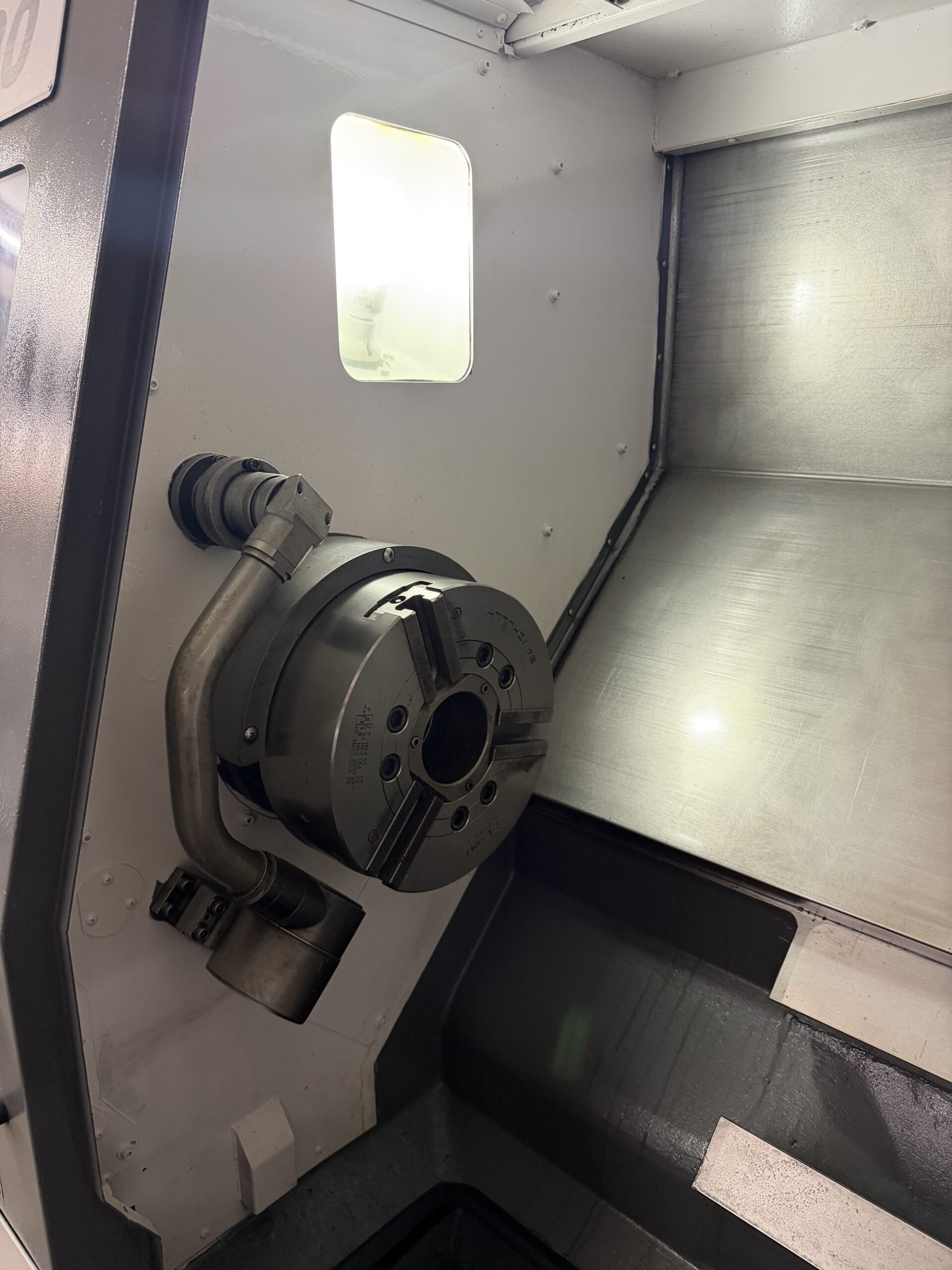

Chuck Size: 12″
Bar Capacity: 3.5″
X-Axis Travel: 9.06″
Z-Axis Travel: 43.30″
Rapid Traverse (X/Z): 709 ipm / 945 ipm
Max Turning Diameter: 15.75″
Swing Over Bed: 25.59″
Swing Over Cross Slide: 18.90″
Maximum Turning Length: 41.34″
Spindle Speed: 2,500 RPM
Spindle Motor: 30 HP / 25 HP (cont./peak)
Spindle Nose: A2-8
Spindle Bore: 4.13″
Draw Tube ID: 3.58″
Guideways: Box way
Bed Type: 45° slant bed

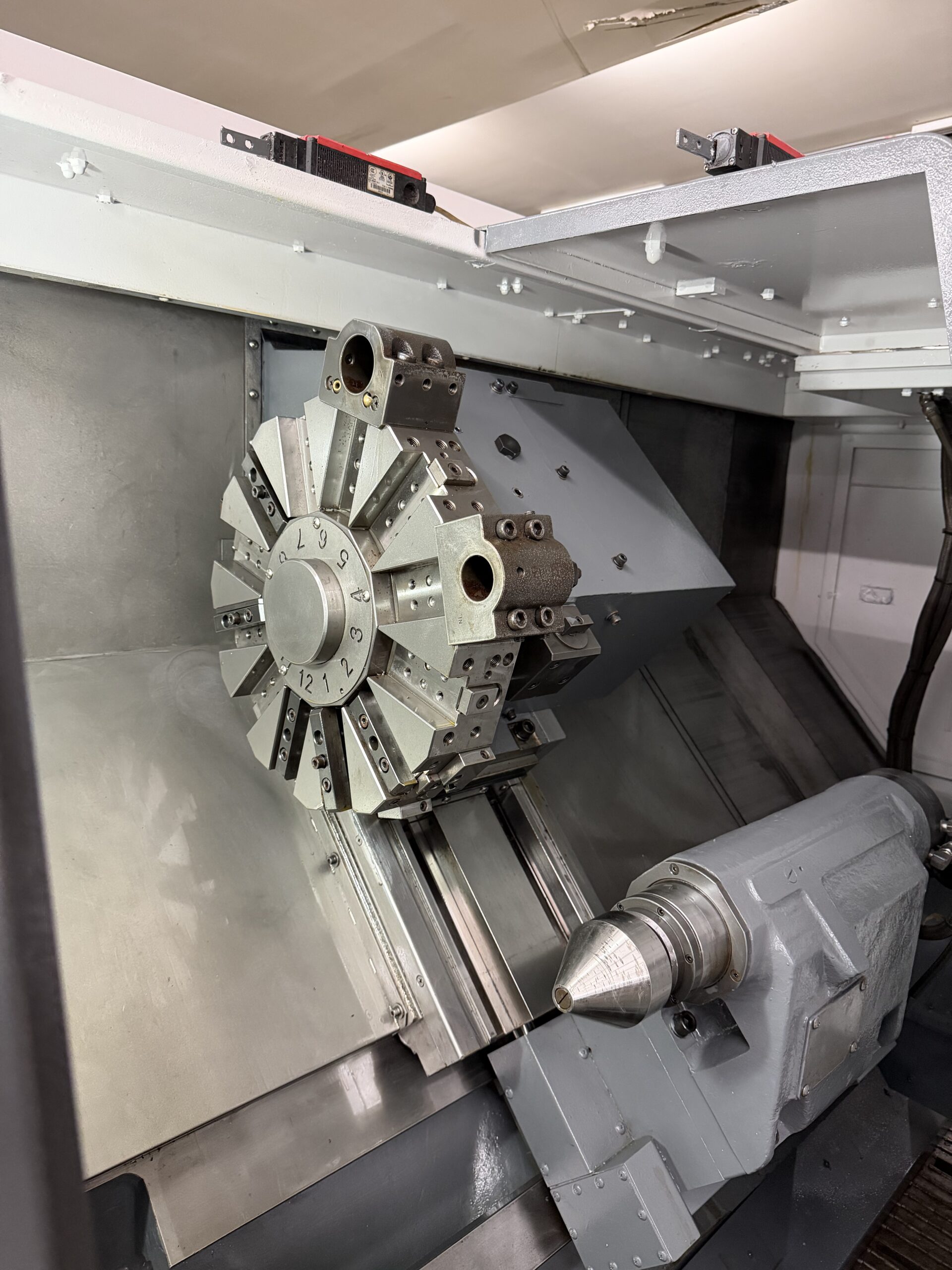

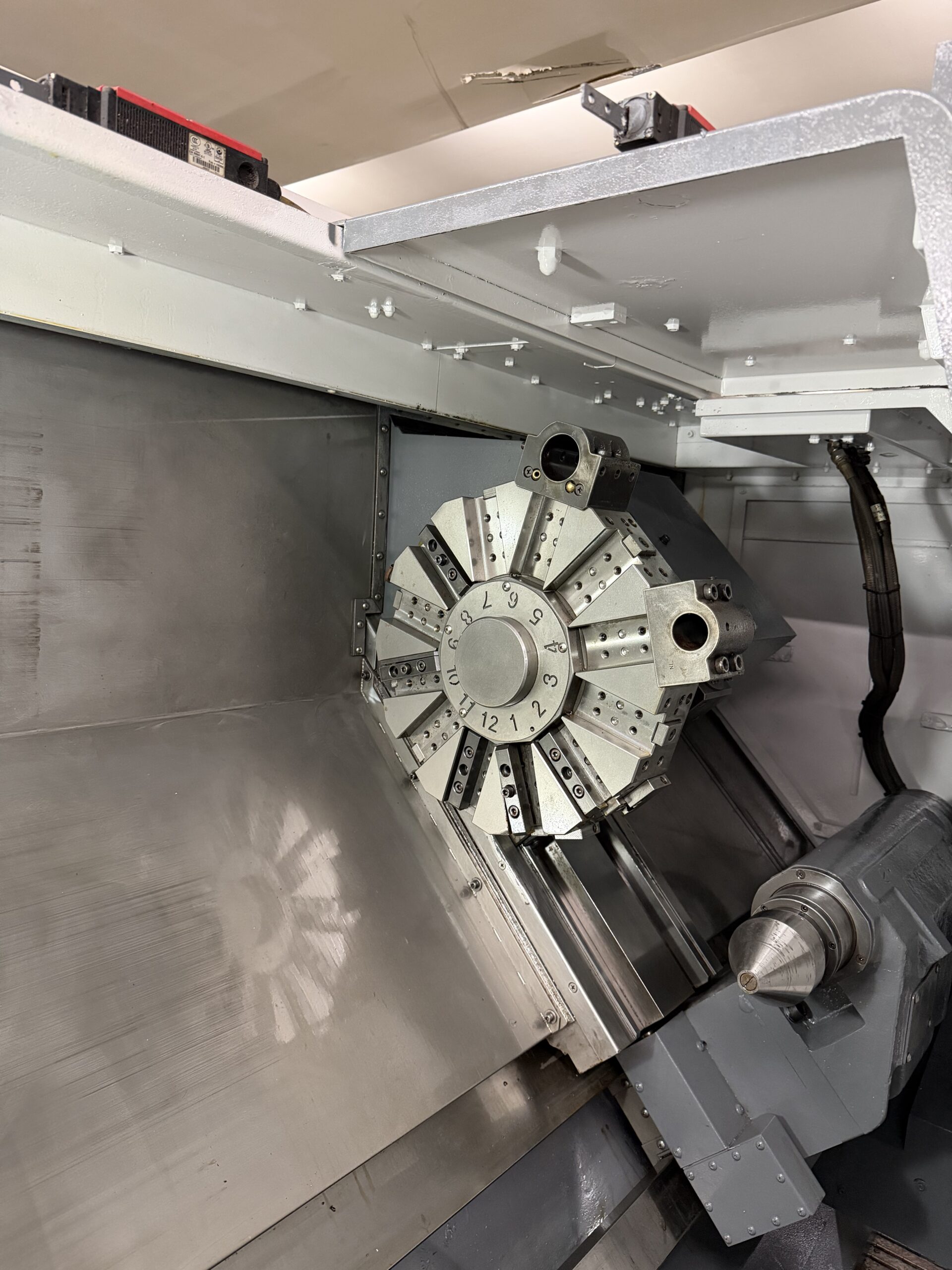

Tool Stations: 12 (OD & ID capable)
Equipped with :

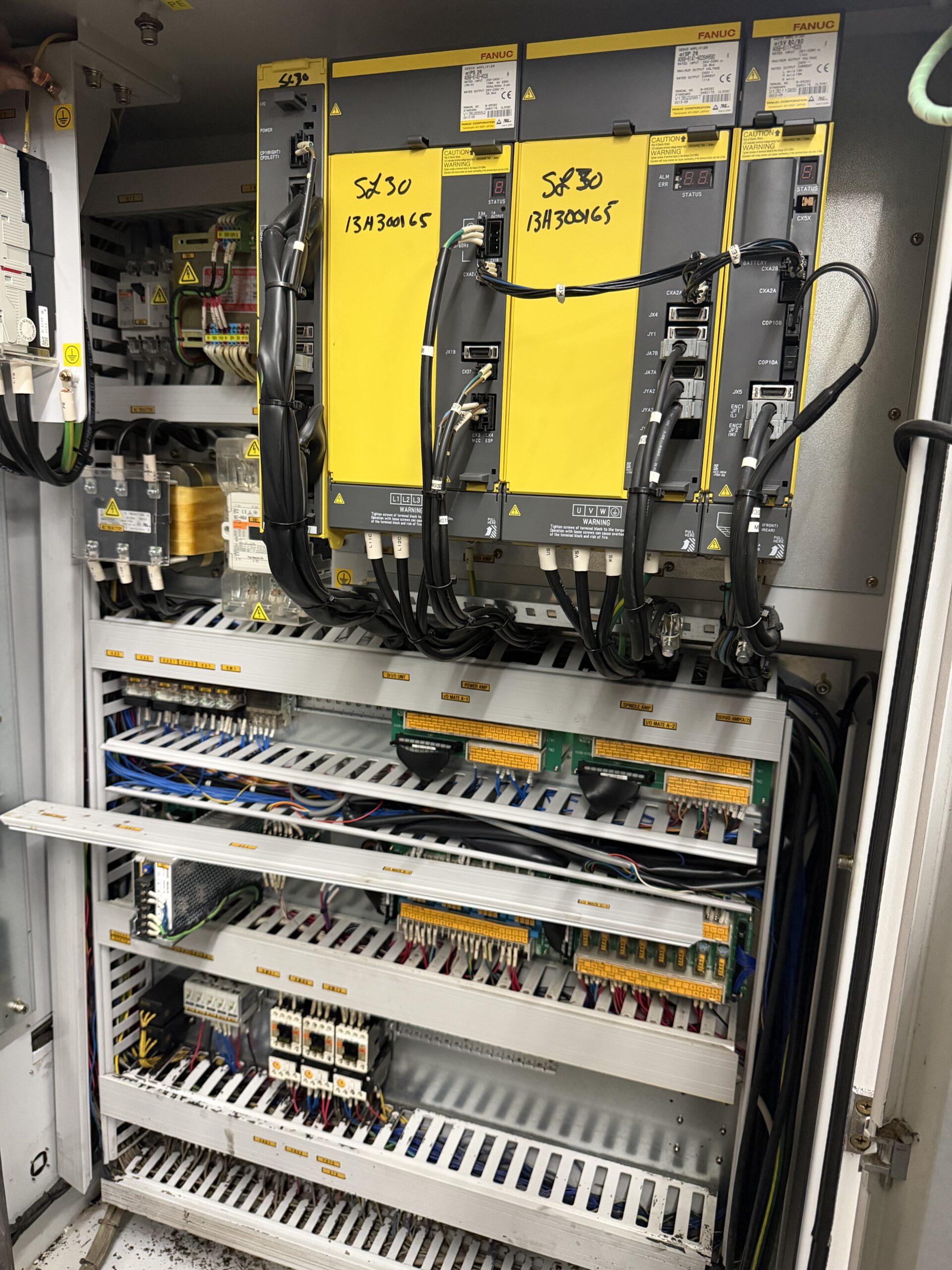

Fanuc OiTD Control
Programmable Tailstock
Chip conveyor
Tool Presetter
Machine is in excellent condition and can be inspected under power at our warehouse in Independence, Missouri
