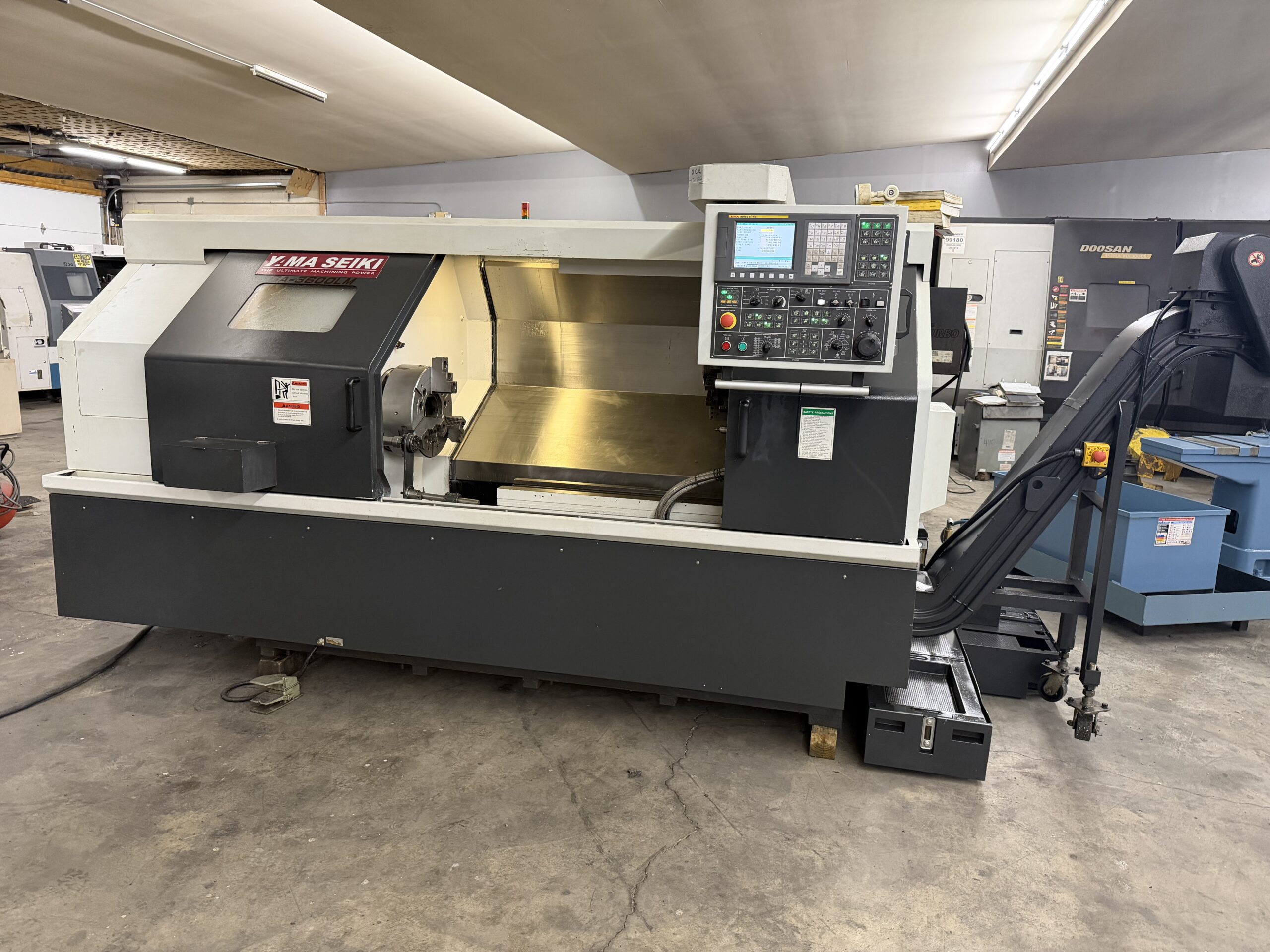

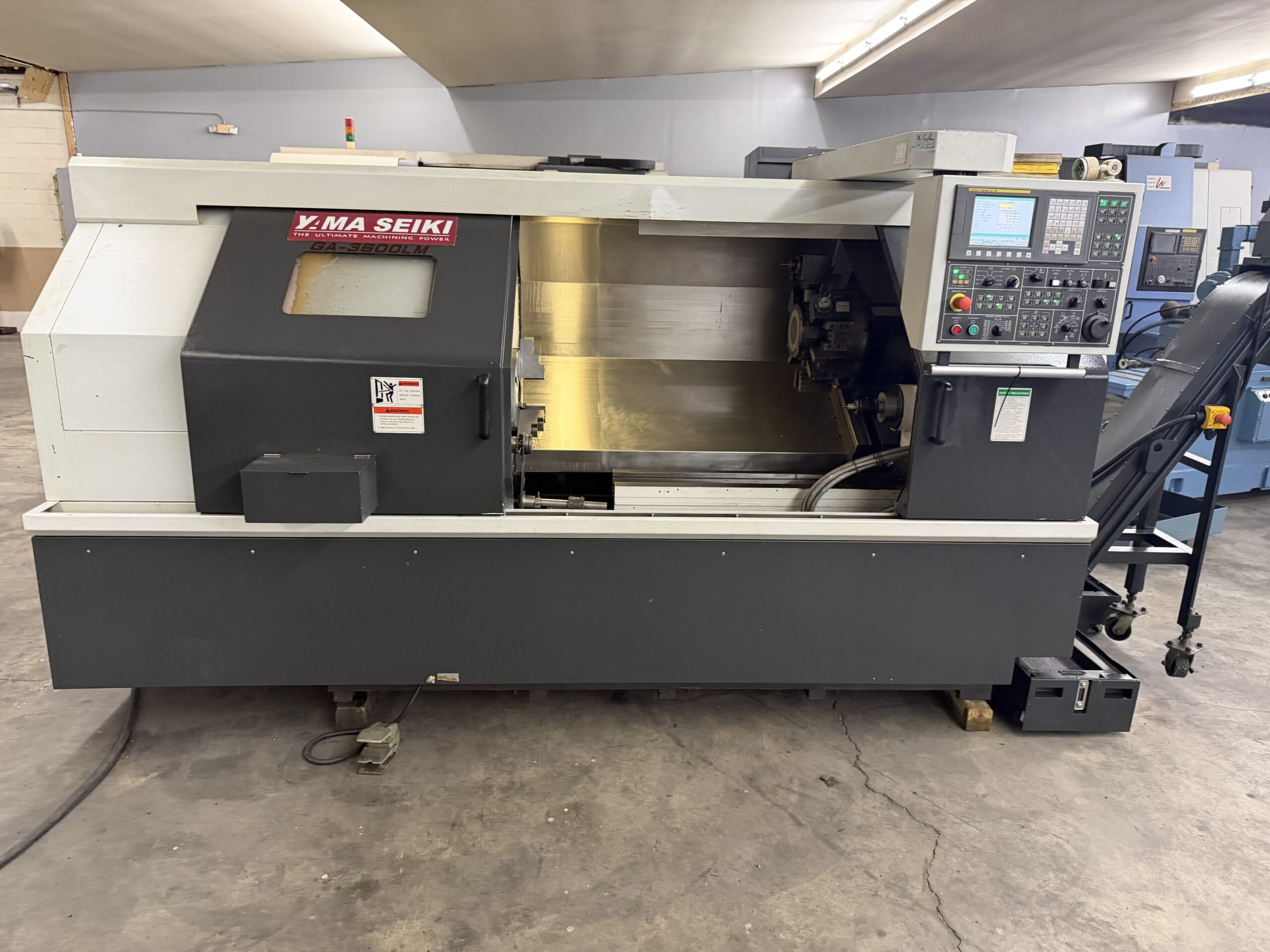

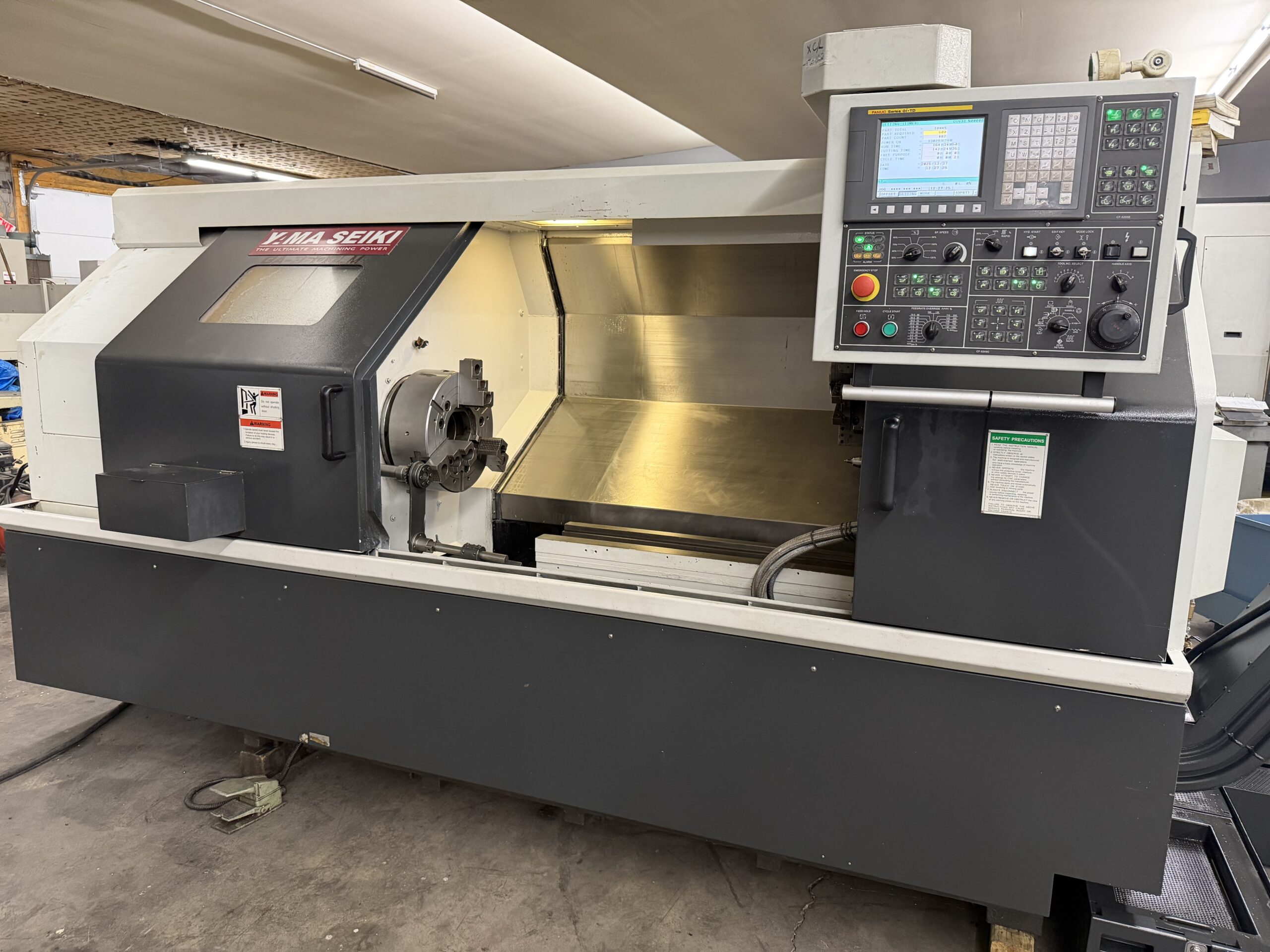

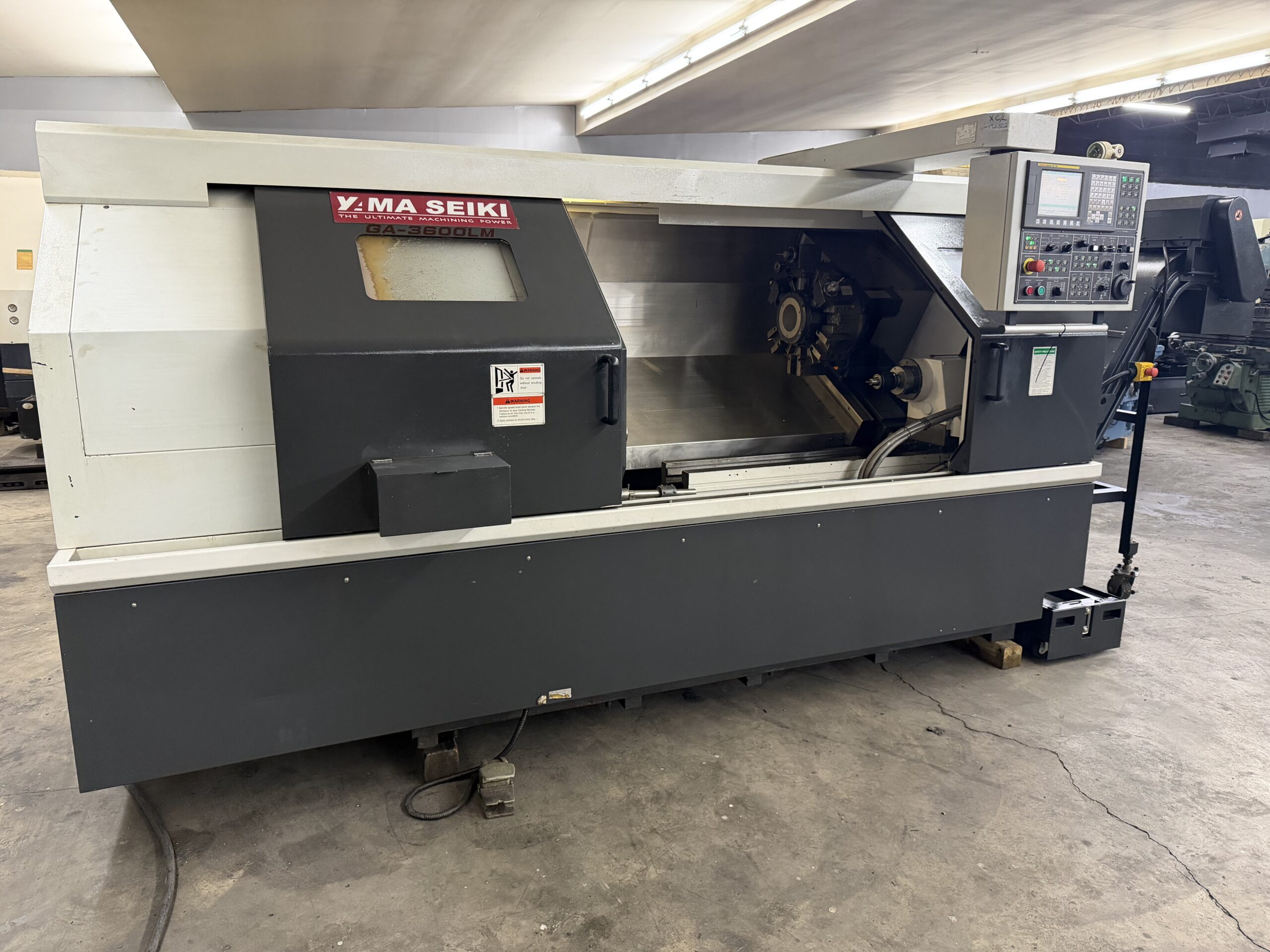

2012 Yama Seiki GA-3600LM Long Bed CNC Lathe with Live Milling & C axis

VIDEO LINK :

Description :

Model : GA-3600LM

Serial # 93199

Year : 2012

CAPACITY :

Max. / Swing over saddle mm(in) : 599 mm (23.6″)

Max. Turning Diameter mm(in) : 500 mm (19.7″)

Max. Turning Length mm(in) : 1194 mm (47.00”)

Bar Capacity mm(in) : 104 mm (4.1’)

Live Milling : YES

C axis : YES

SPINDLE Chuck Size (in) (15″)

4 Live Tool Holders included

Hole through spindle mm(in) 121mm (4.76”)

Spindle Speed (rpm) rpm 2,500 rpm

Motor output ( cont. / 30 min.) Hp / kW 18.5 / 22 kW

Motor (Max/Cont.) : kW(HP) 25 / 30 HP

Spindle Type : Direct Belt Drive

Spindle Nose. : A2-11

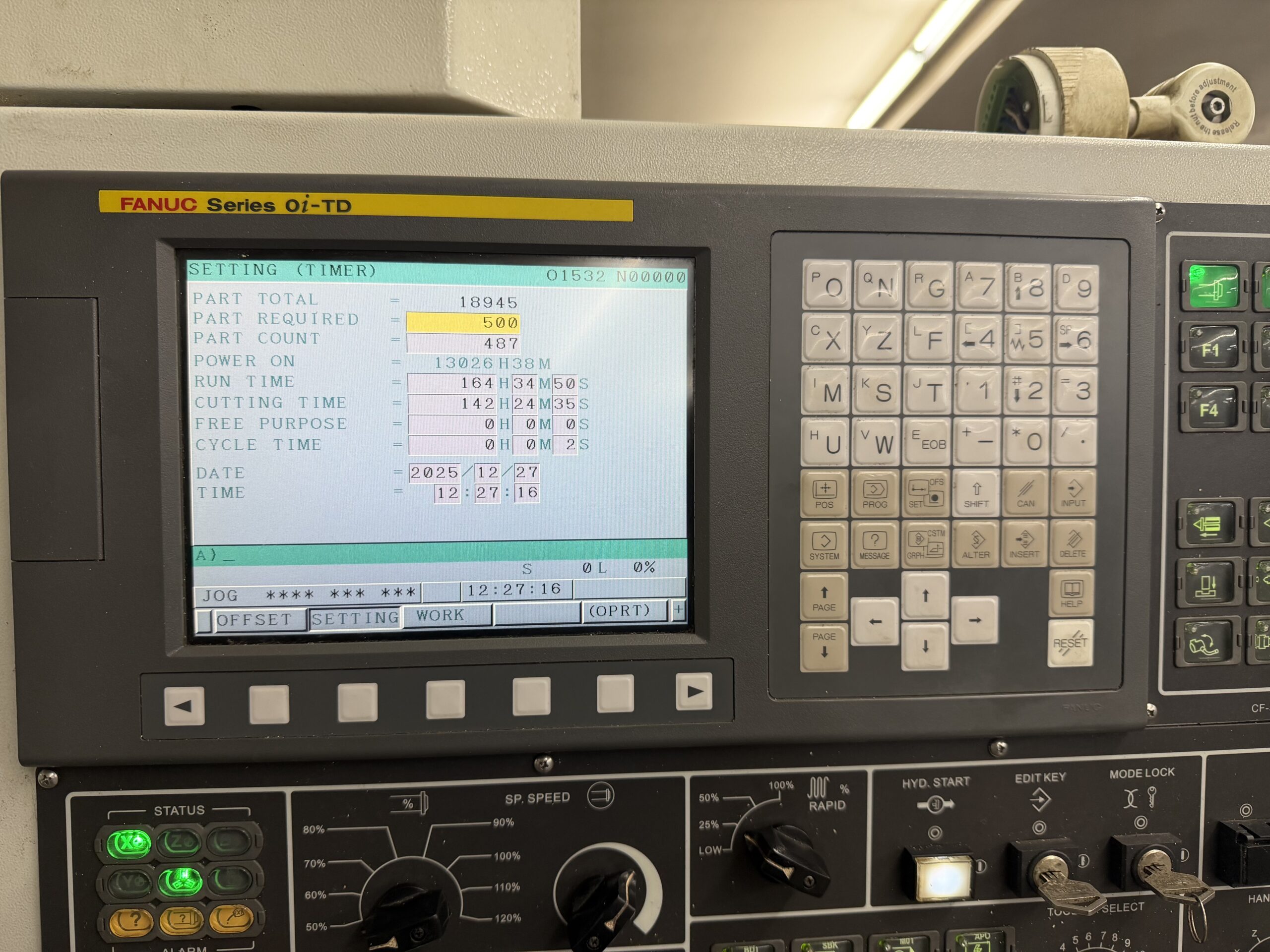

NC Controller : FANUC Oi-TD

FEED :

Rapid Travel (X/Z) m/min : 24m/min

Slide Type : Hardened & Ground Box Ways

X-axis servo motor : HP (KW) 4 HP(2.7 kW)

Z-axis servo motor : HP (KW) 6 HP (4.5 kW)

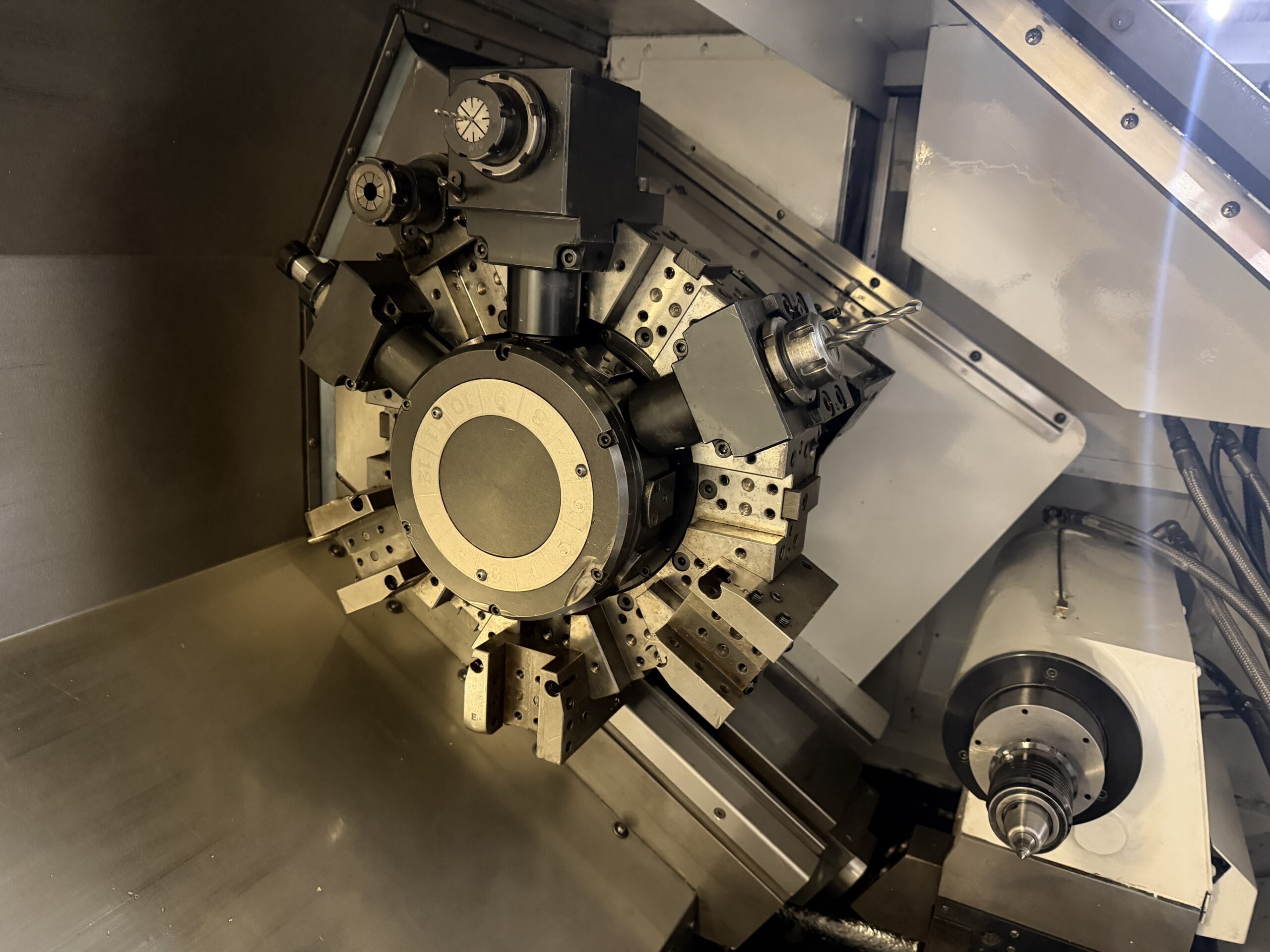

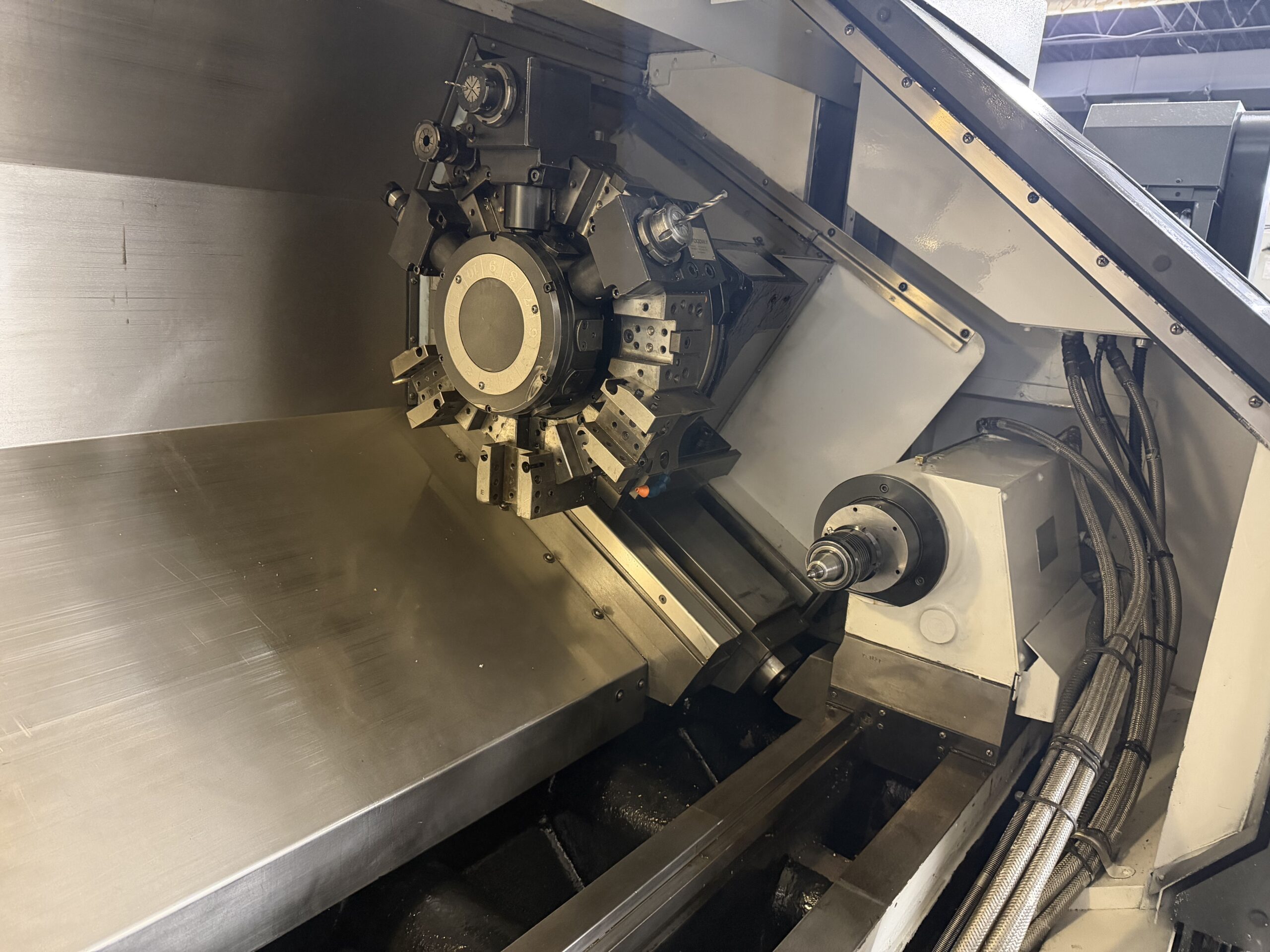

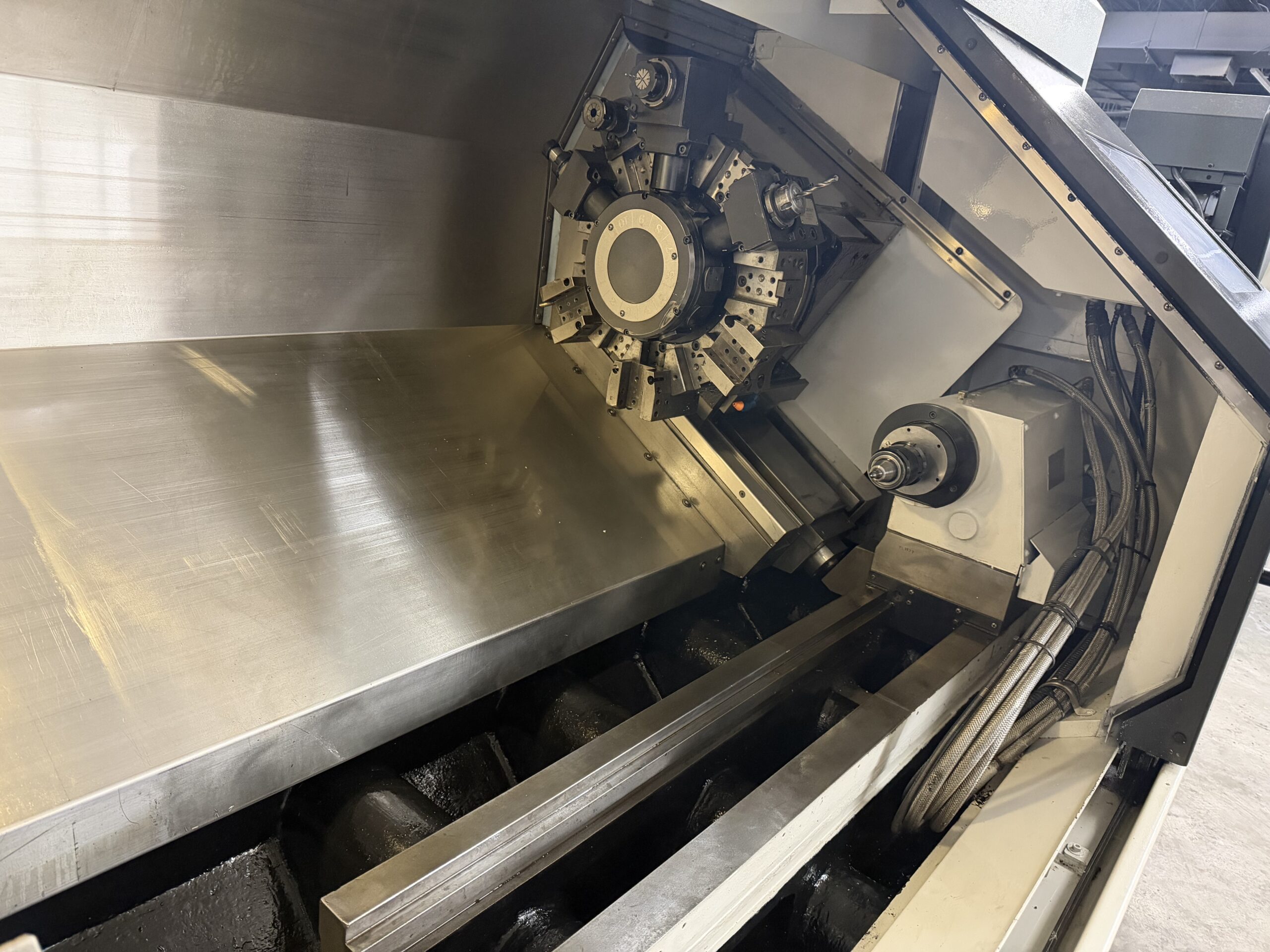

BLOCK TOOL- No. of Tool / Stations : 12

Tool Size OD mm(in) : 25mm(1”)

ID mm(in) : 50mm(2”)

TANK CAPACITY :

Coolant Tank Gallon / liter : 38 gal. (145L)

POWER SUPPLY :

Electric Power Supply – 38 kVA

Voltage V/Hz : 220V-3 Phase

Dimensions :

Weight kg(lb) 7,000 kg ( 15,400 lb )

Accessories included :

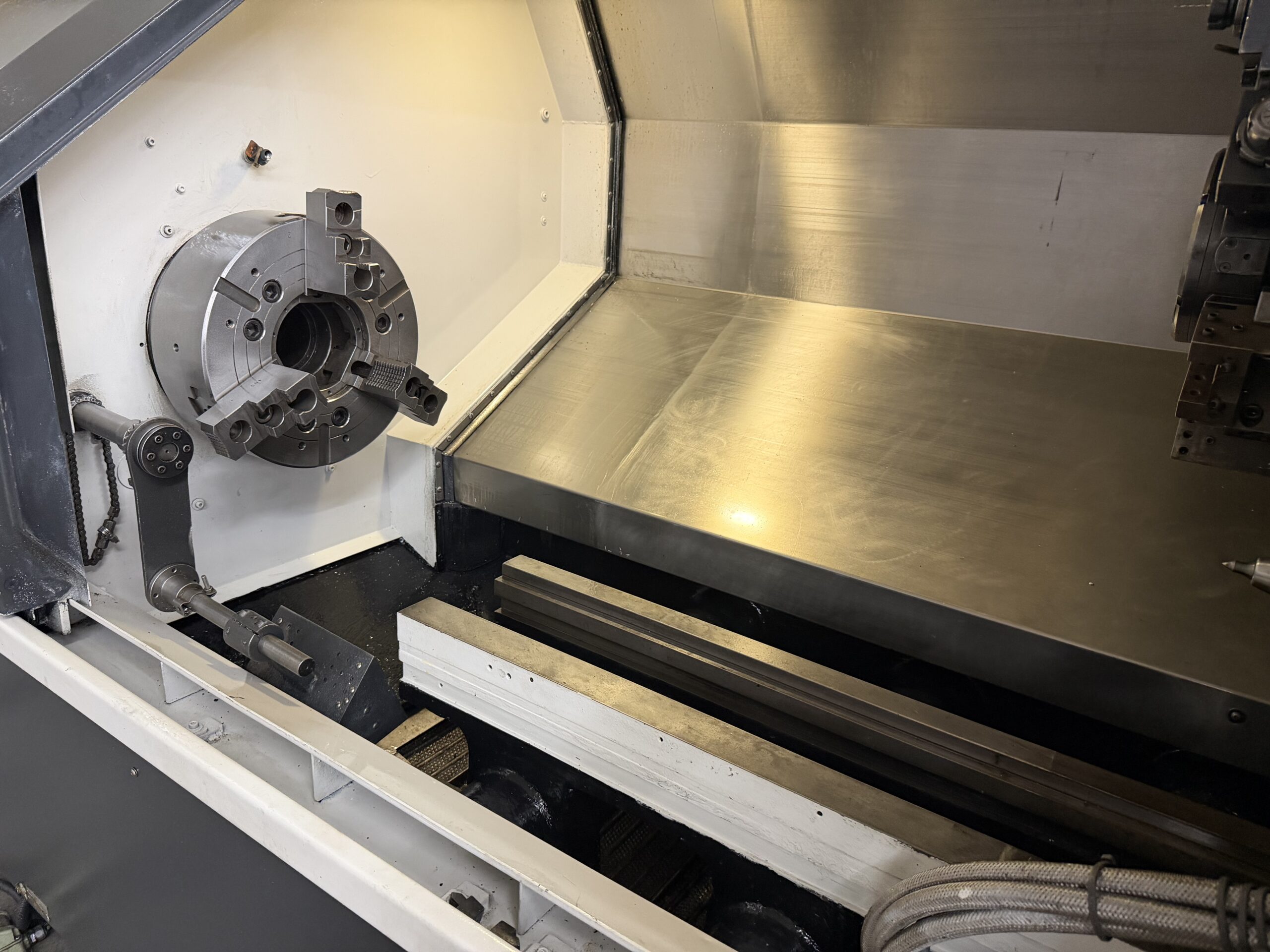

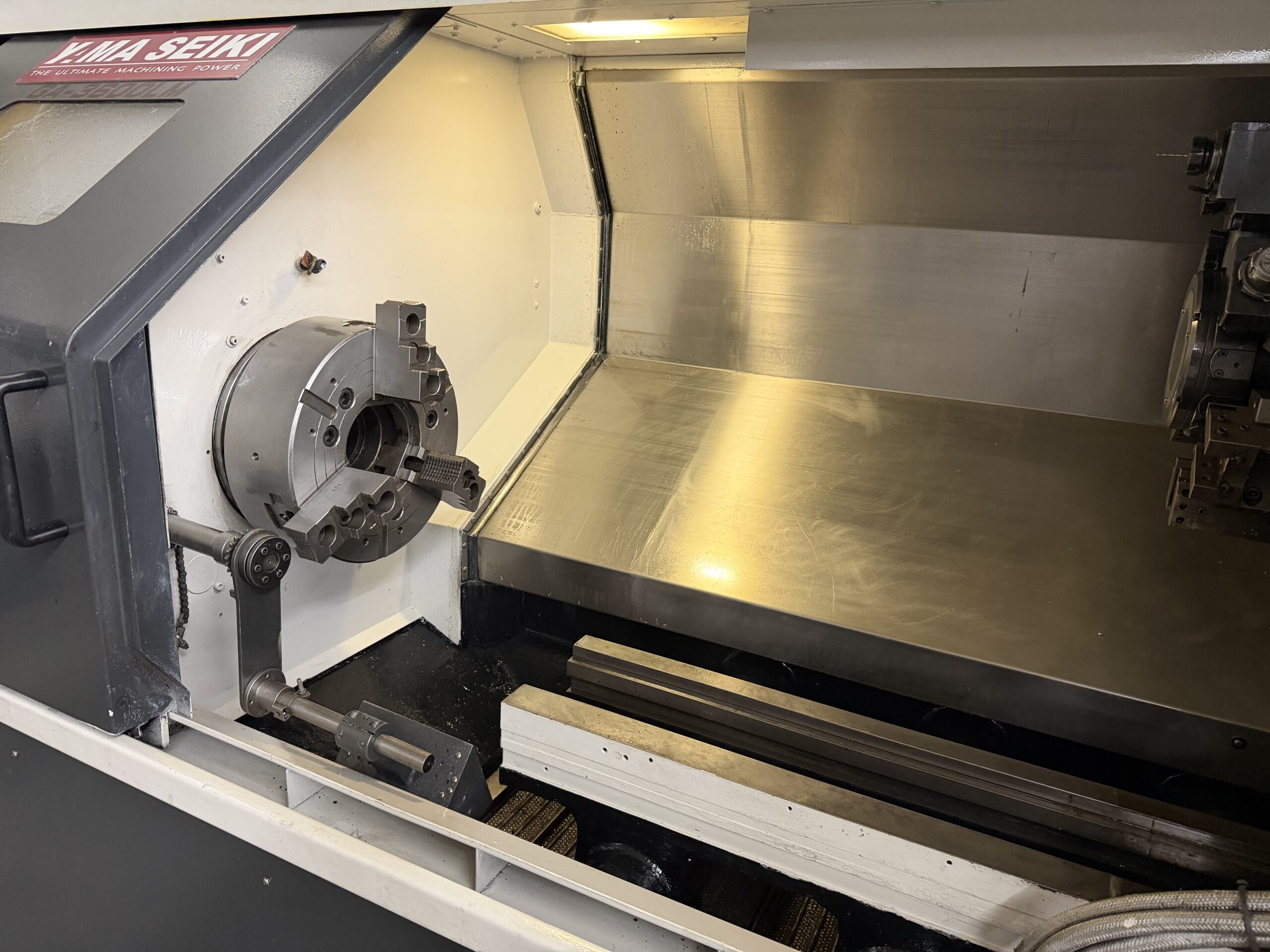

15”- 3 Jaw Chuck

4 Live Tool Holders

3 Static Tool Holder

Chip Conveyor

Coolant Unit

Manuals

Machine is in excellent condition and can be inspected under power at our warehouse in Independence, Missouri.
