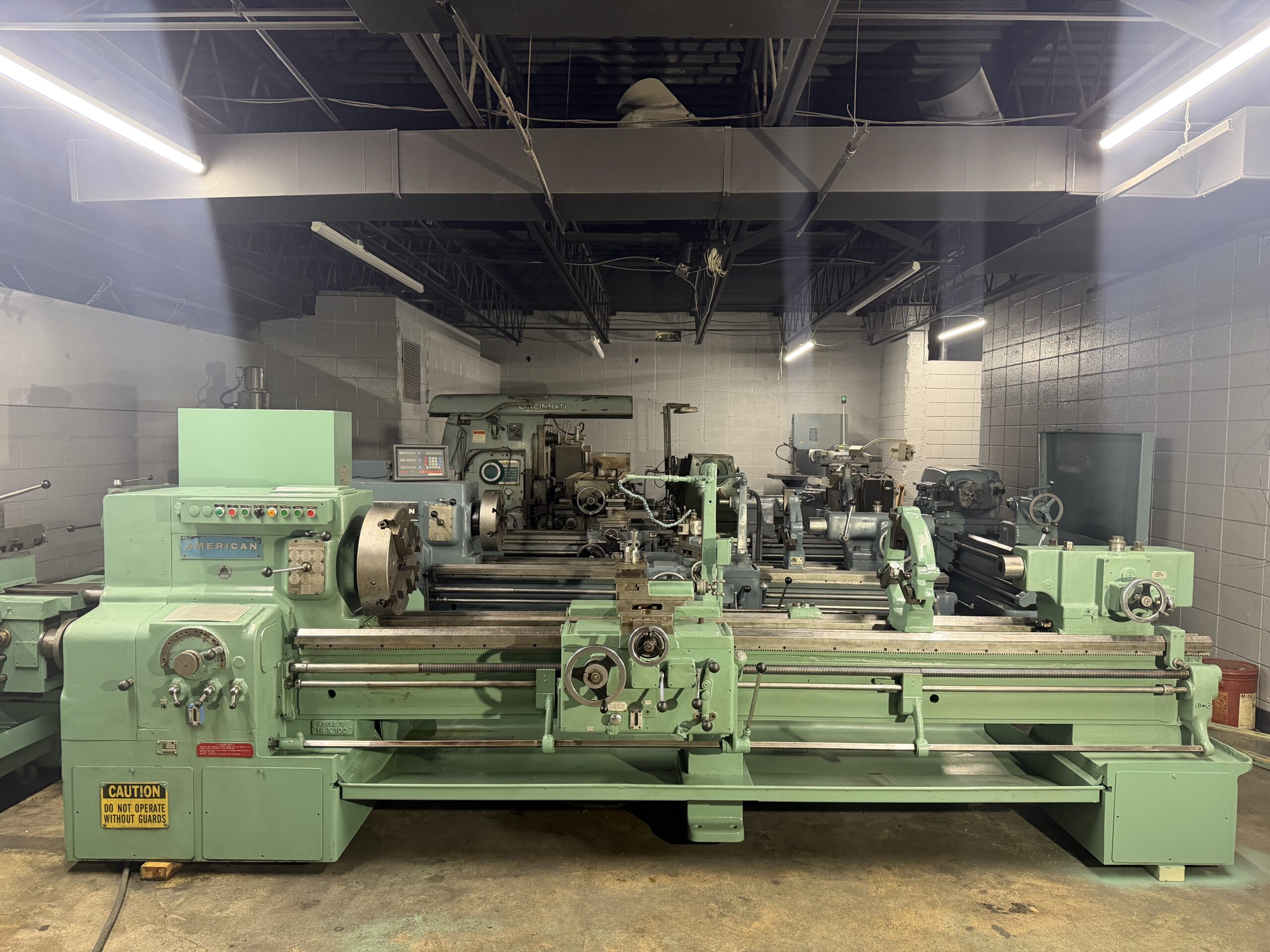

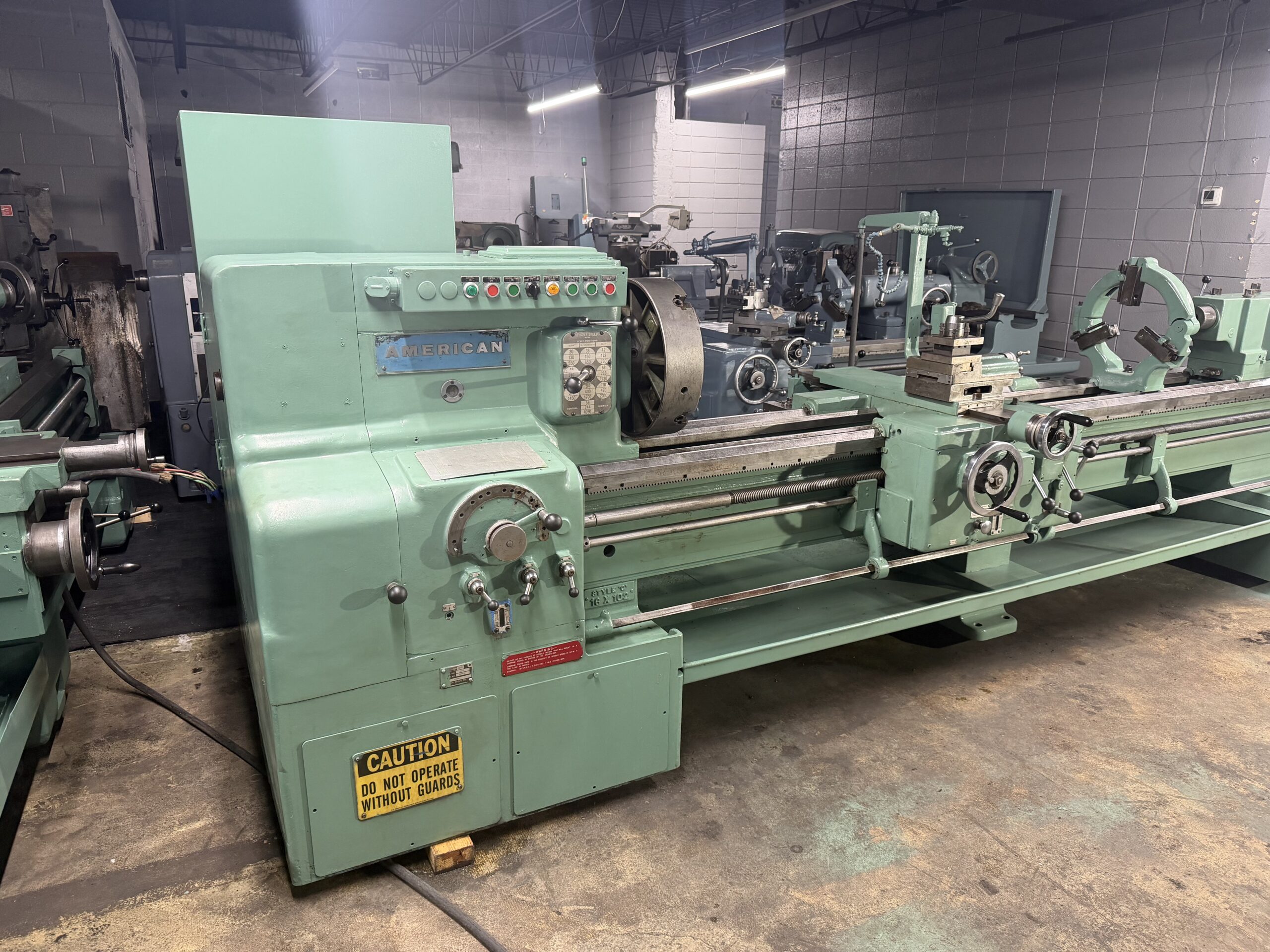

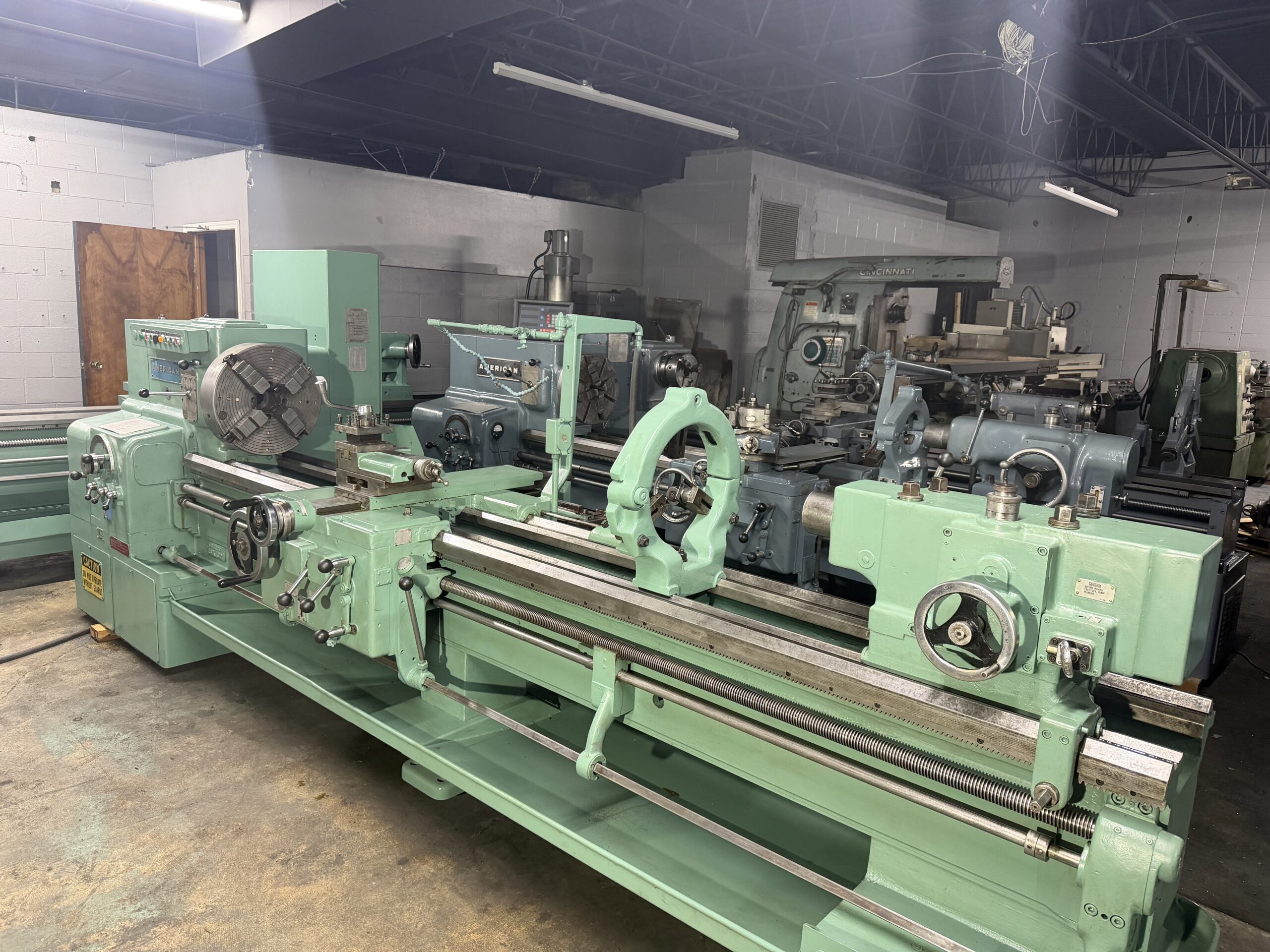

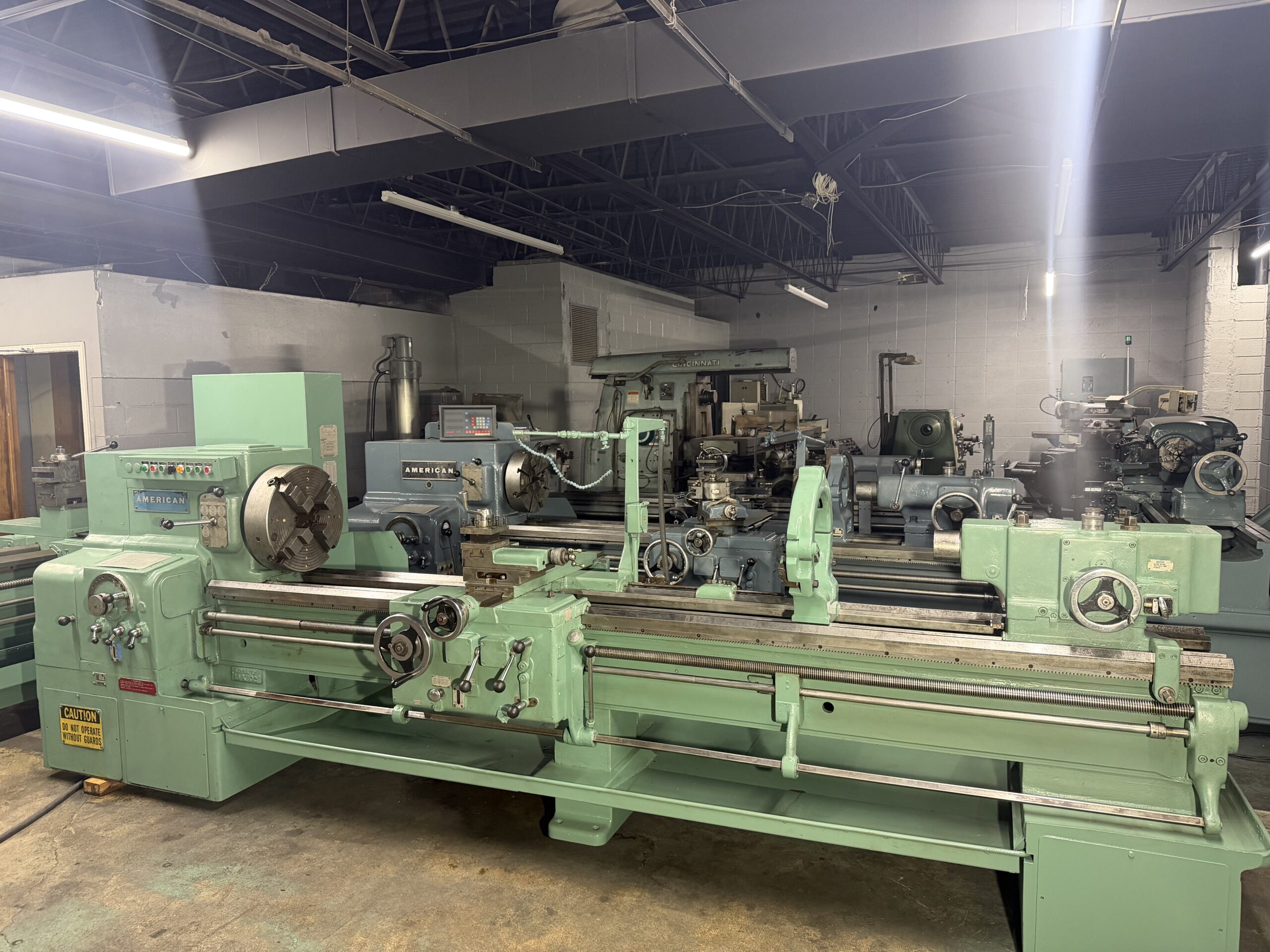

21”x 102” AMERICAN ENGINE LATHE
MODEL: Style C 16×102”
VIDEO LINK :
EQUIPPED WITH:
18″ 4-Jaw Chuck w/Jaws – Steady Rest
Steady Rest

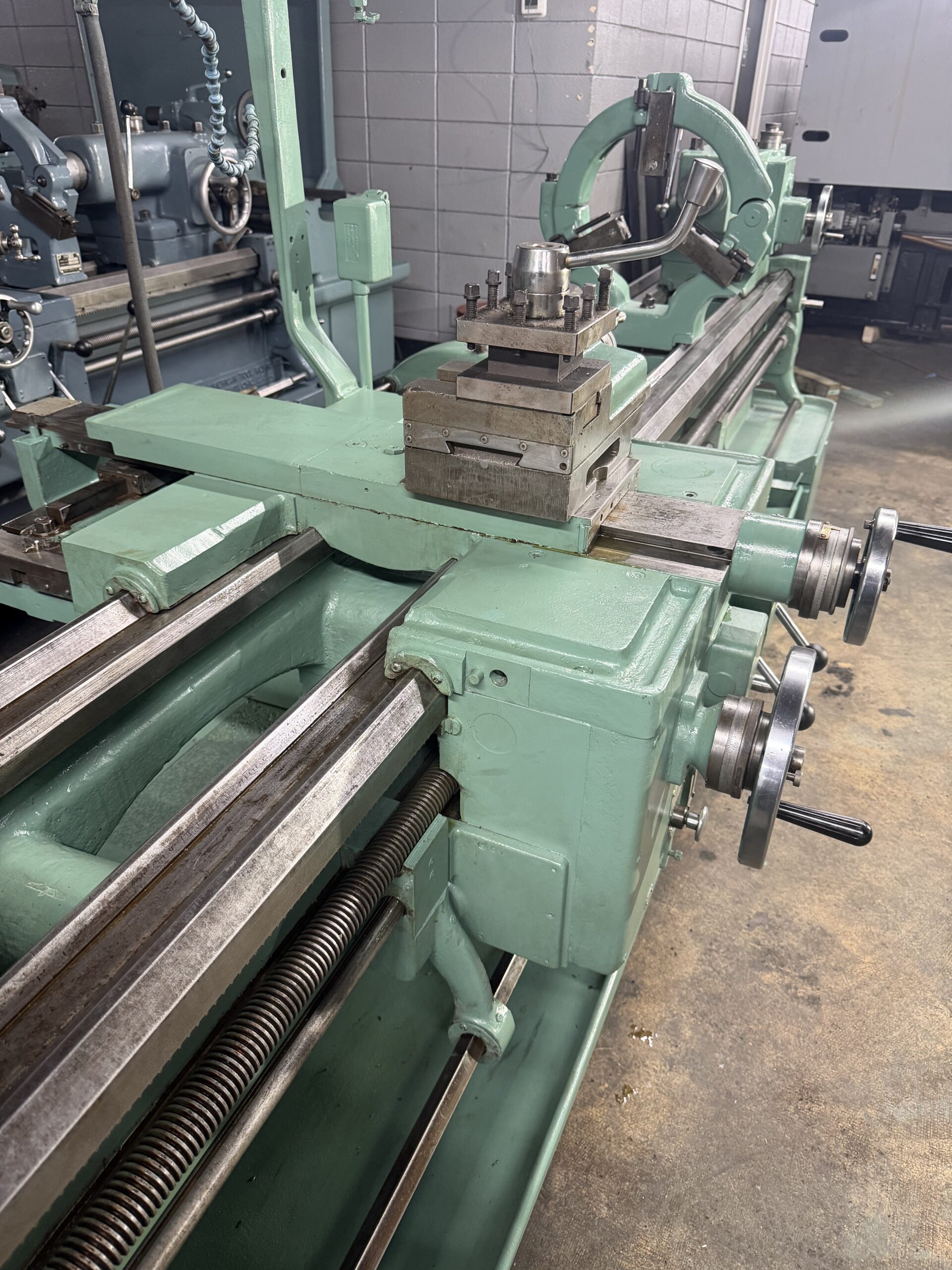

Hard Ways – 4-Way Tool Post
Full-Length Lead-Screw Threading
Quick Change Gear Box and Threading Dial
Full Length Coolant-Chip Pan
SPECIFICATIONS:
Hole Thru Spindle…………………. 2″
Swing Over Bed Ways, Rated…………. 16″
Swing Over Bed Ways, Actual………… 21”
Swing Over Carriage Wings………….. 20″
Swing Over Cross-Slide…………….. 13″
Distance Between Centers…………… 102”

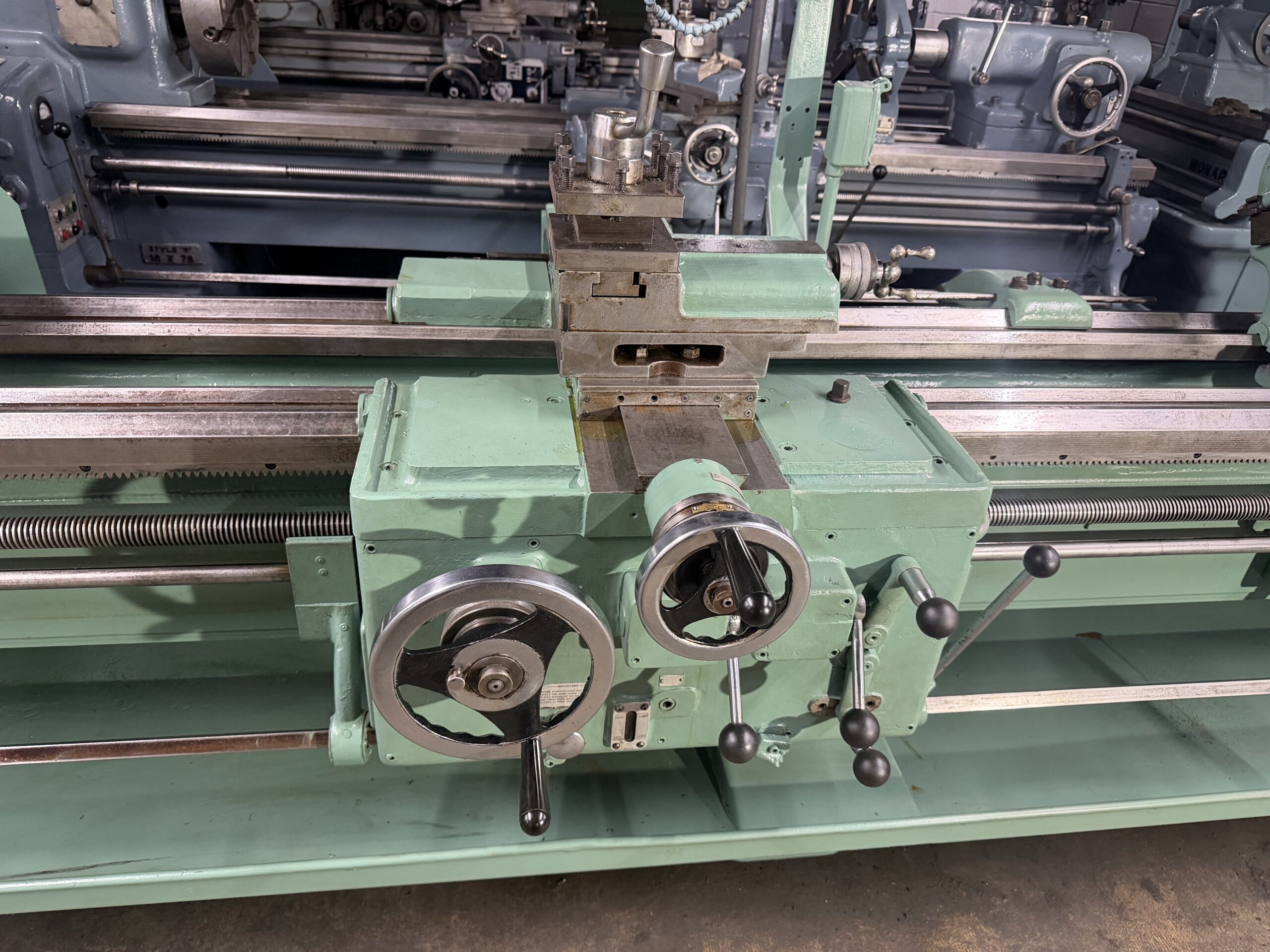

Cross-Slide Cross-Feed Travel………. 12.25″
Top-Slide Cross-Feed Travel………… 4″
Tailstock, Spindle Diameter………… 4″
Tailstock, Spindle Travel………….. 10″
Tailstock, Spindle Taper…………… #4 MT

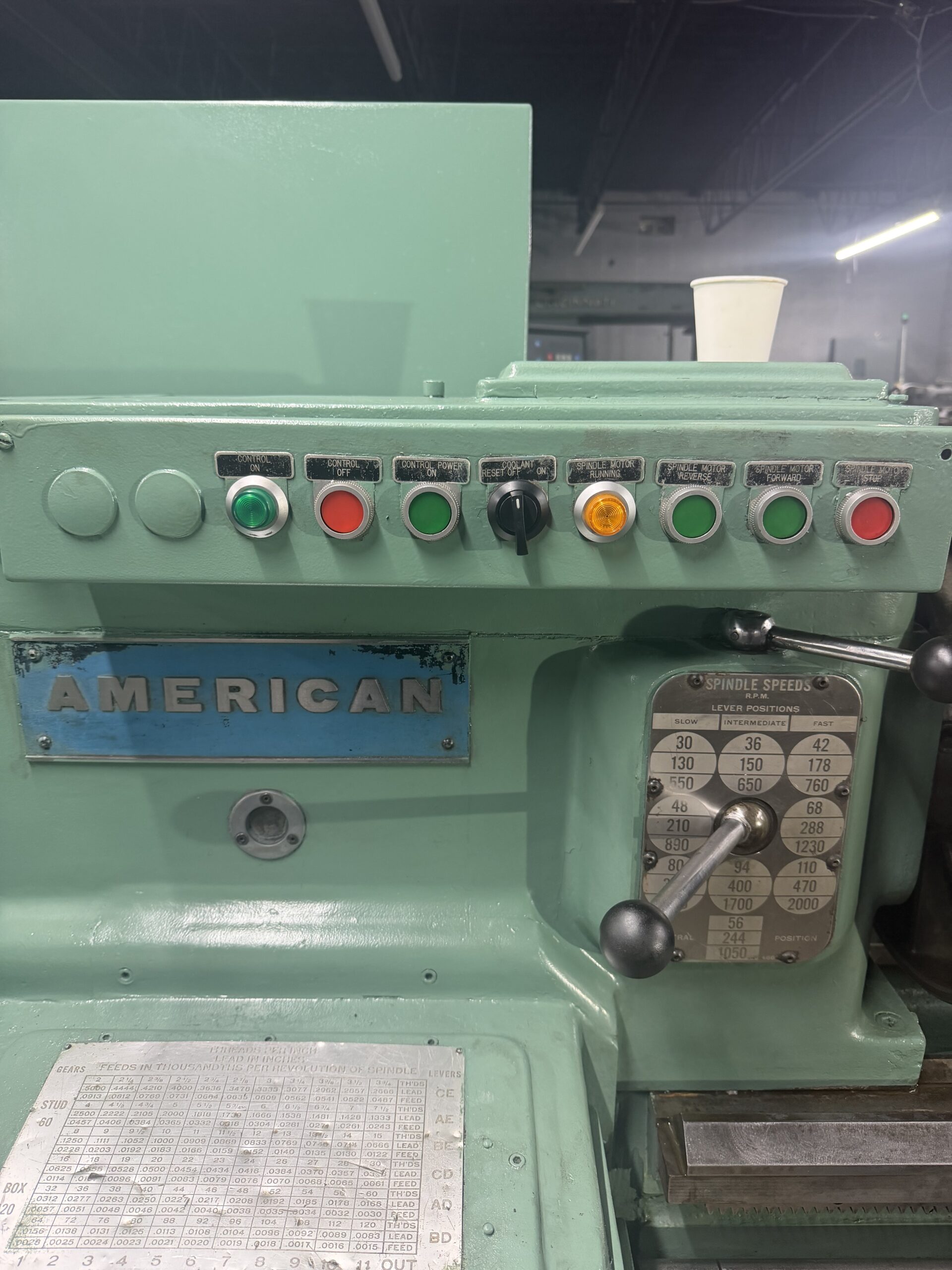

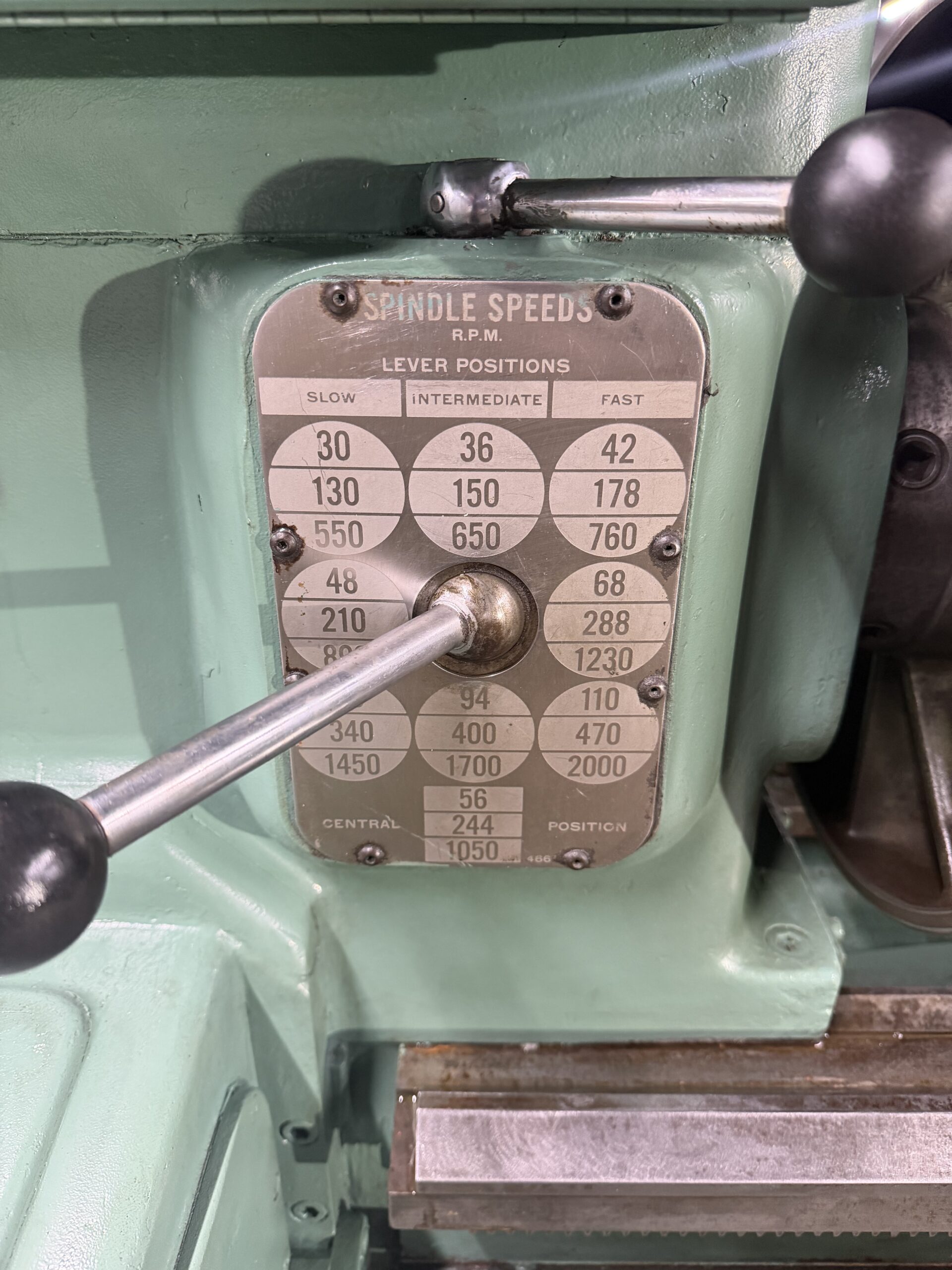

(27) Spindle Speeds, Range…………. 30 to 2000RPM
(66) Carriage Longitudinal Feeds……. .0015 to .091 IPR
(66) Thread Changes, Range…………. 2 to 120 TPI
Weight, Approximately……………… 12,500LBS
Machine is in excellent condition and can be inspected under power at our warehouse in Independence, Missouri.
