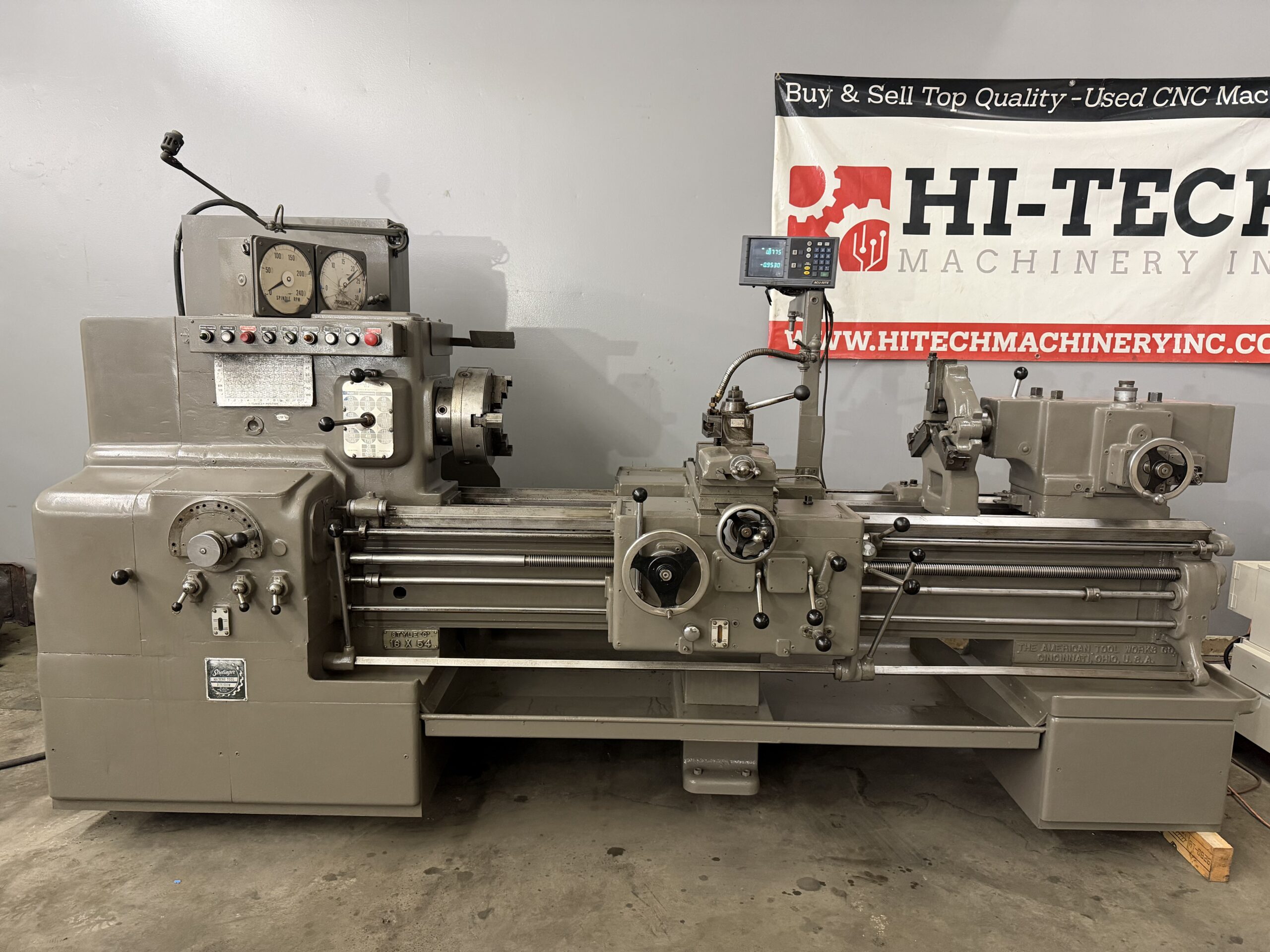

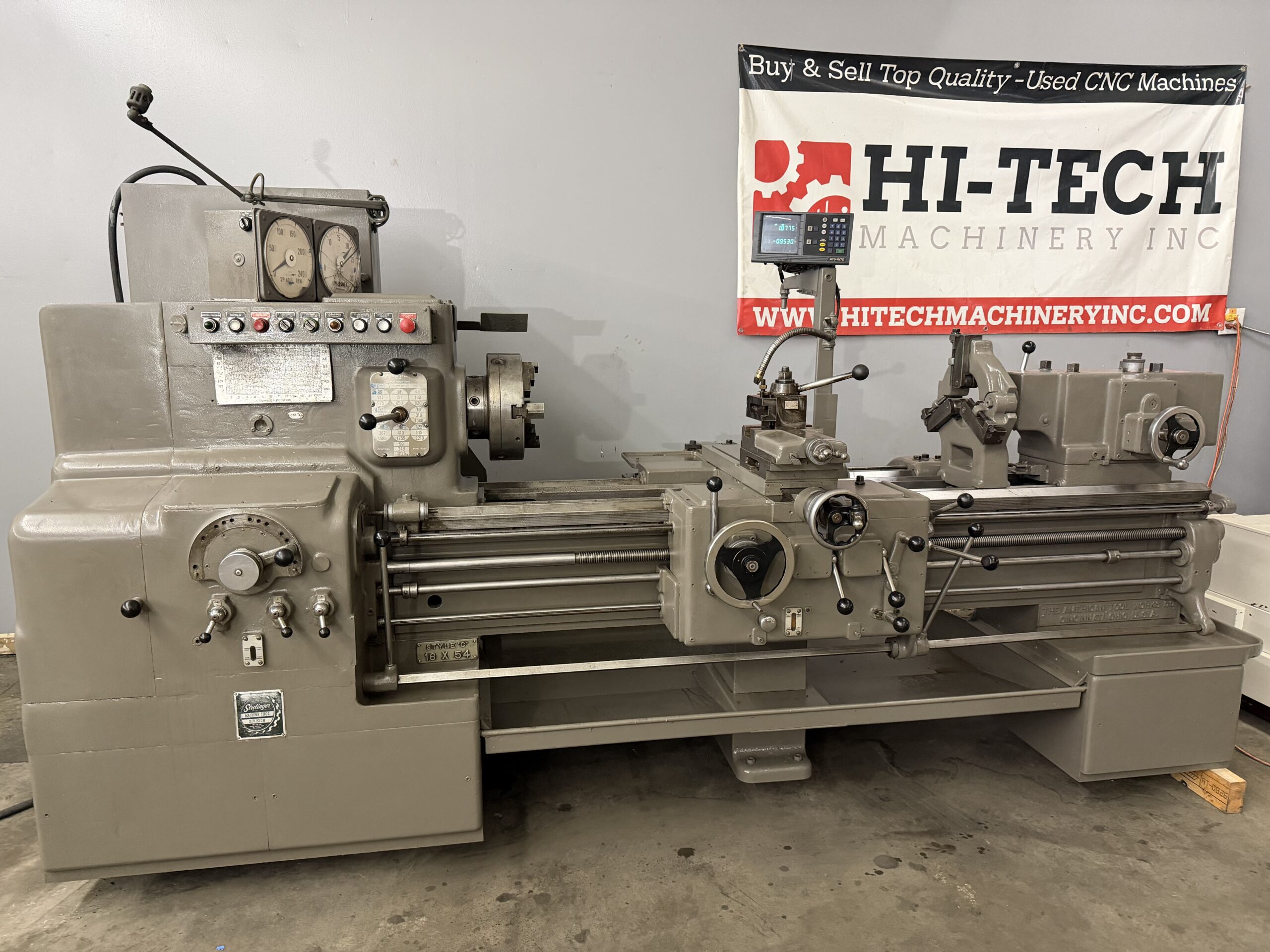

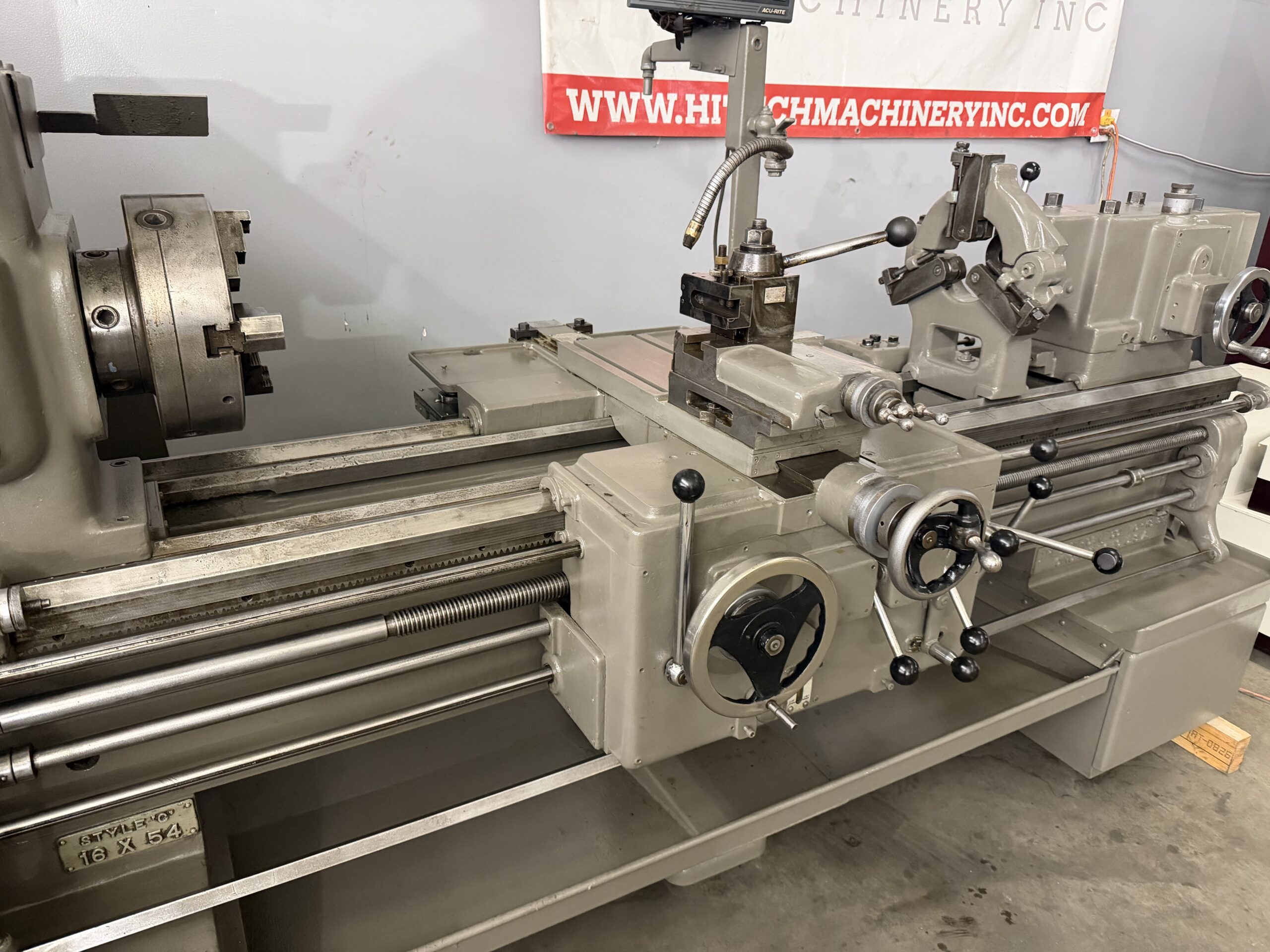

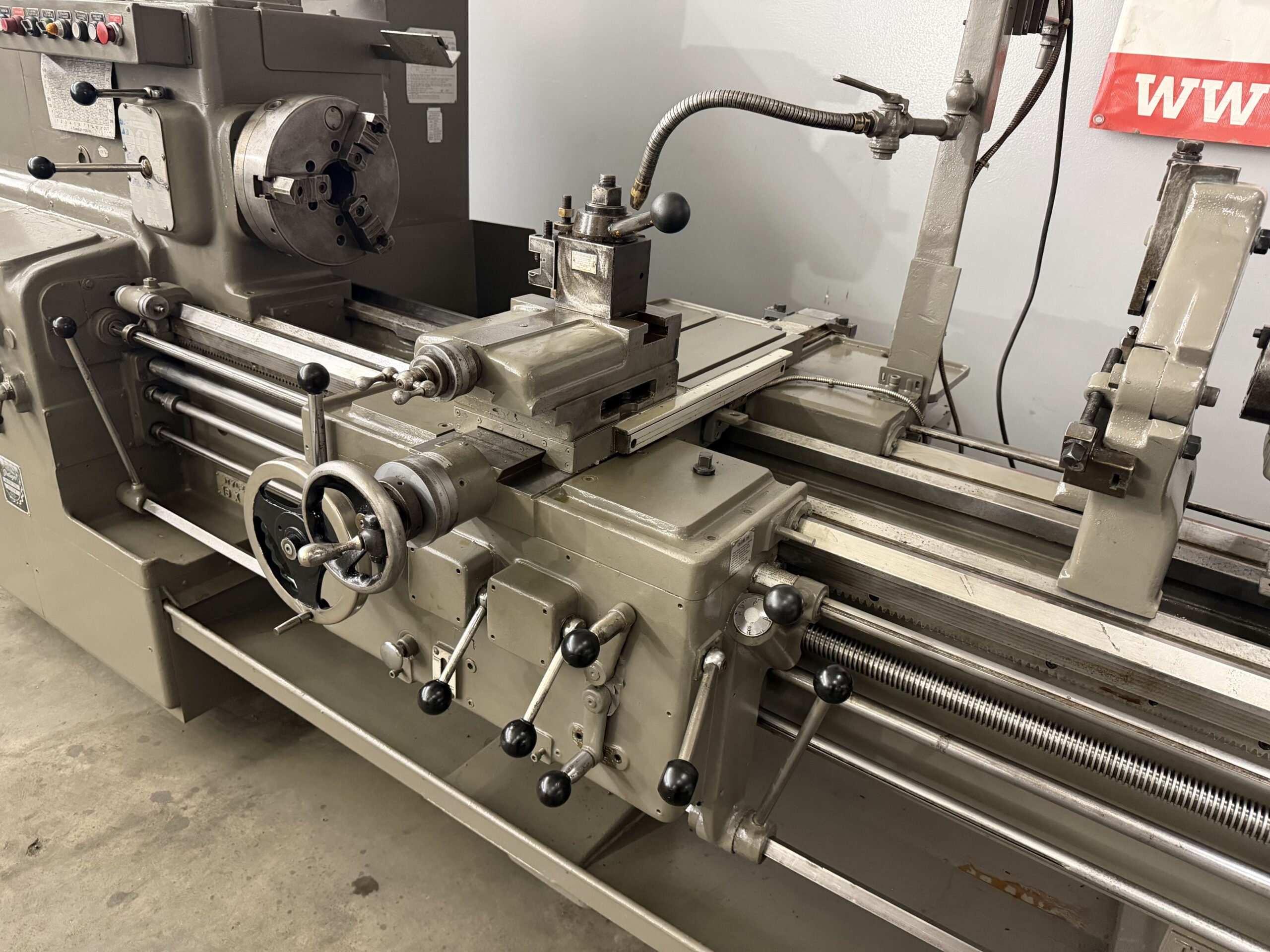

20”x 54 AMERICAN ENGINE LATHE

MODEL: STYLE C 16”x54”

VIDEO LINK:

SPECIFICATIONS:

ACTUAL SWING OVER BED ………….. 20”

SWING OVER CROSS SLIDE …………. 11

DISTANCE BETWEEN CENTERS ……….. 54

HOLE THRU SPINDLE ……………… 2

SPINDLE NOSE ………………….. D1-6

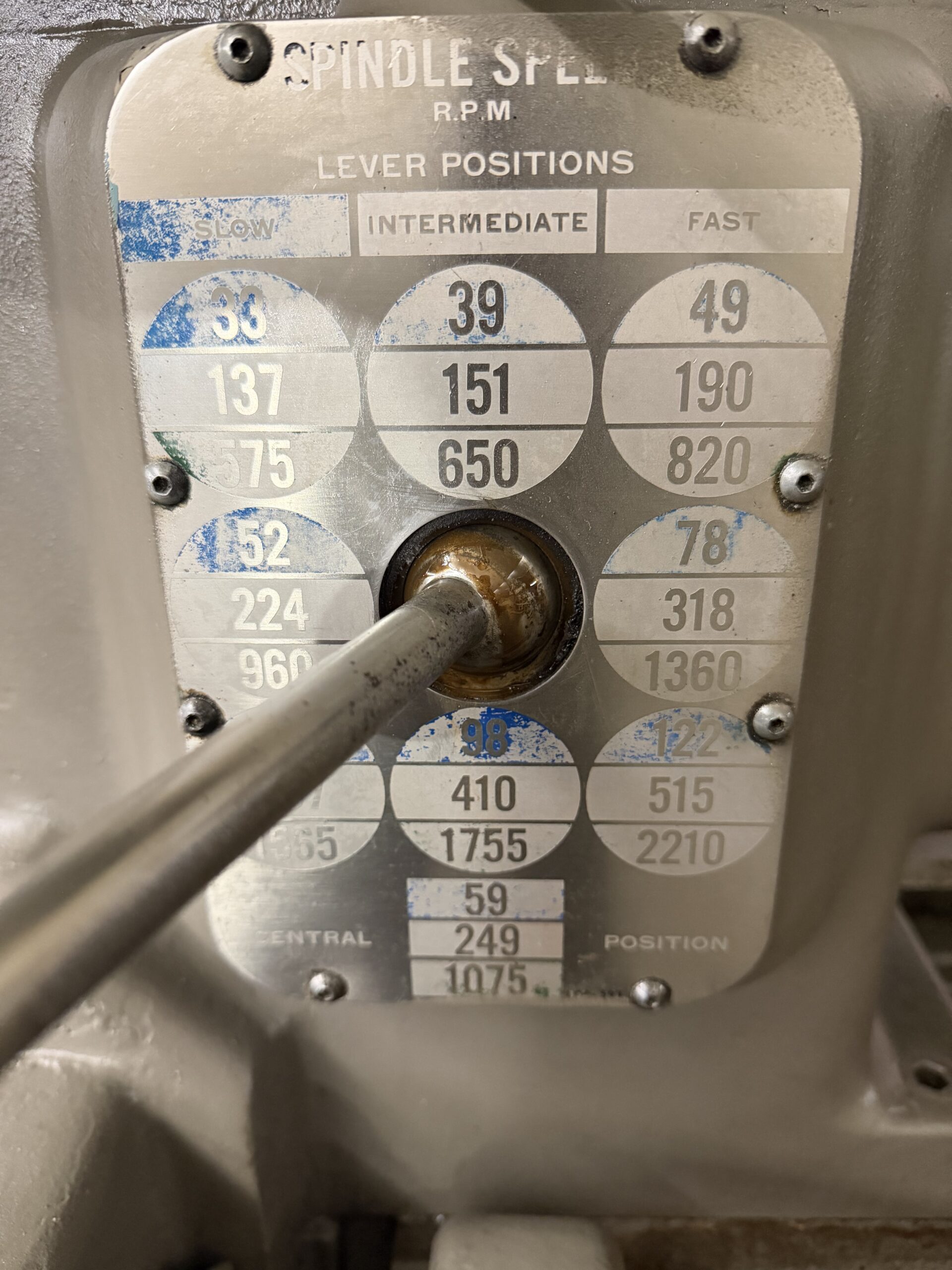

SPINDLE SPEEDS (27) ……………. 33- 2210 RPM

THREAD RANGE – INCH (66) ……….. 2 – 120 TPI

LONGITUDINAL FEED RANGE(66) …….. .0015 – .091 IPR

CROSS FEED RANGE(66) …………… .5 – .0083 IPR

TAILSTOCK SPINDLE DIAMETER ……… 4

TAILSTOCK SPINDLE TRAVEL ……….. 10

TAILSTOCK SPINDLE TAPER ………… #4 MORSE

BED WIDTH …………………….. 16

APPROX WEIGHT …………………. 9,500 LBS

APPROX DIMENSIONS ……………… 120L x 56W x 57H

EQUIPPED WITH:

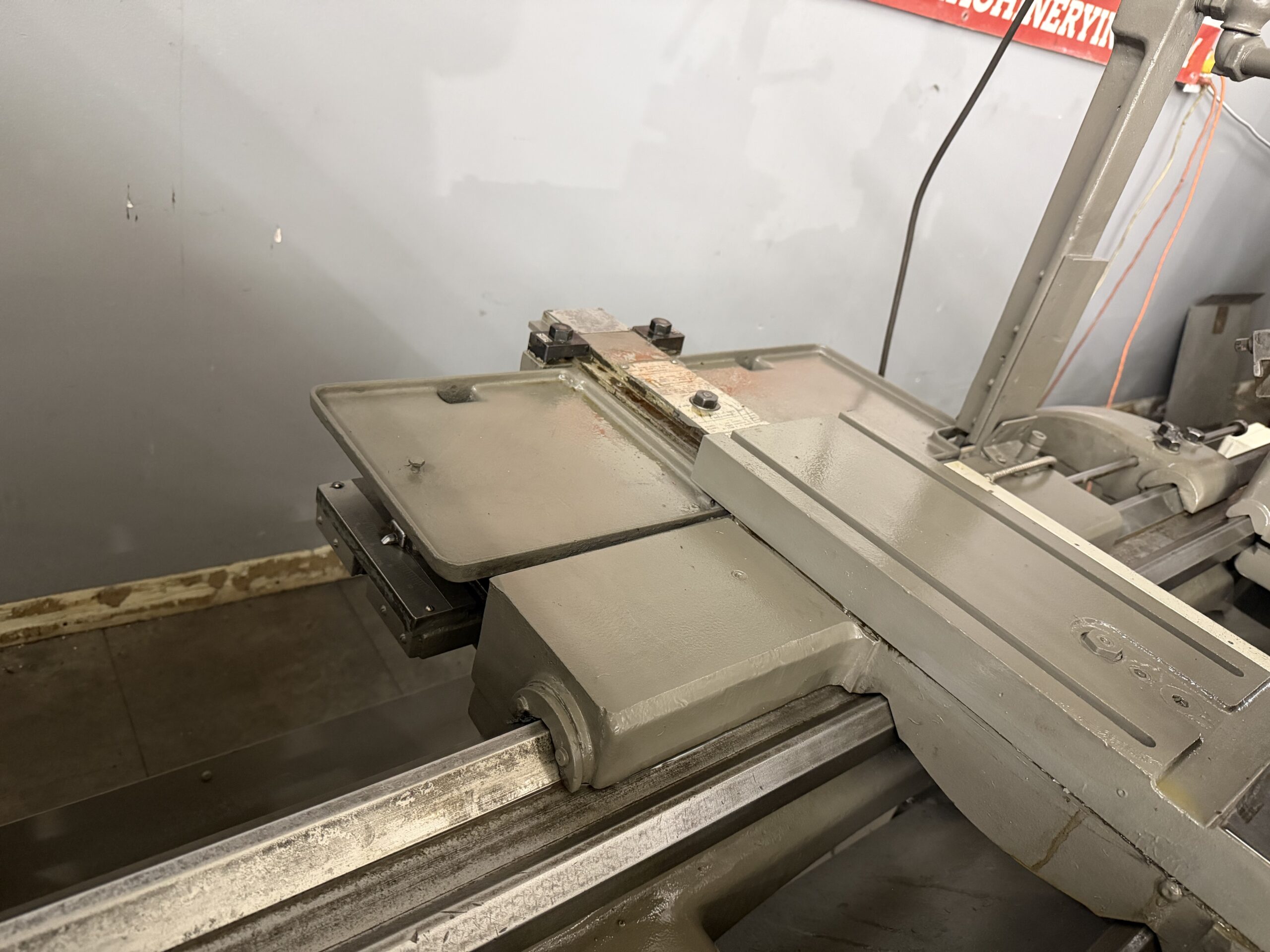

TAPER TURNING ATTACHMENT

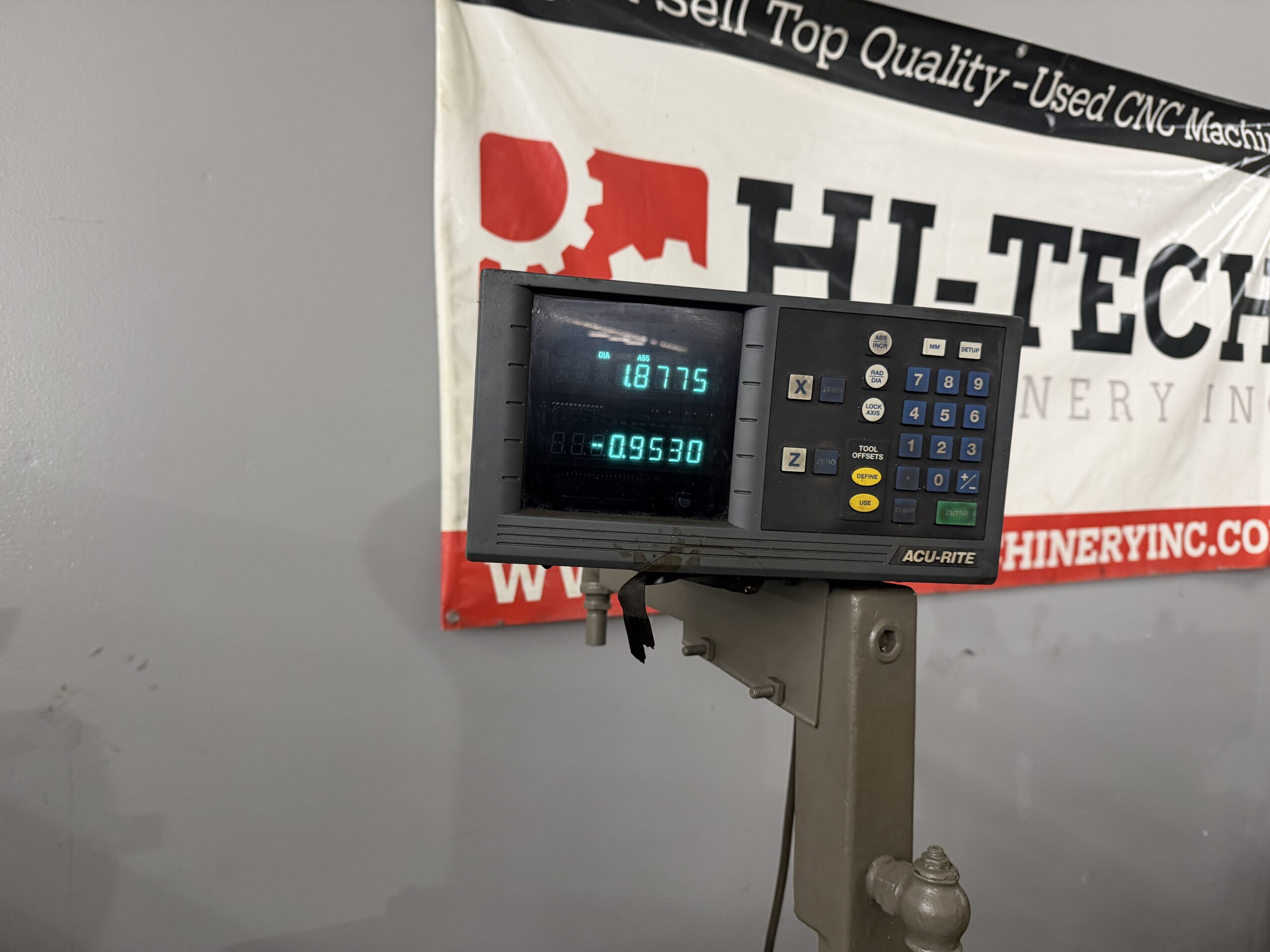

2 AXIS ACU-RITE DRO

RAPID TRANSVERSE ON THE LONGITUDINAL AND CROSS

TWO SPEED TAILSTOCK

FLAME HARDENED & GROUND BED WAYS

12 3-JAW CHUCK

THREADING DIAL

SELF CONTAINED COOLANT SYSTEM

MACHINE IS IN EXCELLENT CONDITION AND CAN BE INSPECTED UNDER POWER AT OUR WAREHOUSE IN INDEPENDENCE, MISSOURI.
