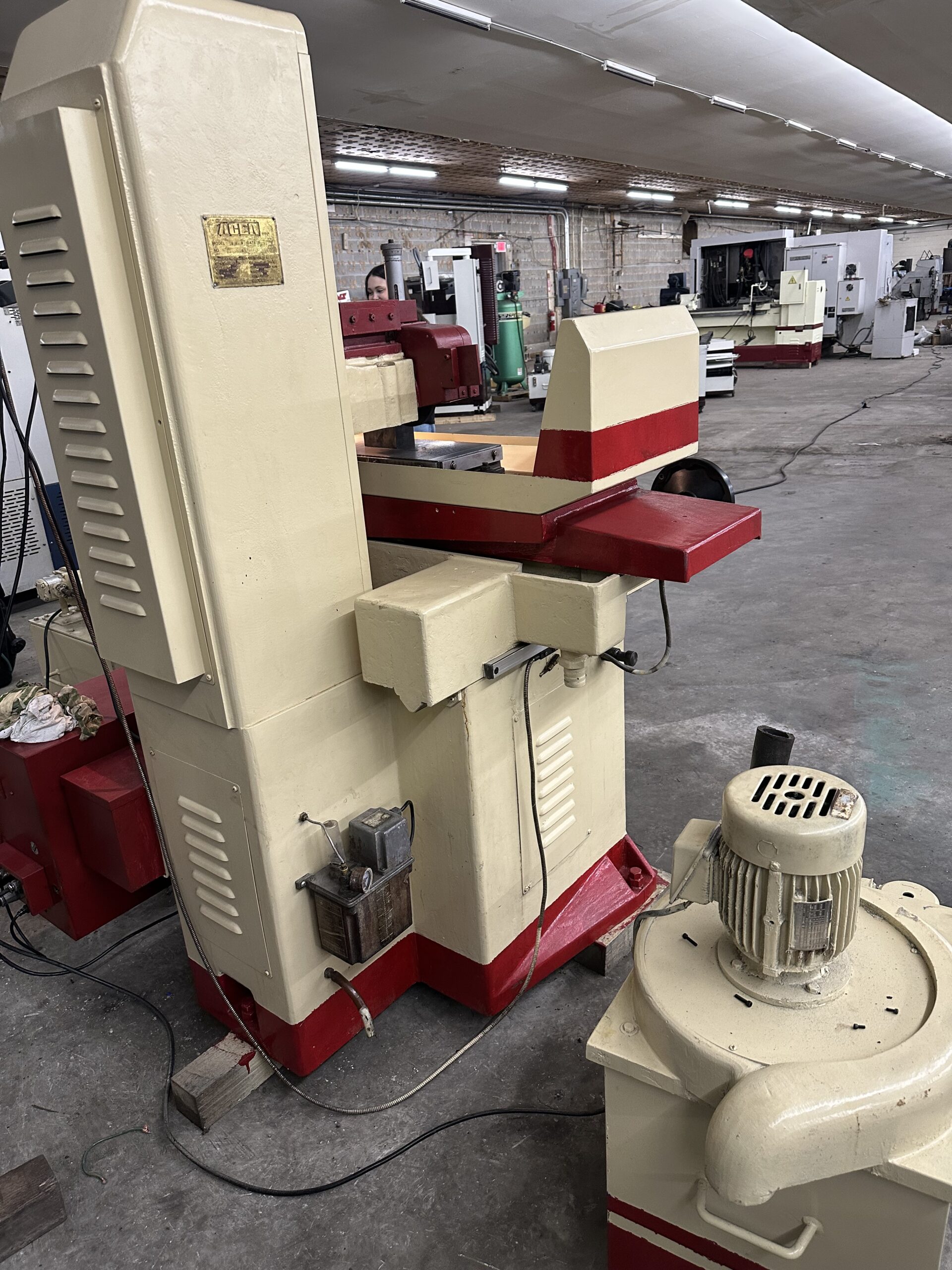

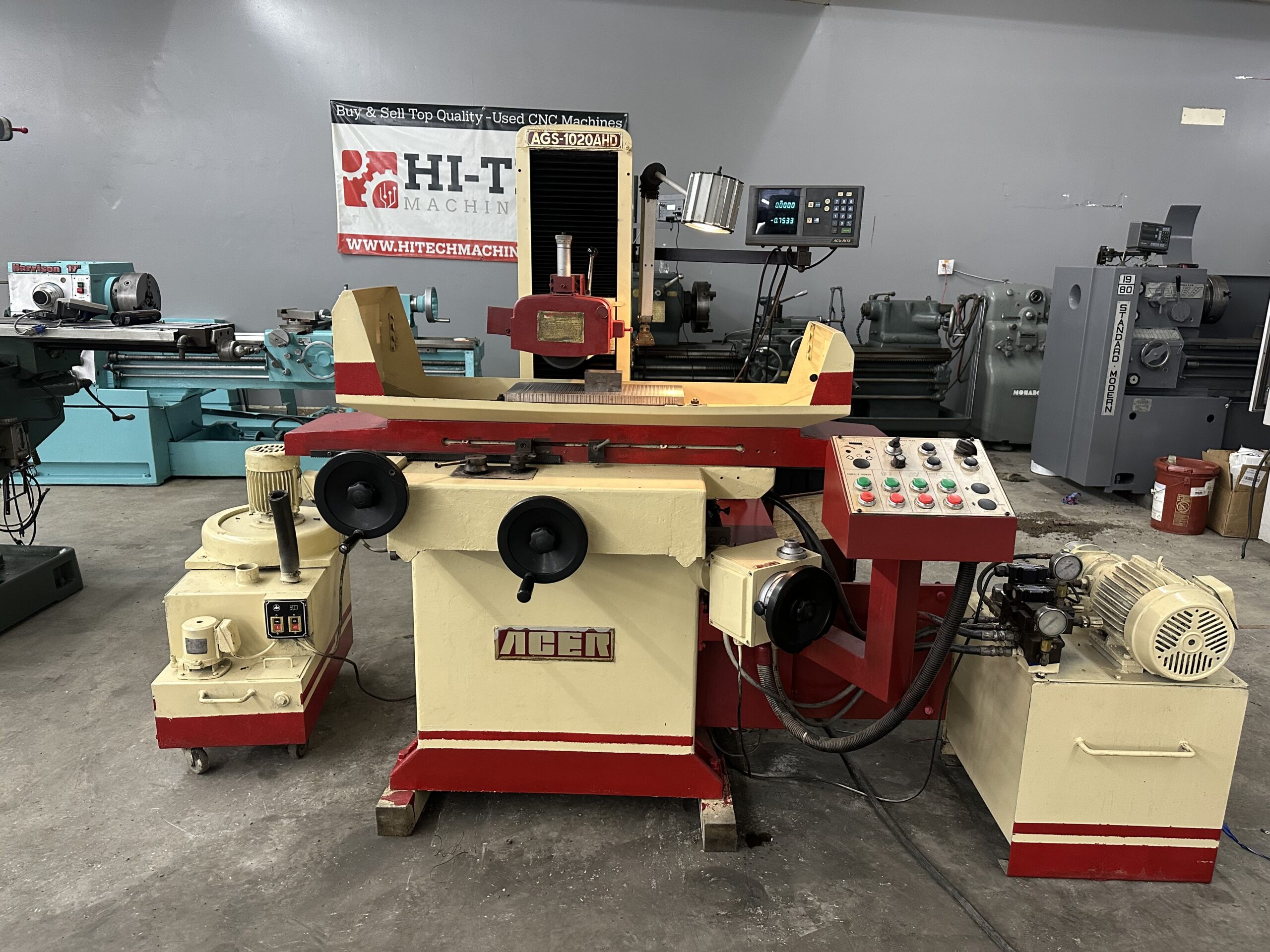

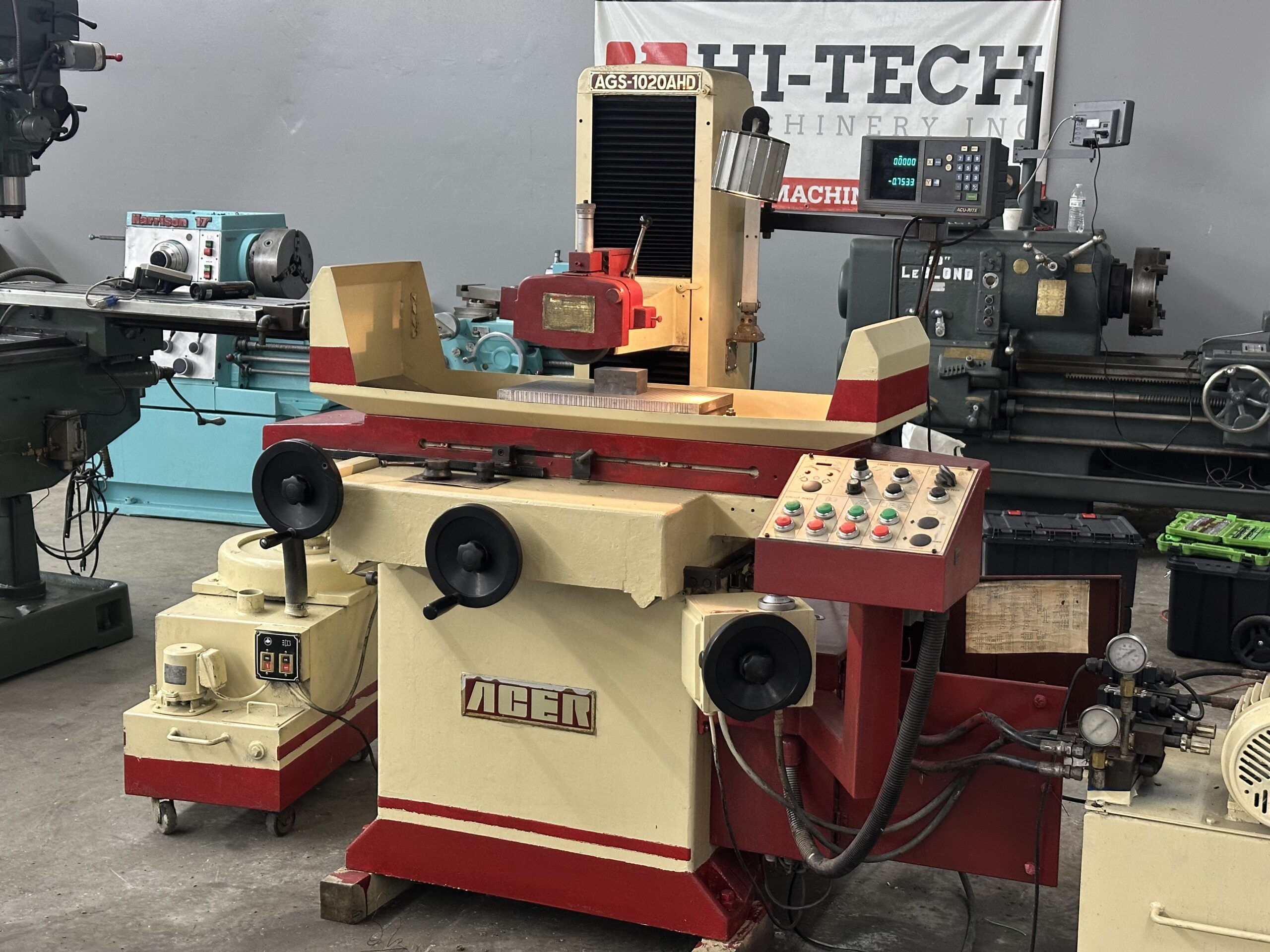

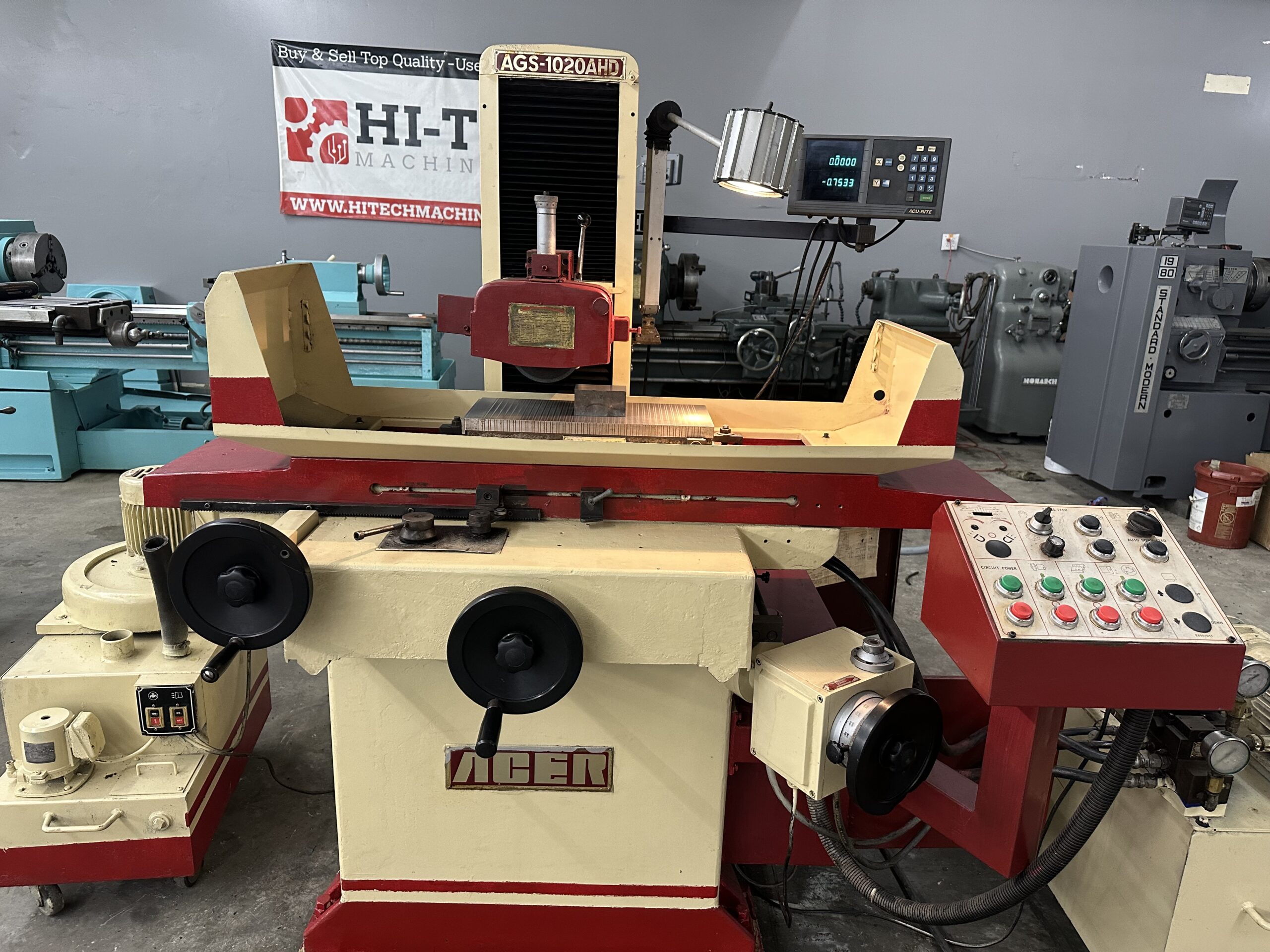

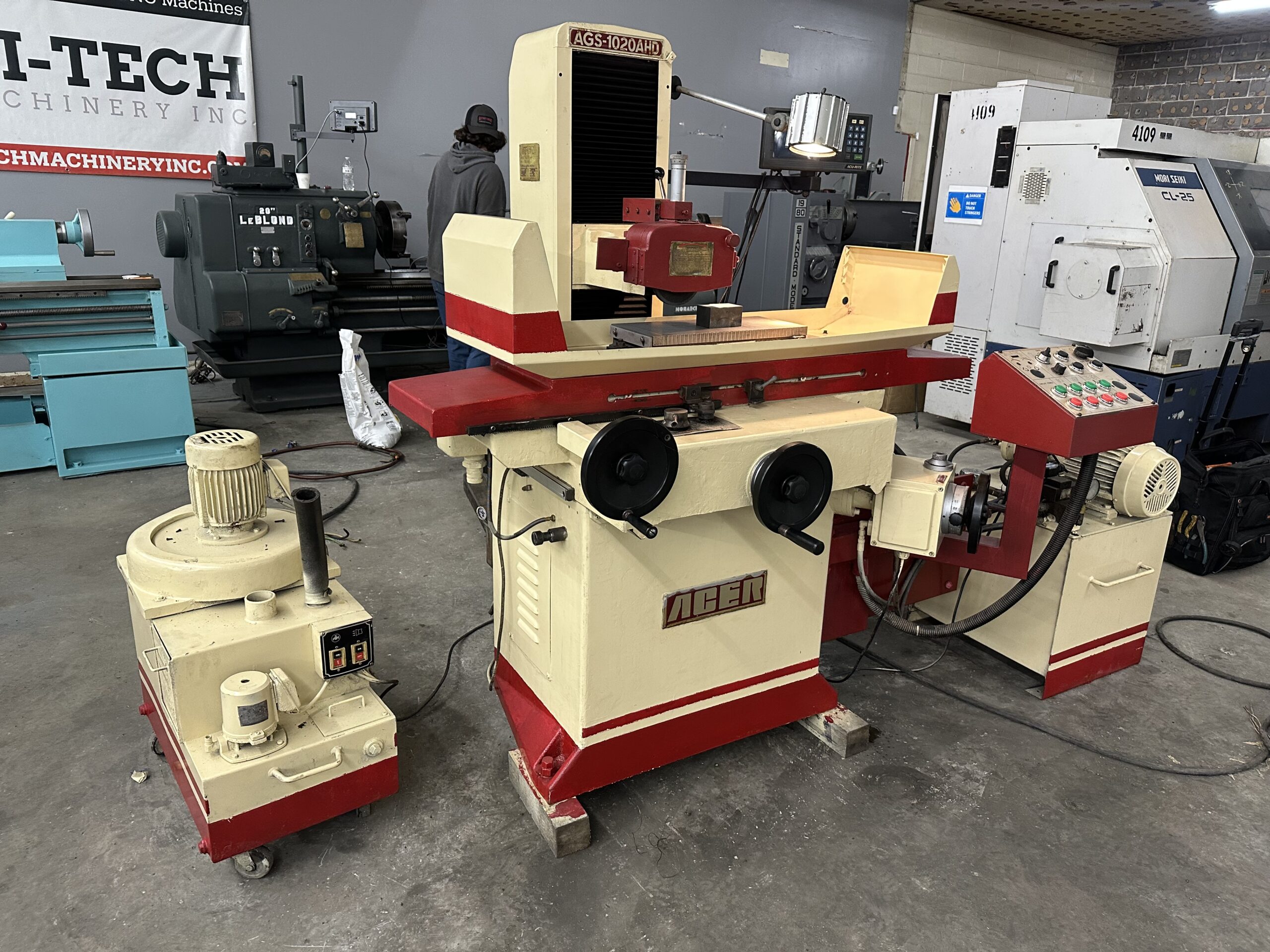

10″ x 20″ ACER AUTOMATIC HYDRAULIC AUTOMATIC SURFACE GRINDER

New 1996, Serial No 95883910, Model AGS-1020AHD,


VIDEO LINK :


EQUIPPED WITH:

Electro-Magnetic Chuck

Incremental Power Down Feed

Parallel Grinding Wheel Dresser

Coolant System (Tank & Pump)

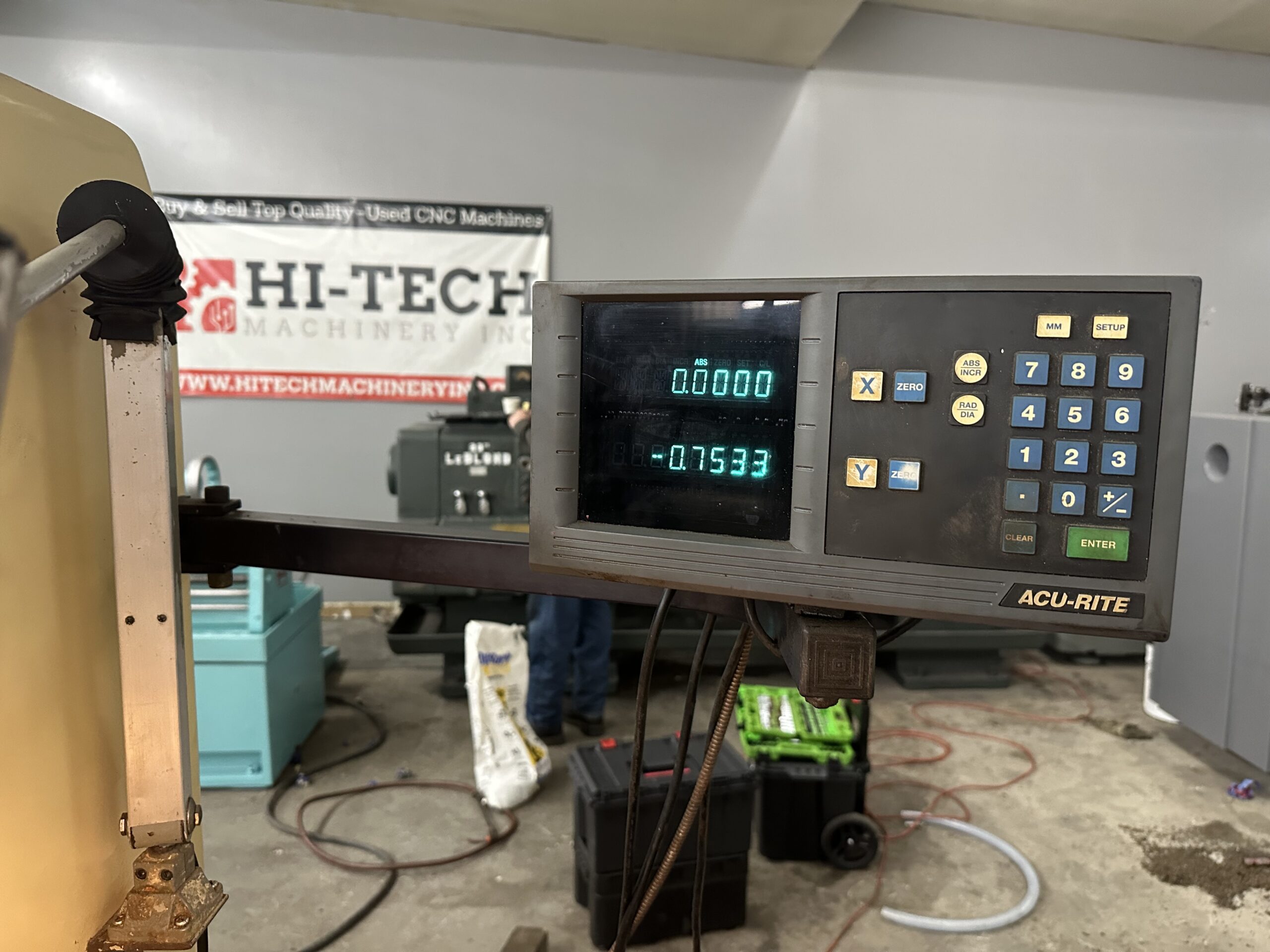

Acu-Rite DRO


CATALOG SPECIFICATIONS:

Table Working Surface, W x L 9″ x 20″

Grinding Width Capacity, Maximum 10″

Grinding Length Capacity, Maximum 20″

Height Spindle Center to Table, Maximum 19-1/2″

Table Load Capacity 1000 LBS

Table Longitudinal, Power 20-1/2″

Table Cross Travel 11″

Grinding Wheel Diameter, Standard 8″

Grinding Wheel Width, Standard 0.5″

Grinding Wheel Hole Diameter 1.25″

Grinding Spindle Speed 3580 RPM

Table Longitudinal Feeds, Range 16 to 80 FPM

Crossfeed Travel Feeds, Automatic 0 to 1″

Spindle Auto Downfeed , Range .0001 to .001 IPR

Spindle Horsepower 2 HP

Hydraulic Motor Horsepower 2 HP

Floor Space Required, 5’6″ x 6′

Weight, Approximately 3580 LBS


Machine is in excellent condition and can be inspected under power at our warehouse in Independence, Missouri.
