Description:

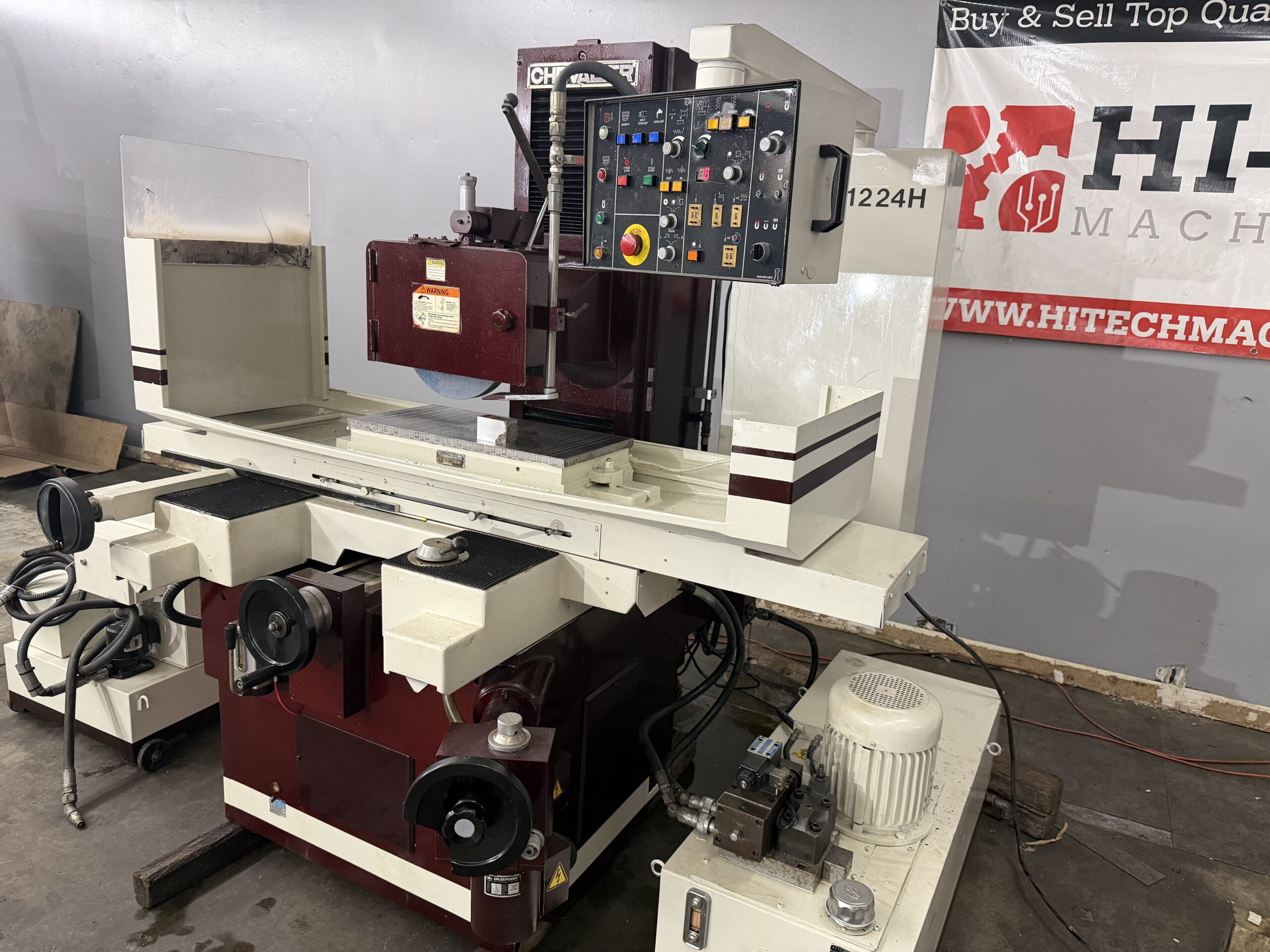

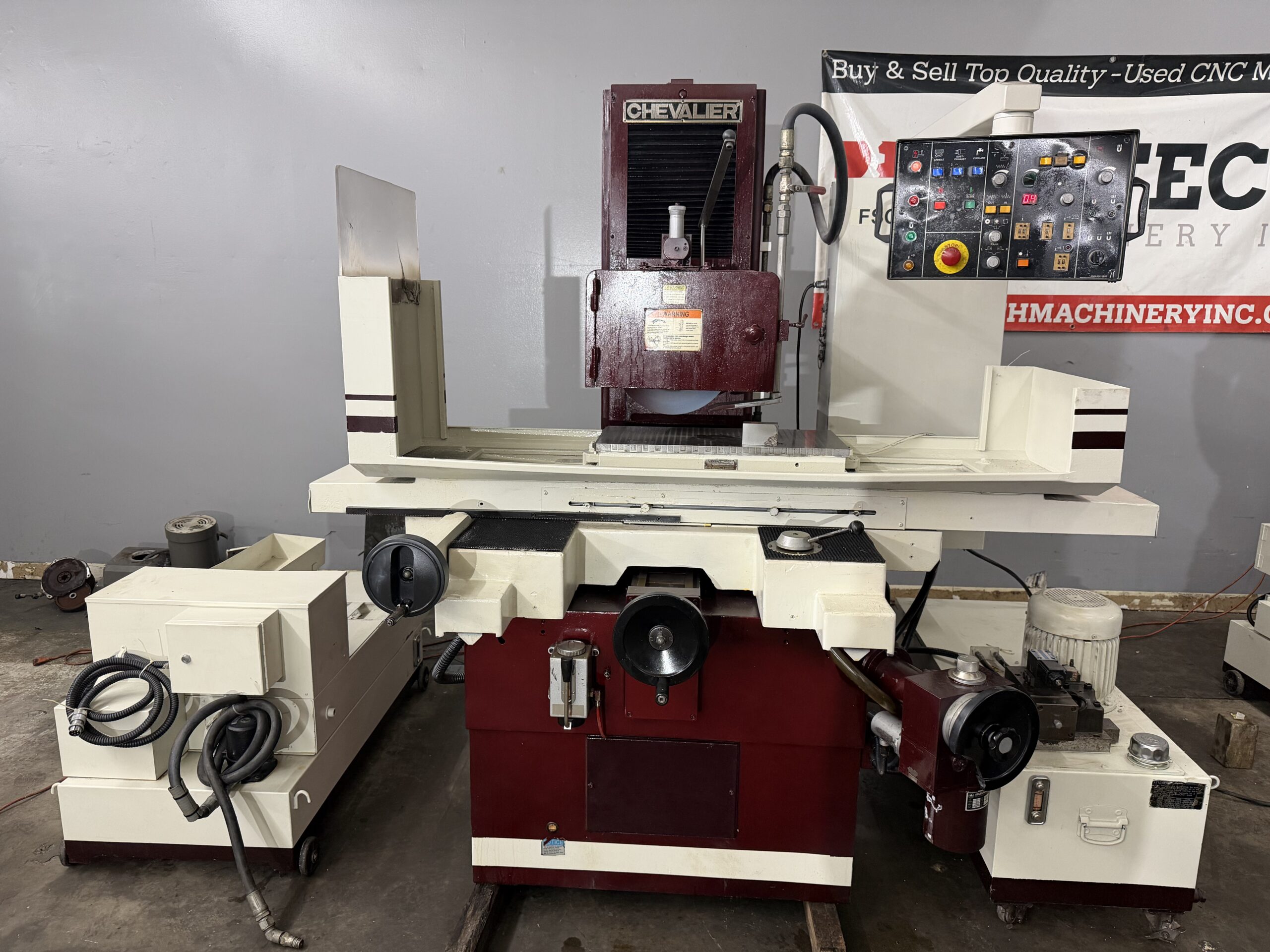

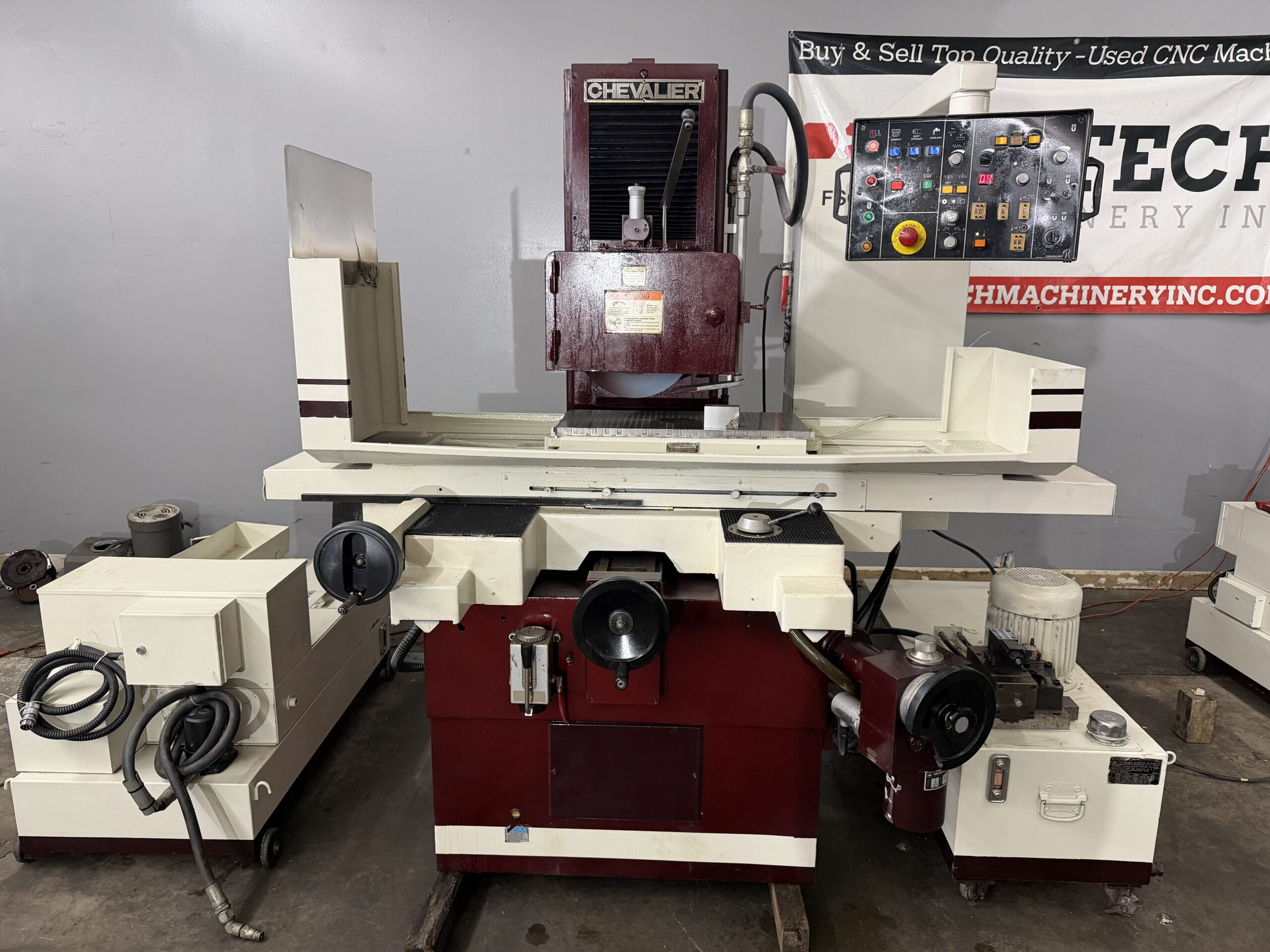

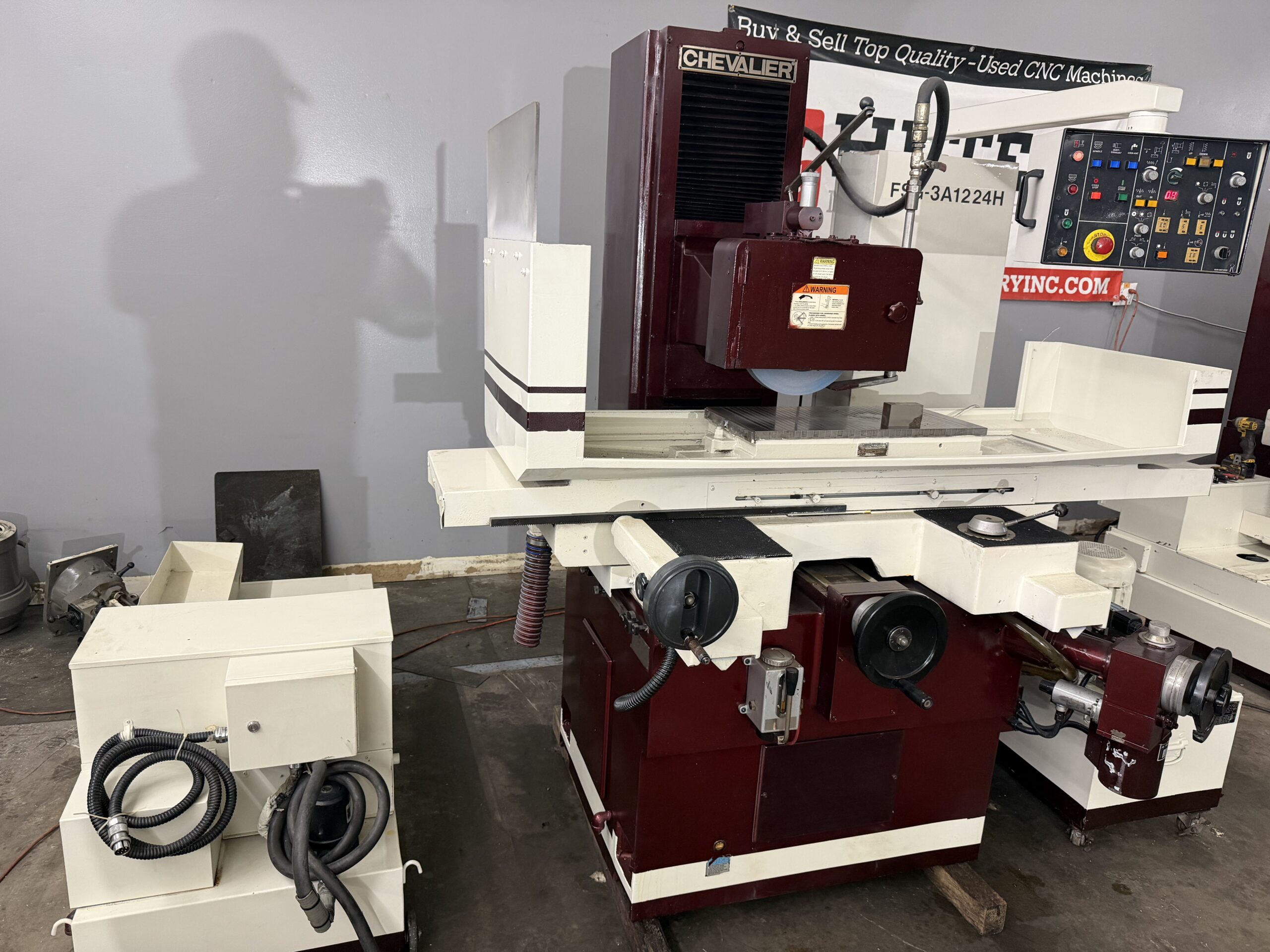

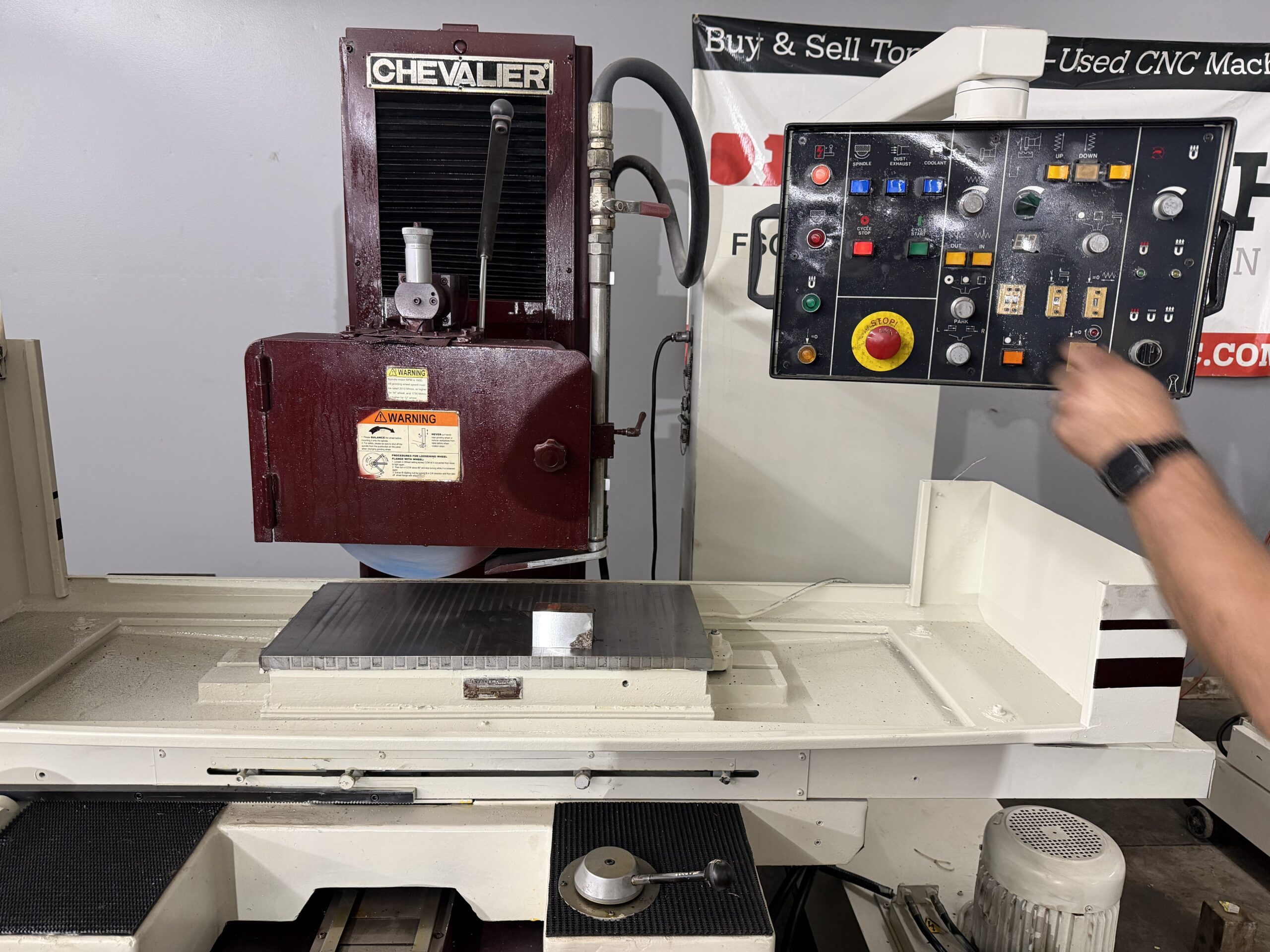

MODEL FSG-3A1224H,

EQUIPPED WITH:

AUTOMATIC DOWN FEED INCREMENT

5″ EXTRA HIGH COLUMN

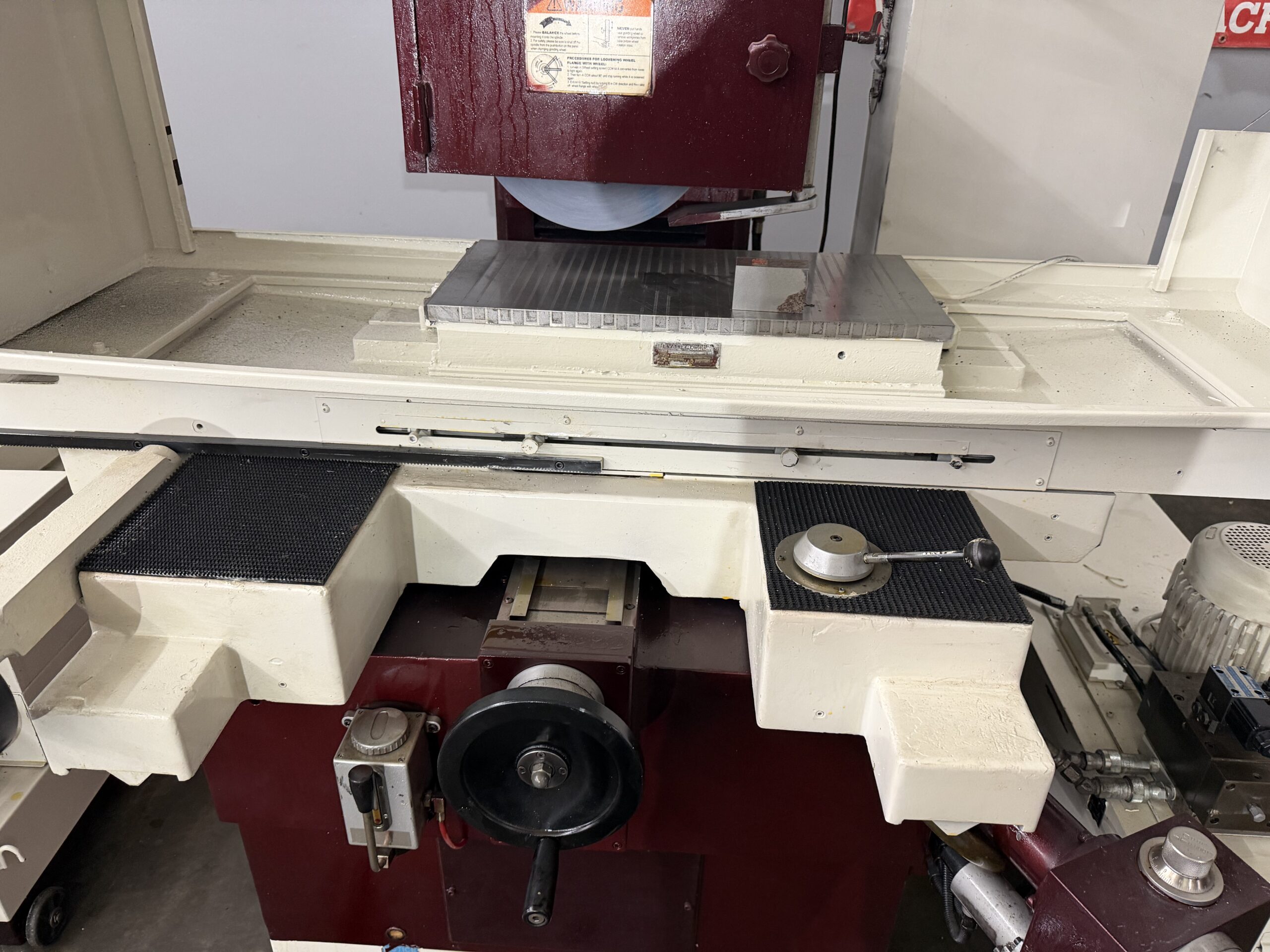

12″ X 24″ ELECTRO-MAGNETIC CHUCK

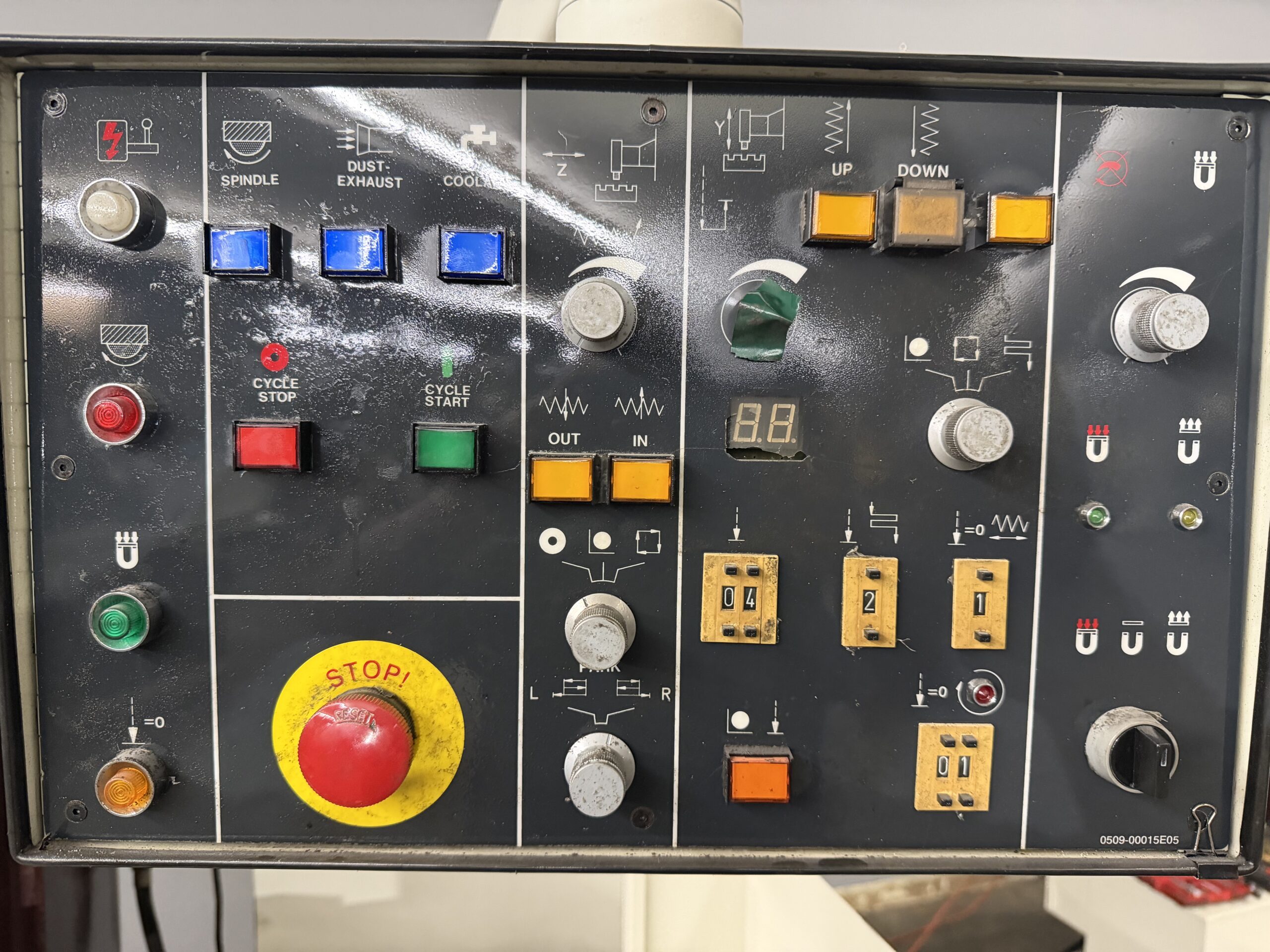

3-AXIS AUTOMATIC CONTROL

COOLANT SYSTEM

CATALOG SPECIFICATIONS:

Table Working Surface : 12″ x 24″

Grinding Width Capacity, Maximum : 12″

Grinding Length Capacity, Maximum : 24″

Height Spindle Centerline To Table, Maximum : 24.75″

Grinding Wheel Diameter, Standard : 14″

Grinding Wheel Width, Standard : 2″

Grinding Wheel Hole Diameter : 5″

Table Longitudinal Travel Hydraulic : 25.37″

Table Longitudinal Travel Manual : 27.5″

Table Cross Travel, Automatic : 14.17″

Table Cross Travel, Manual : 14.5″

Table Longitudinal Feeds, Range : 16 to 82 FPM

Table Cross In-Feeds, Range : .125 to 2 IPR

Spindle Vertical Feeds, Automatic : .0001 to .002 IPR

Power Rapid Vertical Traverse : 13 IPM

Grinding Wheel Spindle Motor : 5 HP

Floor Space Required : 106″ x 66″

Overall Height 82″

Weight, Approximately 4630 LBS

Machine is in excellent condition and can be inspected under power at our warehouse in Independence, Missouri.
