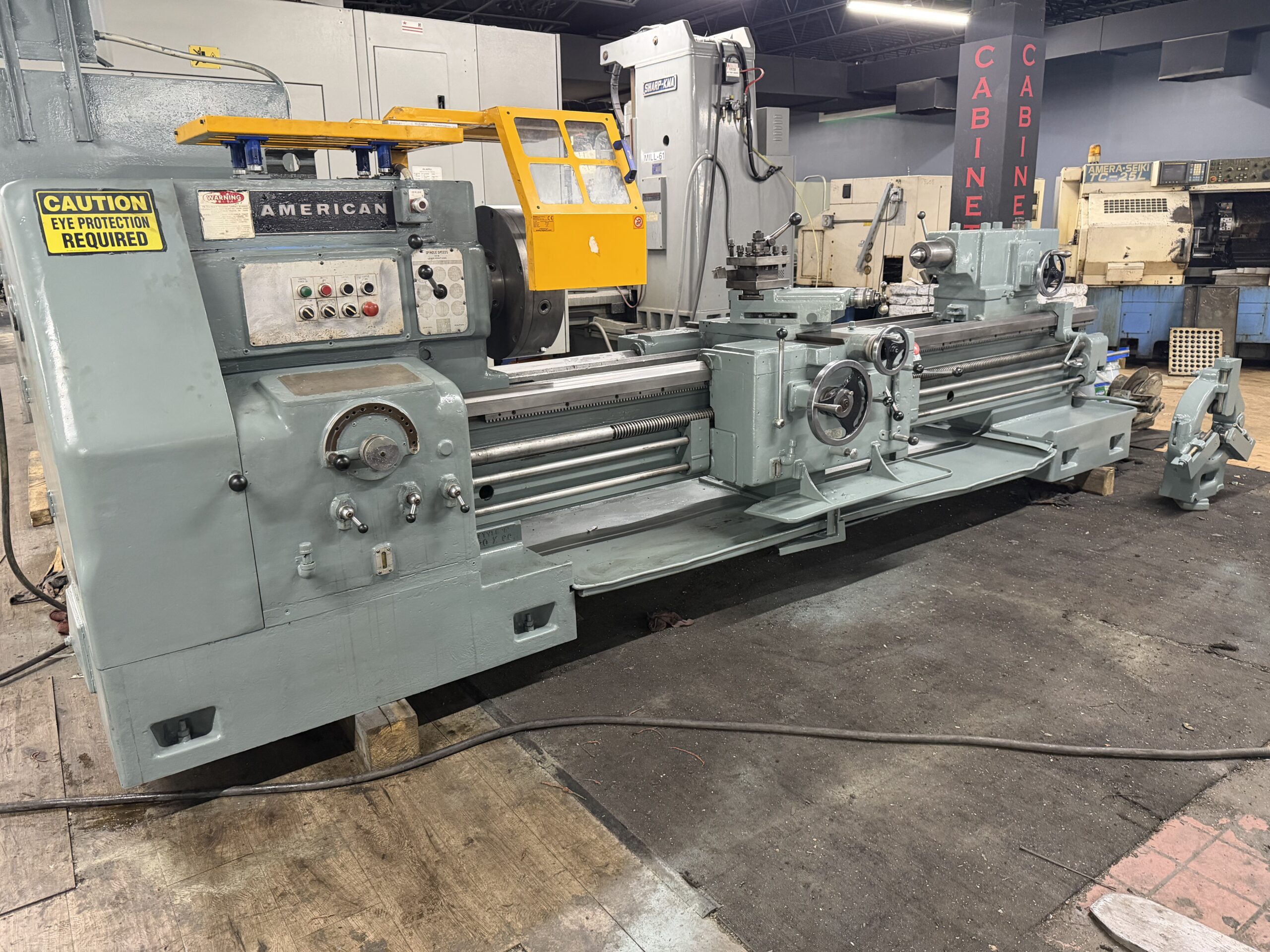

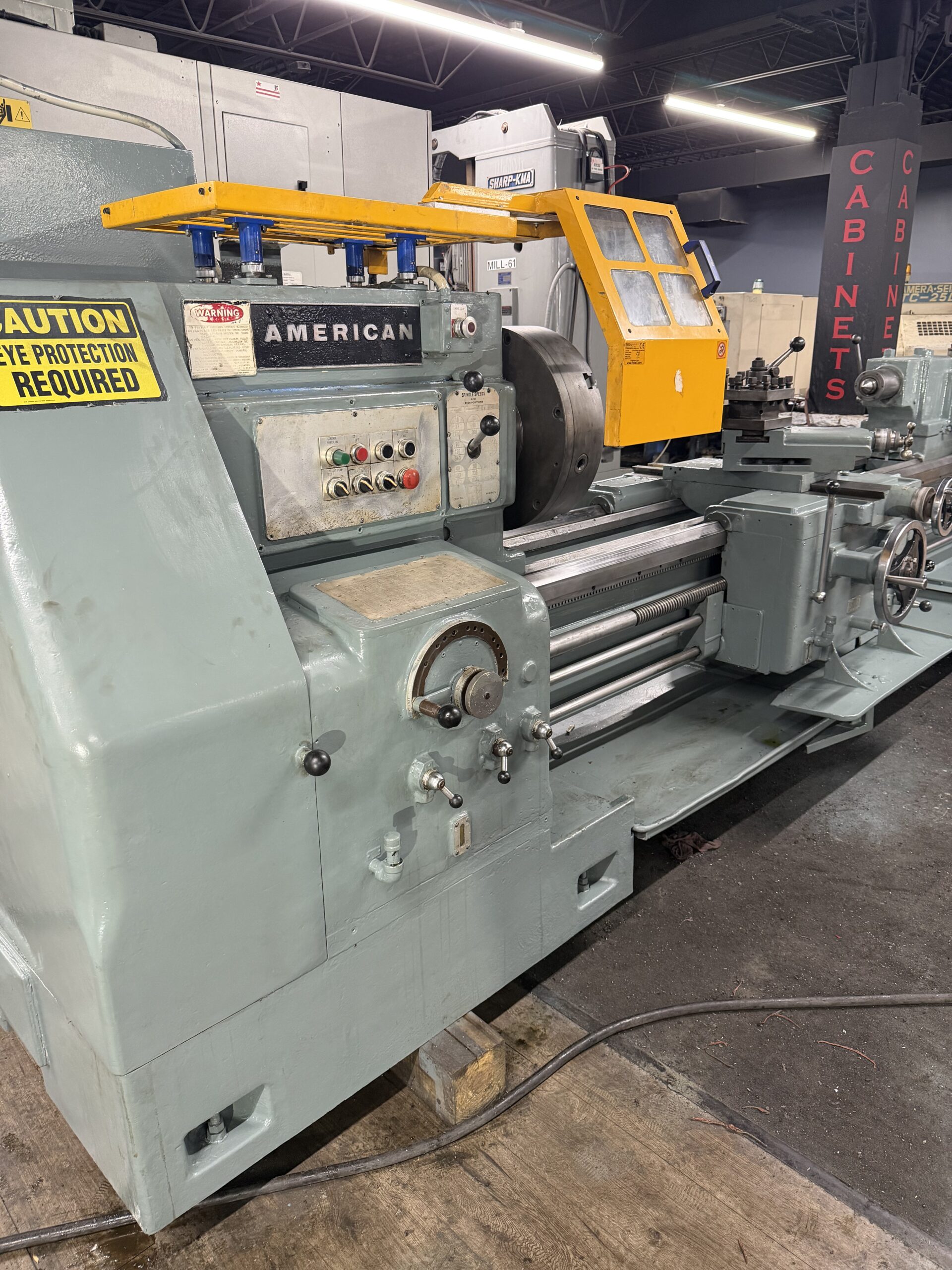

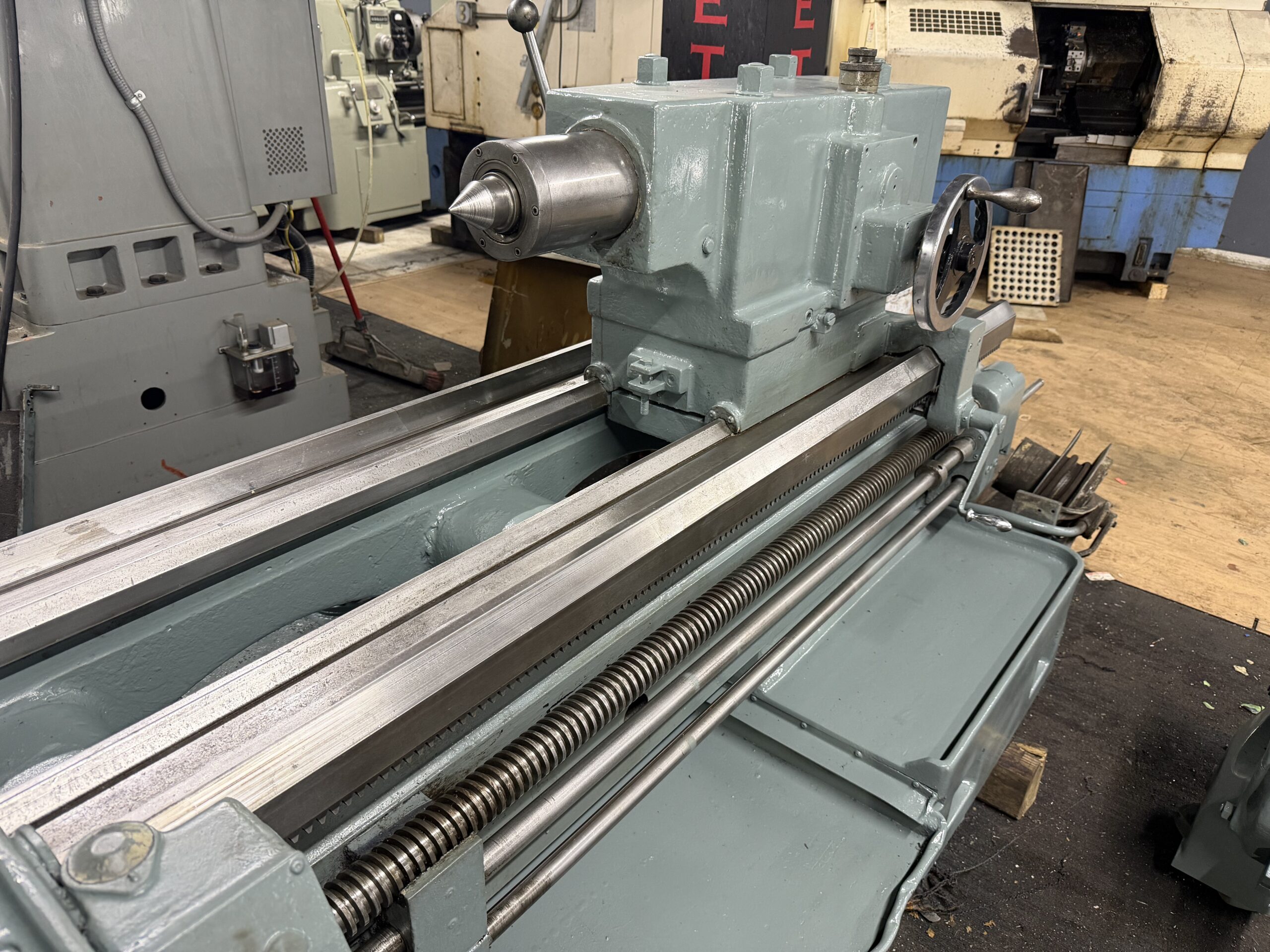

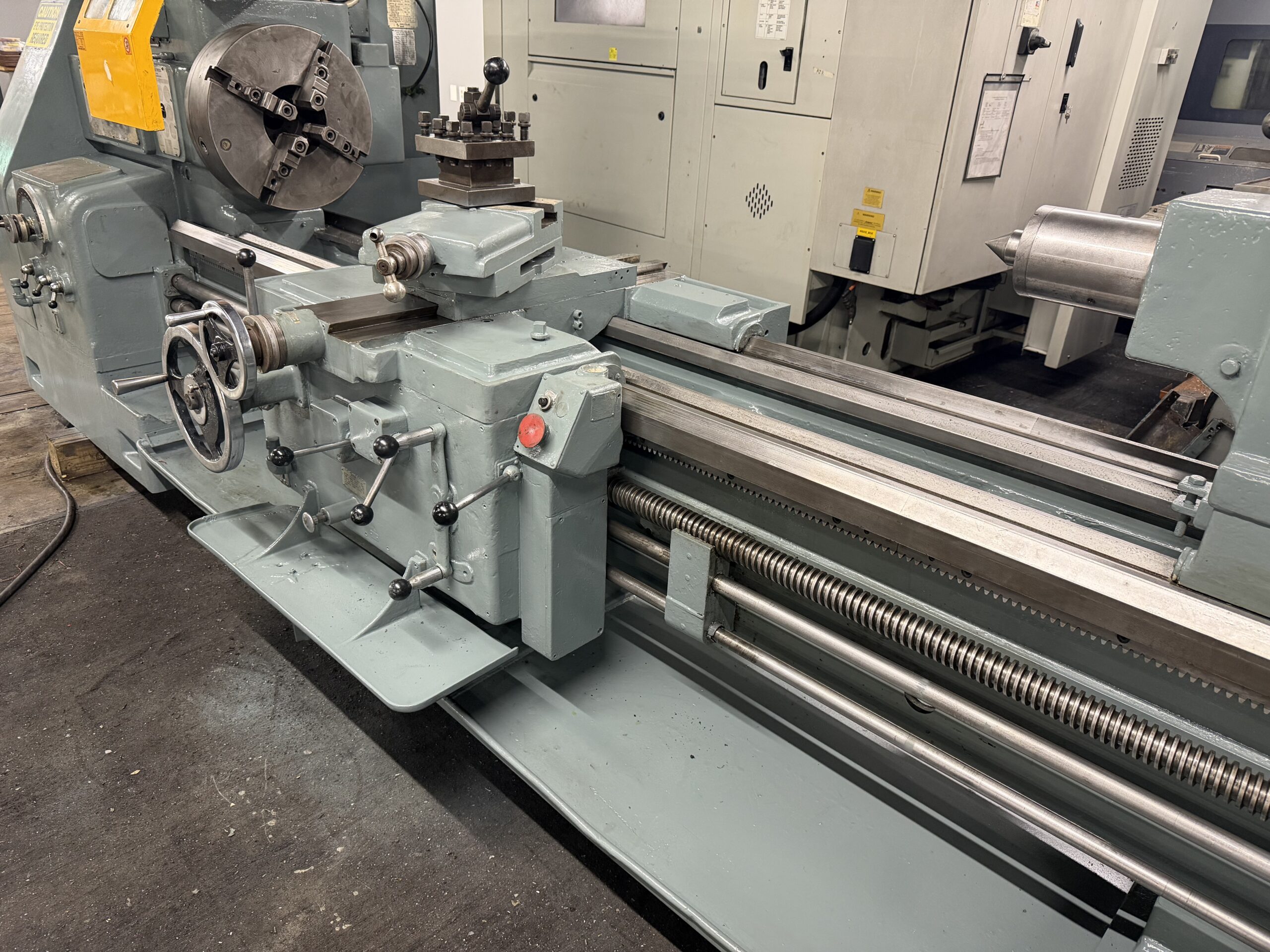

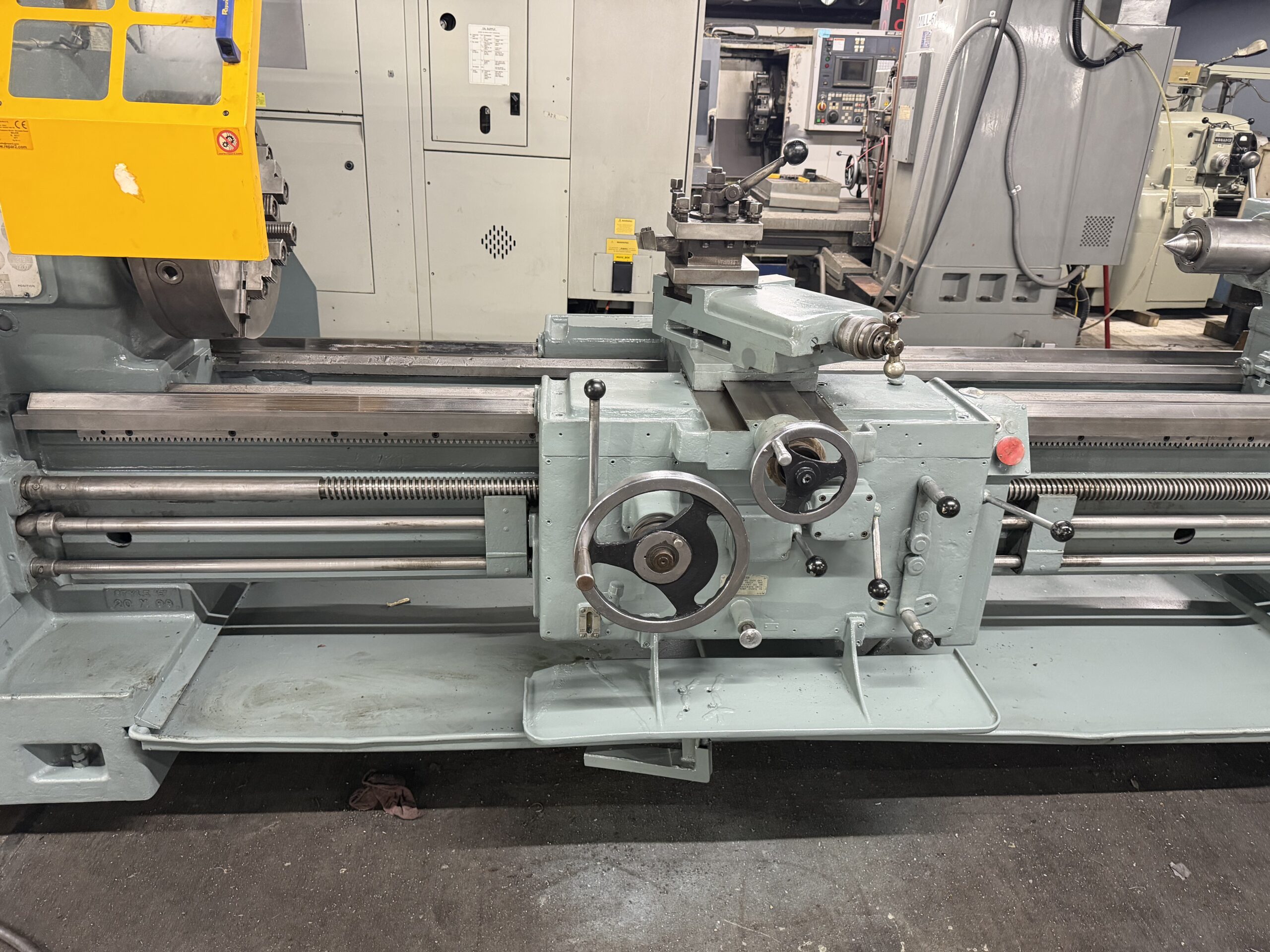

American Style E Engine Lathe with Taper Turning Attachment & Steady Rest

Model : Style E 20”x96”

VIDEO LINK :

Specifications :

Size : 20″ X 98″

Swing : 20″

Centers 96”

Spindle Bore : 2.5″

Power : 30 hp

RPM : 800 RPM

Swing Over Bed: 20″

Swing Over Cross Slide: 16″

Center Distance: 96″

Hole Thru Spindle: 2.5″

Main Motor: 30 HP

Spindle Speed: 18-1200 RPM

Current Electrical Arrangement: 220/440 Volts

Equipped With :

Inch Threading

Taper Turning Attachment

Rapids on both Longitudinal and Cross

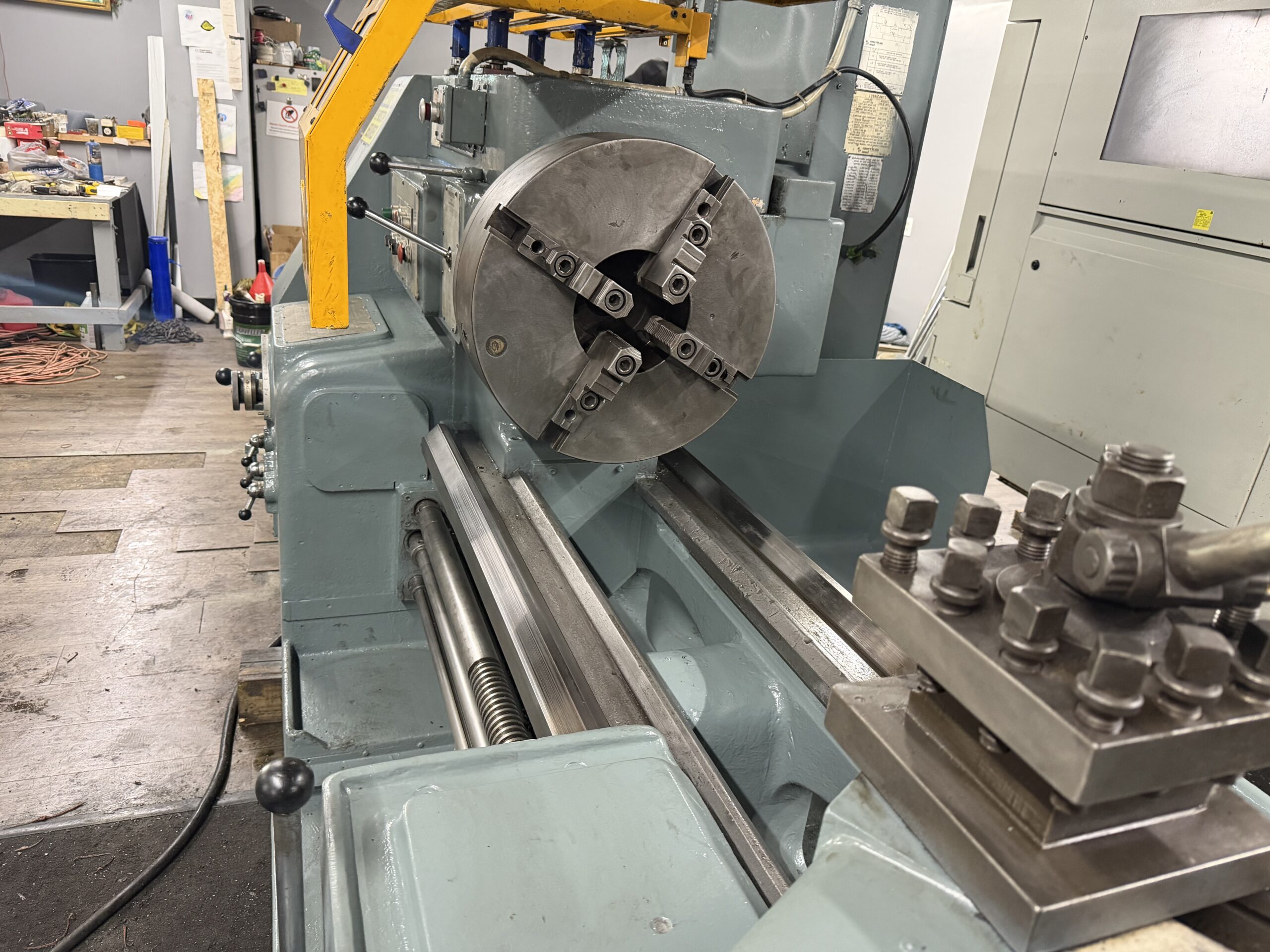

19″ 4 Jaw Chuck

Four Way Tool Post

Hard Ways

Full Length Chip Pan

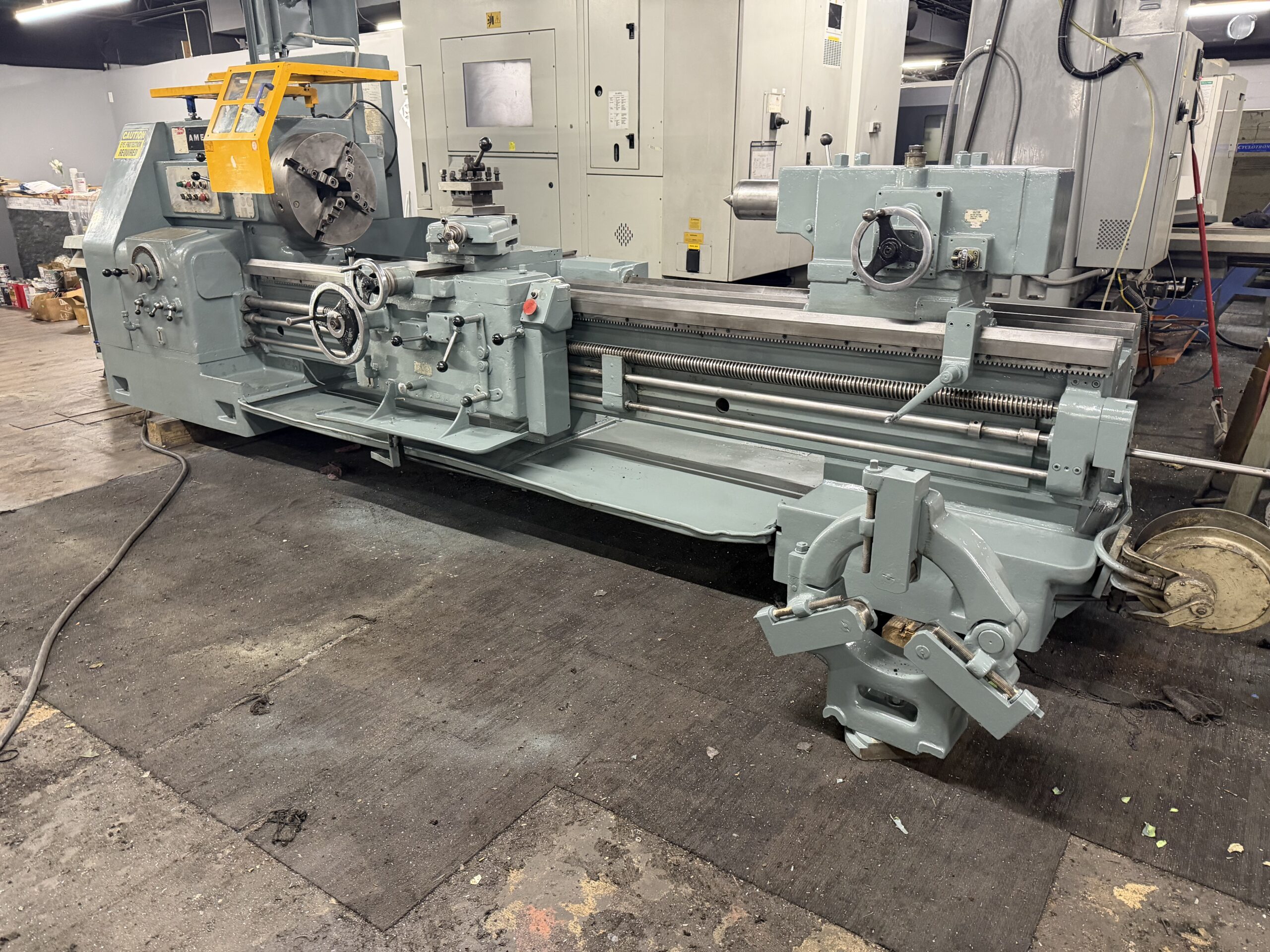

3 Point Roller Bearing Steady Rest

Coolant

Work Shield

Machine is in excellent condition and can be inspected under power at our warehouse in Independence, Missouri.
