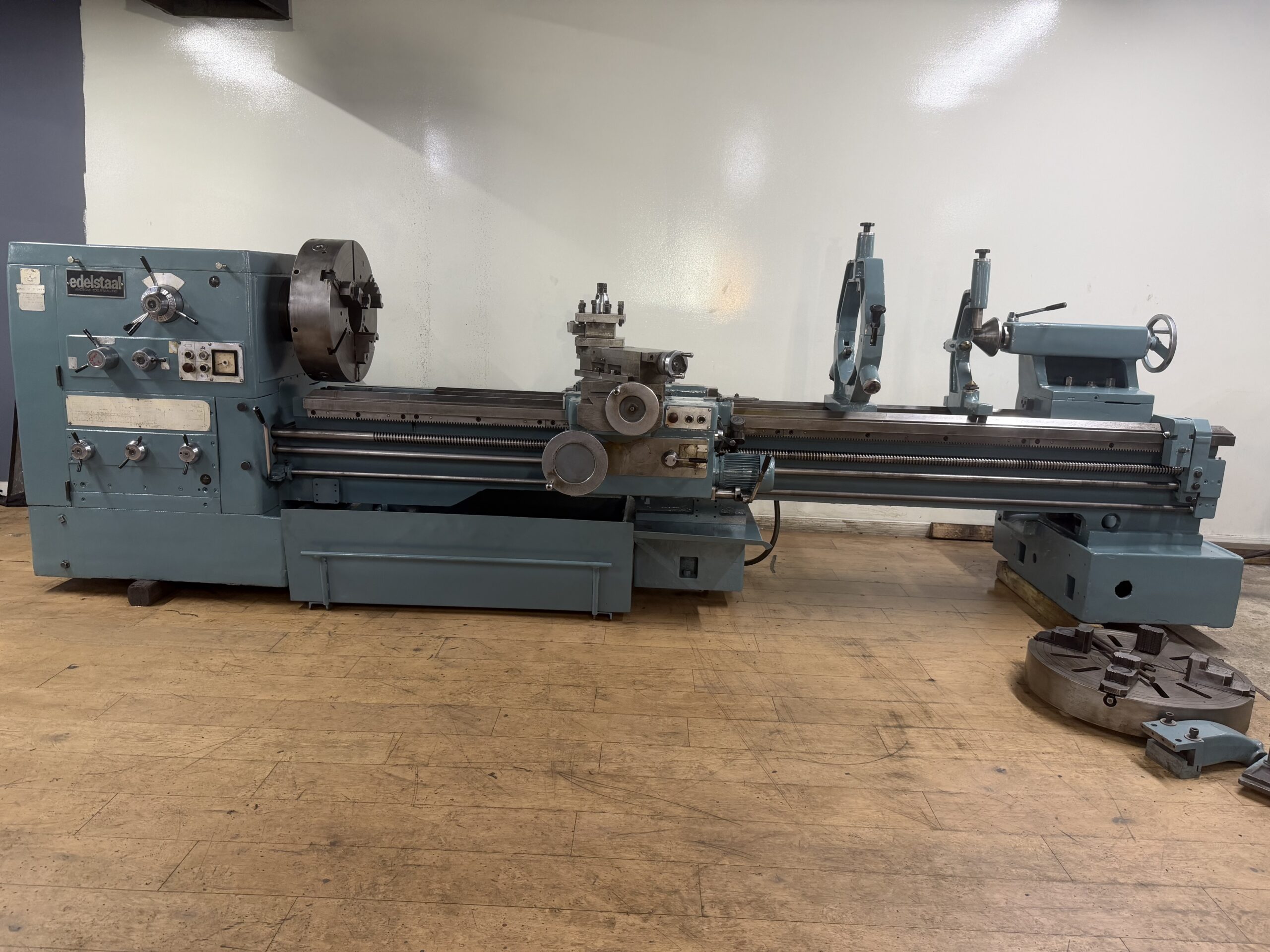

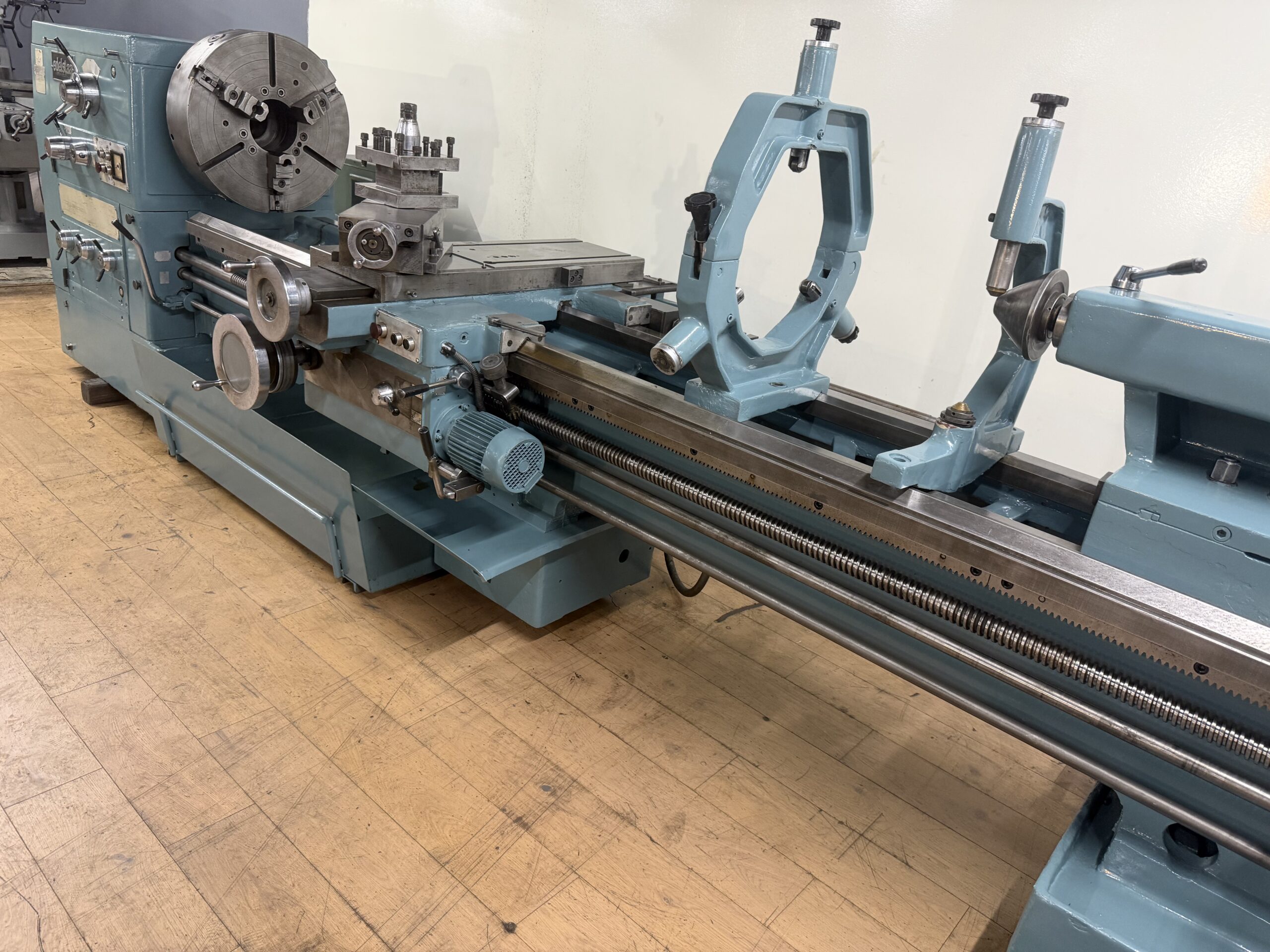

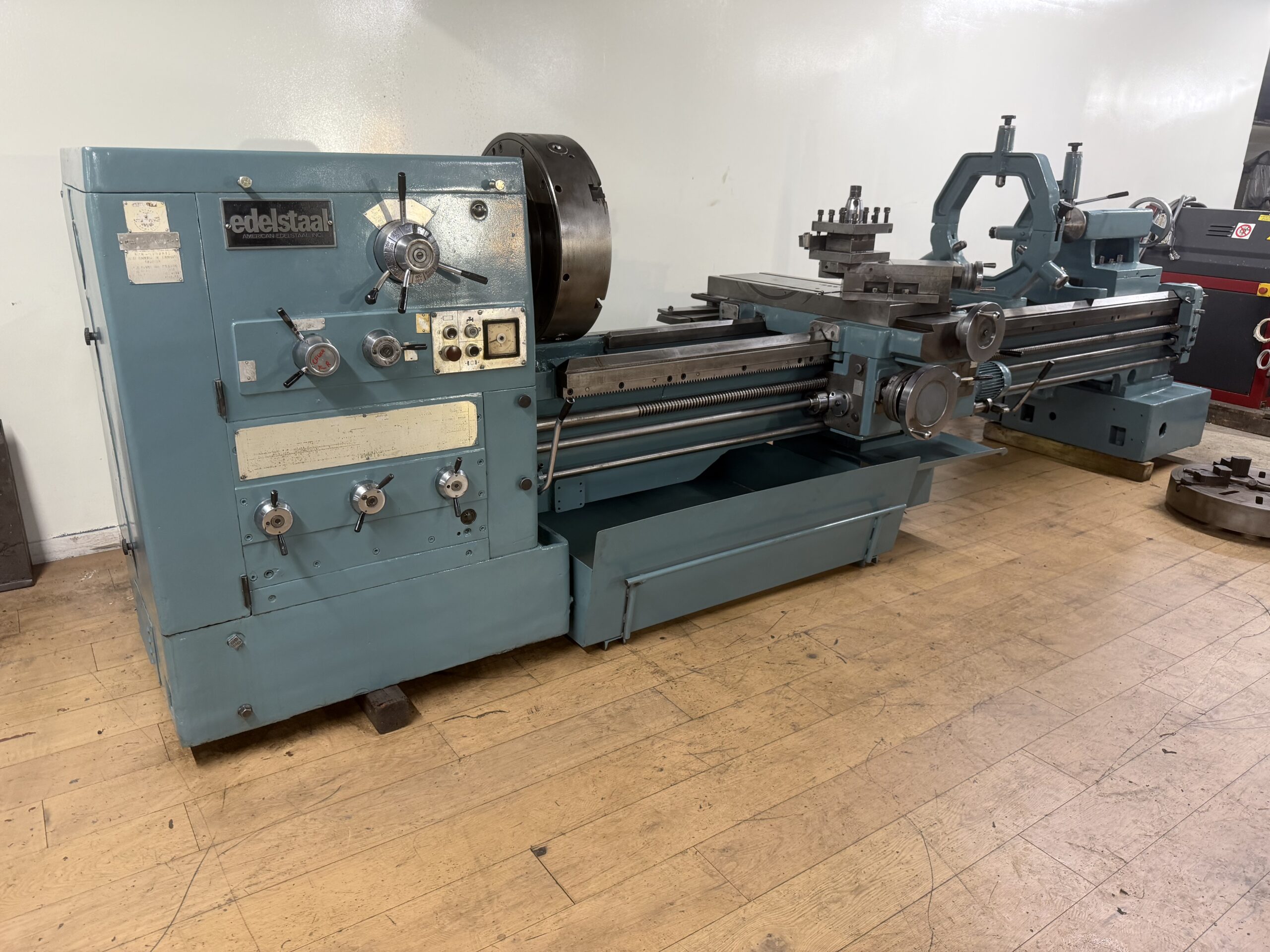

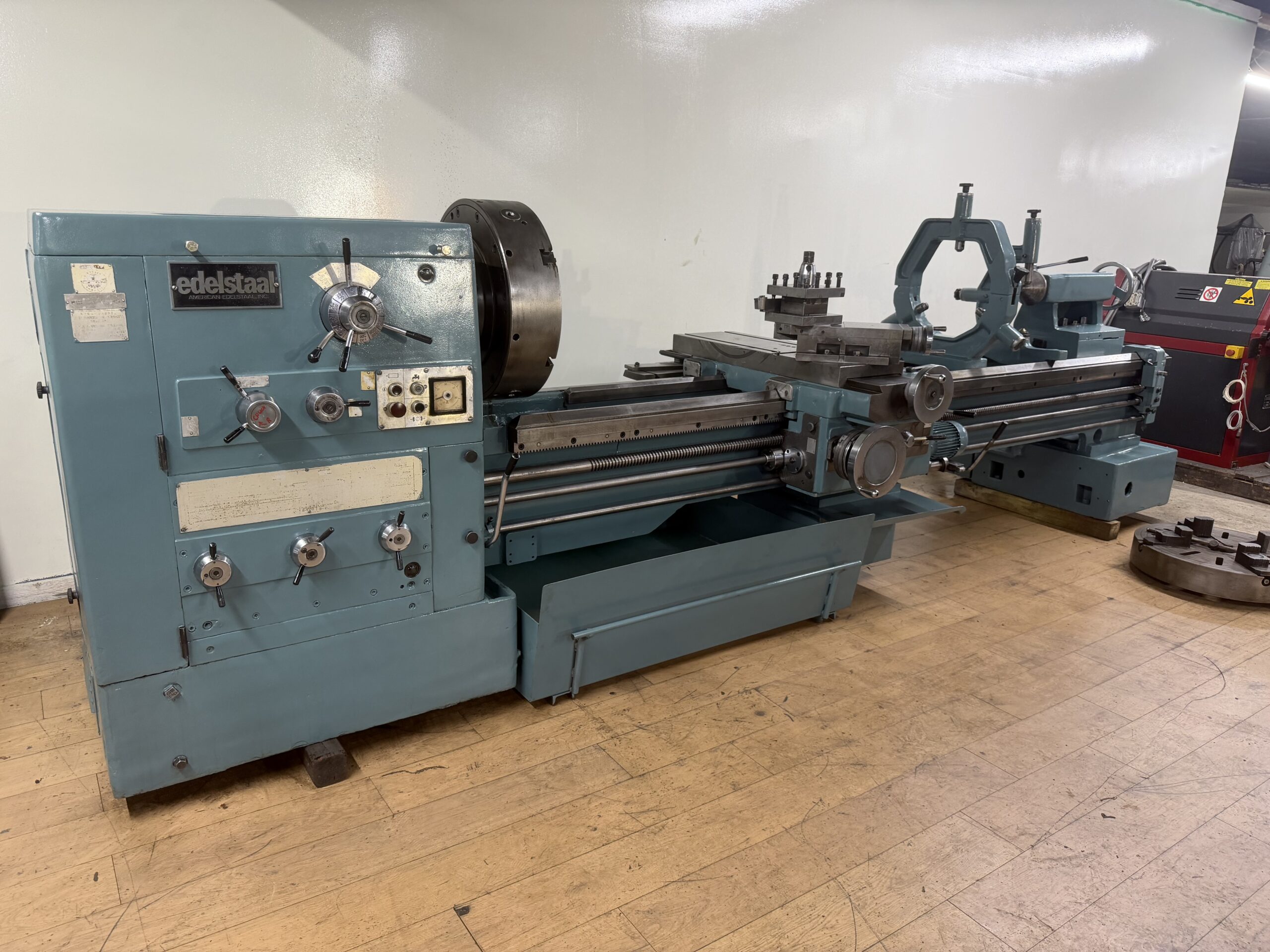

Edelstaal 32”/42” x 120” Gap Bed Engine Lathe
Model: SNA 710/3000
VIDEO LINK:
Description:
Year of manufacturing: 1985 (Approx)
Max. turning diameter over the bed: 32”
Max. turning diameter over the slide: 16”
Max. distance between centres: 120”
Max. turning diameter in gap: 42”
Max. turning length in gap: 12”
Main spindle speeds: 8 – 1250 rpm.
Main spindle bore diameter: 4-1/8”
Net weight: 12,000 Lbs
Equipped With:

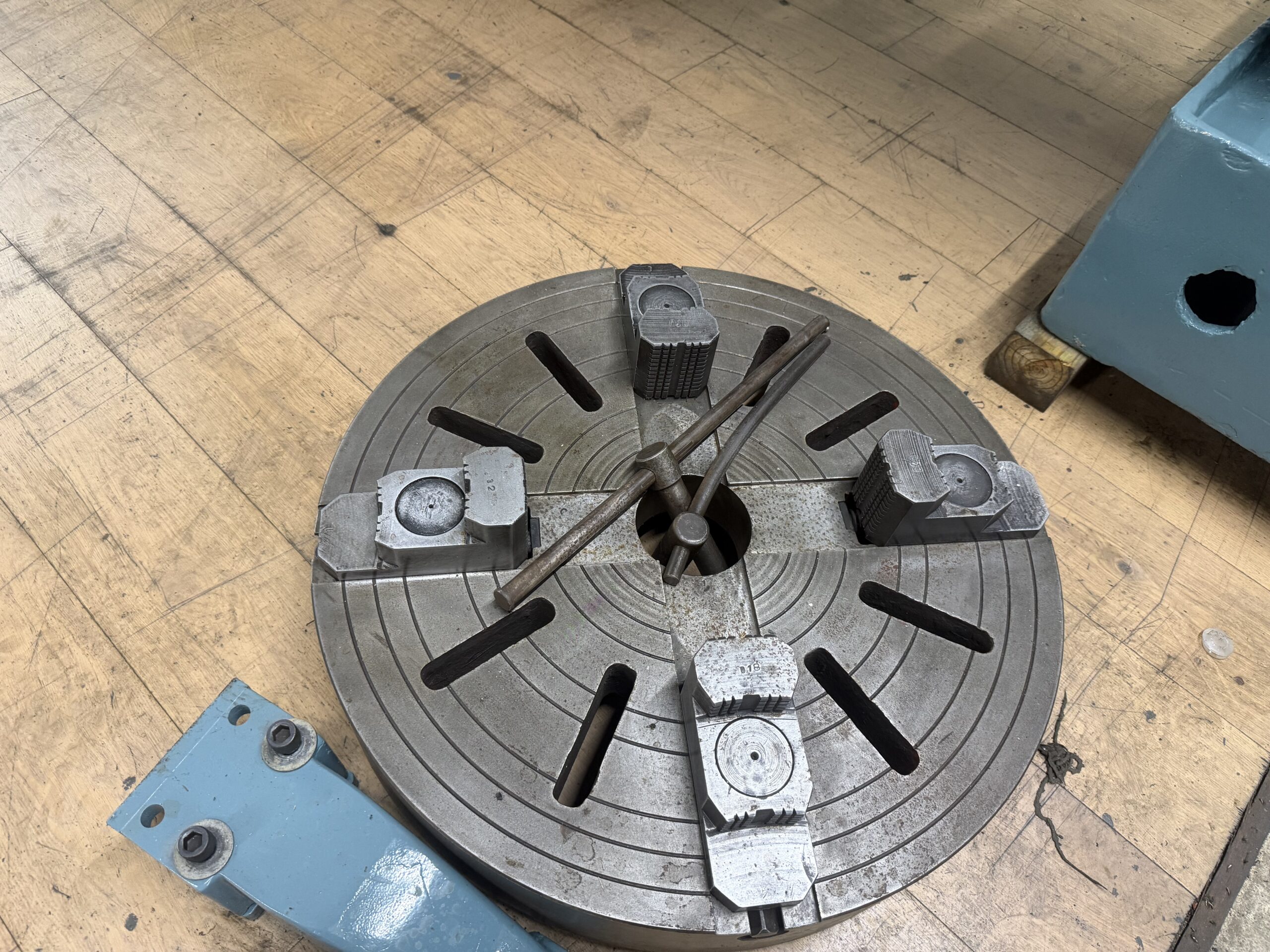

28” 4 jaws chuck
24” 3 Jaw Chuck

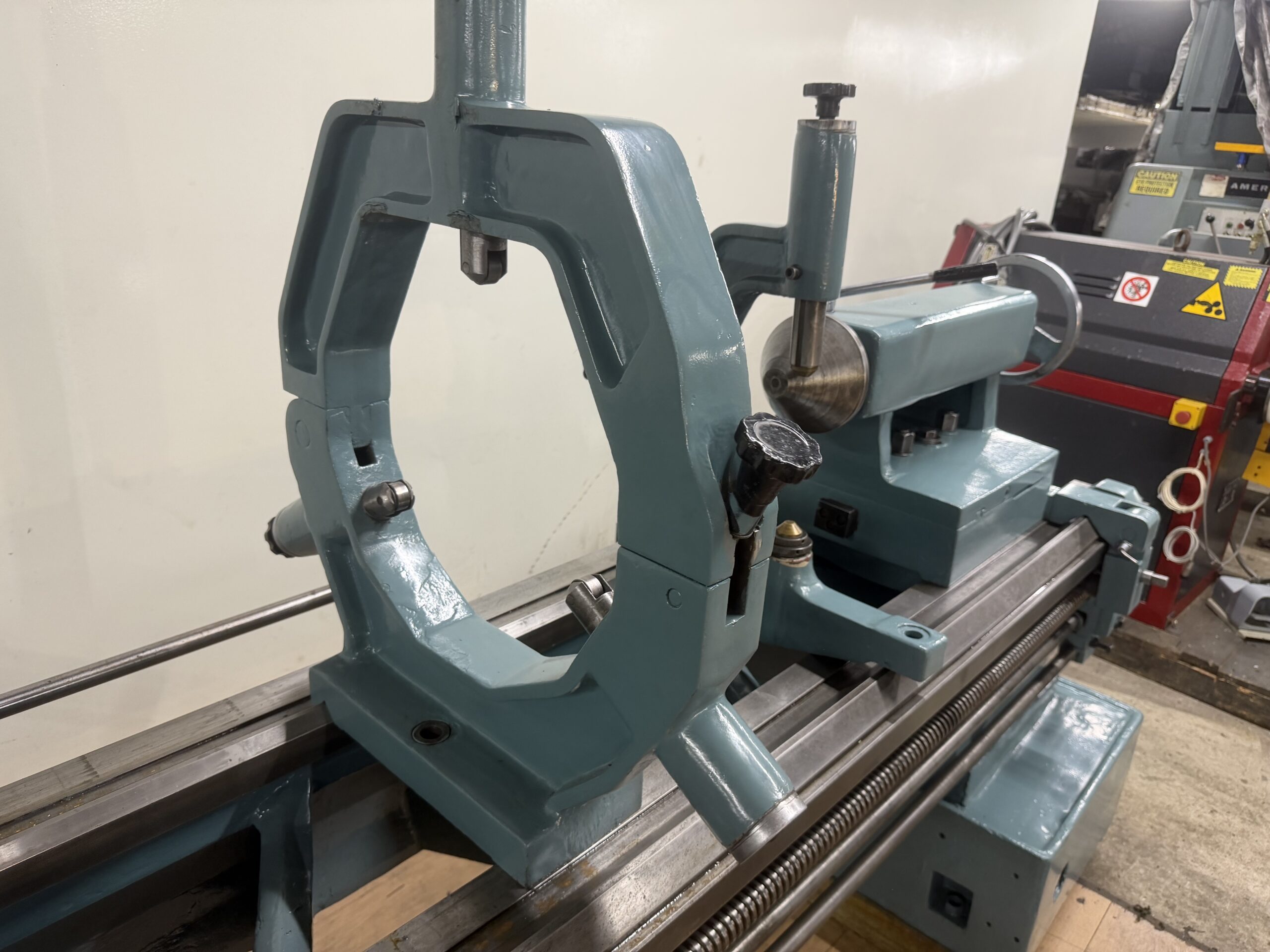

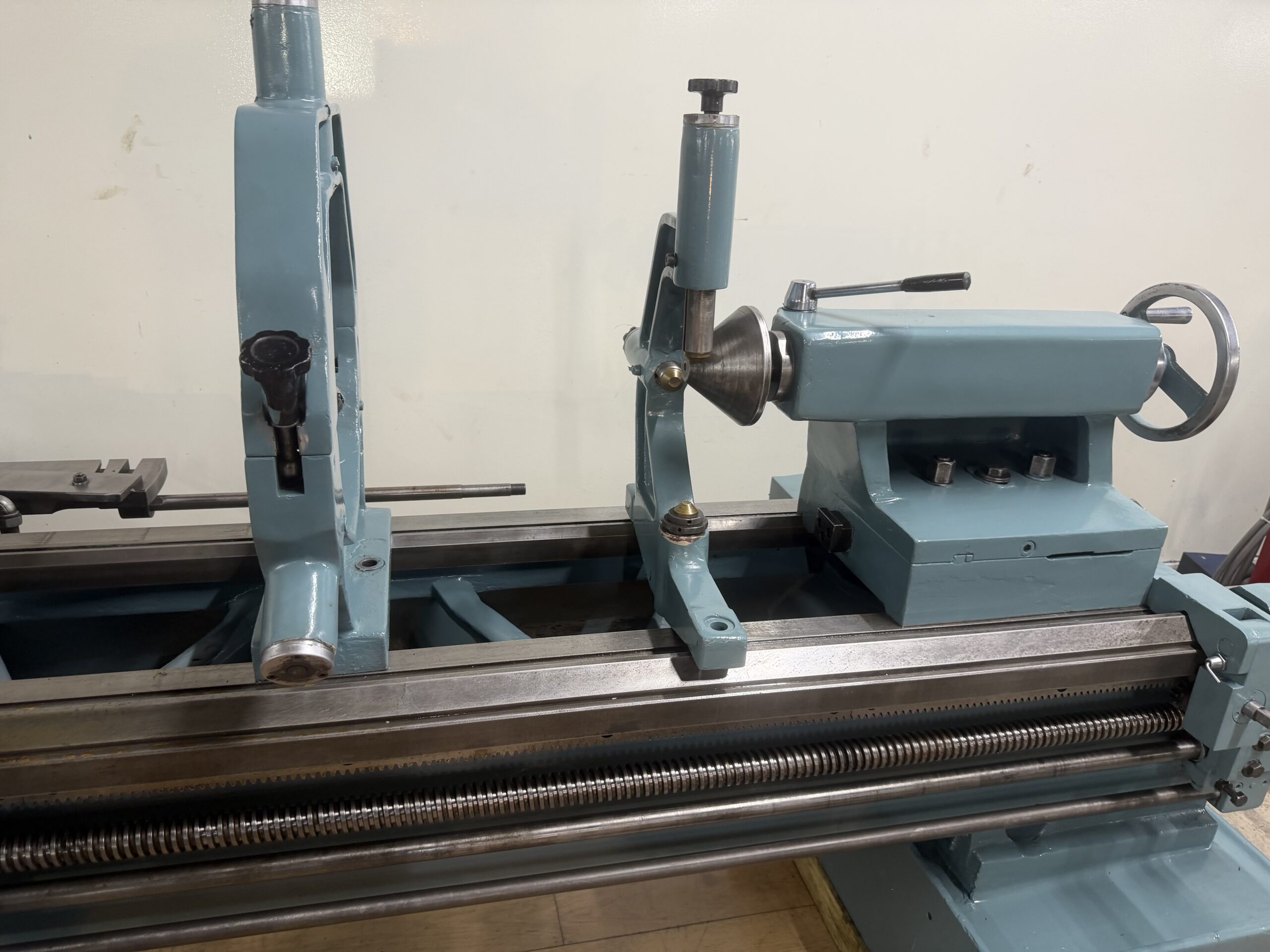

Steady rest
Follow rest
Taper Turning Attachment
Rapids on both Longitudinal & Cross Travels

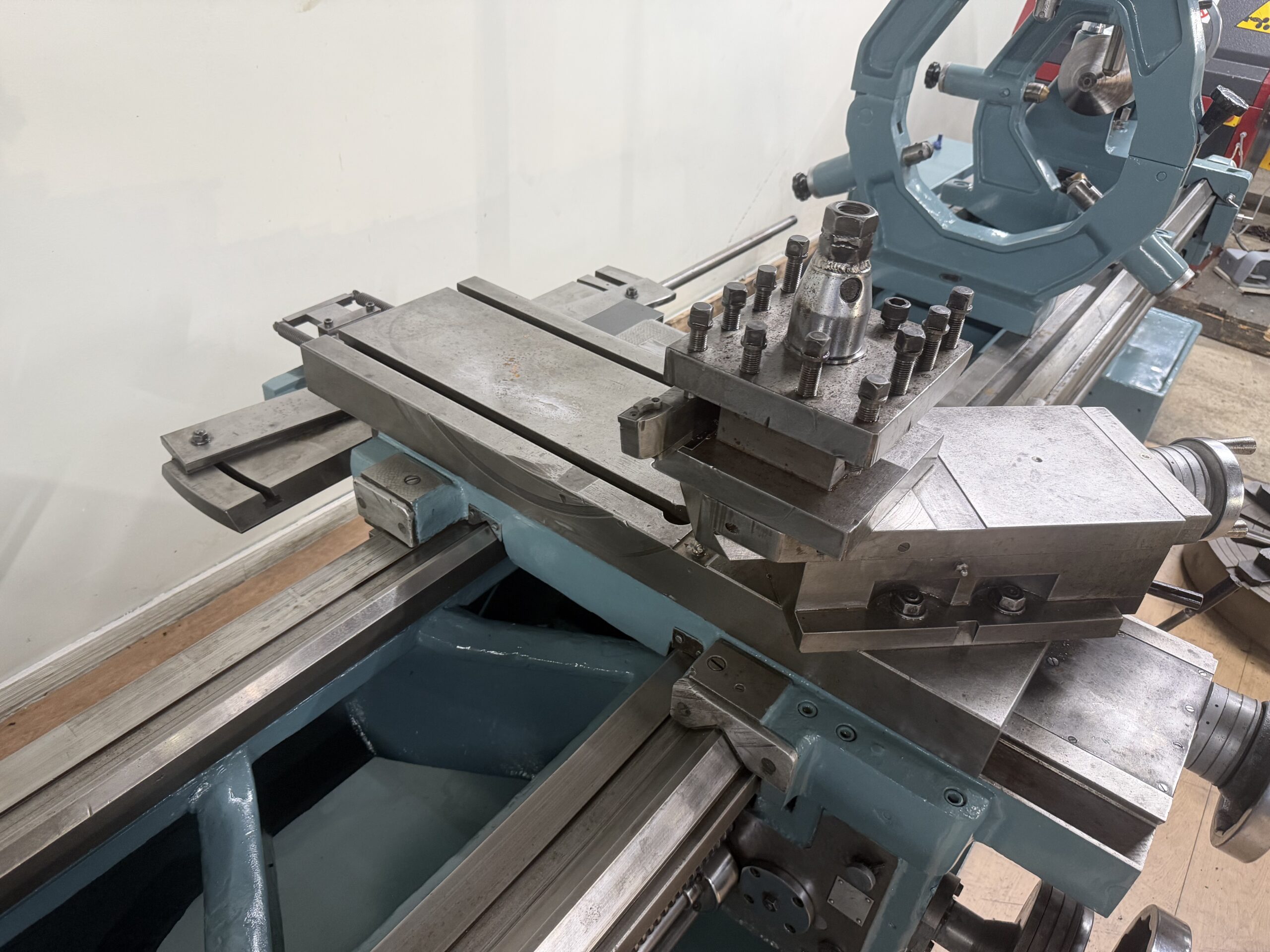

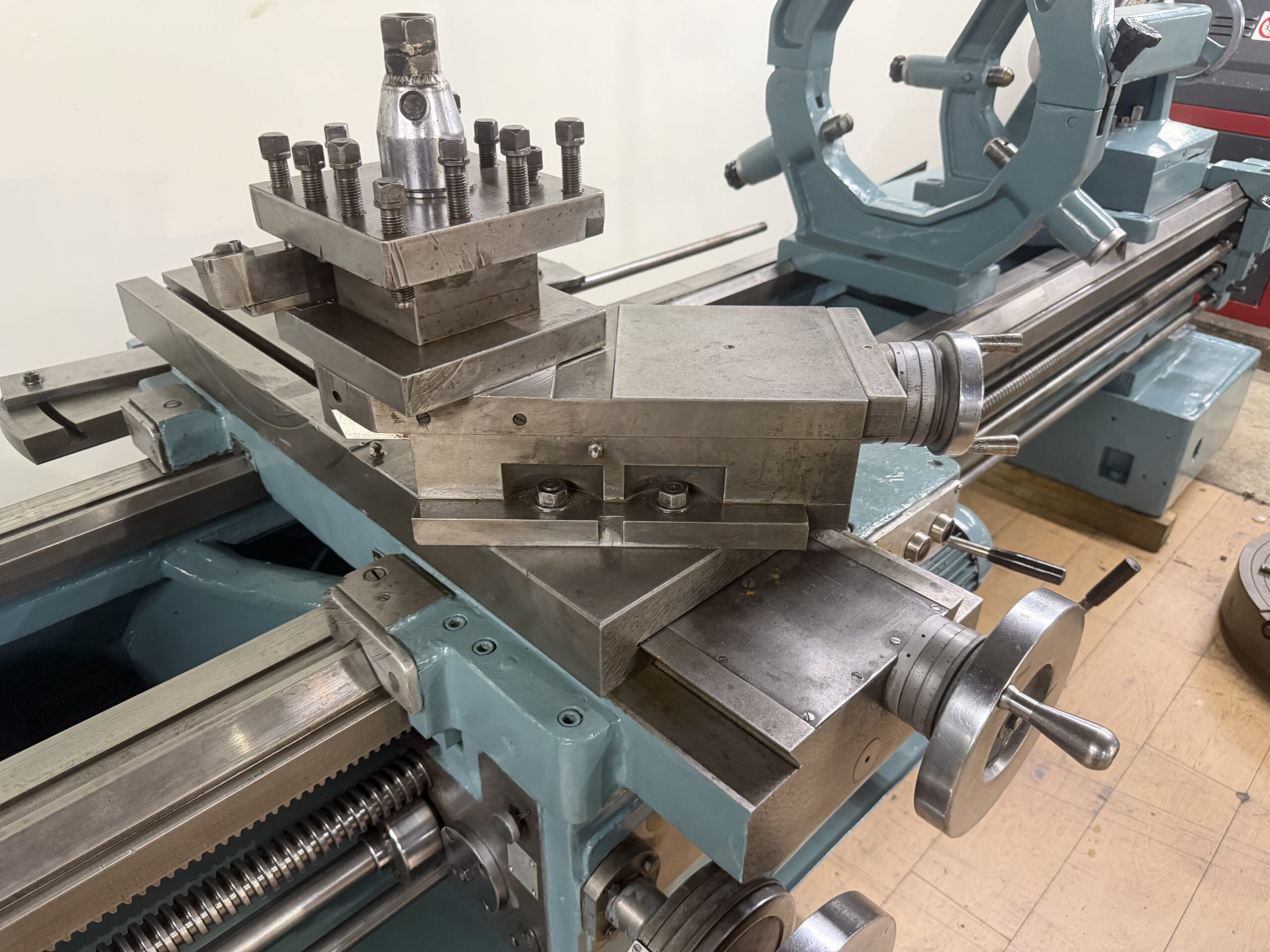

4 Way Tool post
Coolant tank with pump
Hardened Bedways
Inch & Metric Threading
Machine is in excellent condition and can be inspected under power at our warehouse in Independence, Missouri.
