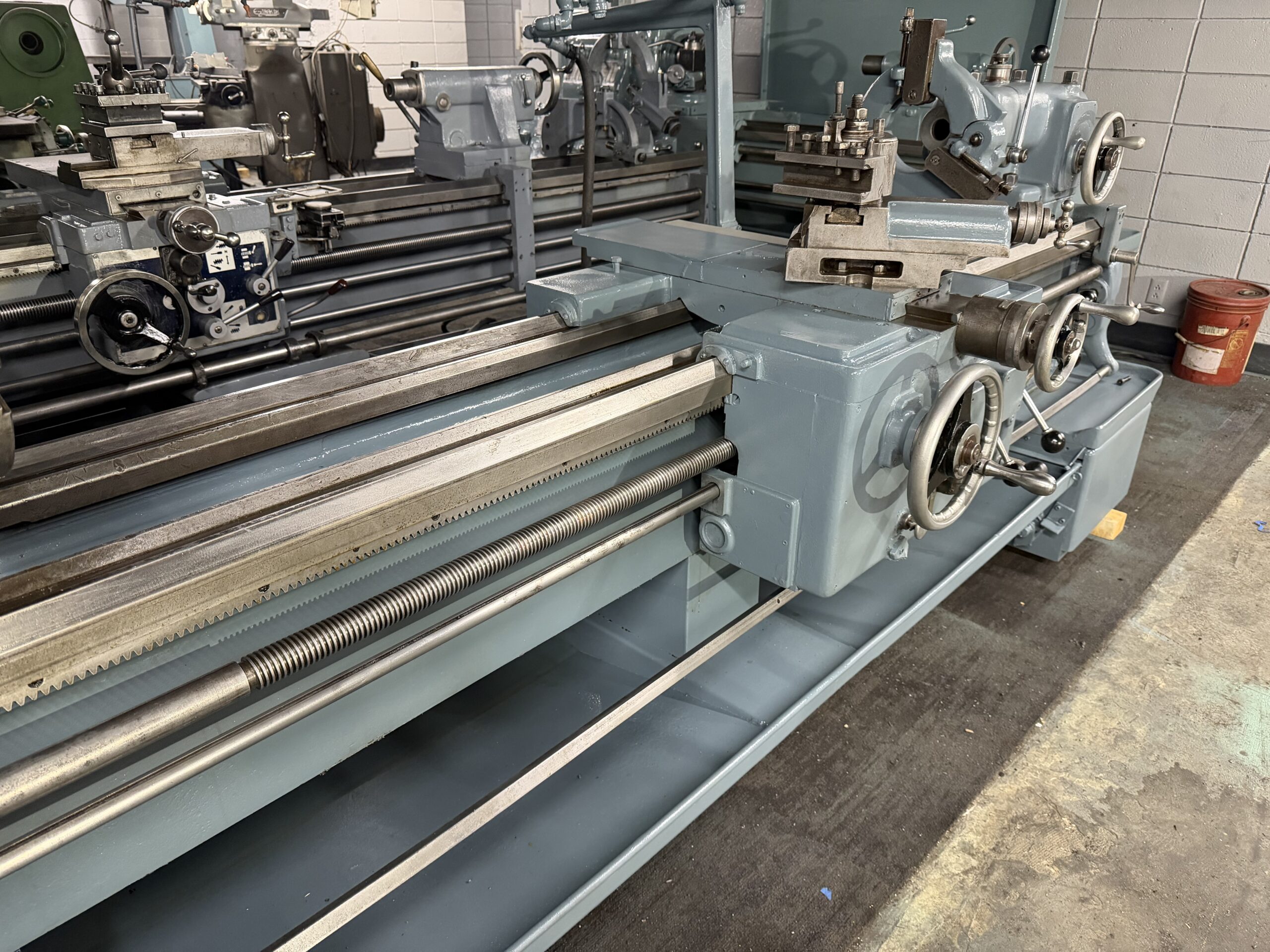

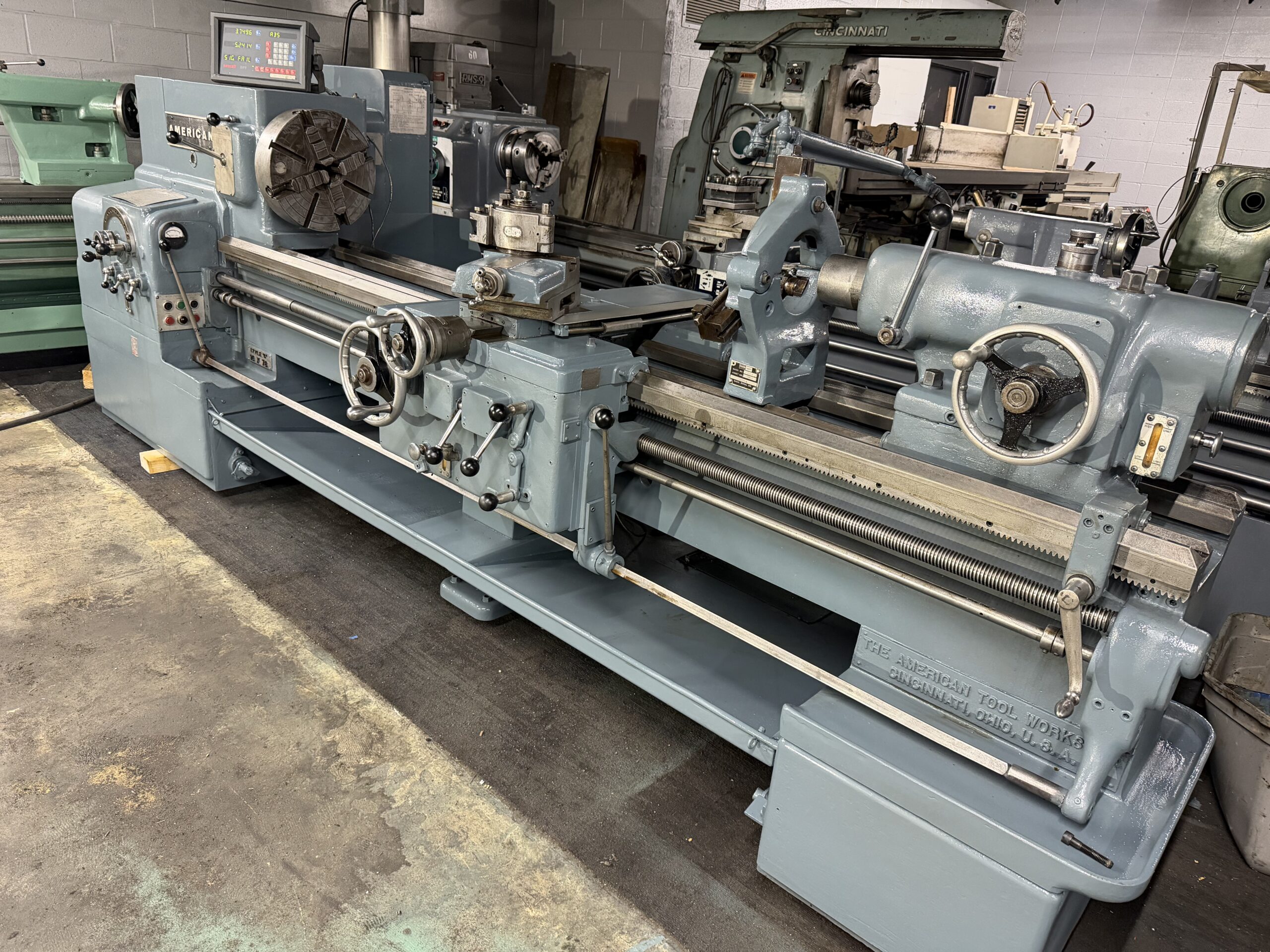

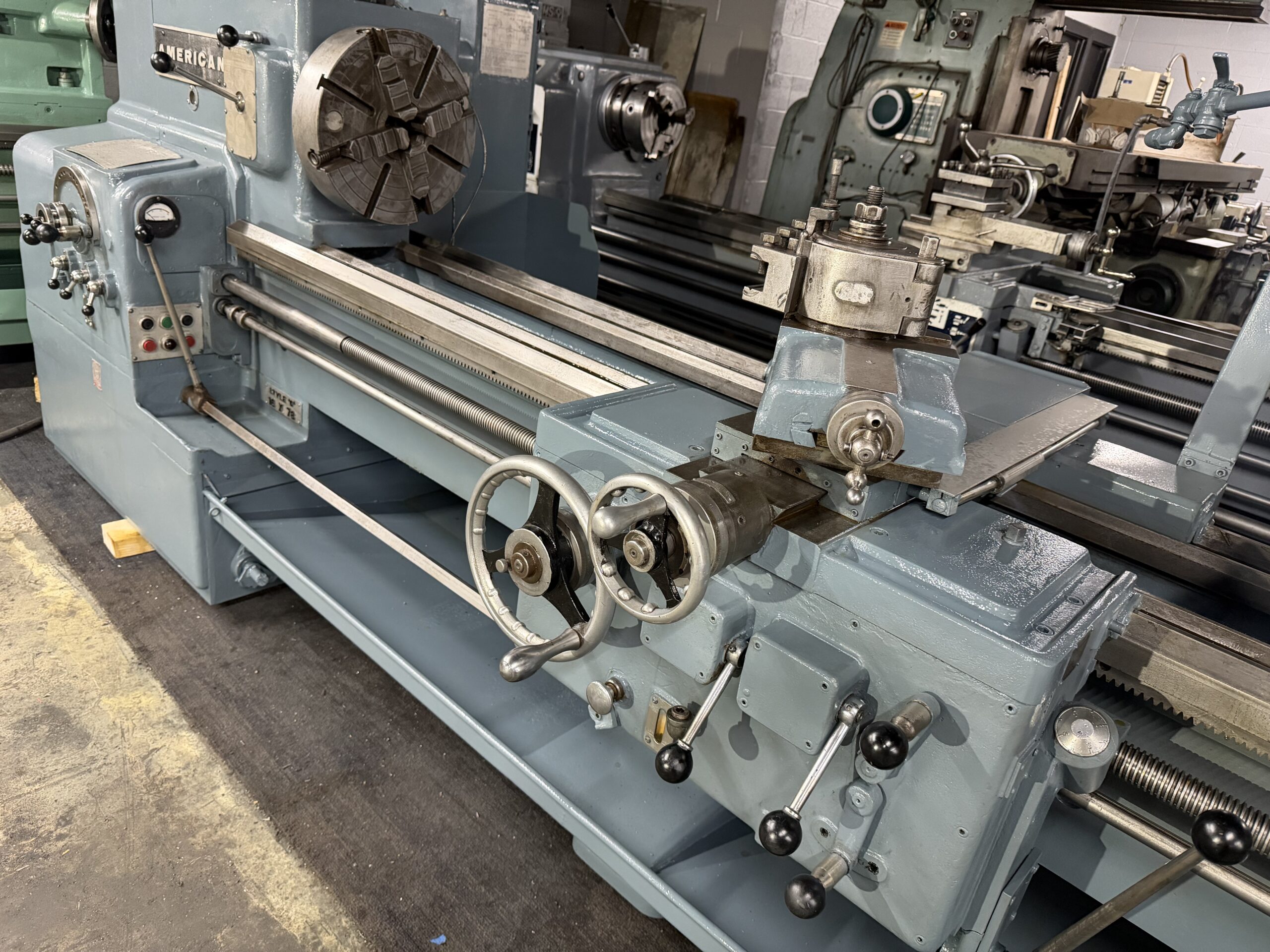

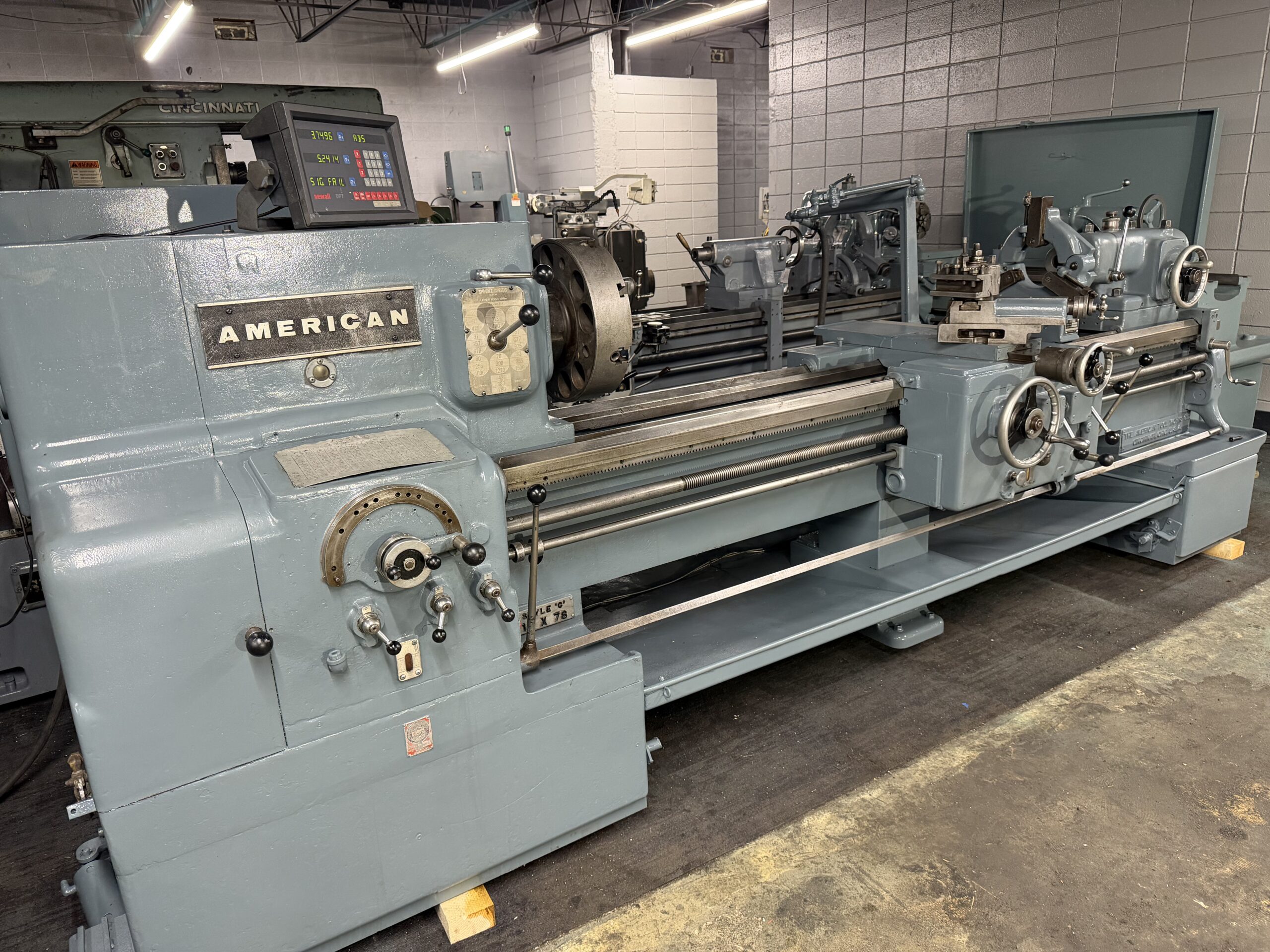

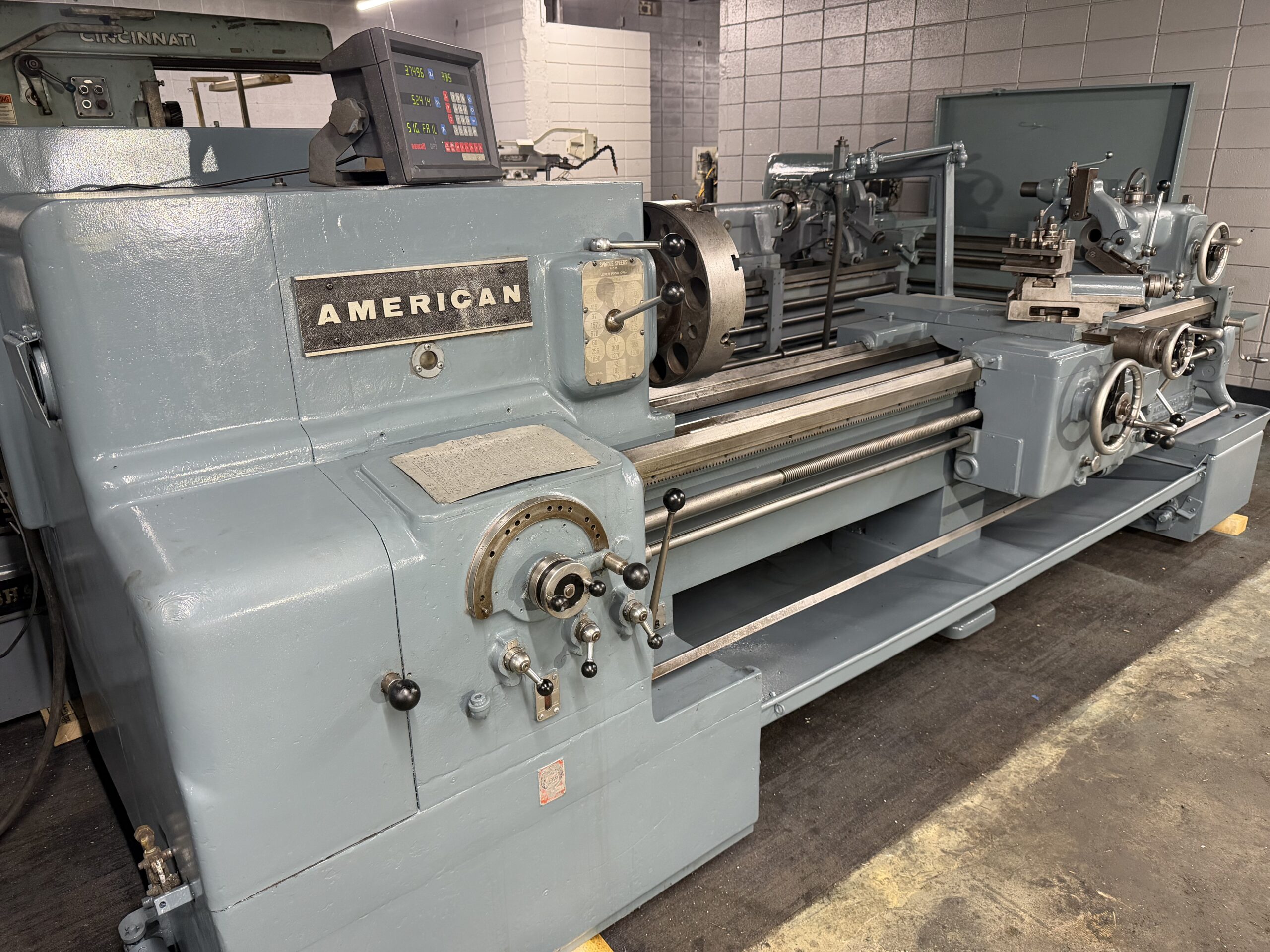

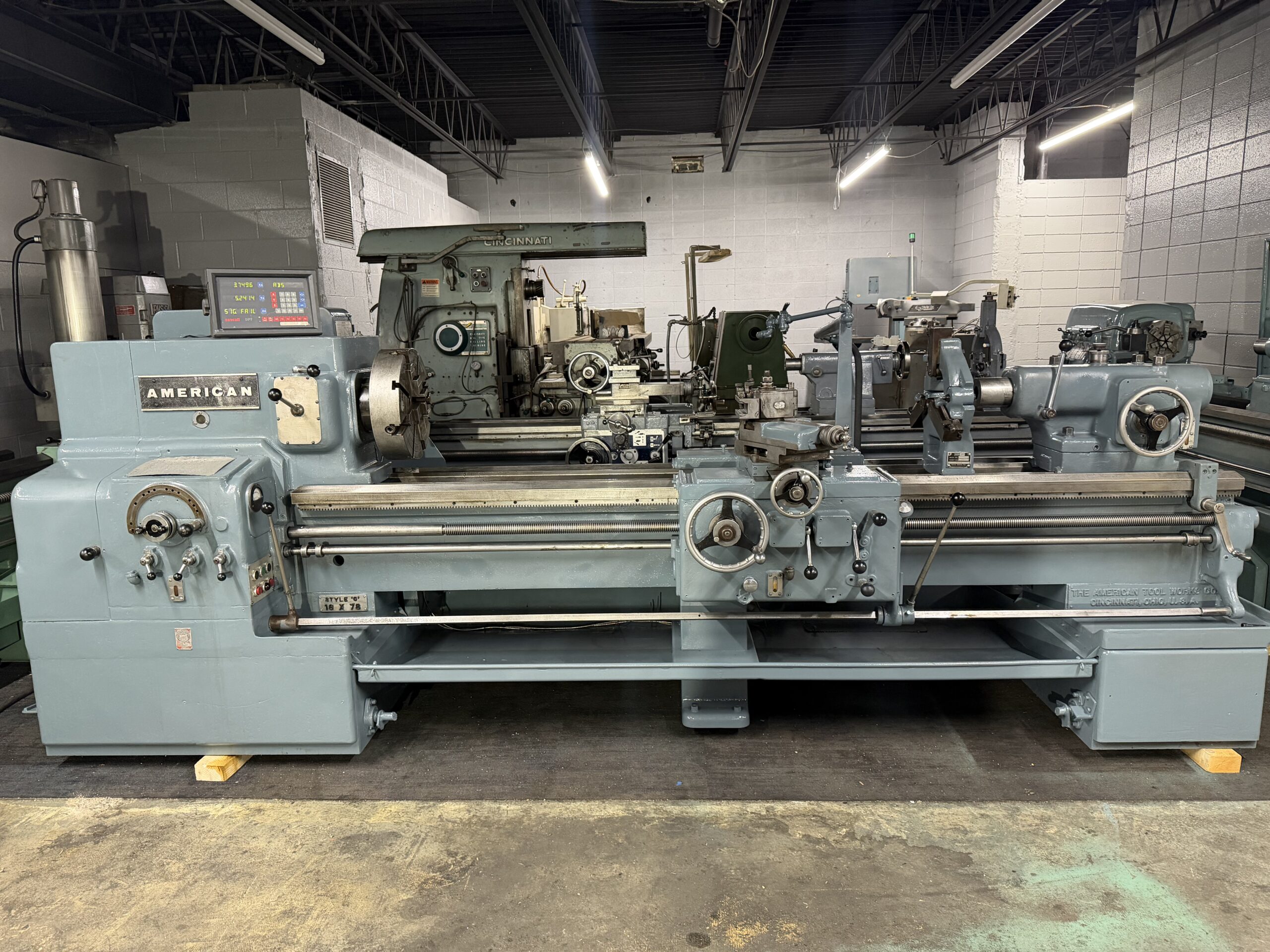

21” x 78″ AMERICAN “STYLE C 16″x78”ENGINE LATHE

Model : Style C 16×78

VIDEO LINK :

EQUIPPED WITH:

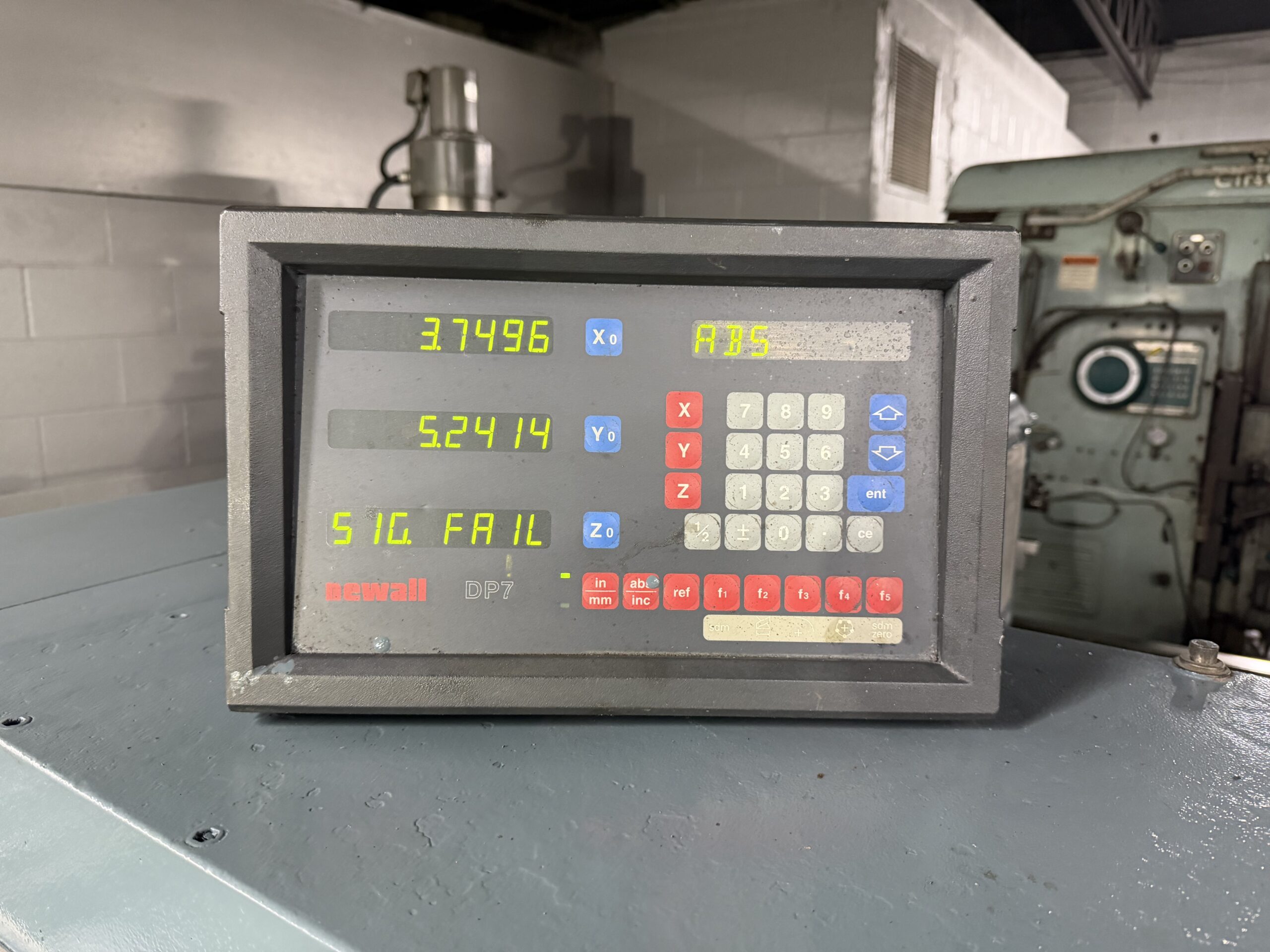

Newall 2-Axis Digital Readout

15” 4-Jaw Chuck w/Jaws – Steady Rest

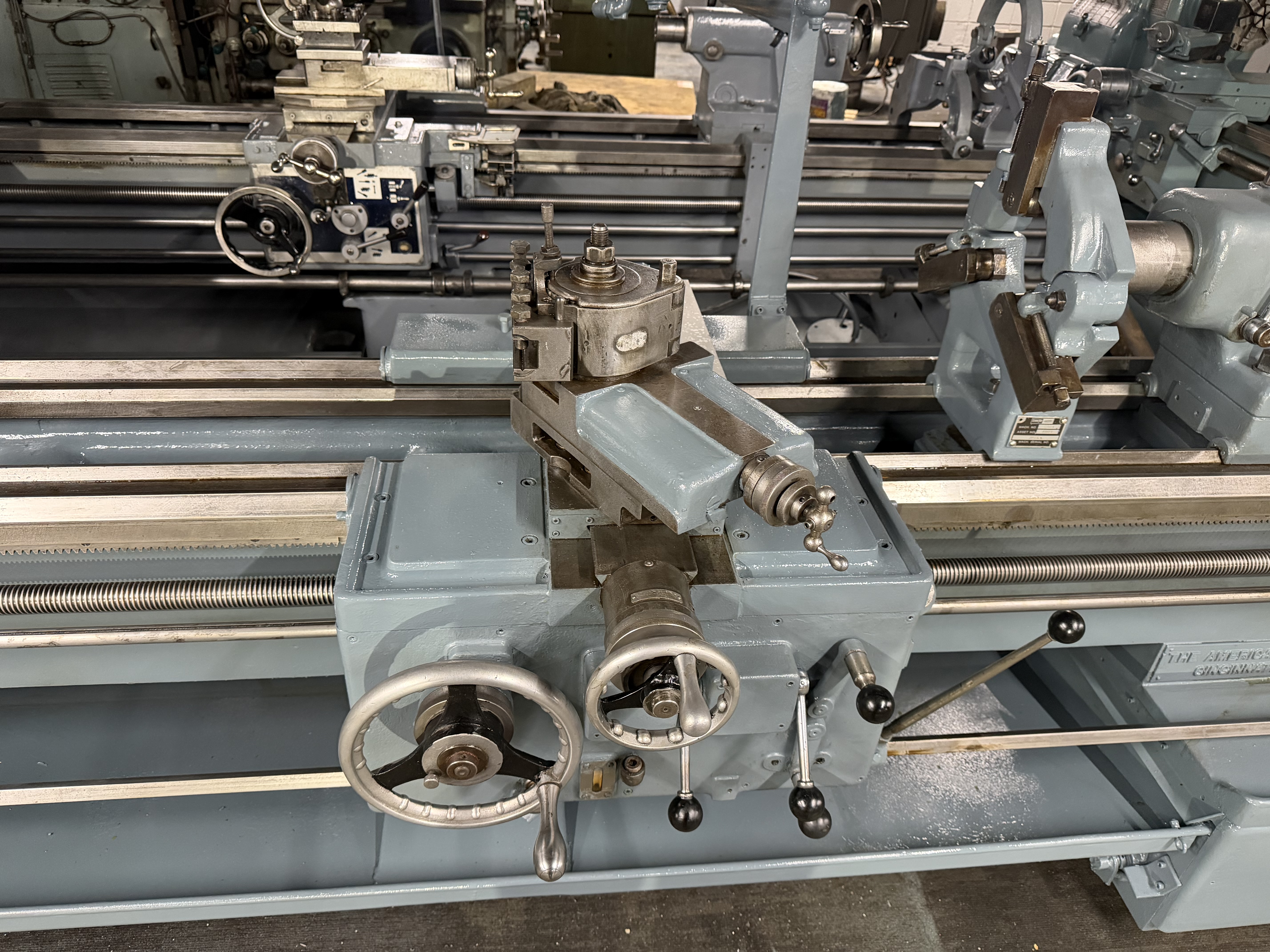

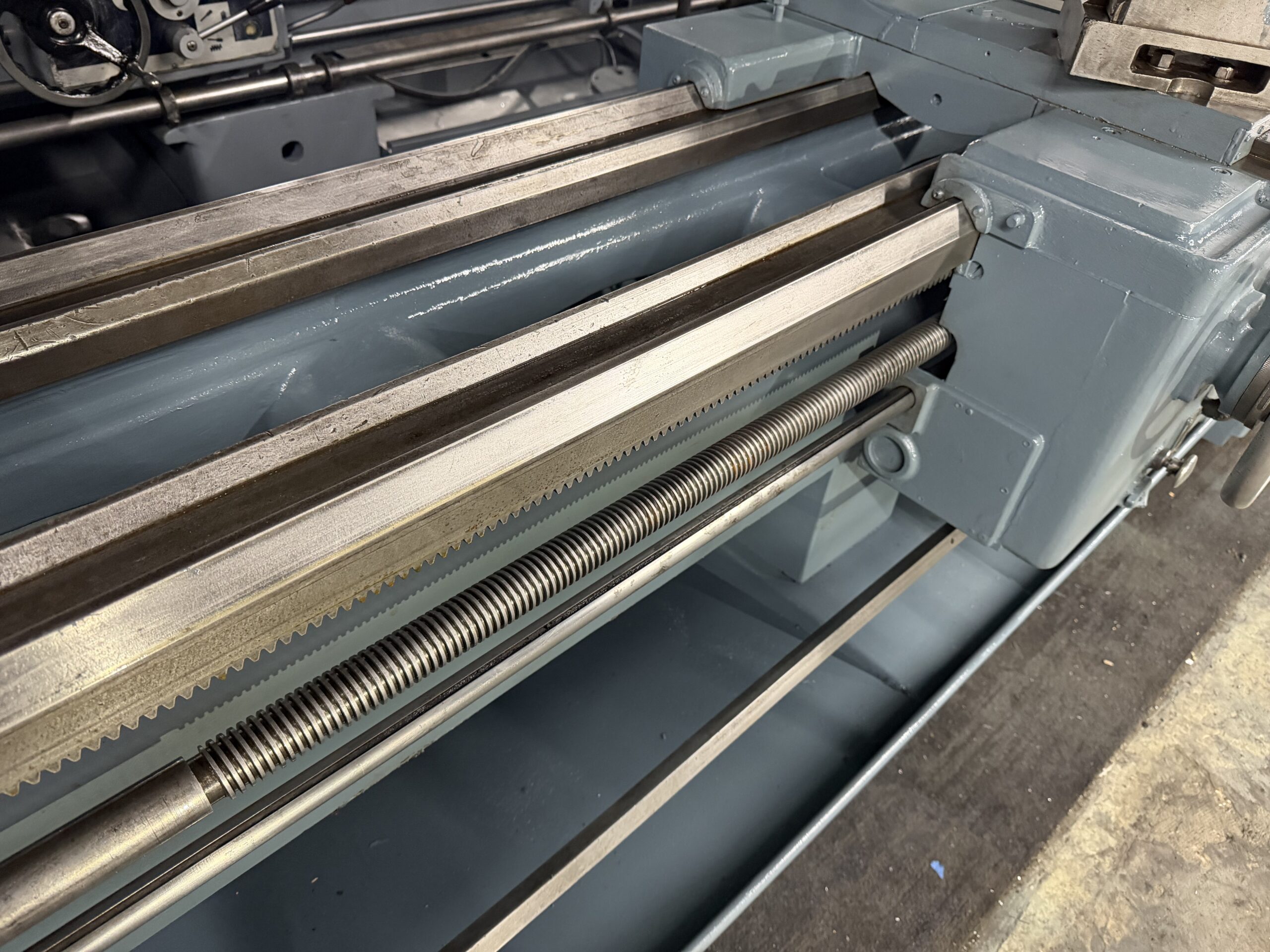

Hard Ways – Quick Change Tool Post

Full-Length Lead-Screw Threading

Quick Change Gear Box and Threading Dial

Full Length Coolant-Chip Pan

SPECIFICATIONS:

Hole Thru Spindle…………………. 2″

Swing Over Bed Ways, Rated…………. 16″

Swing Over Bed Ways, Actual………… 21”

Swing Over Carriage Wings………….. 20″

Swing Over Cross-Slide…………….. 13″

Distance Between Centers…………… 78″

Cross-Slide Cross-Feed Travel………. 12.25″

Top-Slide Cross-Feed Travel………… 4″

Tailstock, Spindle Diameter………… 4″

Tailstock, Spindle Travel………….. 10″

Tailstock, Spindle Taper…………… #4 MT

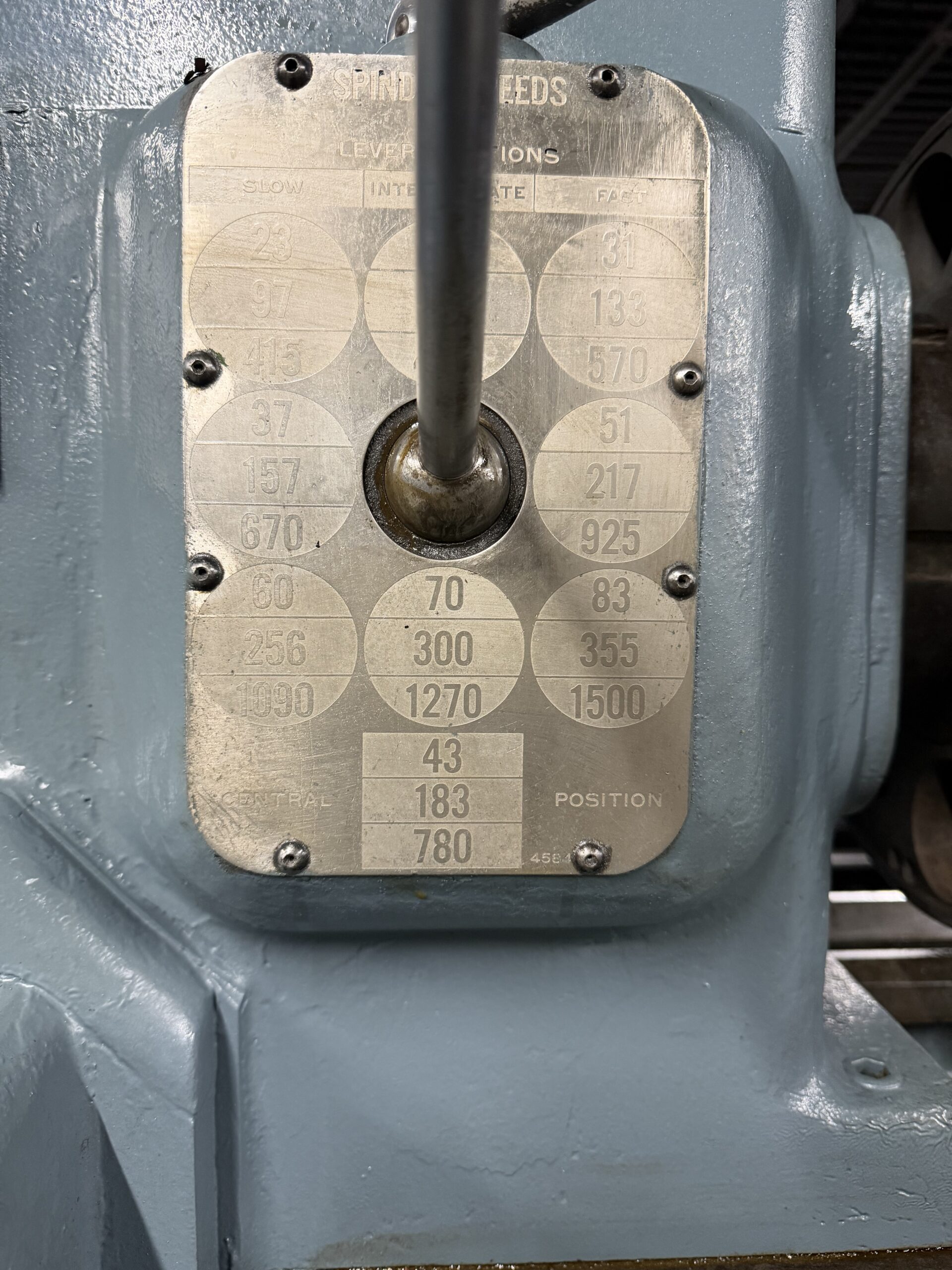

(27) Spindle Speeds, Range…………. 23 to 1500RPM

(66) Carriage Longitudinal Feeds……. .0015 to .091 IPR

(66) Thread Changes, Range…………. 2 to 120 TPI

Weight, Approximately……………… 10500 LBS

Machine is in excellent condition and can be inspected under power at our warehouse in Independence, Missouri.
