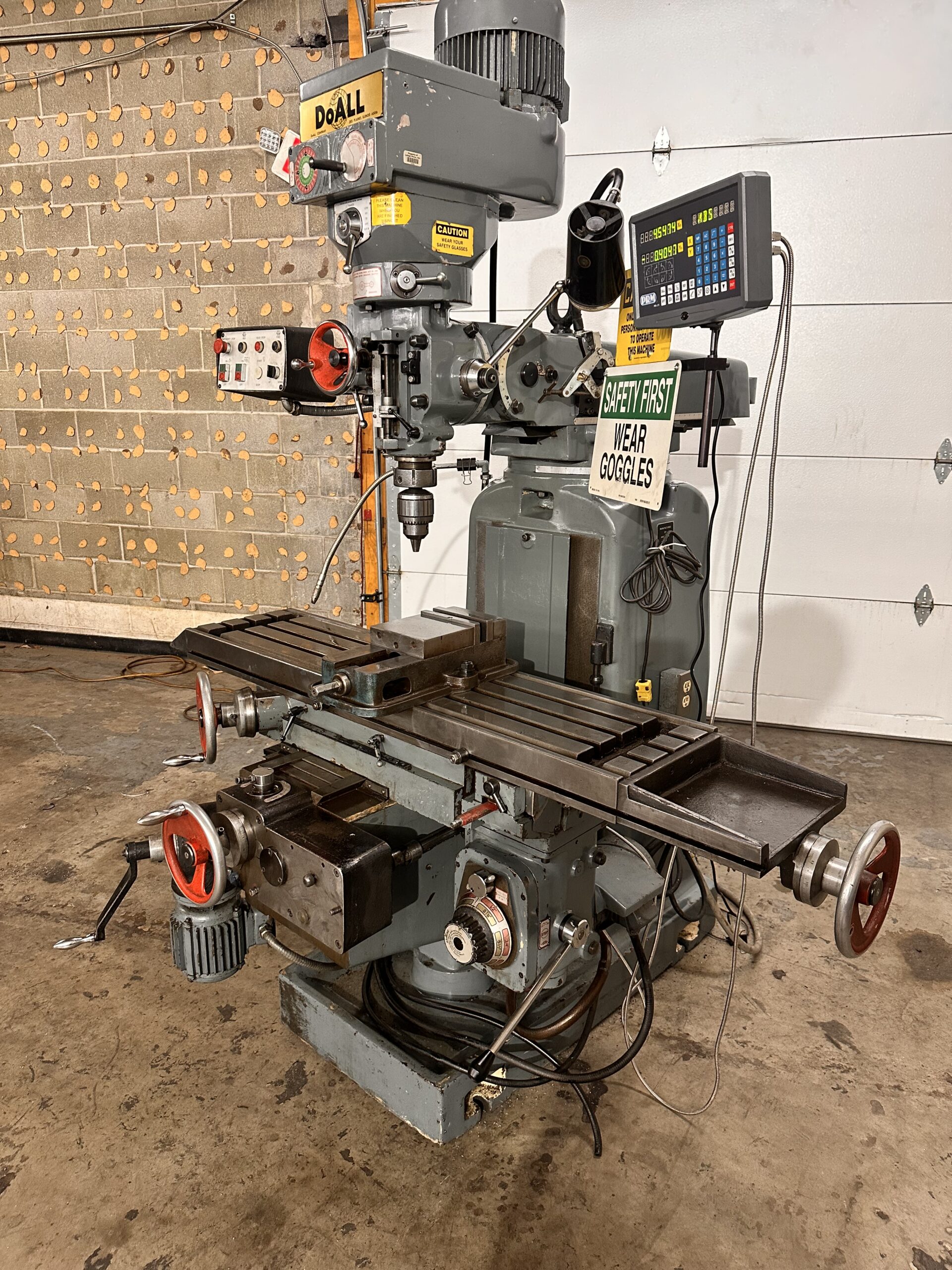

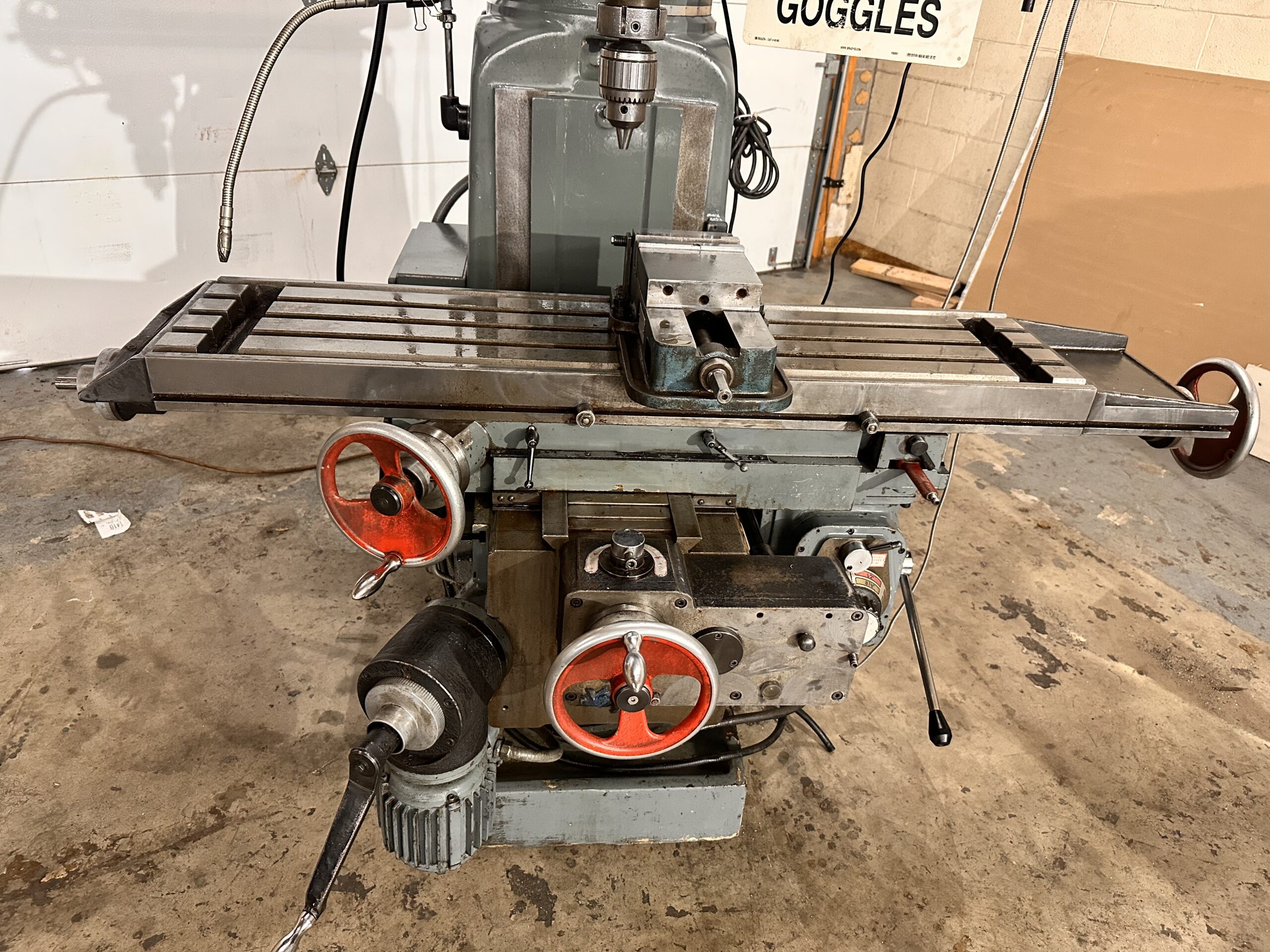

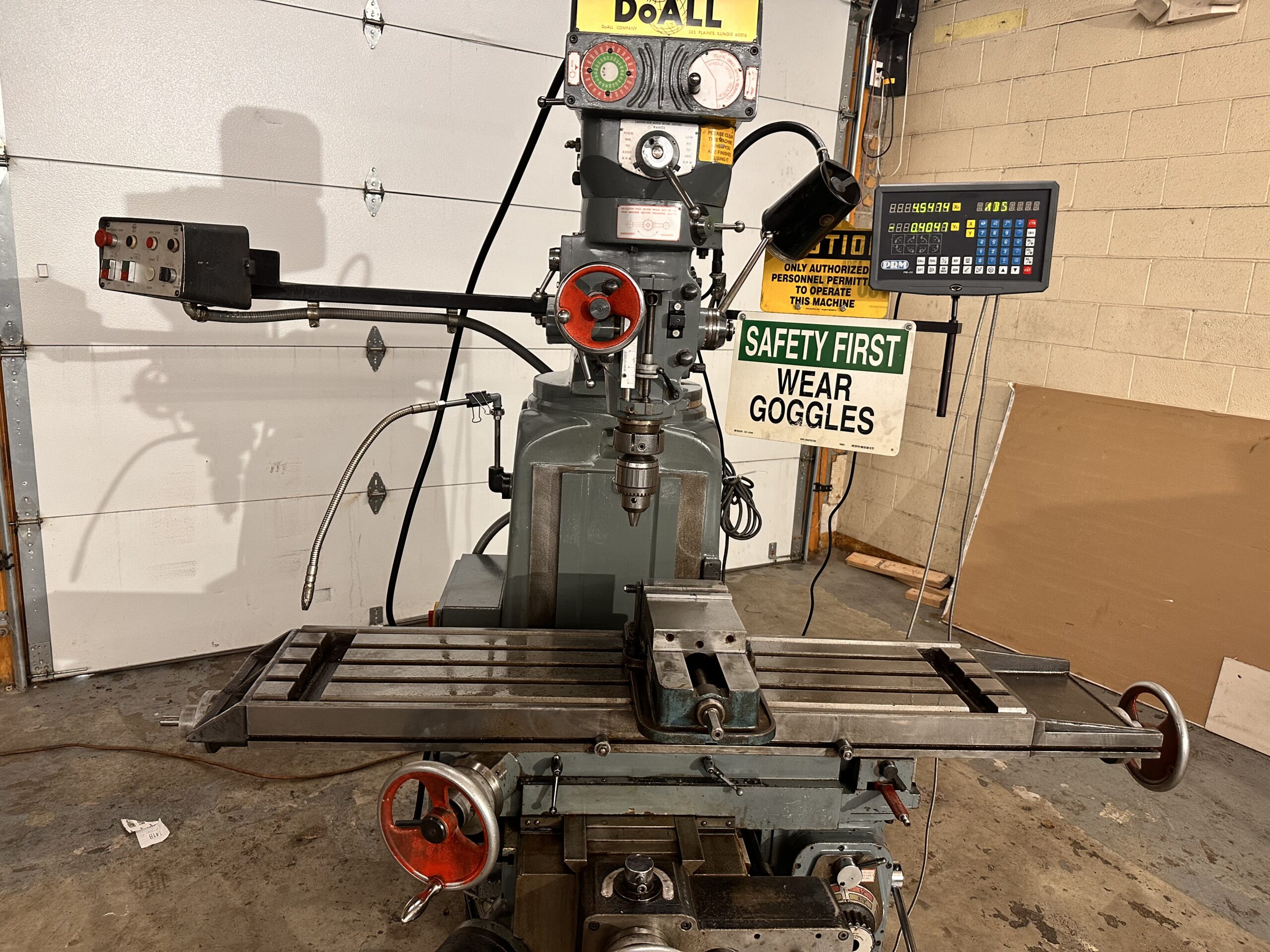

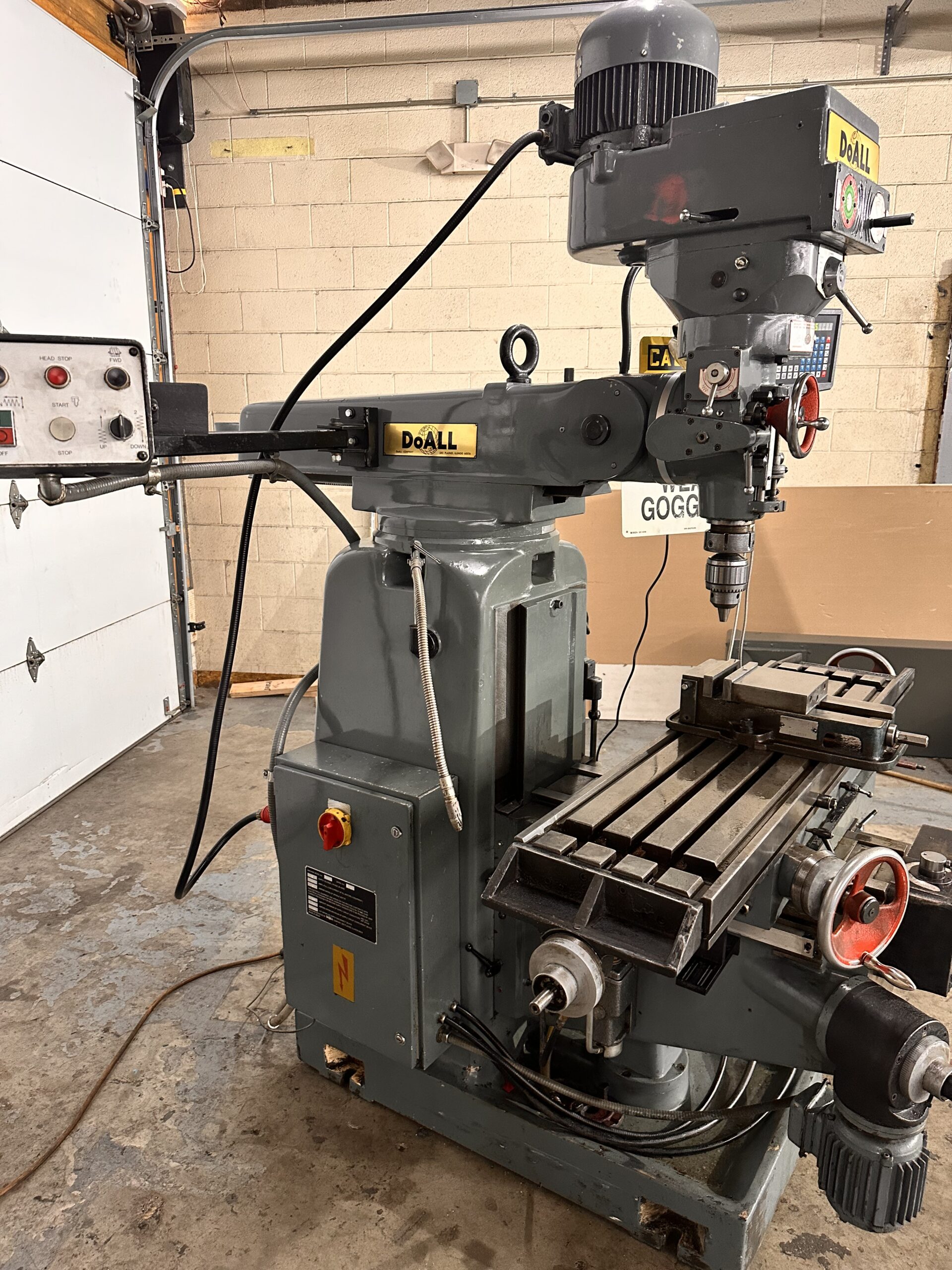

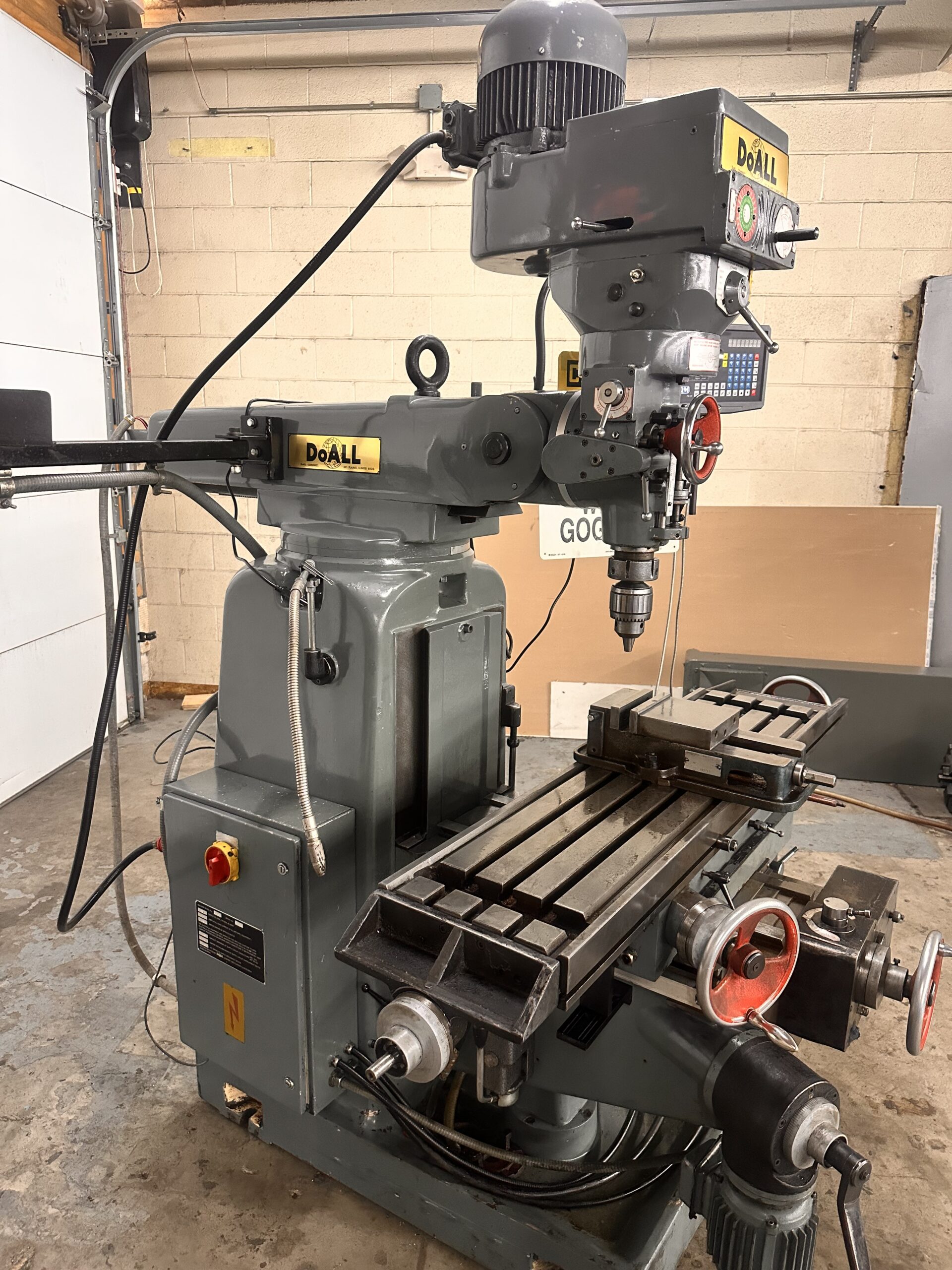

DOALL / ANAYAK HEAVY-DUTY MILLING MACHINE W/ FULLY REBUILT HEAD


MODEL: FV-2V, S/N: 32325


Video :


SPECIFICATIONS:

TABLE SIZE ……………………… 12″ X 48-3/4″


TRAVELS:

LONGITUDINAL TABLE …………… 37.5″

CROSS ………………………. 15.75″

QUILL SPINDLE ……………….. 5.125″

VERTICAL KNEE………………… 17.625″

MIN/MAX SPINDLE TO TABLE DISTANCE …. 0″ – 17.625″

MIN/MAX SPINDLE CENTERLINE TO COLUMN . 6.3″ – 31.5″


SPINDLE SPEEDS:

LOW ………………………… 60 – 490 RPM

HIGH ……………………….. 545 – 4350 RPM

SPINDLE TAPER …………………… #40 QUICK SWITCH

QUILL FEEDS …………………….. .0025, .0013, .0040 IPR

TABLE FEEDS……………………… 1/2 to 20-7/8 IPM

APPROXIMATE WEIGHT ………………. 3400 LBS


EQUIPPED WITH:

– 3 HORSE POWER VARI-SPEED HEAD

– 3/4 HORSE POWER TABLE & SADDLE FEED

– RAPID TRAVERSE & FEED FOR LONGITUDINAL TABLE TRAVEL

– New 2 Axis DRO

– 6” Kurt Vise


Machine is in excellent condition and can be inspected under power at our warehouse in Independence, Missouri.
