LAGUN FT 2 VERTICAL MILLING MACHINE

VIDEO LINK :

Equipped with:

2-Axis DRO.

Infinitely Variable Spindle Speeds.

X-Axis Power Feed.

Coolant System.

Hardened Ways.

SPECIFICATIONS:

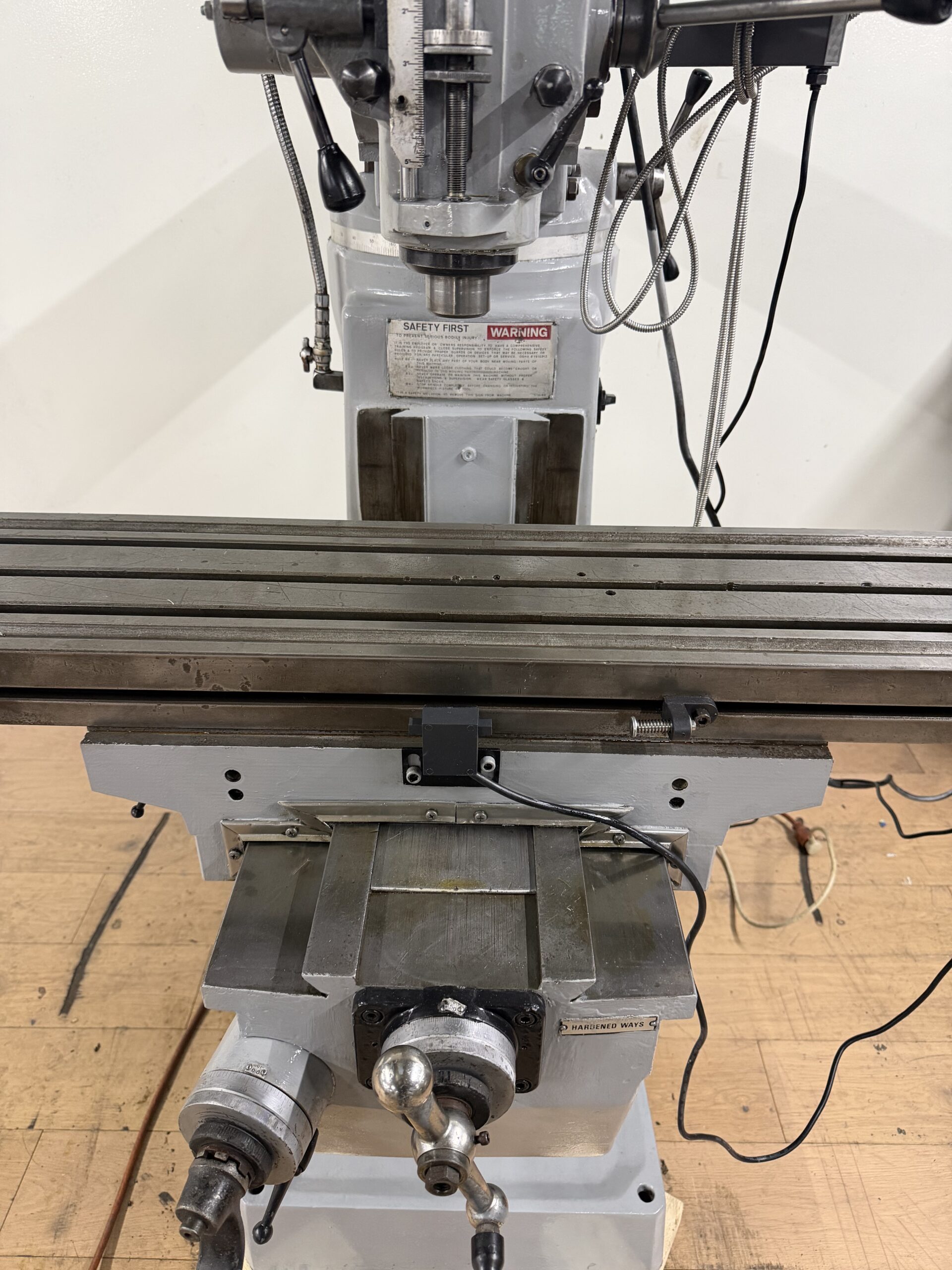

Work Table:

Surface Area: 50″ x 10″

T-Slot Center Distance: 3 @ 2.5″ centers

T-Slot Sizes: 0.625″

Maximum Weight of Workpiece: 750 lbs.

TRAVELS:

X-Axis Table Travel: 33″

Y-Axis Table Travel: 16″

Z-Axis Table Travel (knee): 16″

Quill Travel: 5″

Ram Travel: 22-3/16″

SPINDLE:

Spindle Taper: R8

Spindle Diameter: 1.875″

Quill Diameter: 3.375″

Distance Spindle to Table (maximum): 18″

Distance Spindle to Column (minimum / maximum): 5″ to 27″

Speeds: 55 to 4,250 RPM

Power Quill Feed: 0.0015″/rev, 0.003″/rev & 0.006″/rev

Motor: 3 Horsepower, 220 / 380-440 Volt, 1,500 / 1,800 RPM, 50 / 60 Hz

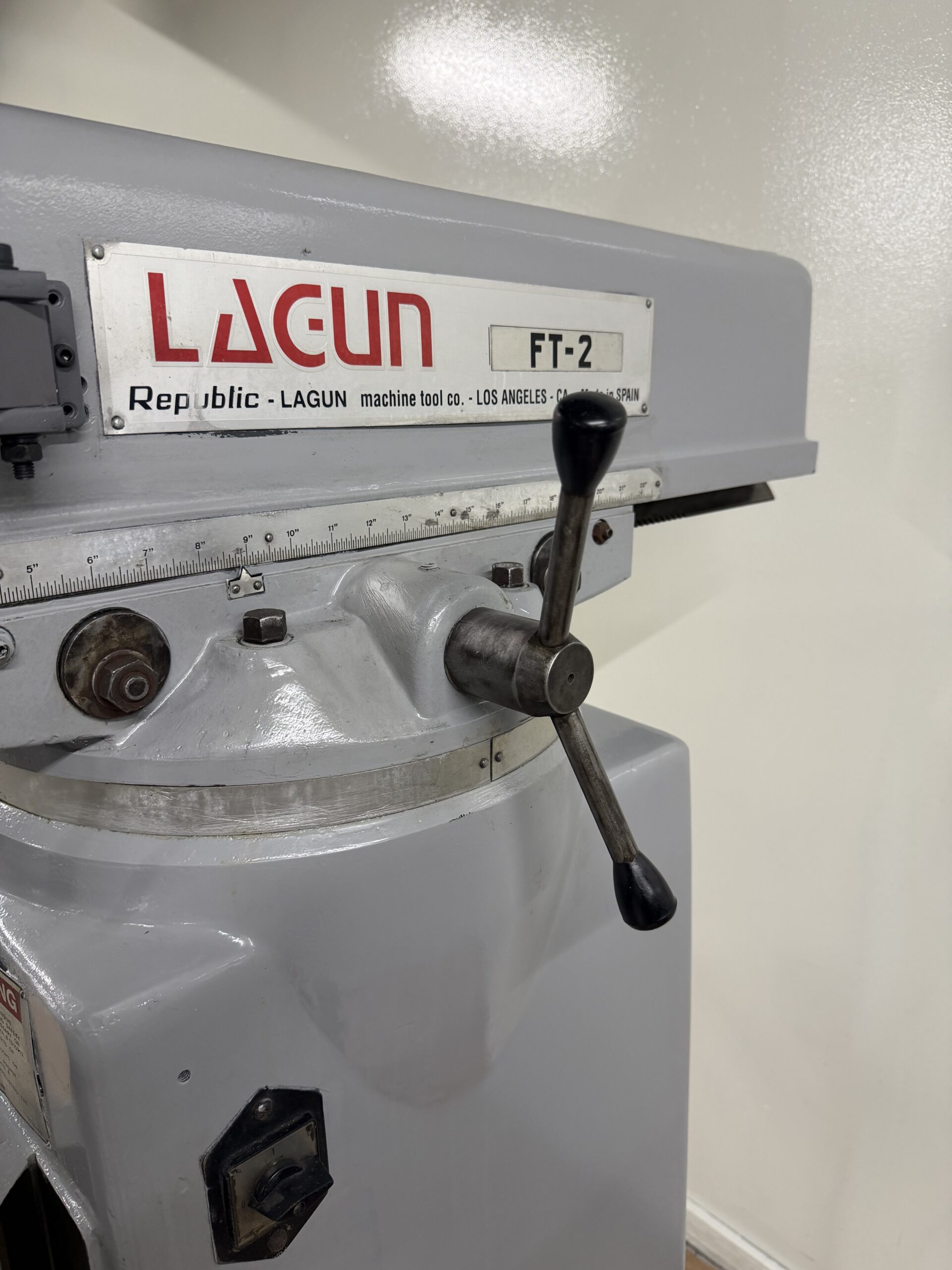

HEAD ADJUSTMENTS:

Head Swivel: 90 degrees

Head Tilt: 90 degrees

Head Cant: 45 degrees

GENERAL:

Electrical: 220 / 380-440 Volt, Three Phase

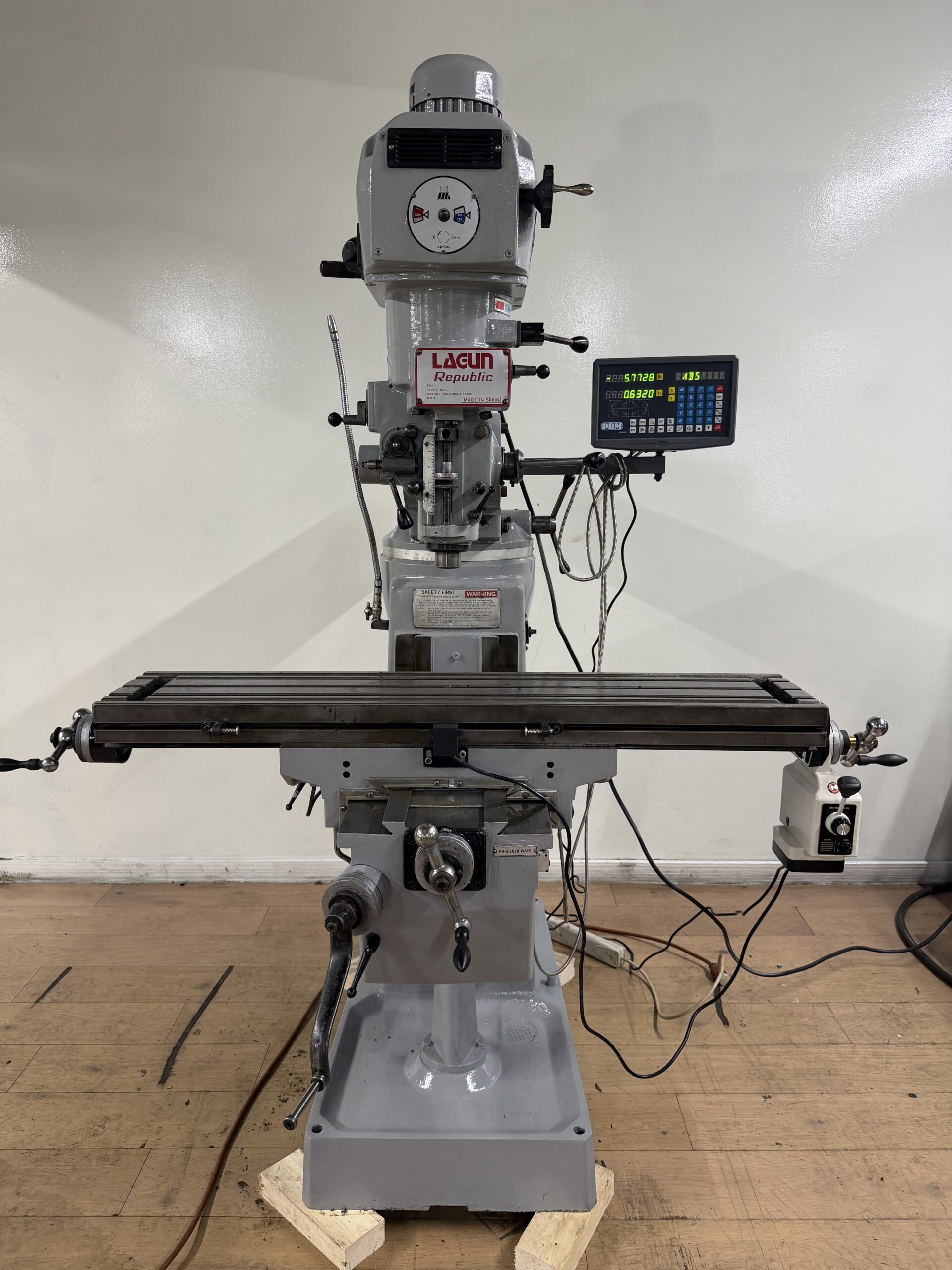

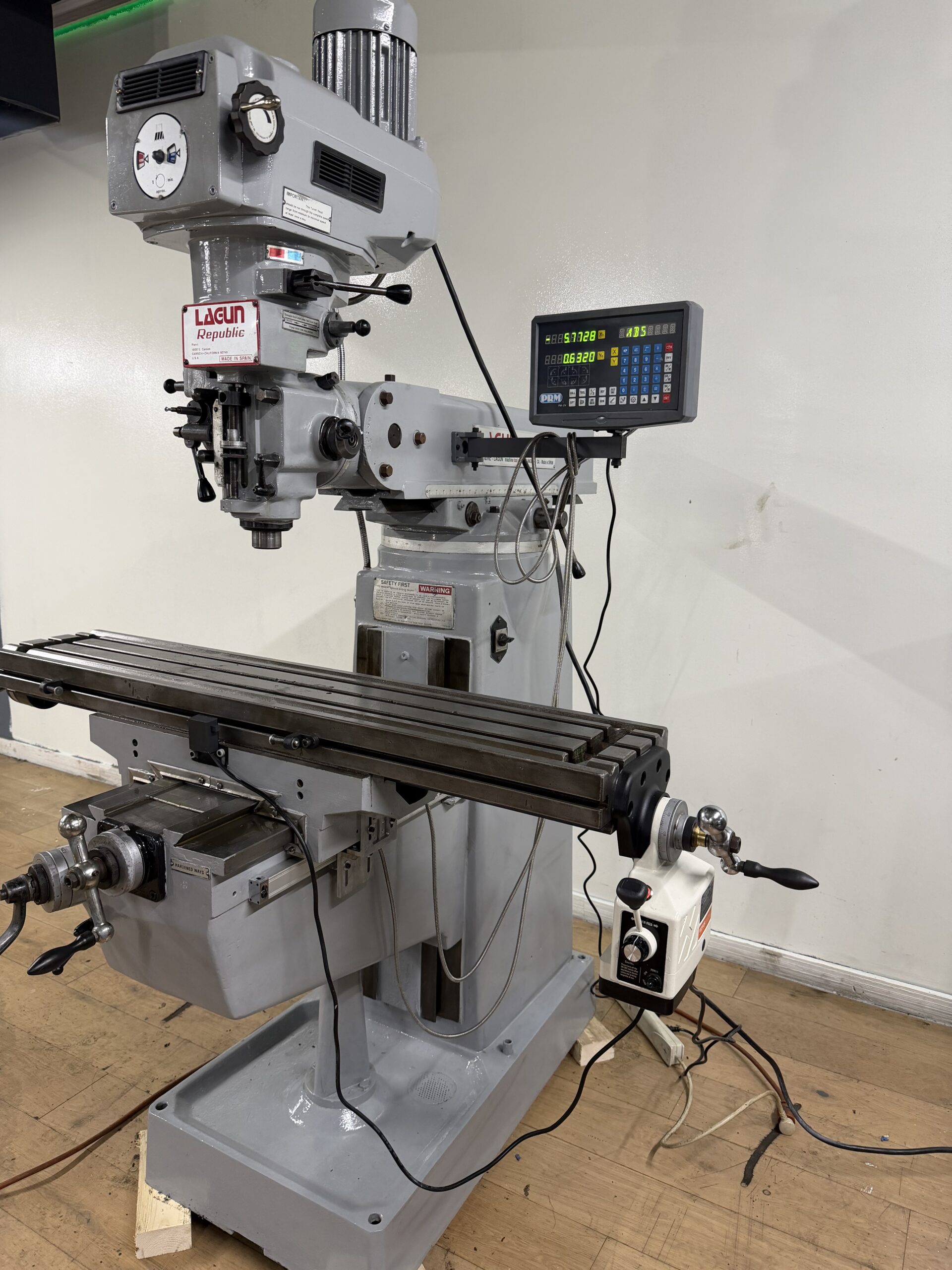

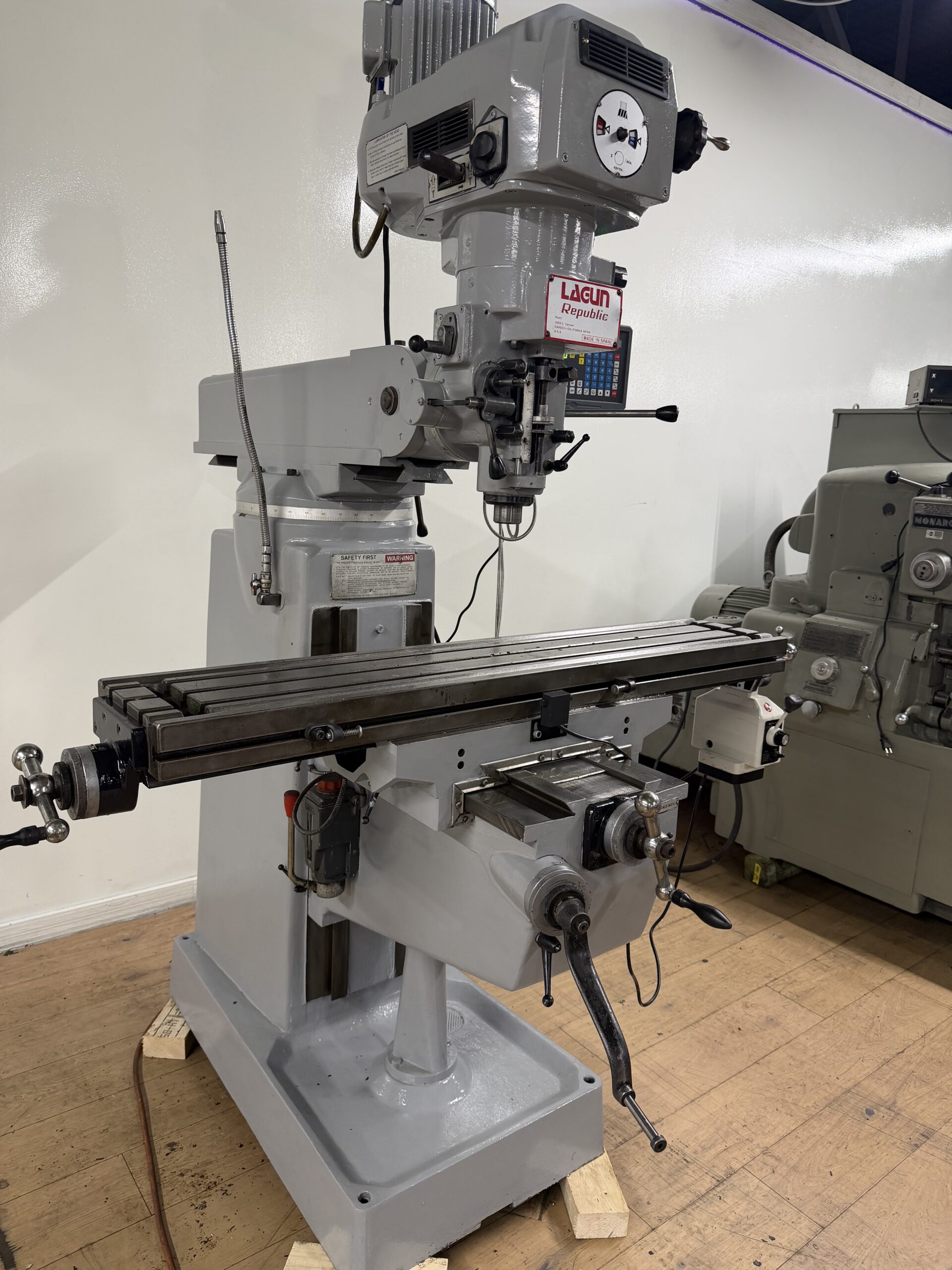

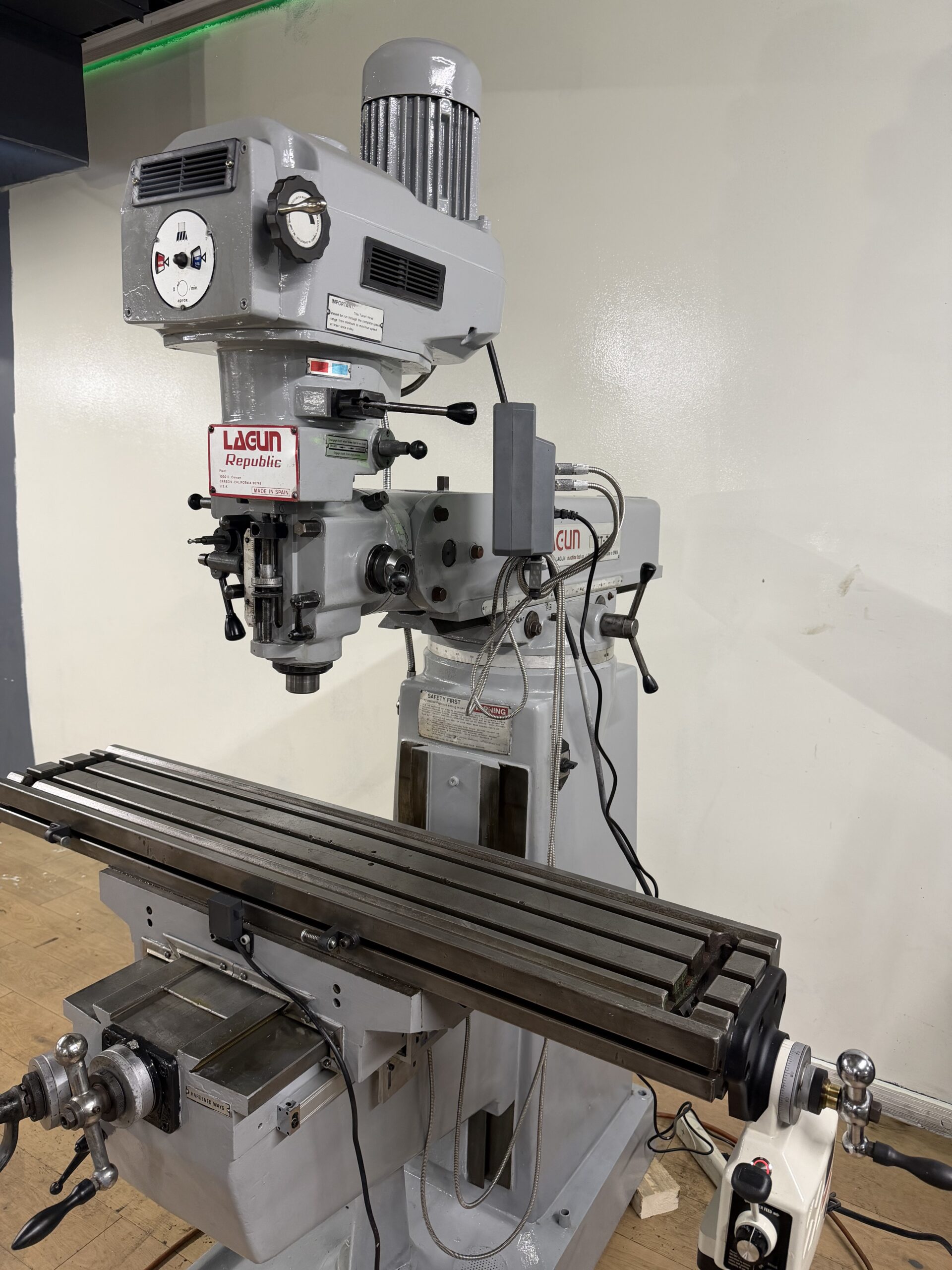

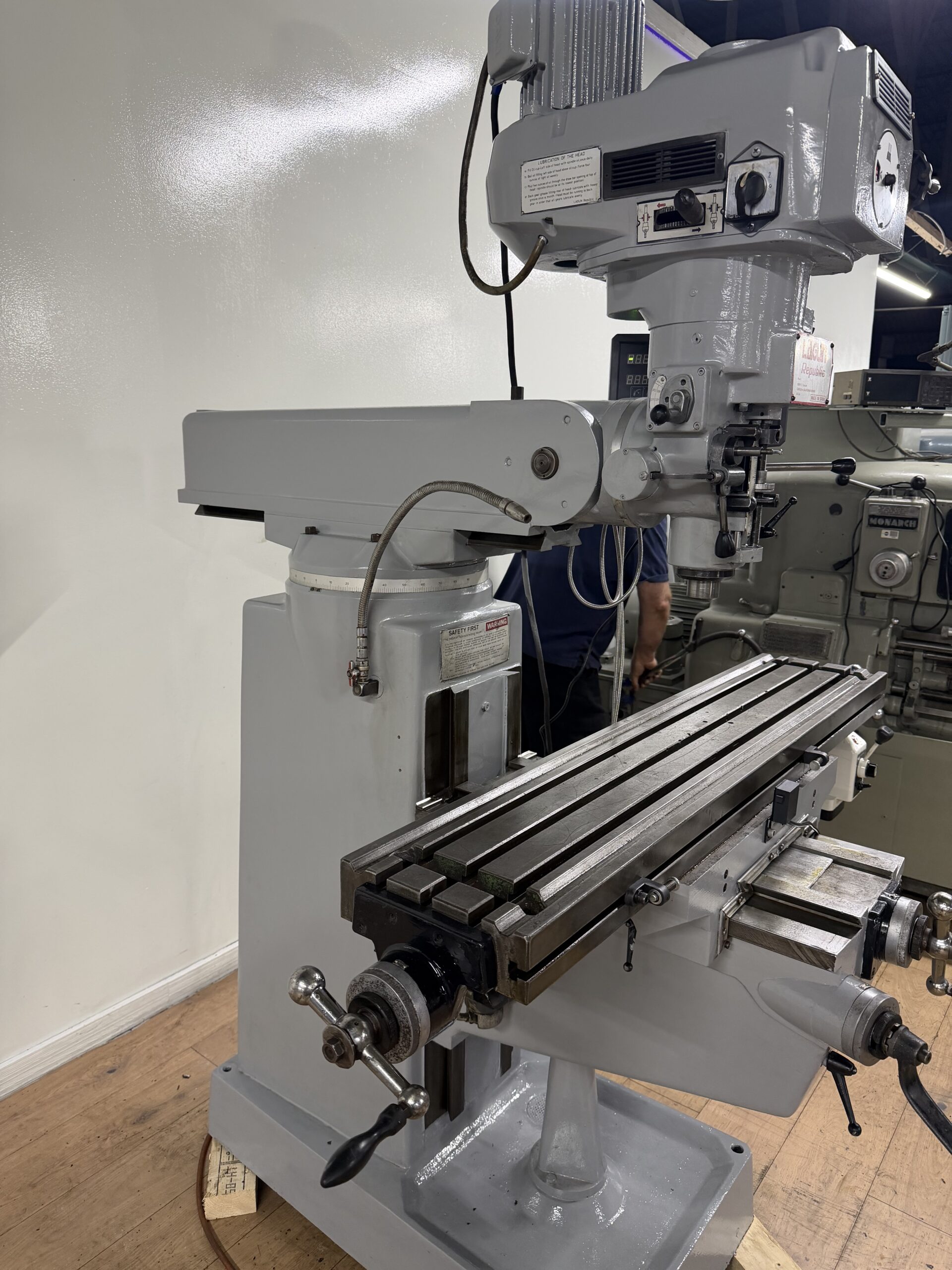

Overall Dimensions: 68″ x 64″ x 90″ tall Comes as shown in pictures.

Machine is in excellent condition and can be inspected under power at our warehouse in Independence, Missouri.
