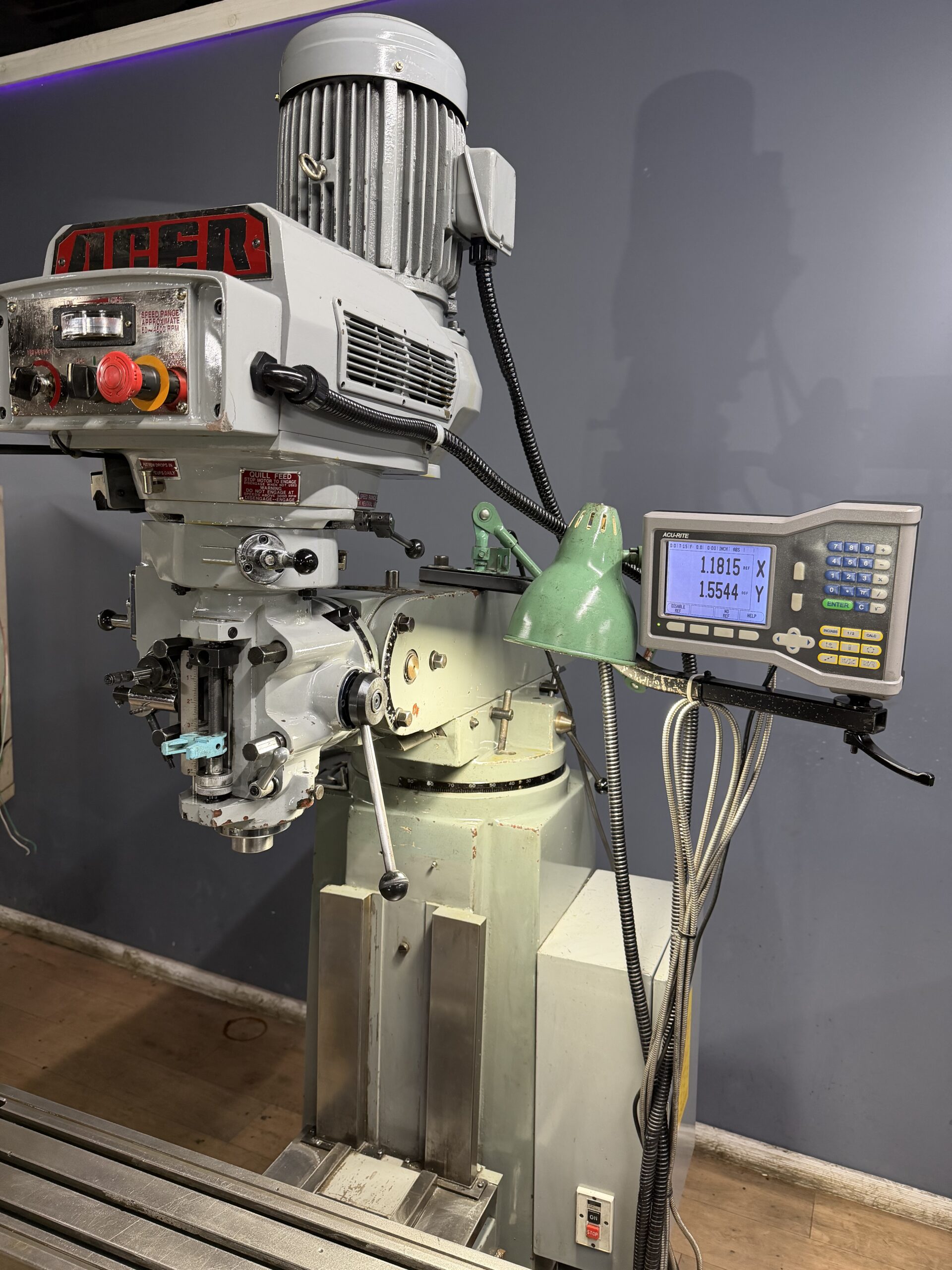

YCM Vertical Milling Machine with Acer E-Mill Head

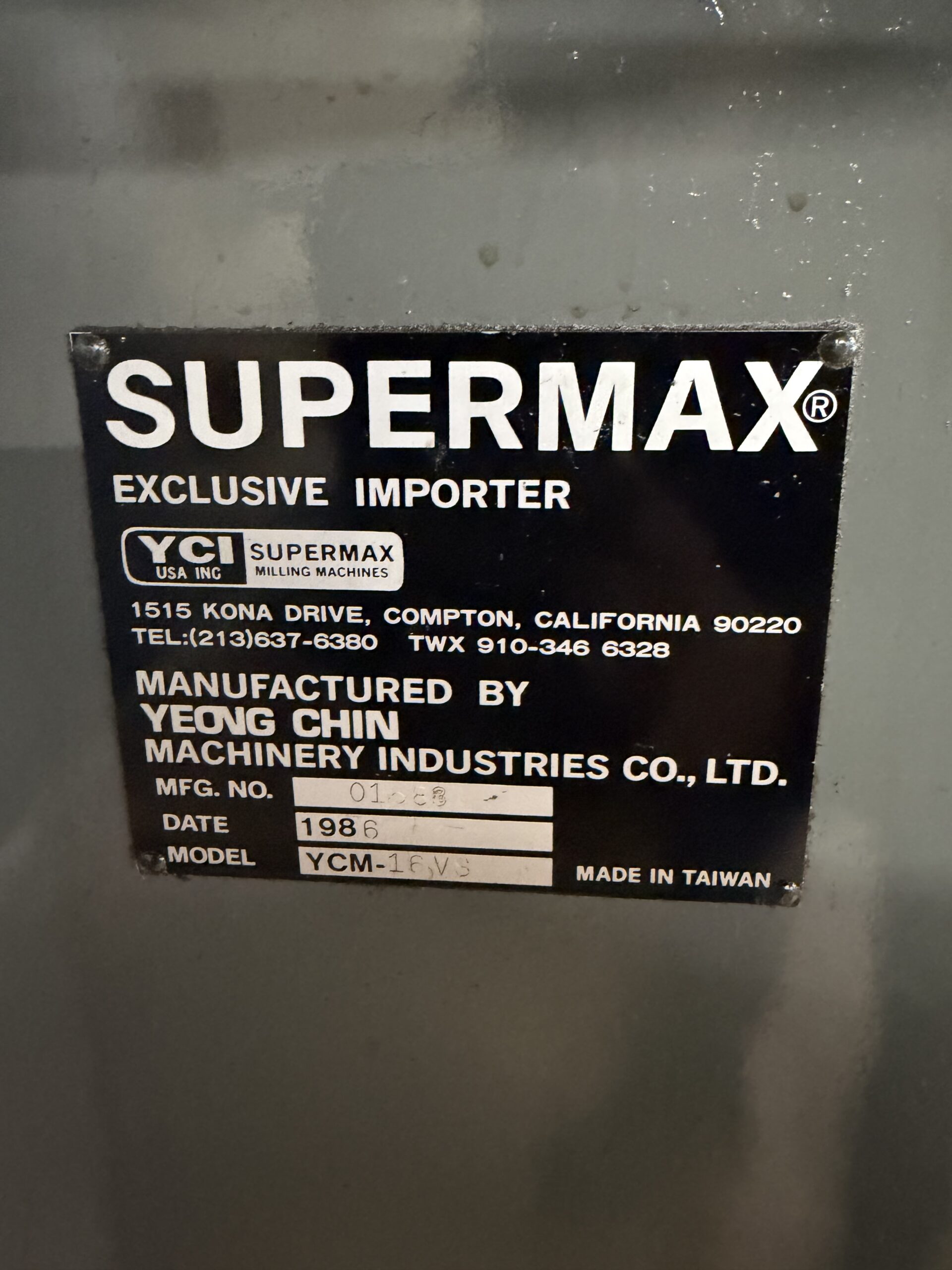

Model : YCM-16VS
VIDEO LINK :
Feature:
Table / Working Surface 9″ × 49″
Longitudinal (X) Travel 34″
Cross (Y) Travel / Saddle Travel 12″
Vertical / Knee Travel (Z axis) 16″
Ram Travel 12″
Spindle Speeds 60 to 4,500 RPM (variable speed)
Spindle Taper R-8
Quill Travel 5″
Quill Diameter 3 3/8″ (chromed)
Power / Motor 3 HP inverter (variable drive)
T-Slots 3 slots, 5/8″ size
Head Movement Head can move / tilt: right ↔ left 90°, tilt front ↔ back 45°
Machine Weight- 2430 Lbs
Equipped with :

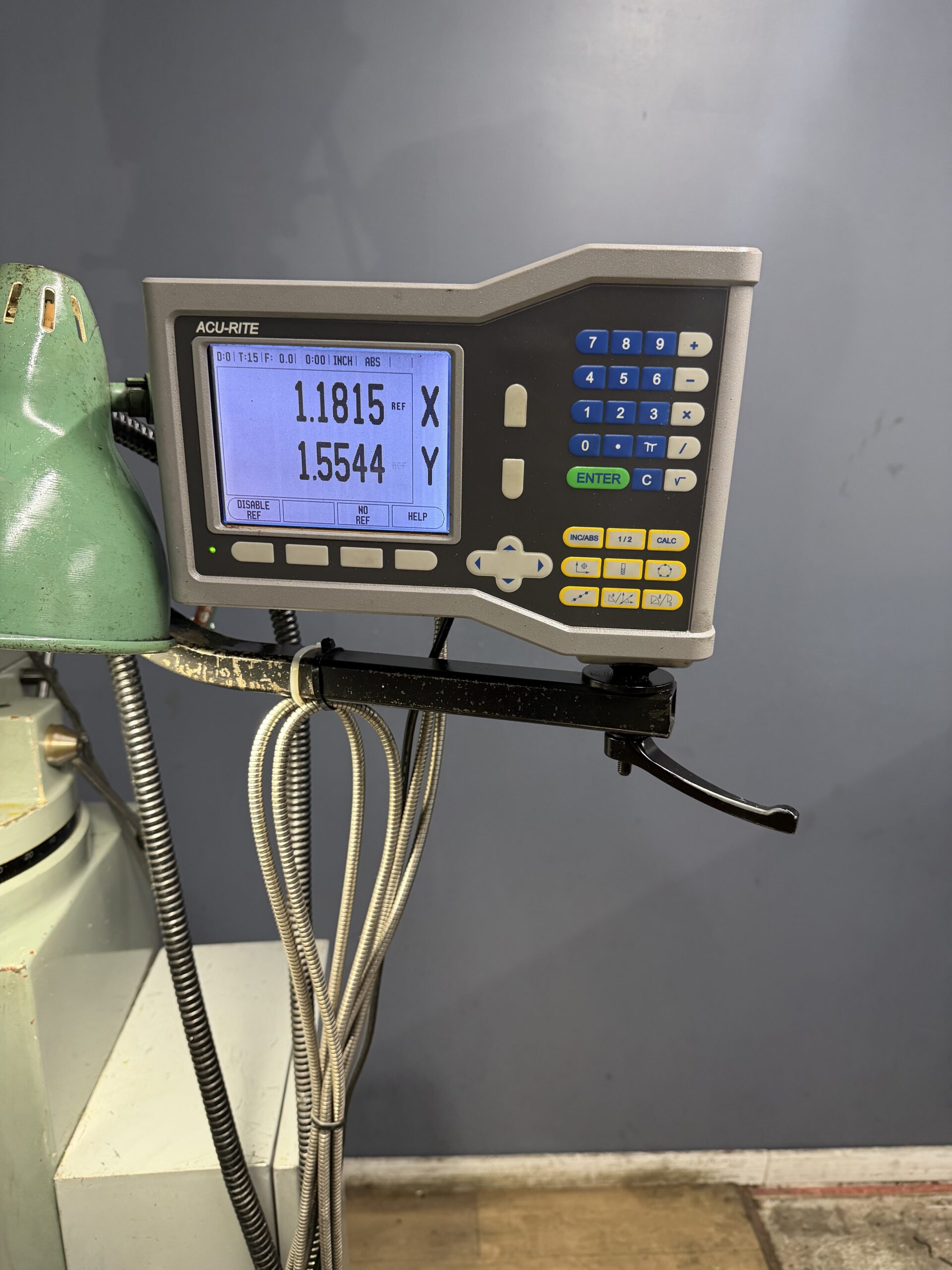

2 Axis Acu-Rite DRO
Toshiba VFD
Work Light
One shot lube
Machine is in excellent condition and can be inspected under power at our warehouse in Independence, Missouri.
