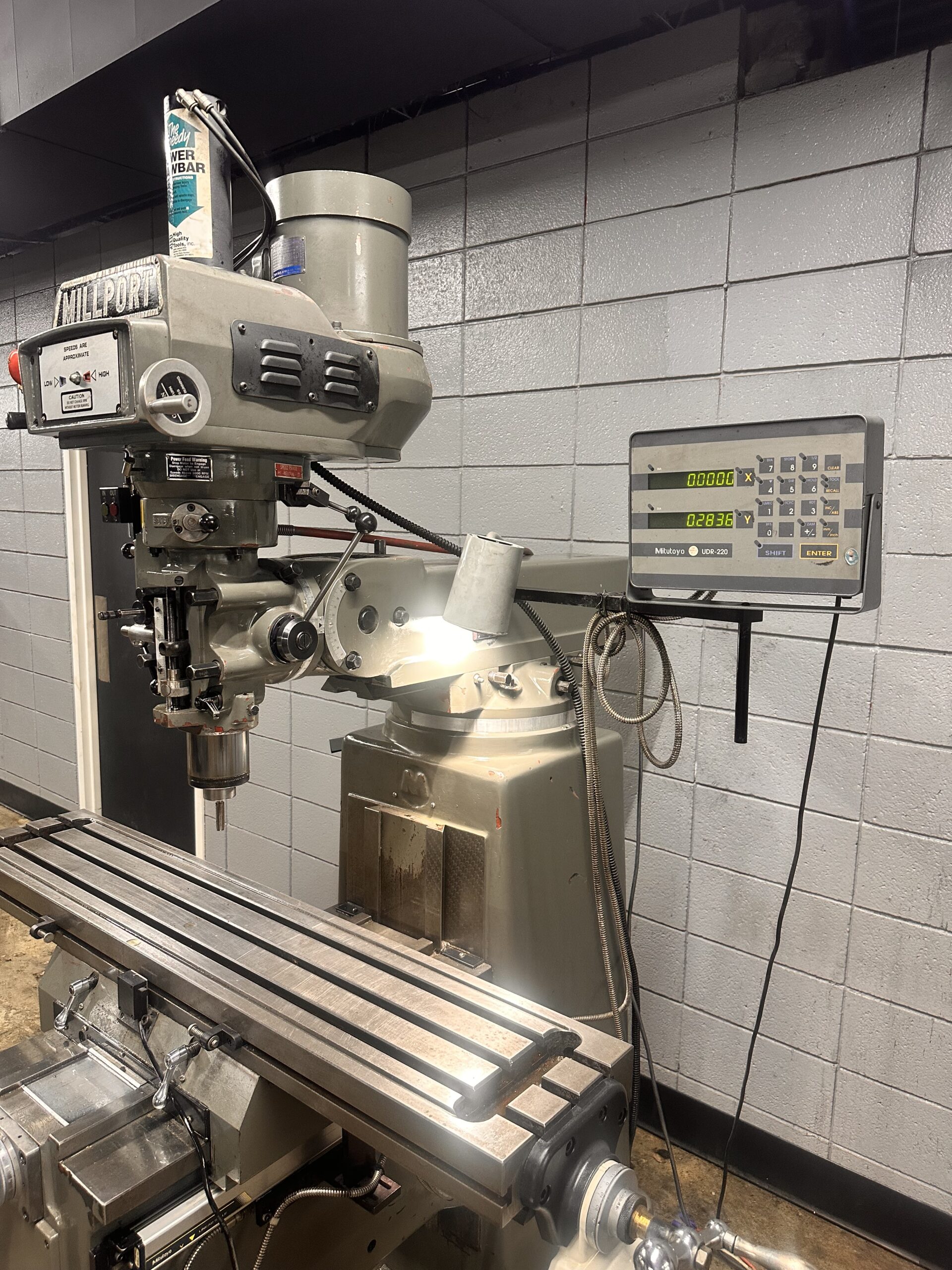

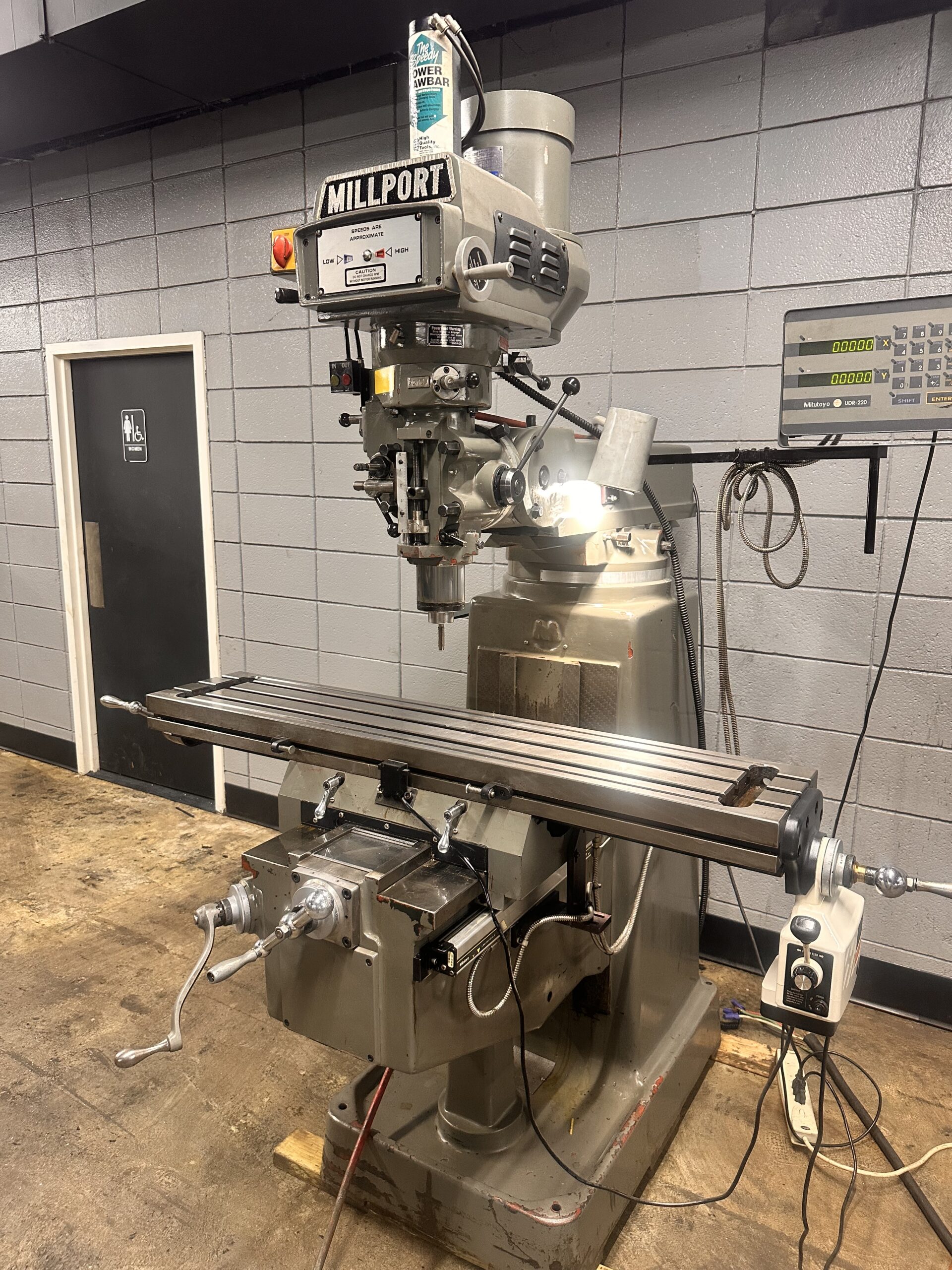

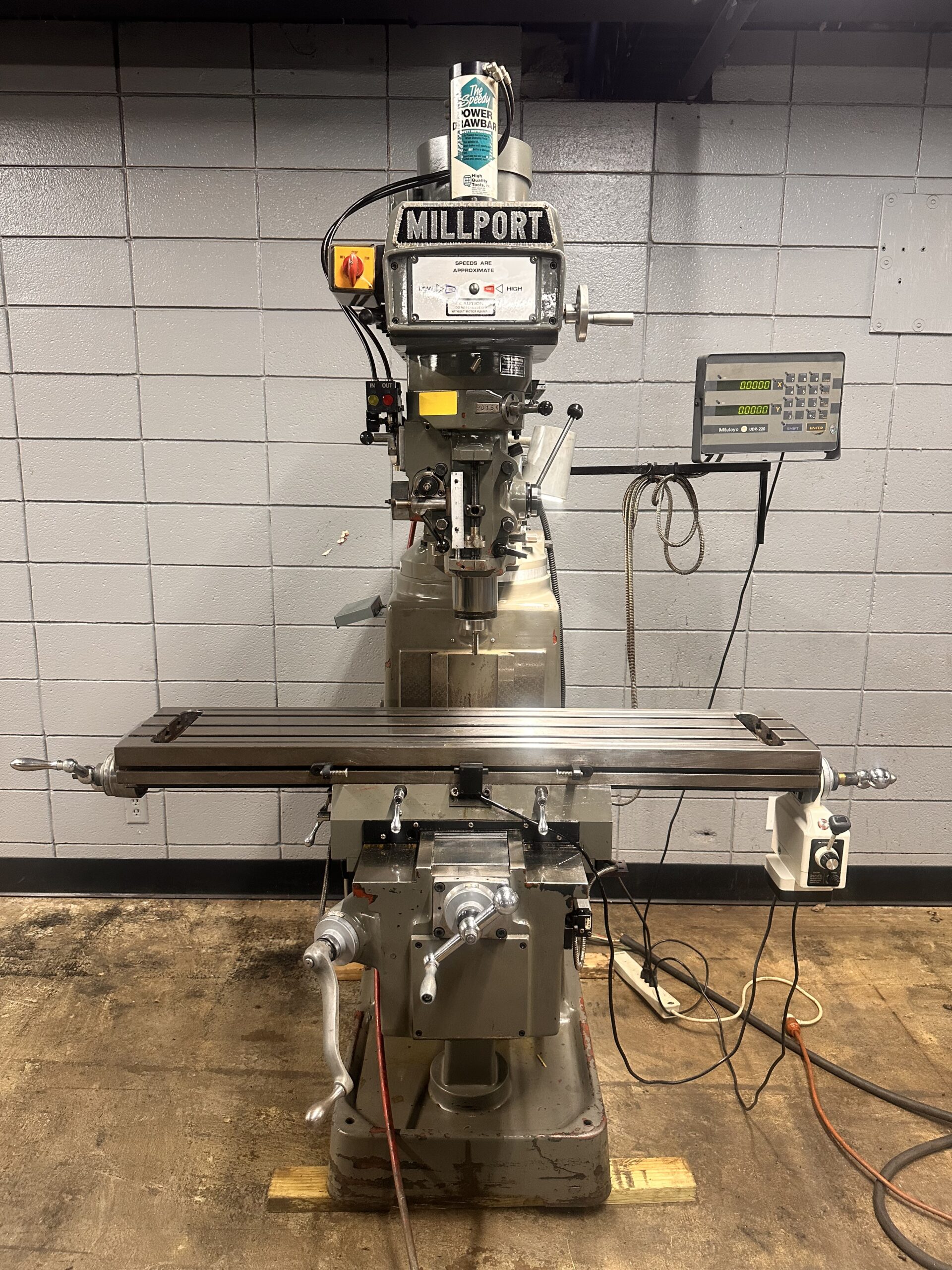

MILLPORT 3HP VERTICAL MILL WITH DRO, POWERFEED & POWER DRAWBAR

VIDEO LINK :

MODEL……………………………. 3KVH

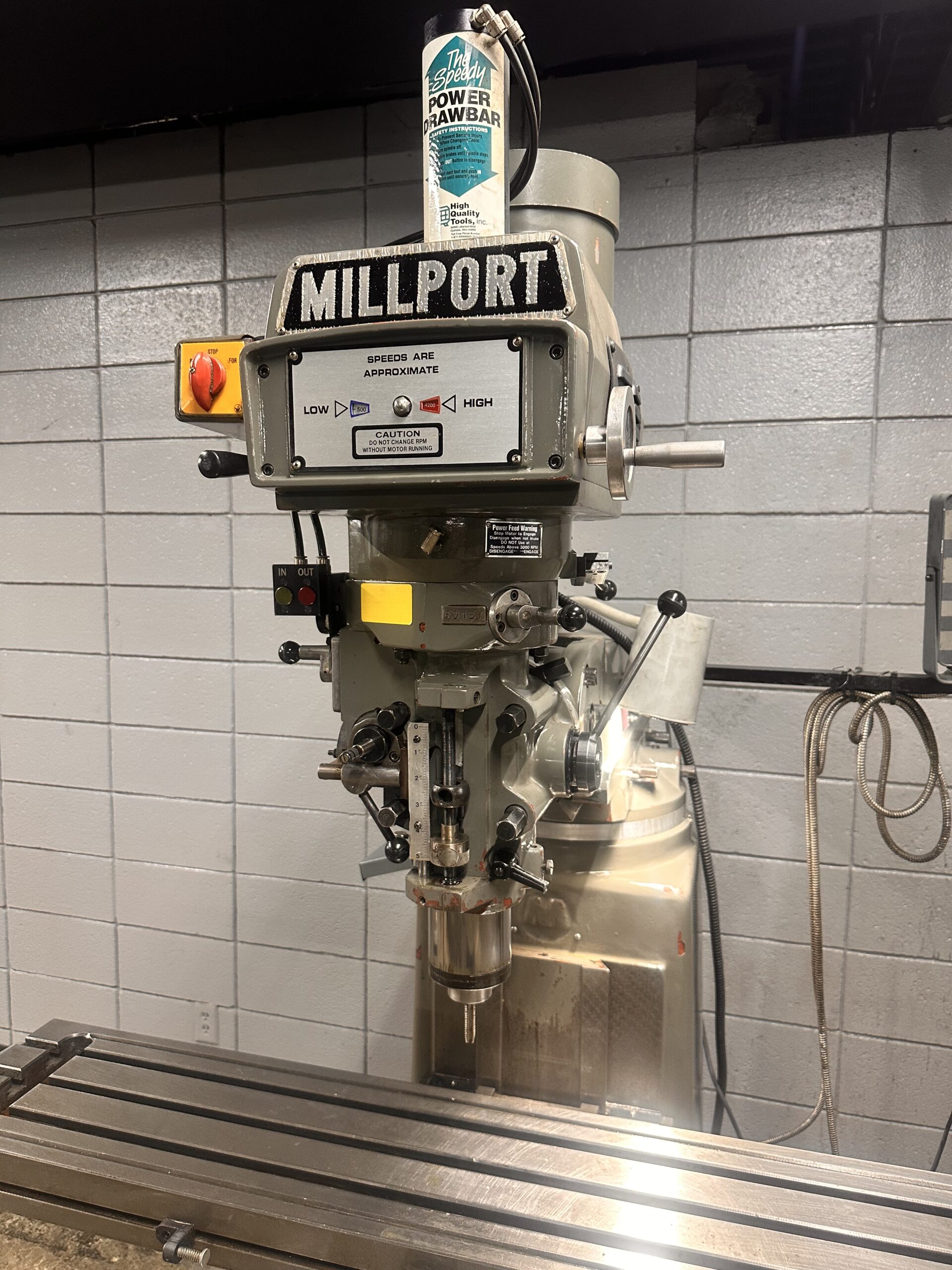

HEAD:

MOTOR (DUAL VOLTAGE)………………. 3 HP 230V/460V (230 NOW)

SPINDLE SPEDS (INFINITELY VARIABLE)….

LOW 60 – 520 RPM

HIGH 500 – 4250 RPM

SPINDLE TAPER…………………….. R8

QUILL DIAMETER……………………. 3.375″

QUILL TRAVEL……………………… 5.0″

QUILL FEEDS PER SPINDLE REV………… .0015-.003-.006″


HEAD MOVEMENT EITHER SIDE OF VERTICAL:

(FRONT VIEW)……………………… 90 DEGREES

HEAD MOVEMENT EITHER SIDE OF VERTICAL

(SIDE VIEW)………………………. 45 DEGREES


OVERARM:

ROTATION…………………………. 360″

MAX. LINEAR ADJUSTMENT…………….. 23″

SPINDLE NOSE TO COLUMN FACE MAX…….. 27.5″

MIN……………………………… 7″

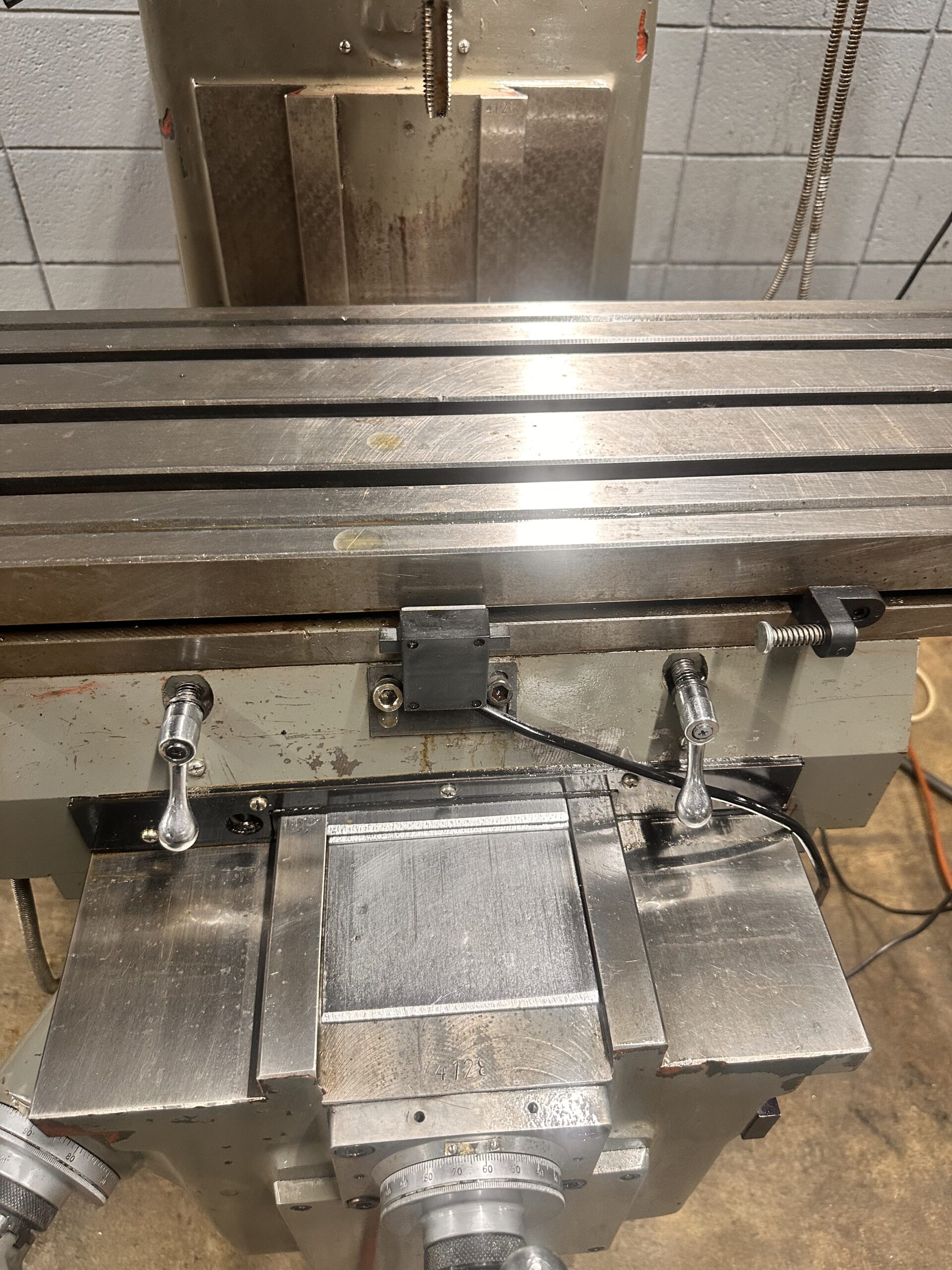

TABLE/SADDLE/KNEE:

TABLE AREA……………………….. 50″ X 10″

TABLE TRAVERSE……………………. 36″

T-SLOTS (THREE)…………………… 5/8″ X 2-1/2″ CTRS.

CROSS TRAVERSE……………………. 16.5″

VERTICAL TRAVERSE…………………. 16″


EQUIPPED WITH:

NEW POWER FEED ON X

2 AXIS MITUTOYO DIGITAL READOUT

1 PUMP LUBE

POWER DRAWBAR


CAPACITY:

SPINDLE NOSE TO TABLE MAX………….. 18-1/2″ MIN……………… 0″

WEIGHT APPROXIMATELY………………. 3,200 LBS.


Machine can be inspected under power at our warehouse in Independence, Missouri.
