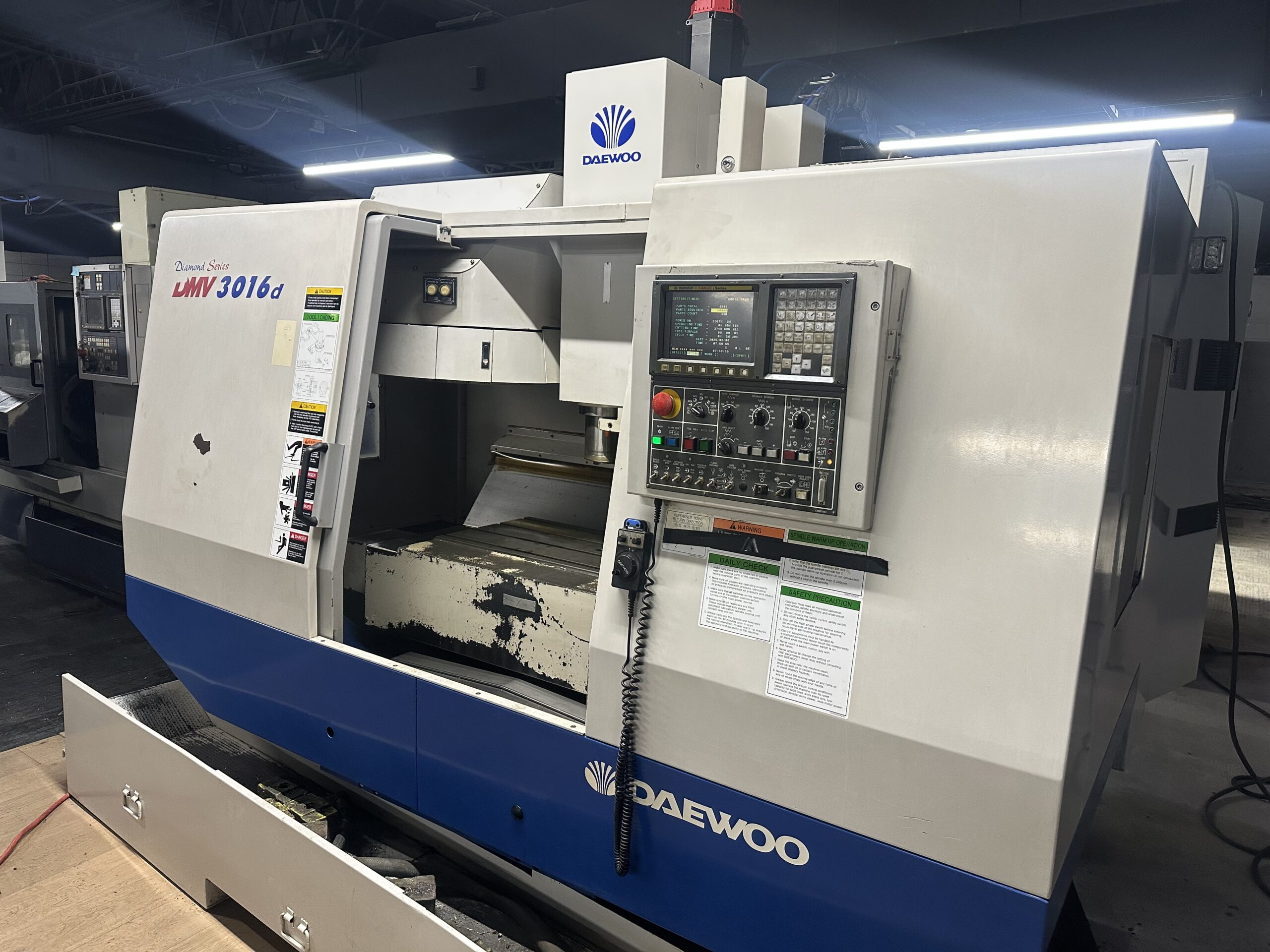

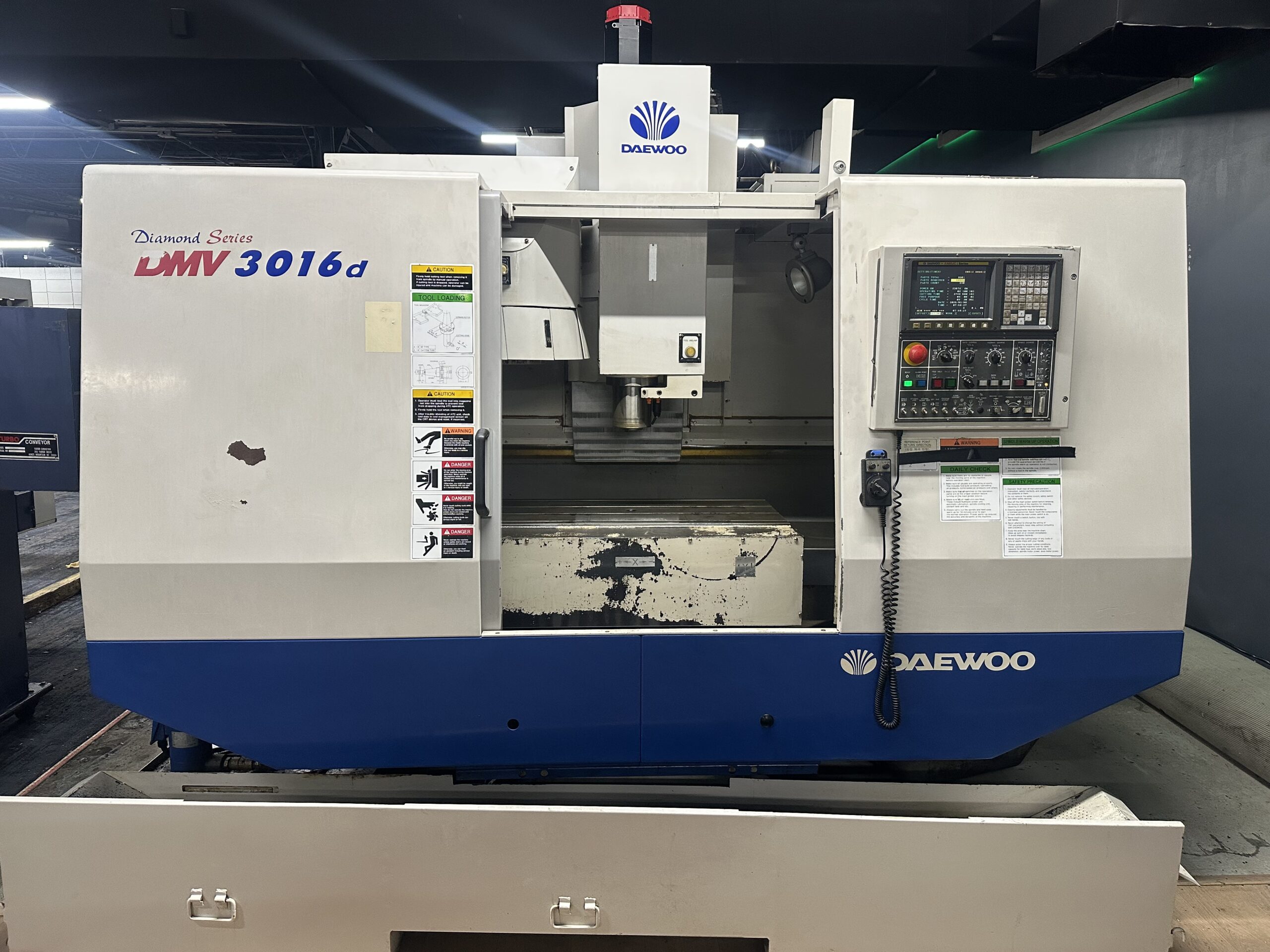

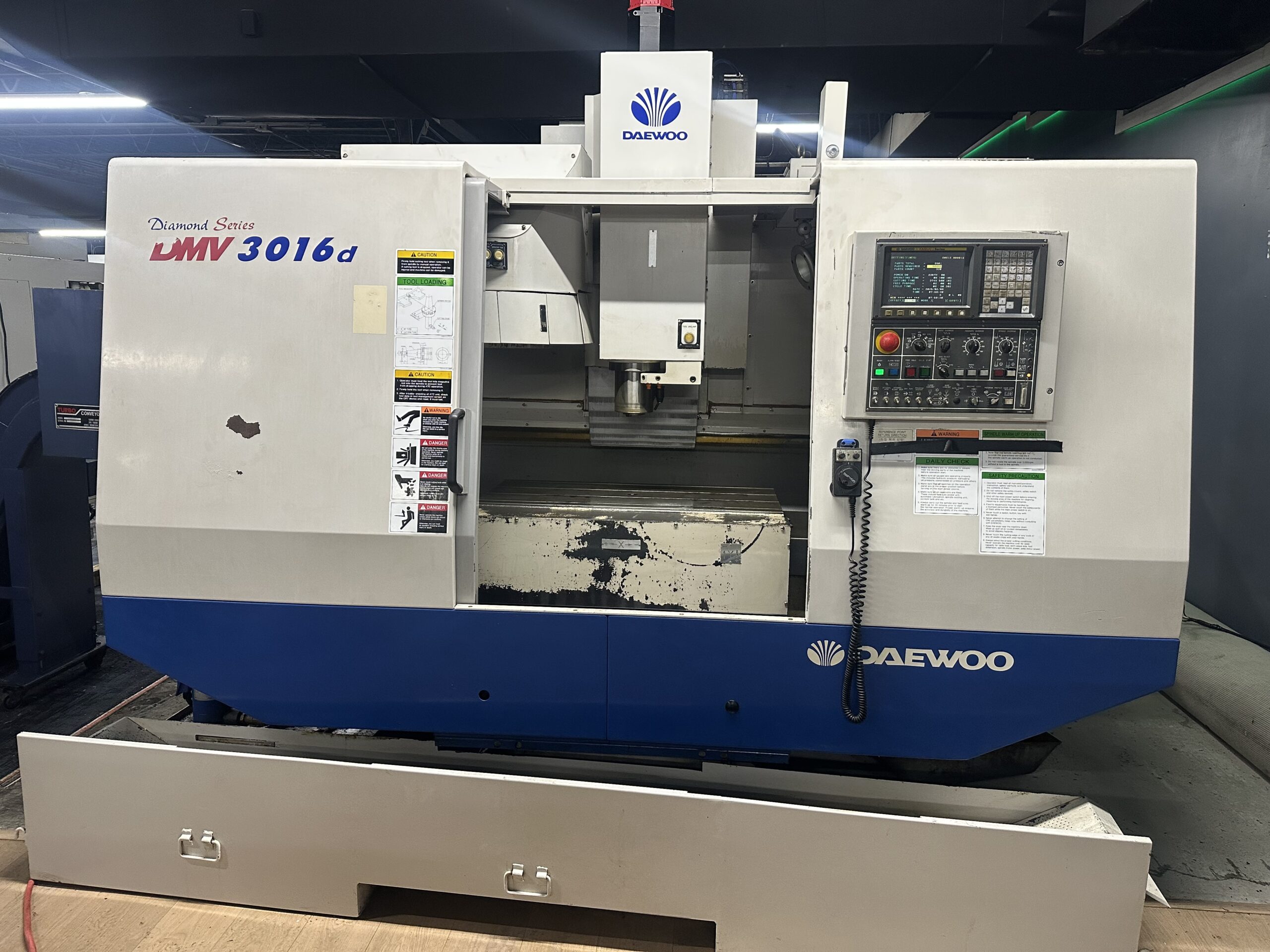

Daewoo DMV-3016d CNC Vertical Machining Center

Video Link :



SPECIFICATIONS:

ControlFanuc Oi-M

Table Size16.7″ X 39.4″

Max Table Load1,320 LBS

X-Axis Travel32.2″

Y-Axis Travel16.1″

Z-Axis Travel20.1″

Spindle Nose to Table Top17.7″

Spindle TaperCT 40

Spindle Speed8,000 RPM

Spindle Motor15 HP

Rapid Traverse Rates (XY/Z)945/708 IPM

Tool Changer20 Position

Machine Weight11,000 lbs

Floor Space Required (W X D)117″ X 94″

EQUIPPED WITH:

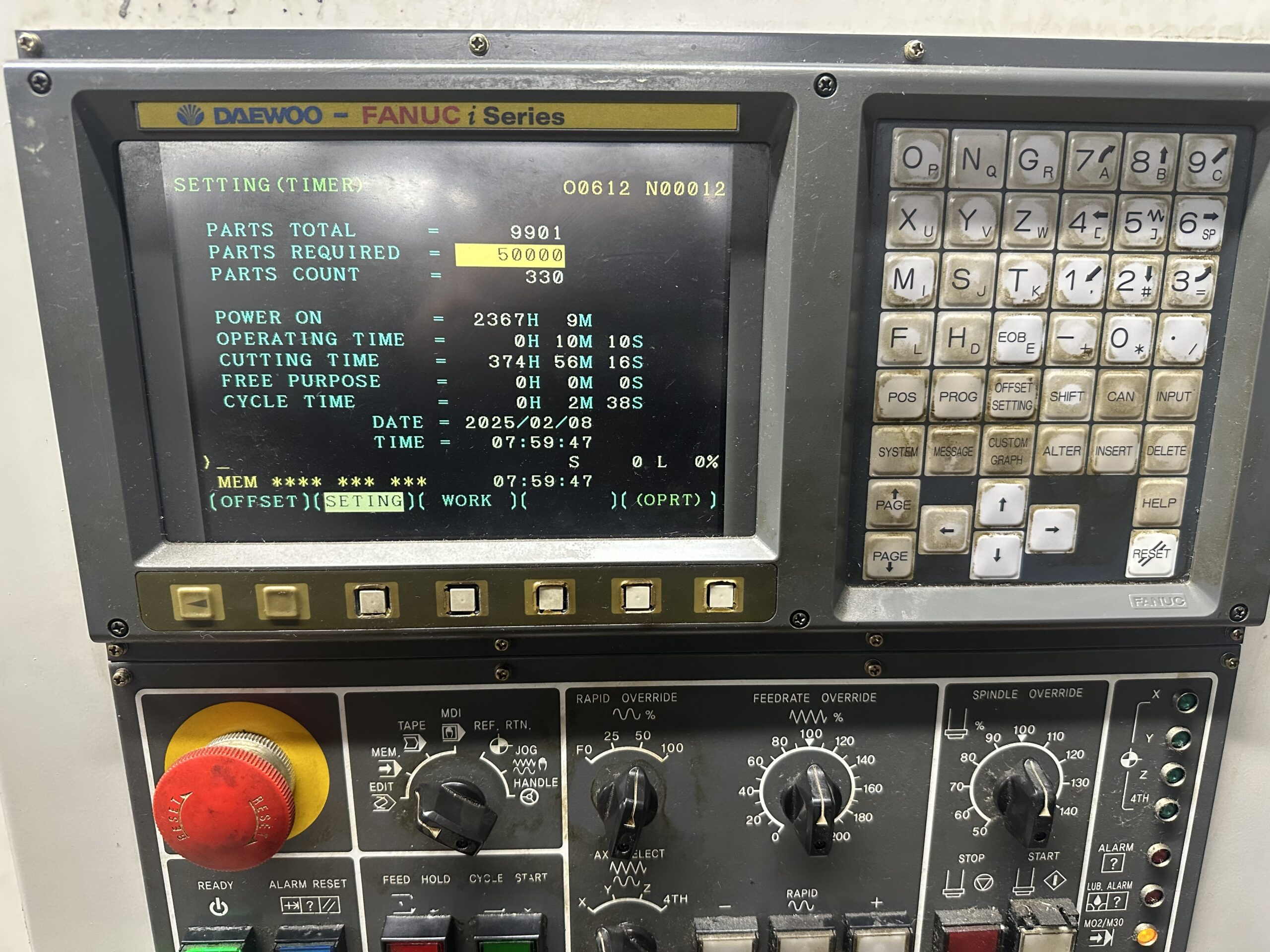

Fanuc Oi-M CNC Control

Rigid Tap

Remote Jog Handle

Coolant Tank & Pump

All Available Manuals

Machine is in excellent condition and can be inspected under power at our warehouse in Independence, Missouri.
