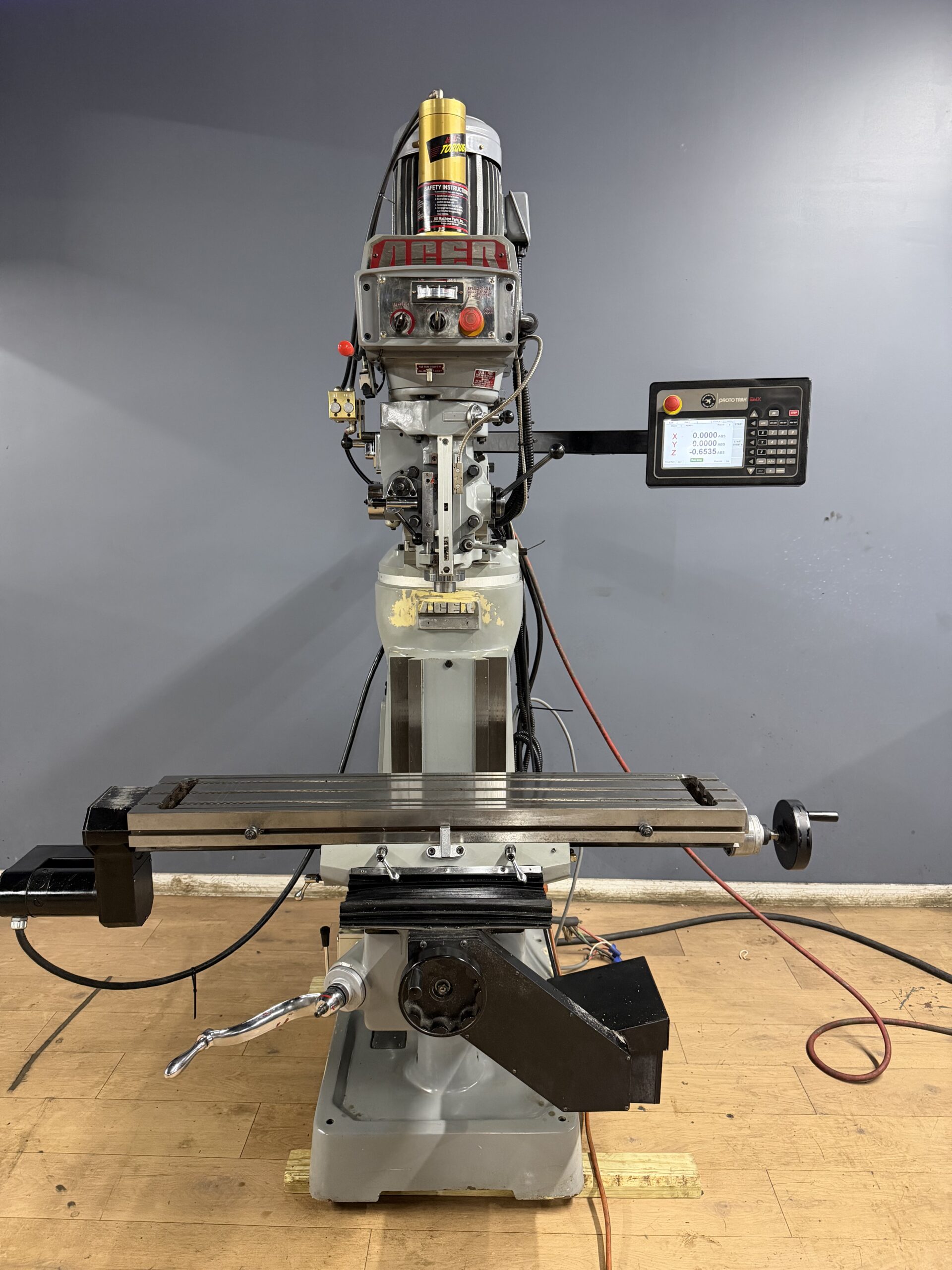

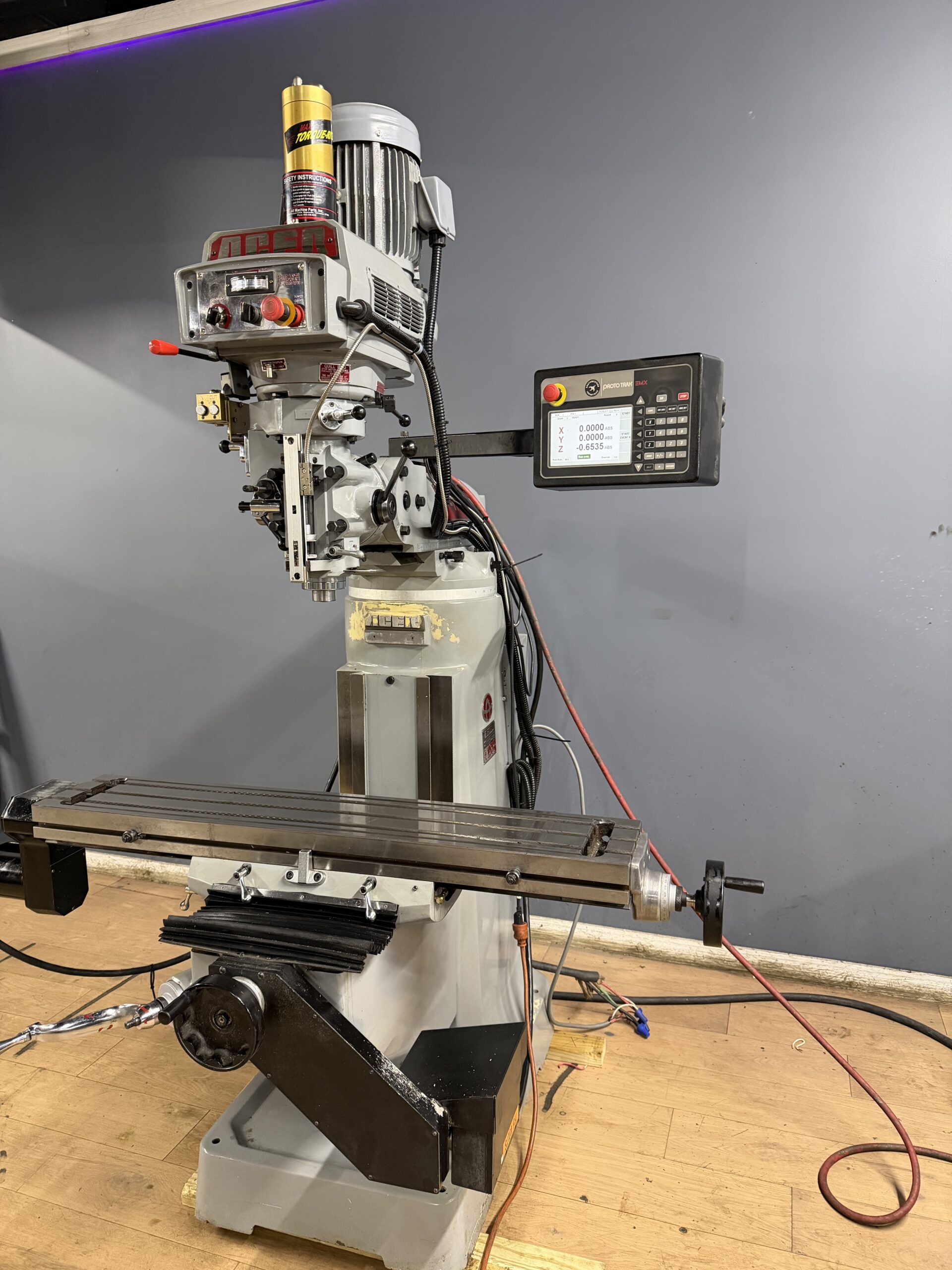

2012 ACER #EVS-3VKS CNC VERTICAL MILLING MACHINE, Upgraded Control : 2015
VIDEO LINK :
SPECIFICATIONS:
Weight
3400 Lbs.
Dimensions
68” L x 62” W x 97” H
SPEC SHEET:
Model # EVS-3VSTT
Serial # 12120662
Year of manufacture – 2012

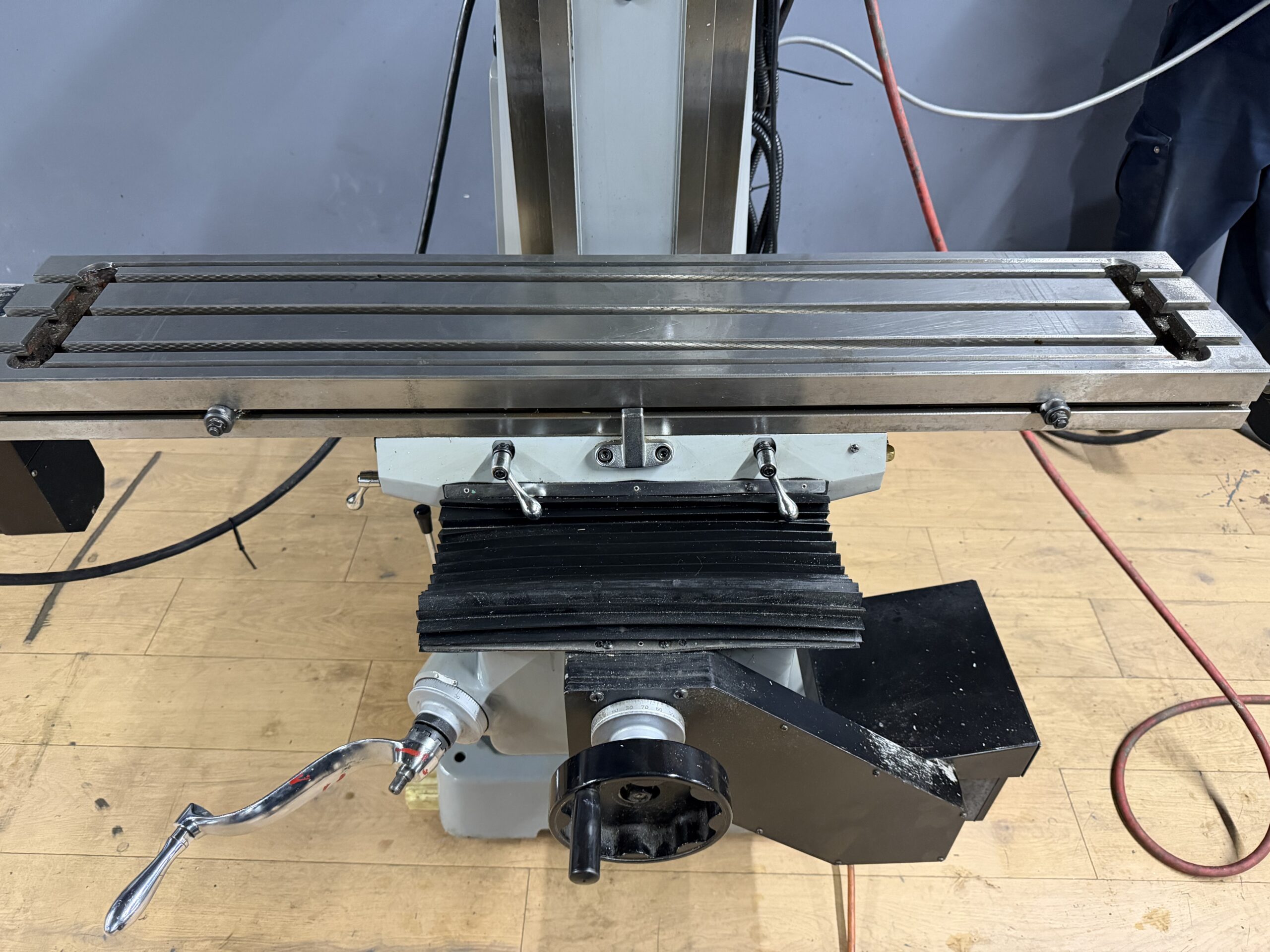

Table working surface- 10″ x 54″
Number of t-slots- (3)
Range:
Longitudinal (x)- 34”
Cross (y)- 16”
Vertical, Knee (z)- 16”
Quill- 5”
Ram travel- 24”
Head tilt, left and right- 90 degrees
Head tilt, front to rear, each way- 45 degrees
Turret rotation- 360 degrees
Maximum/Minimum distance, spindle nose to top of table- 18” / 2”
Maximum/Minimum throat distance- 28.75″/4″
(3) Power quill feeds- .0015, .003, .006 I.P.R.
Infinitely variable spindle speeds- 60-4,200 R.P.M.
Spindle taper- R-8
EQUIPPED WITH:

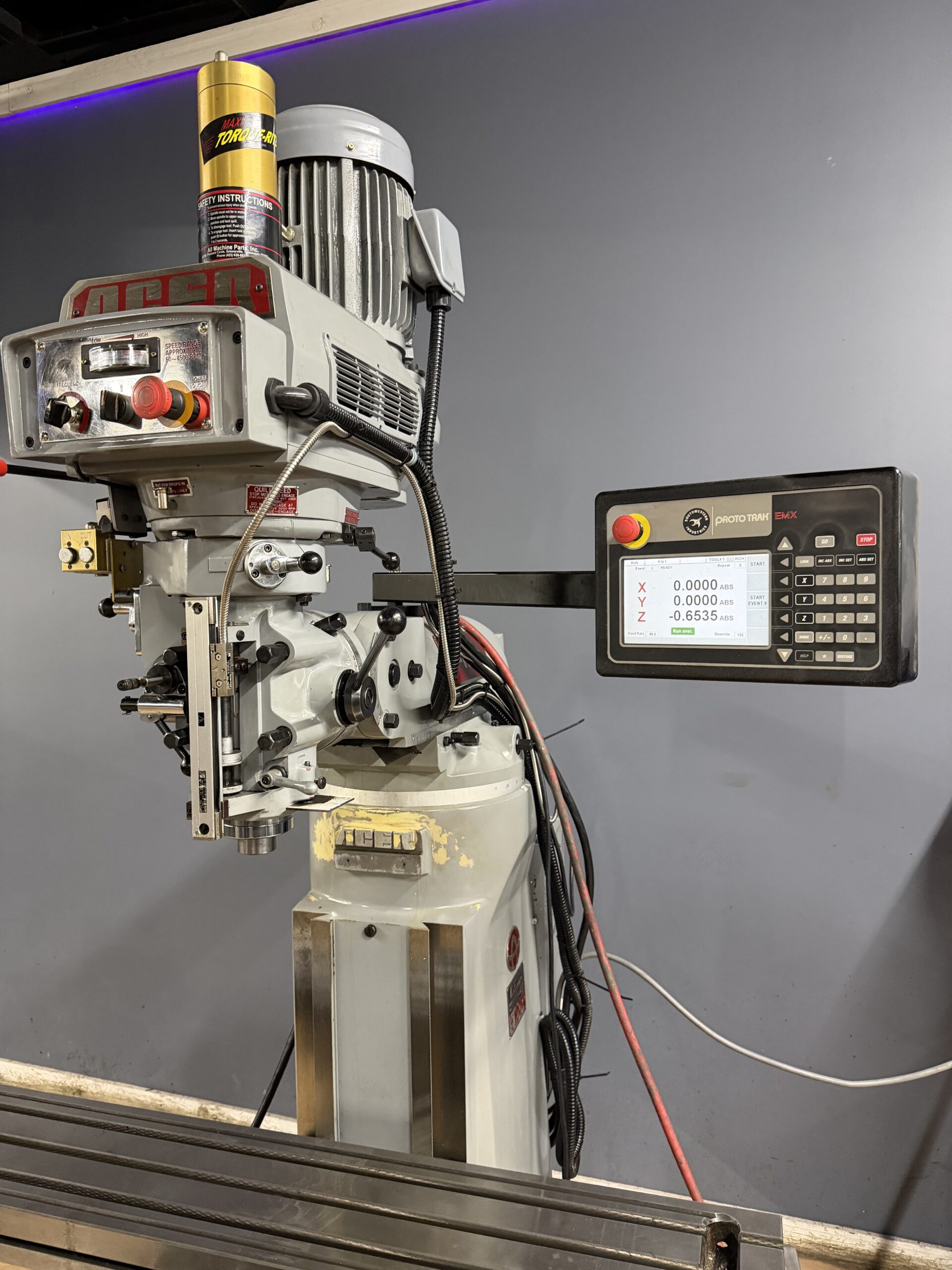

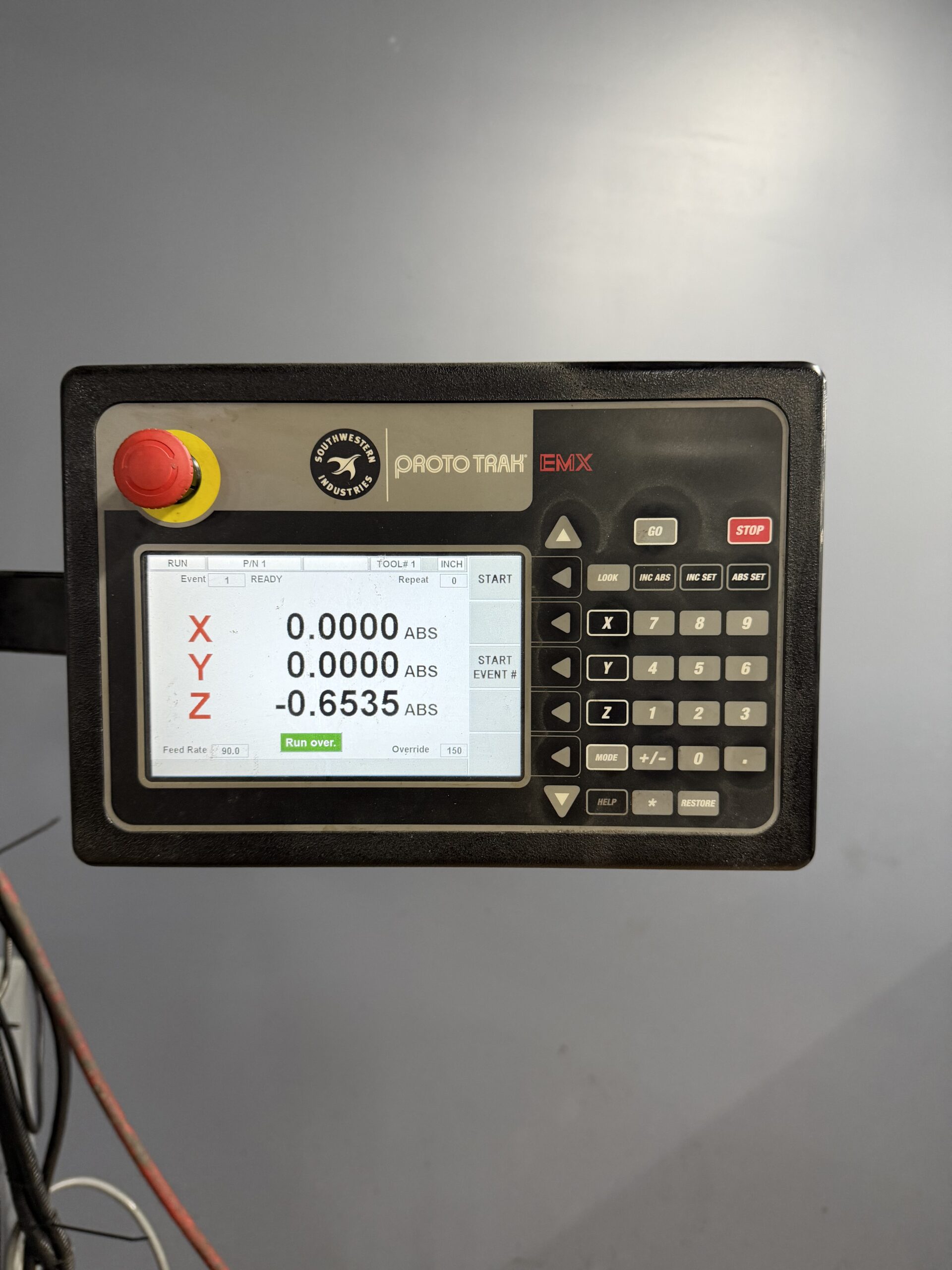

ProtoTrak EMX 2 Axis CNC Control
“EVS” Electronic Variable Speed
Z axis quill reader
Hardened and ground box ways for Y & Z axis
Pneumatic drawbar
One-shot lubrication system
3 H.P. 3/60/230 volt spindle drive motor with electrical controls
Machine is currently wired for 230 Volt
Machine weight- 3400 Lbs.
Machine is in excellent condition and can be inspected under power at our warehouse in Independence, Missouri.
