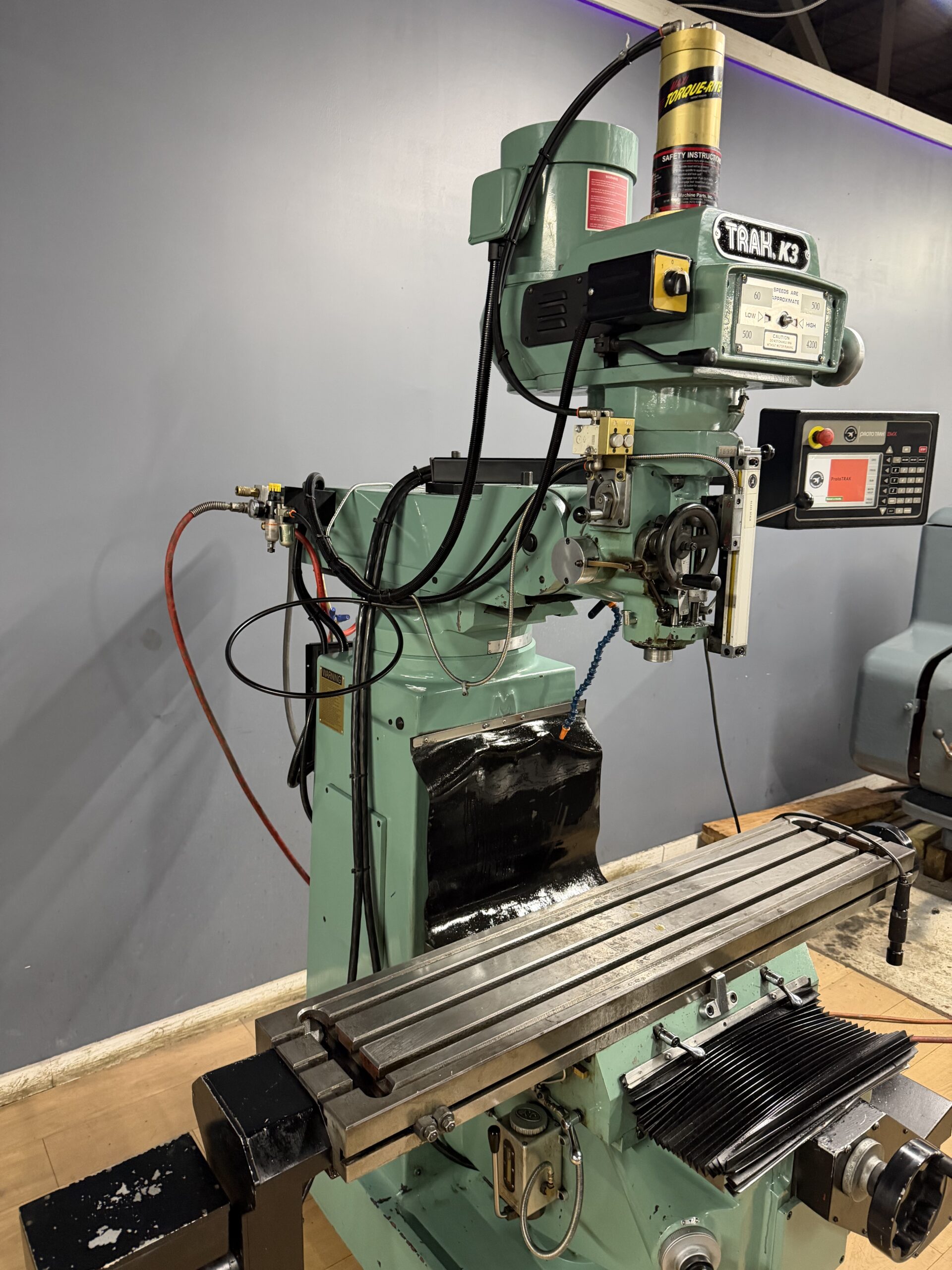

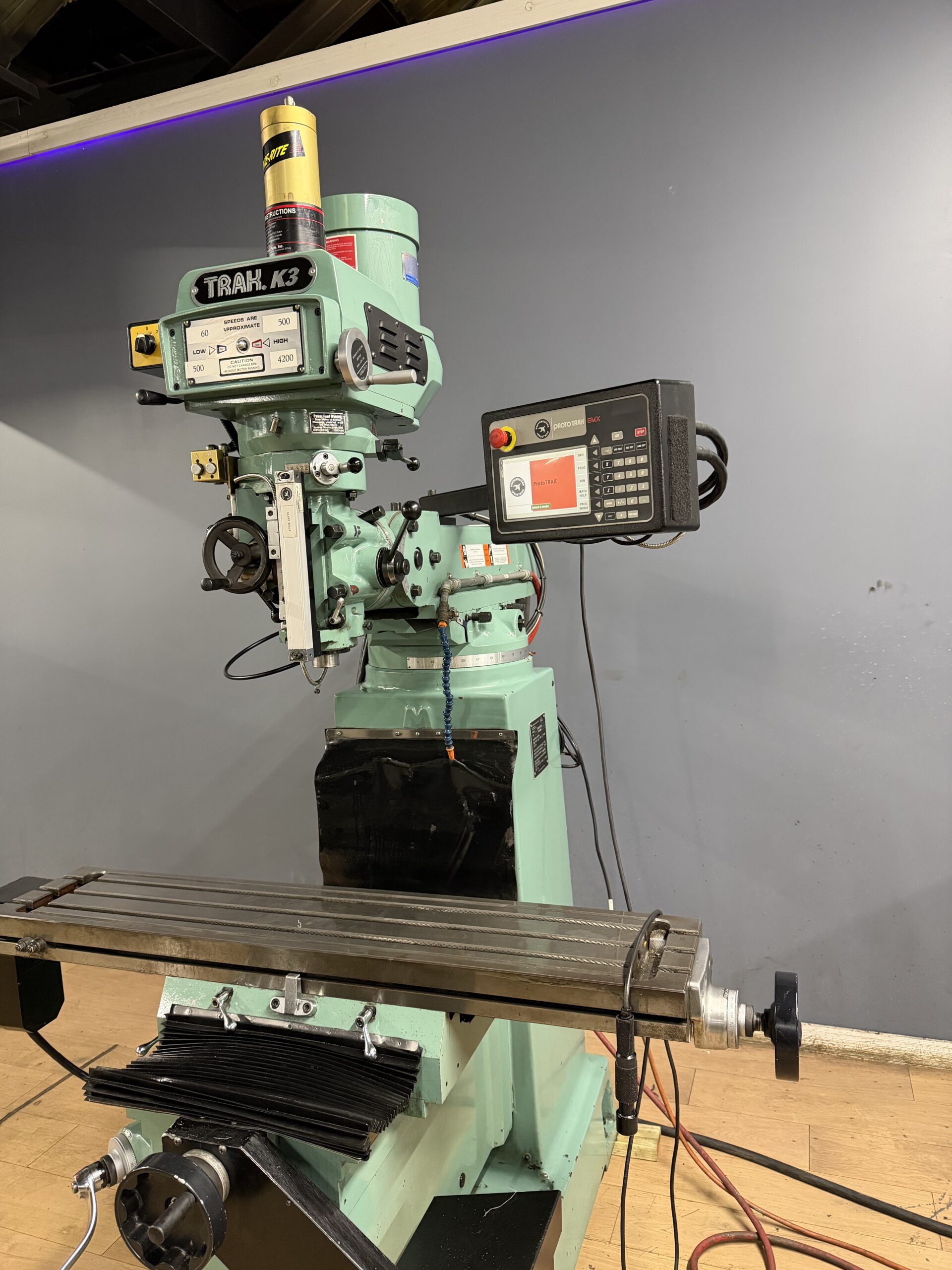

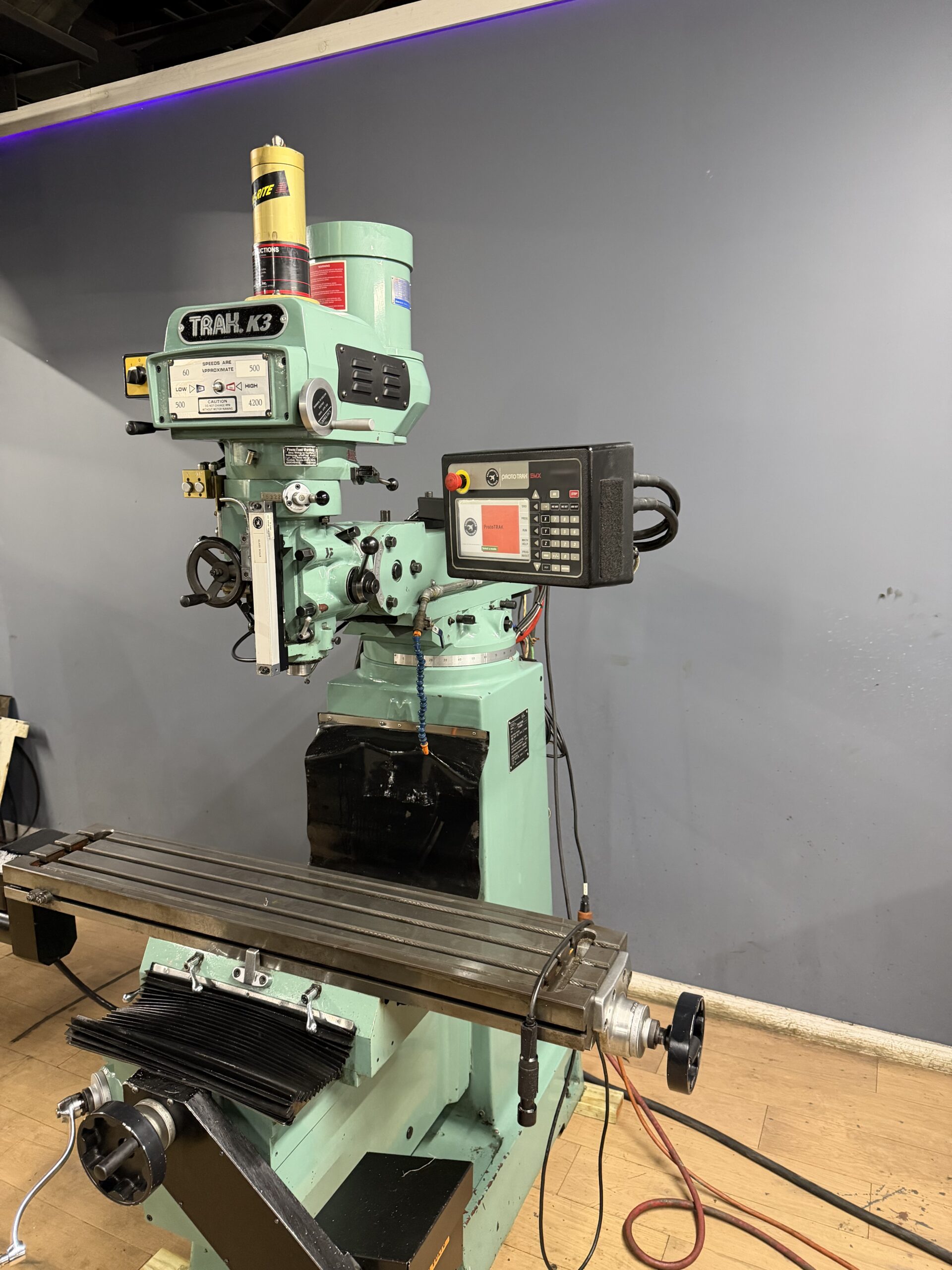

2017 TRAK 2 Axis CNC Knee Mill w/EMX Control
Model : K3

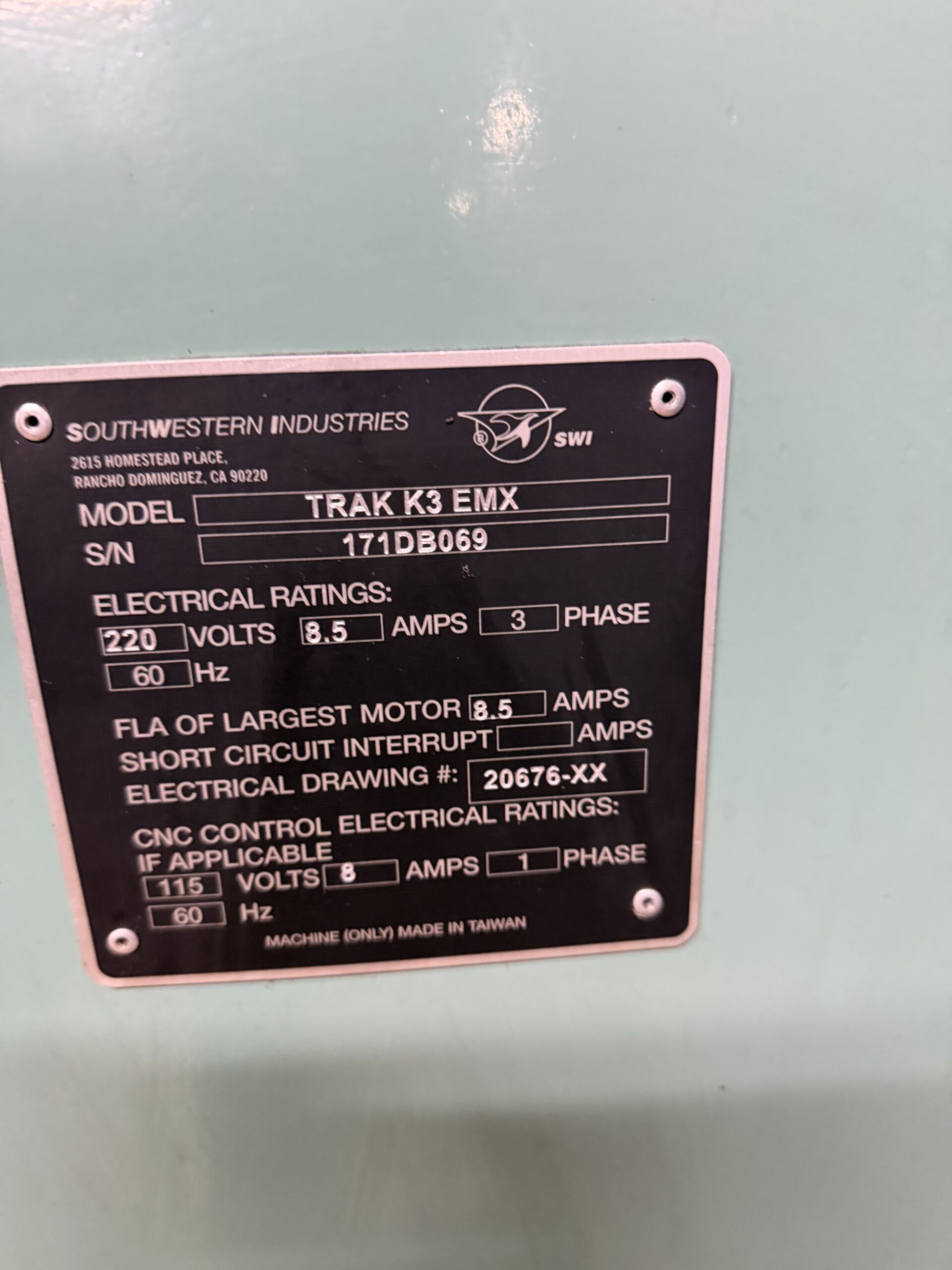

Serial Number : 171DB069

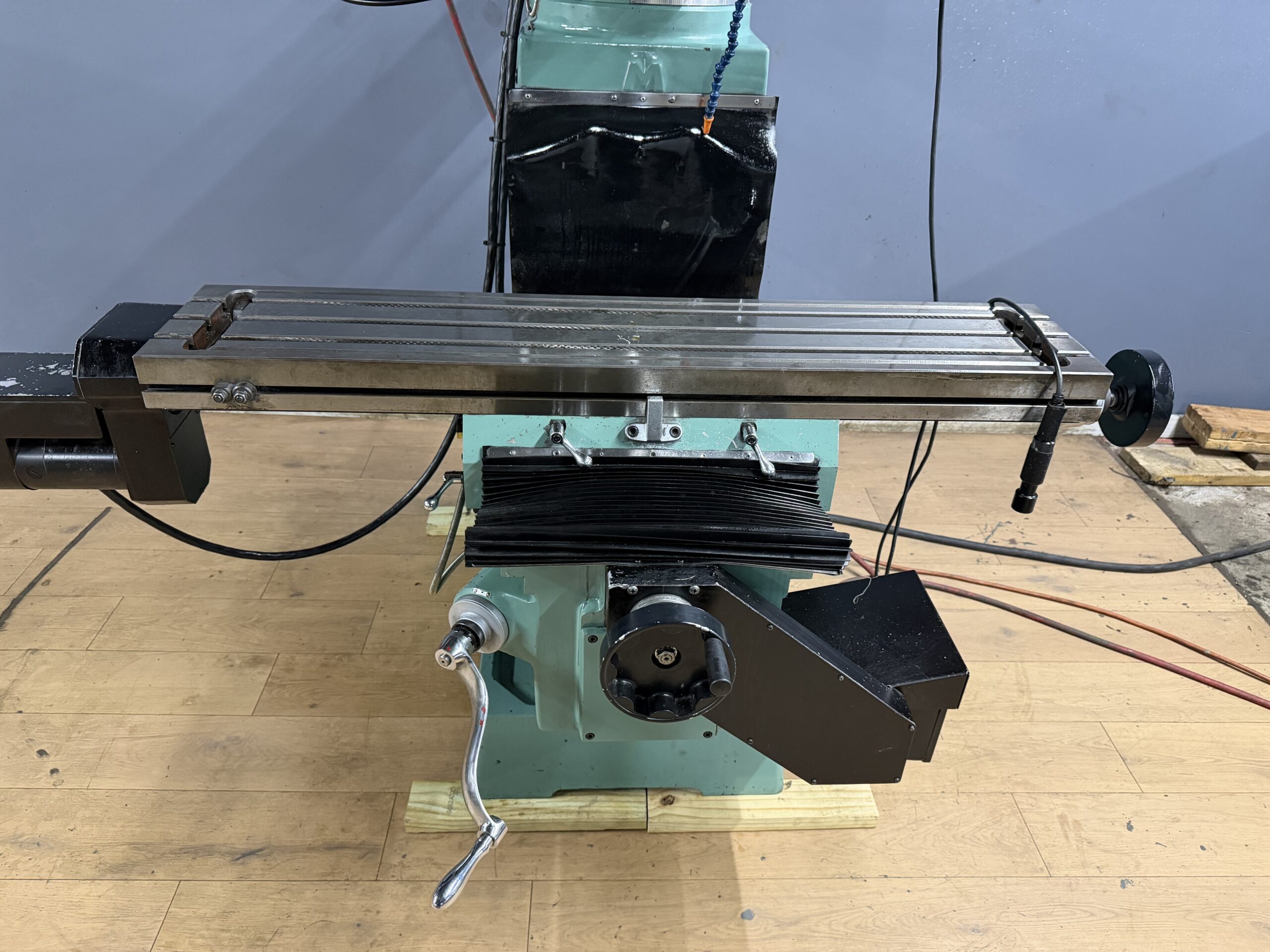

Table size 10″ x 50″
Table travels 16″ x 32″
Knee travel 16″
Ram travel 15″
Quill travel 5″
Spindle taper R-8
Spindle speed 6-4200 RPM
Head tilt L-R 90 degrees
Head tilt F-B 45 degrees
Main motor 3 HP
Power requirements 220/440V, 3 PH
Table weight 850 LBS
Way surface type Dove tail
Machine weight 2,800 LBS
Machine dimensions 78″ x 103″ x 69″

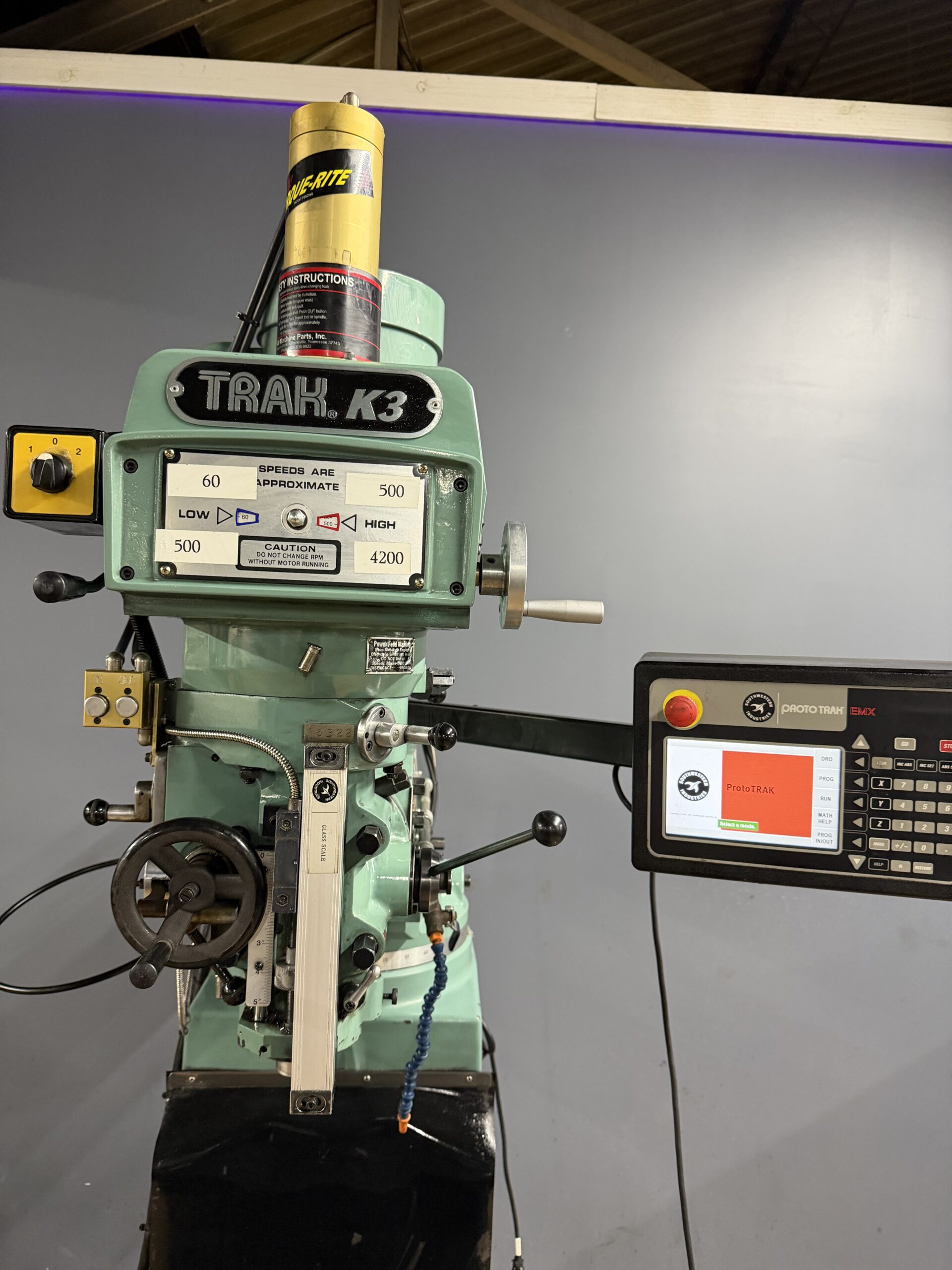

Control : EMX 2 Axis Control
VIDEO LINK :
Equipped with:
Power drawbar
Manuals
Machine is in excellent condition and can be inspected under power at our warehouse in Independence, Missouri.
