MAKE…….. SWI


Video Link :

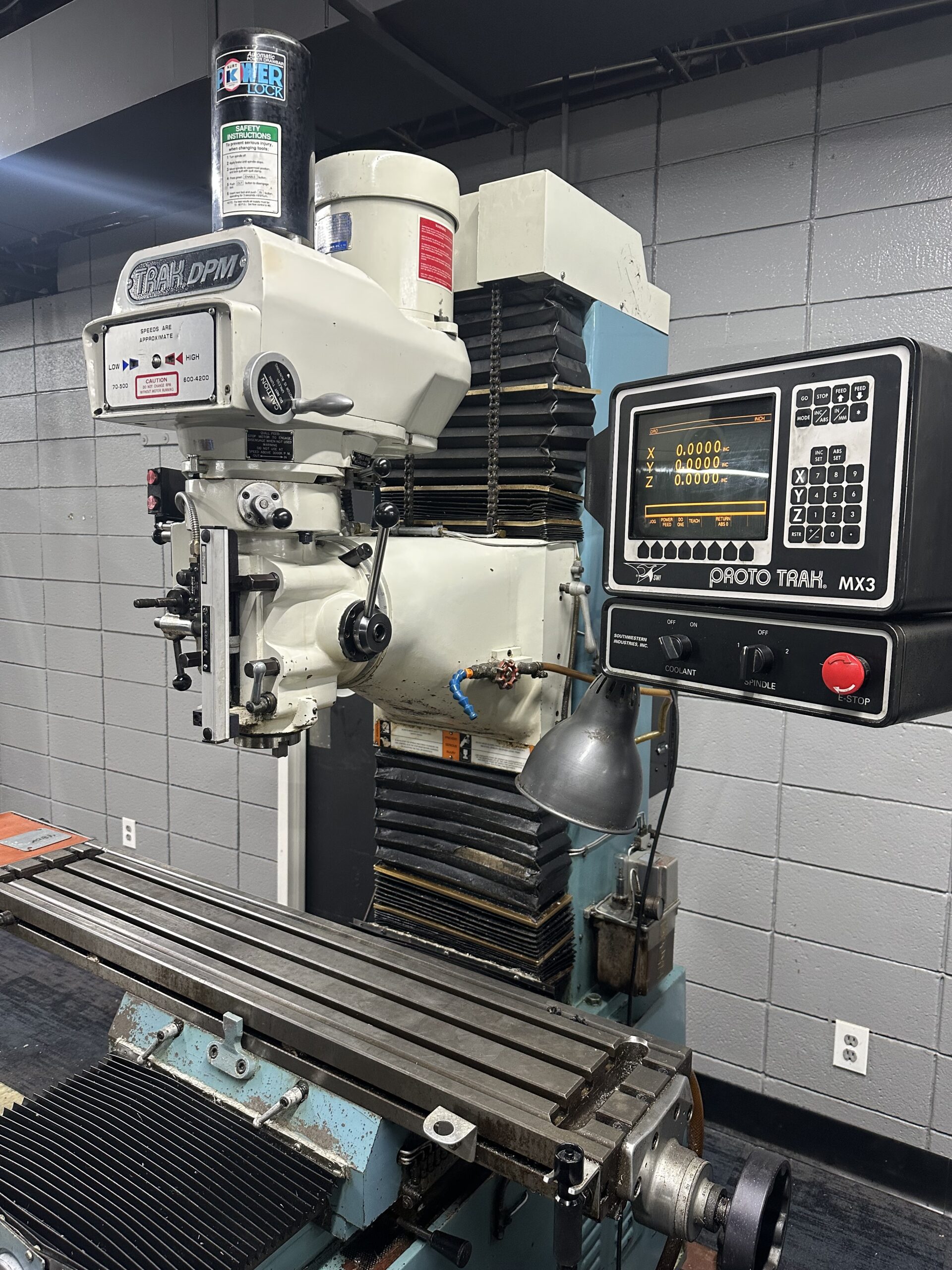

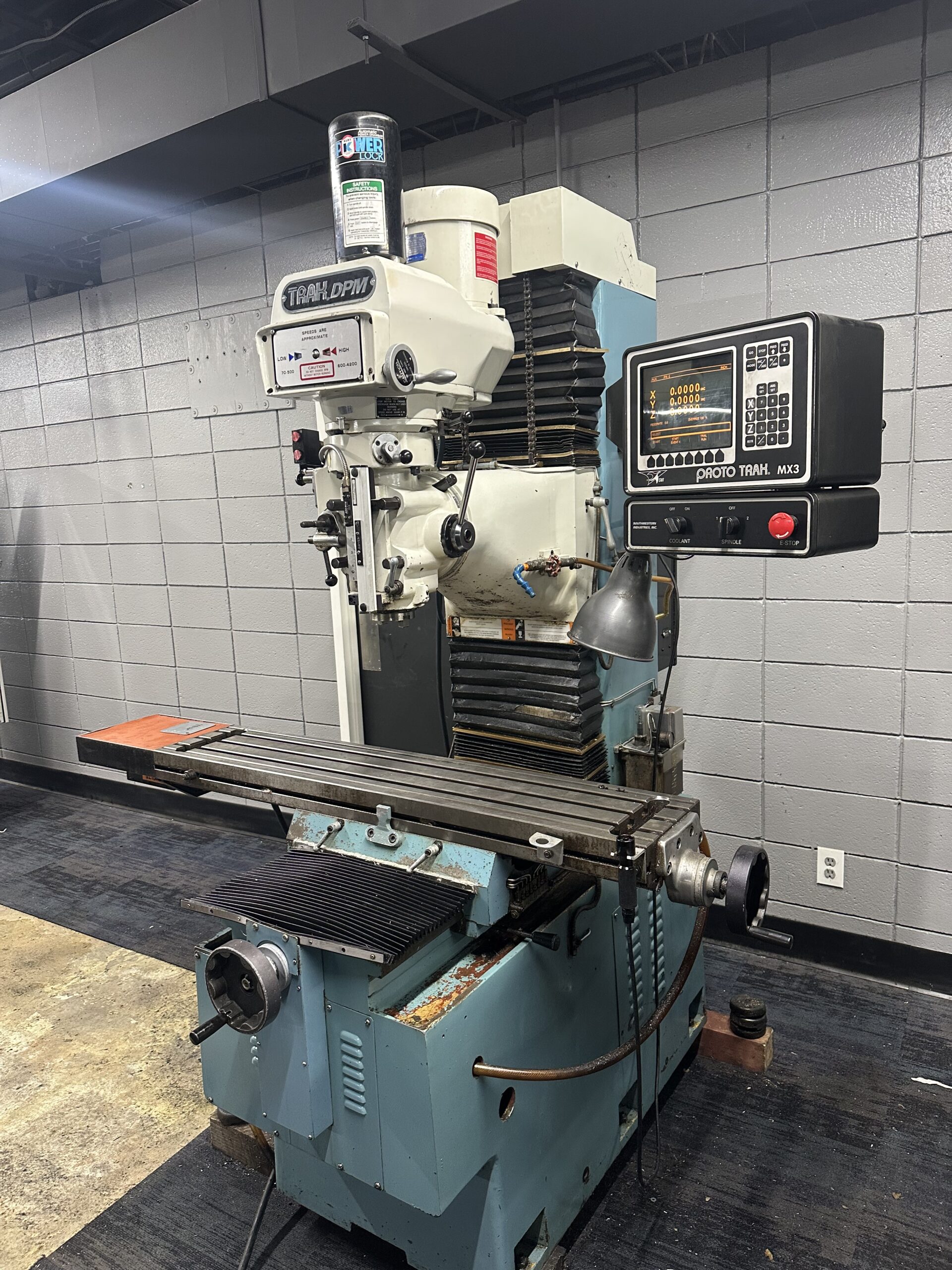

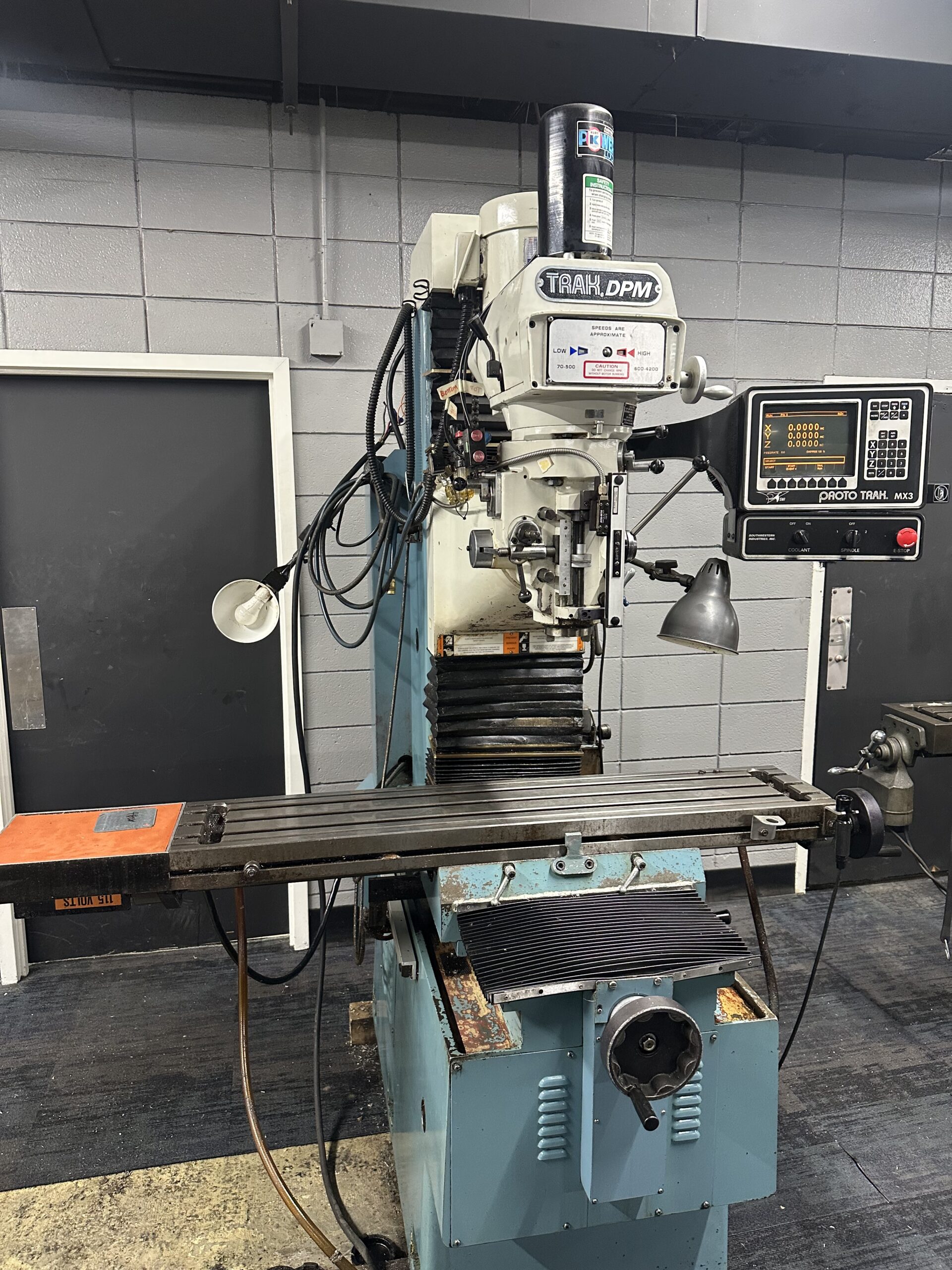

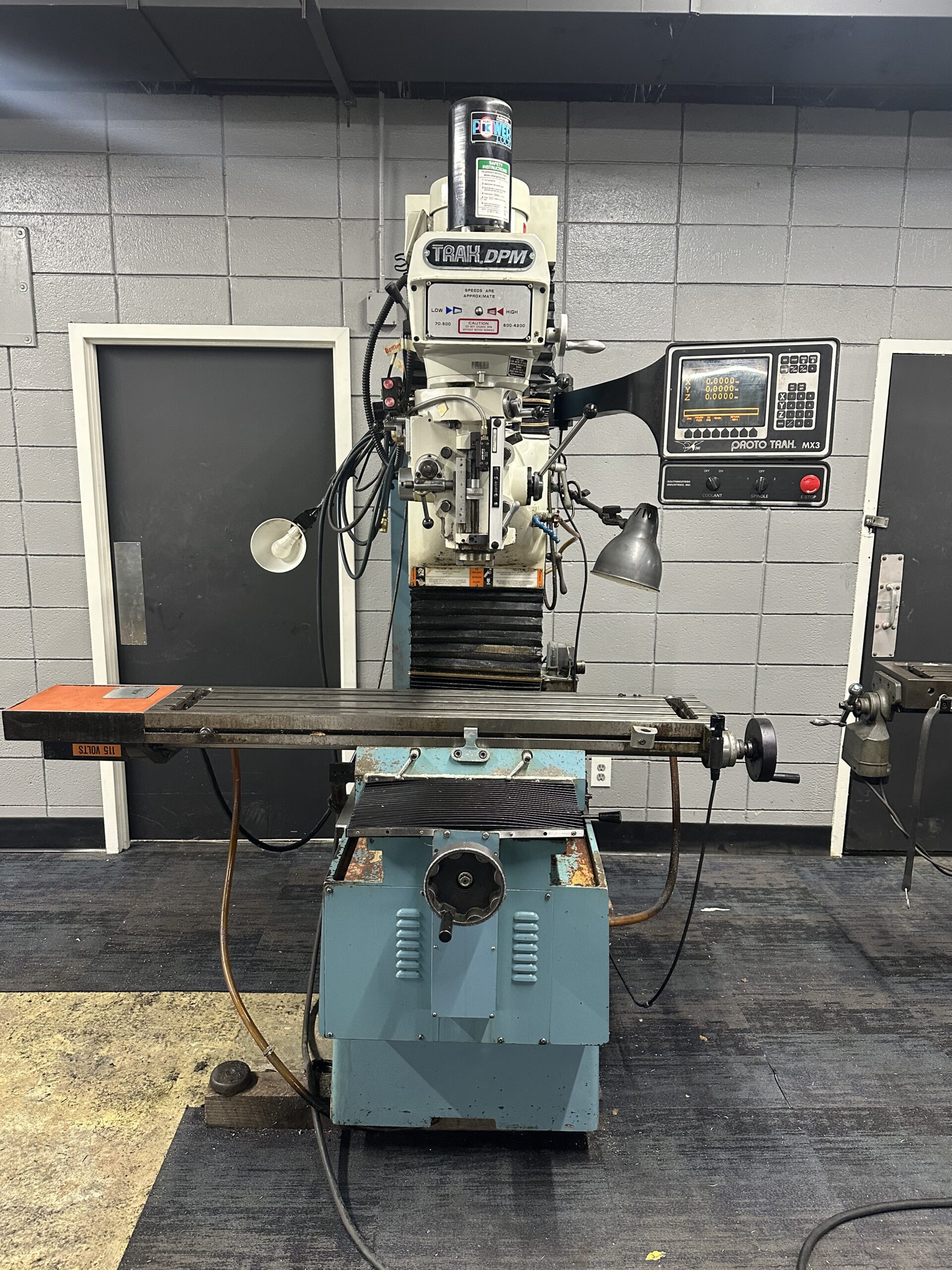

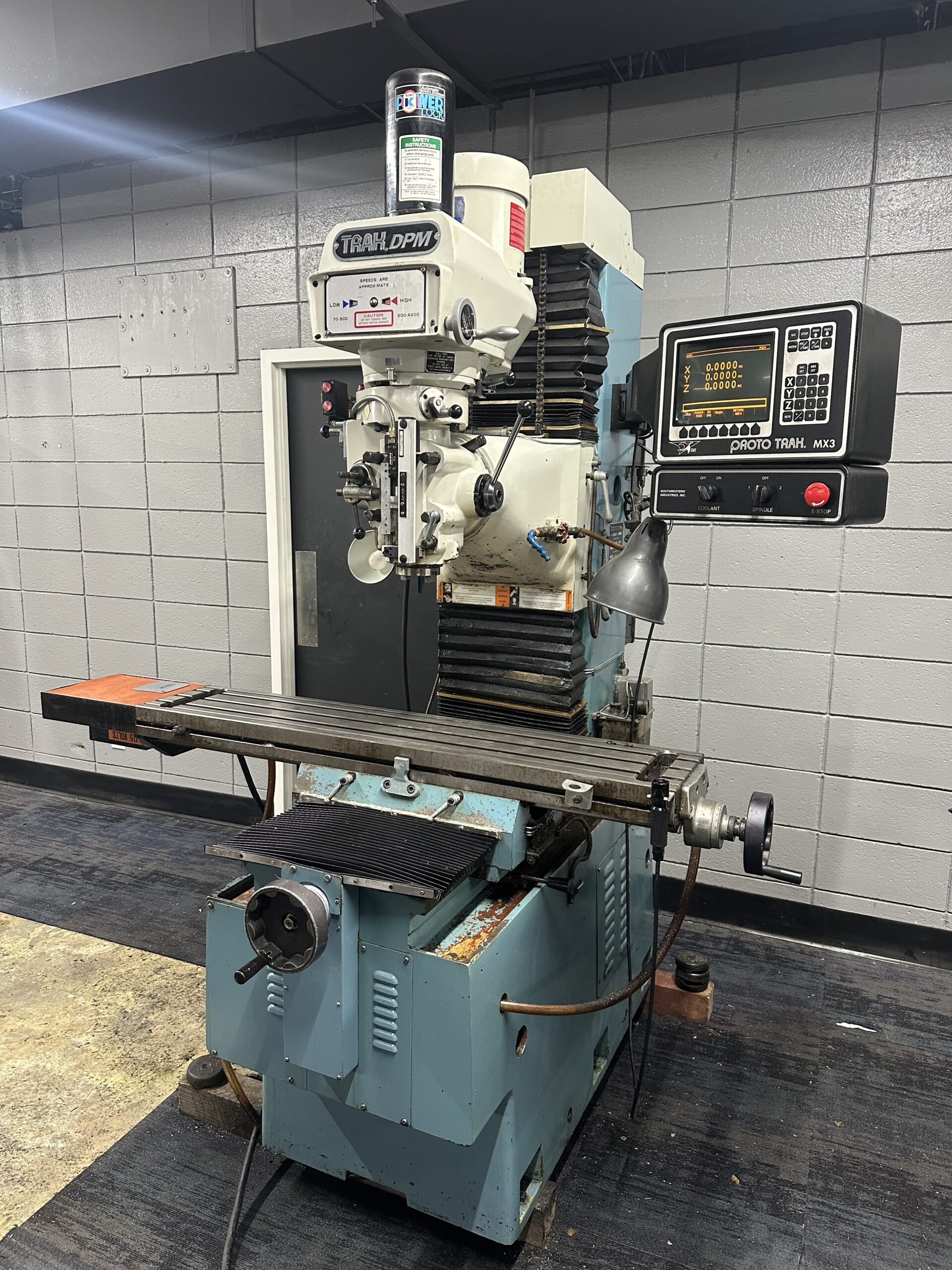

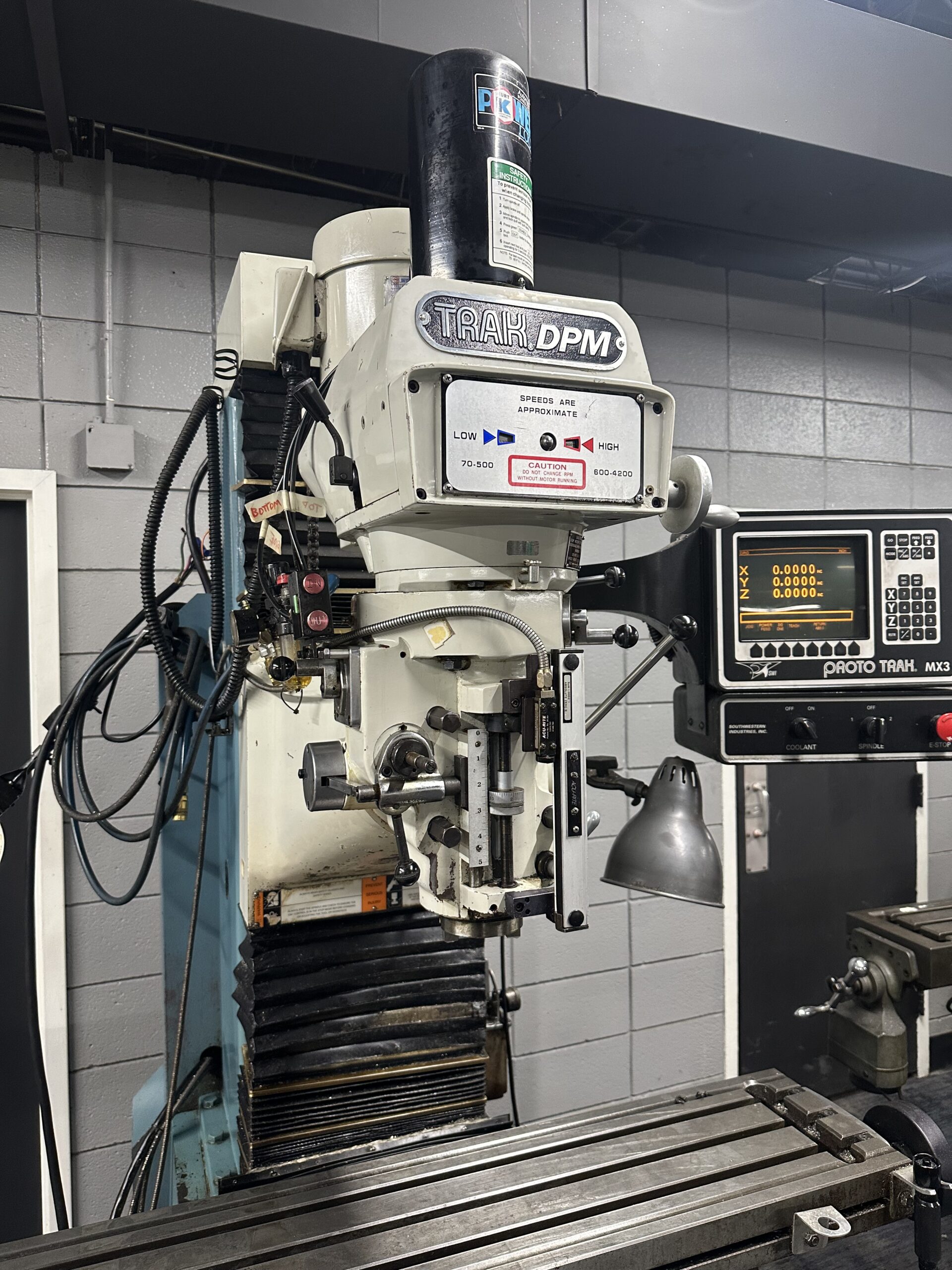

MODEL ……………………….. Trak DPM

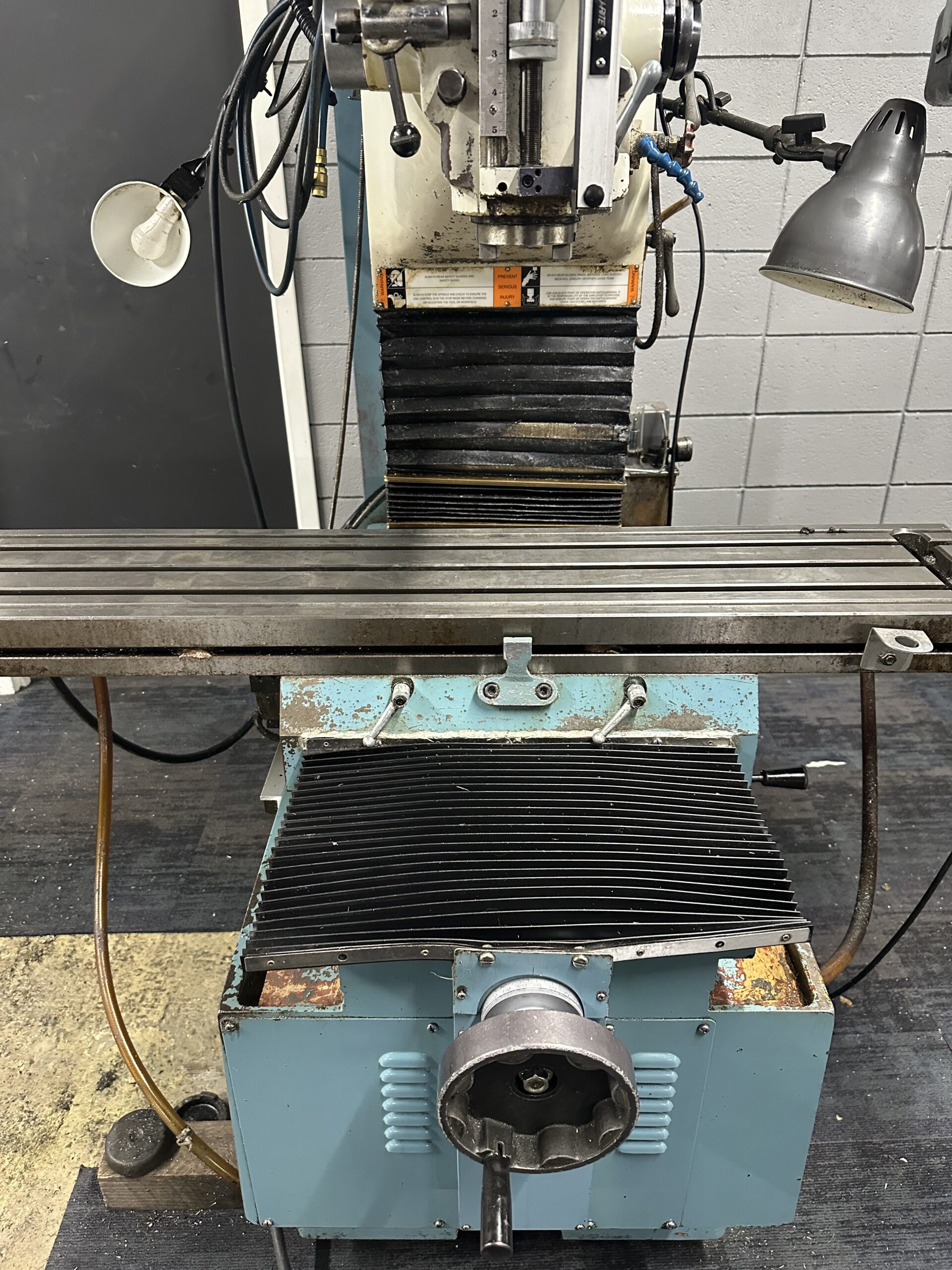

TABLE SIZE …………………… 10″ X 50″

TABLE TRAVEL …………………. X 30″

TABLE TRAVEL …………………. Y 17″

HEAD TRAVEL ………………….. Z 23.5″

QUILL DIAMETER ……………….. 3-15/16″

SPINDLE TAPER ………………… #40 NST

SPEED RANGE ………………….. 70 TO 4200 RPM

SPINDLE NOSE TO TABLE …………. 0 TO 23-1/2″

SPINDLE CENTER TO COLUMN FACE ….. 19″

QUILL TRAVEL …………………. 5″

HEAD SWIVEL LEFT/RIGHT ………… 90 DEG.

MAXIMUM WORKPIECE WEIGHT ………. 1320 LBS.

SPINDLE DRIVE ………………… 3 HP

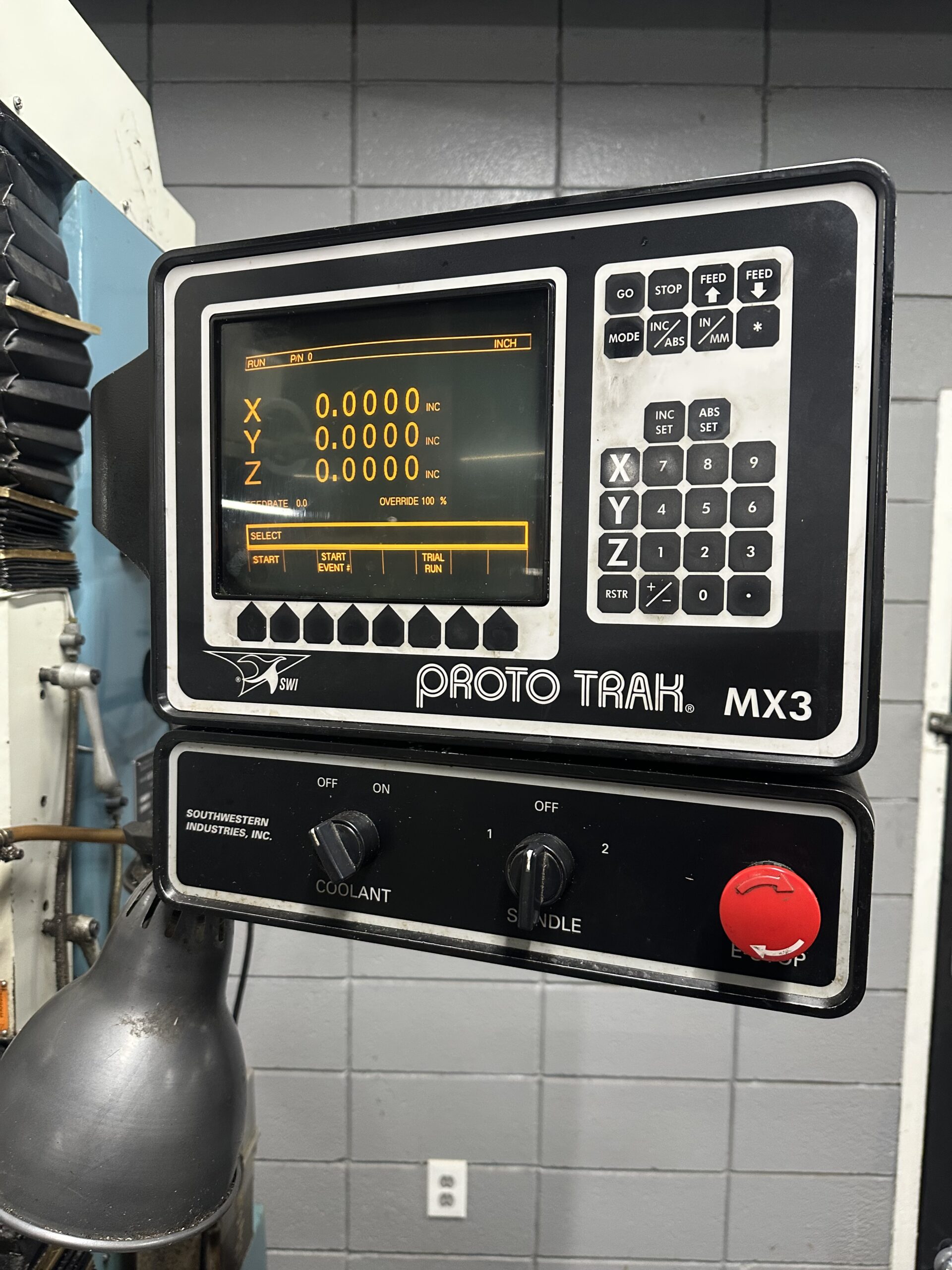

CONTROL ……………………… PROTO TRAK MX3

POWER DRAW BAR ……………….. YES

AUTOMATIC LUBRICATION SYSTEM …… YES

GLASS SCALES …………………. YES

Machine is in excellent condition and can be inspected under power at our warehouse in Independence, Missouri.
