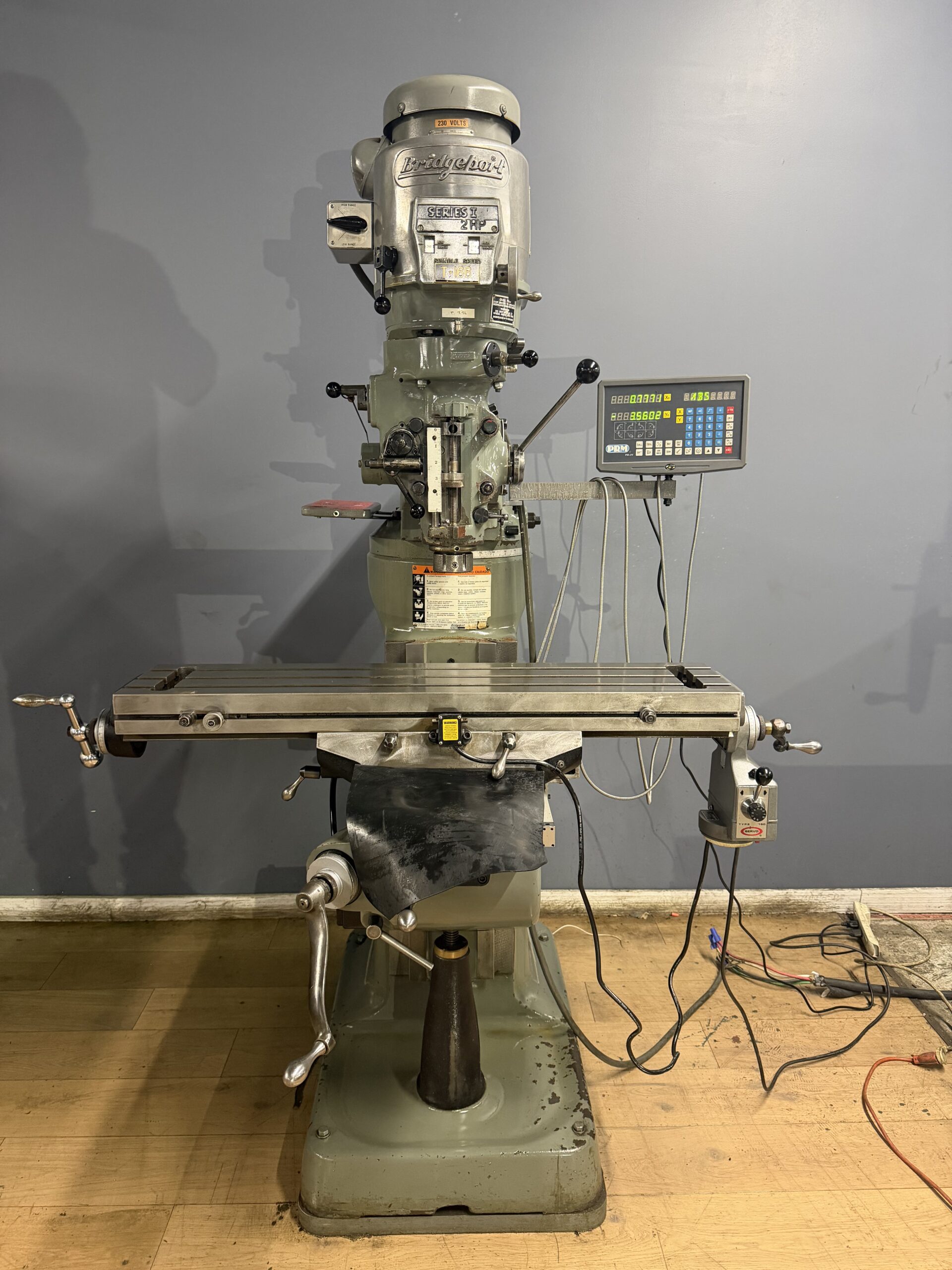

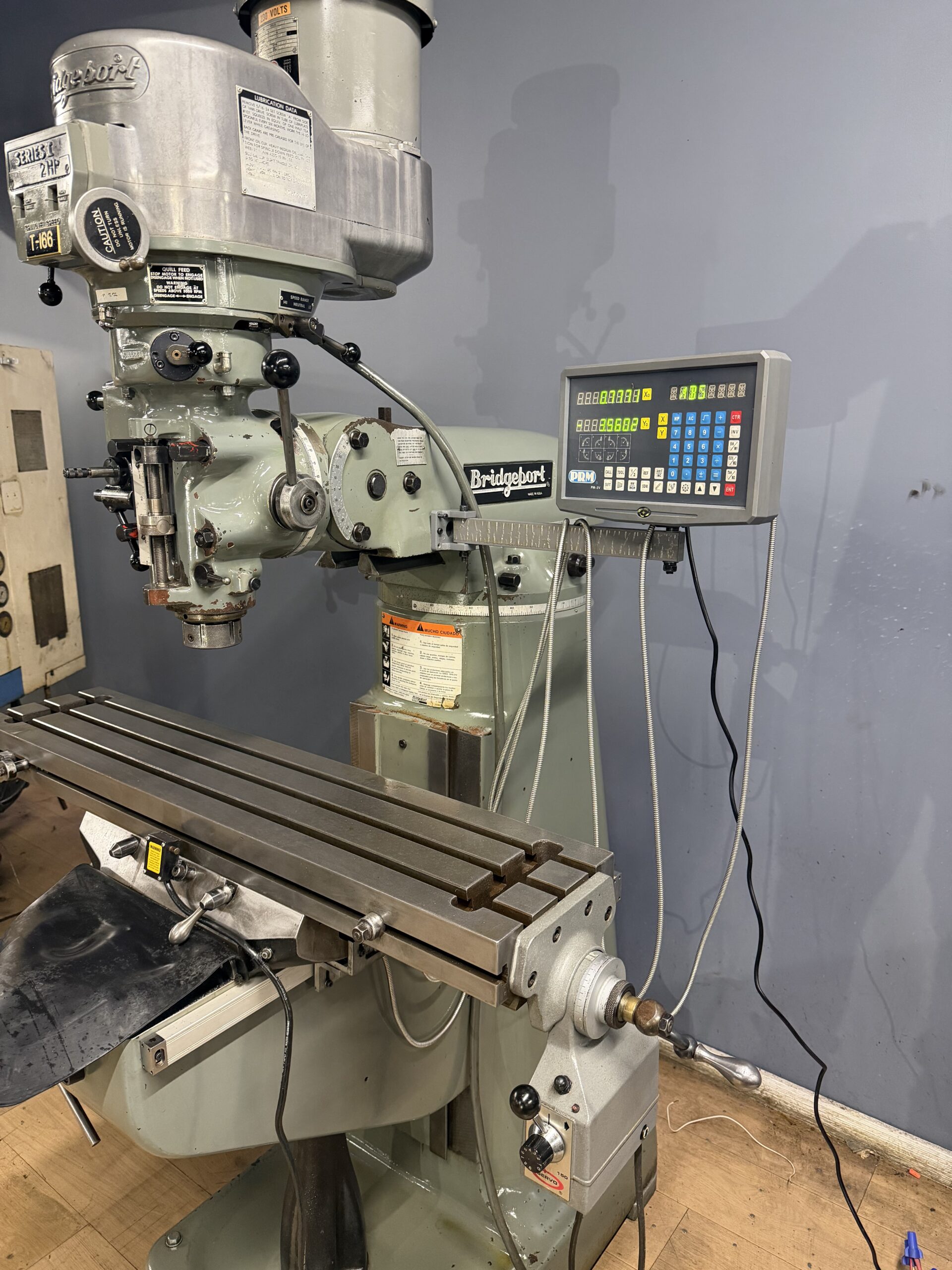

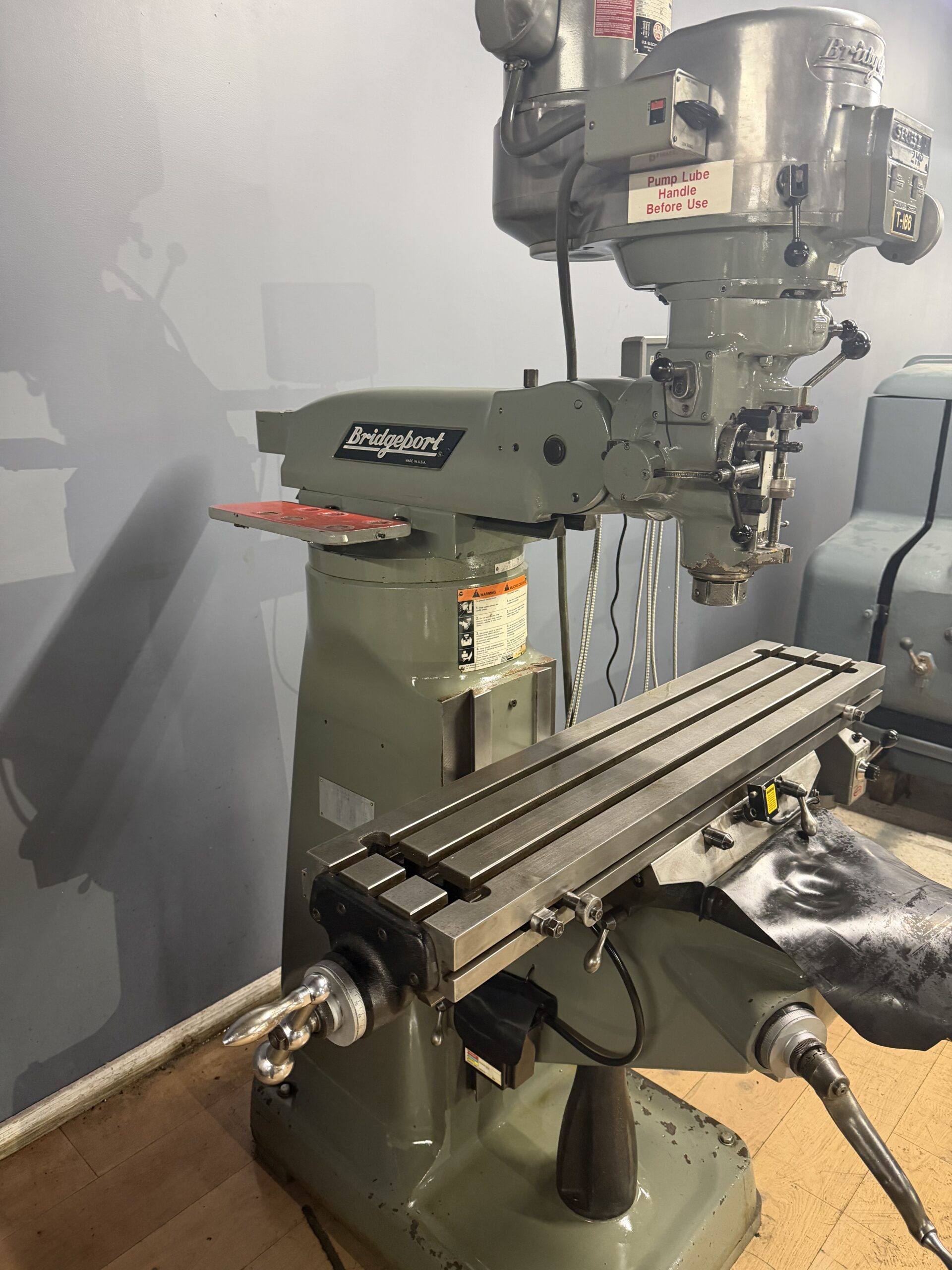

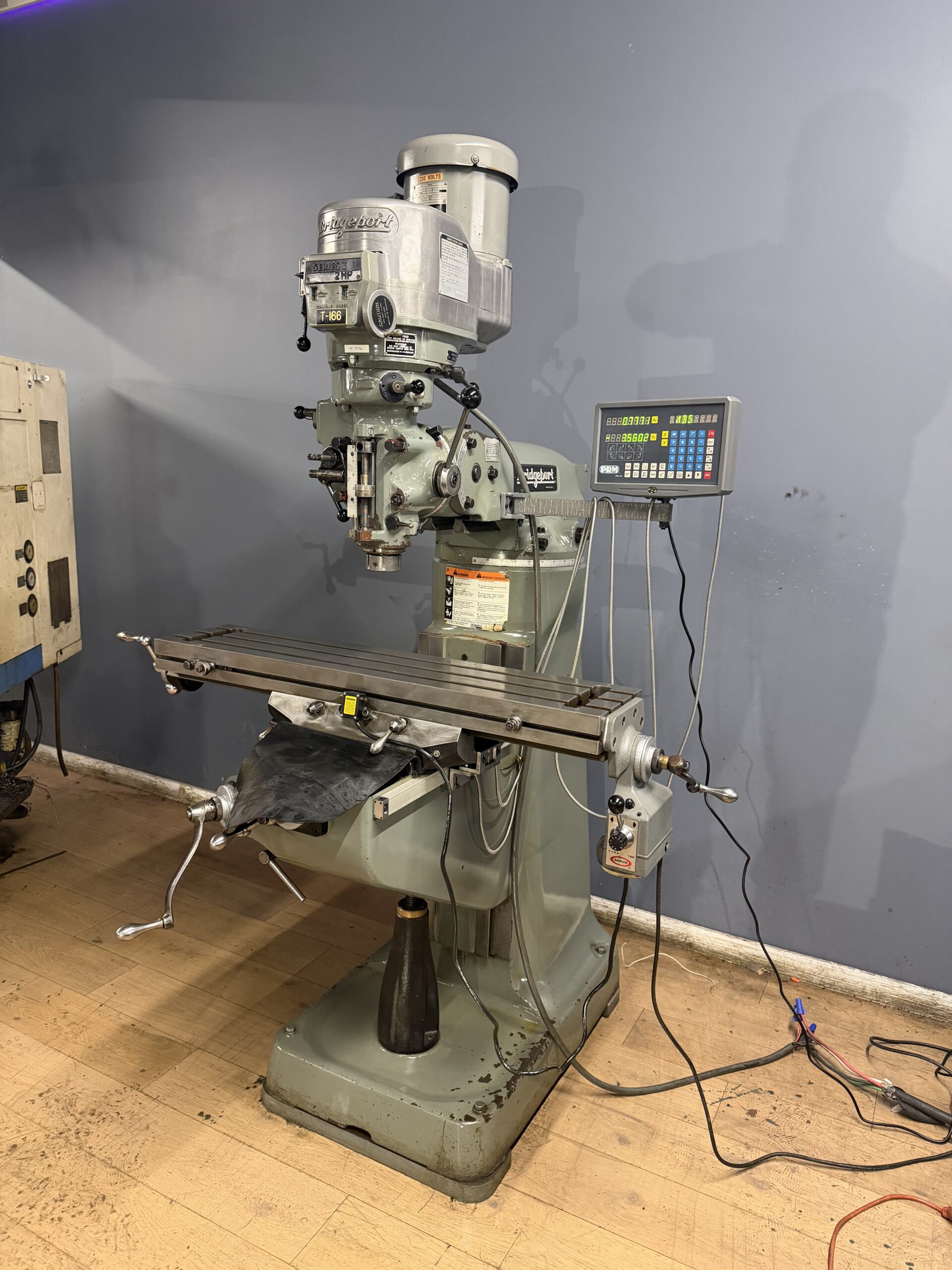

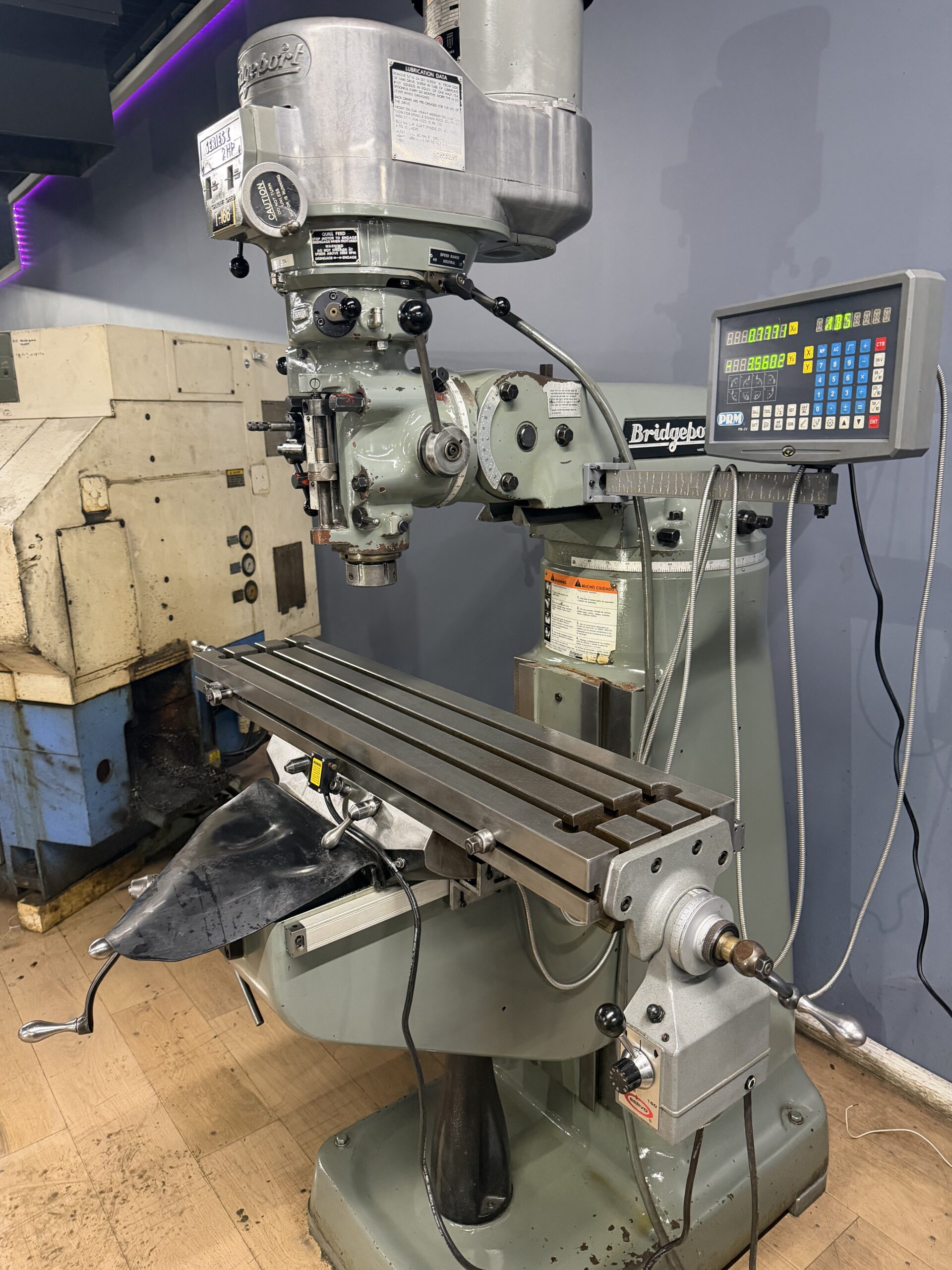

Bridgeport Series 1 Vertical Mill 2HP with Powerfeed & DRO
Serial # BR244999
Model : Series 1 , 2HP
VIDEO LINK :
Specifications:
Table Size: 9”x 42
Longitudinal Table Travel: 30”
Saddle Cross Travel: 12”
Knee Vertical Travel: 16”
Spindle Quill Travel: 5”
Ram Travel: 12”
Throat Distance Range: 6-3/4″ – 18-3/4″
Table To Spindle Nose Distance: 0″ – 18-1/2″
Spindle Speeds, Variable: 60 – 4,200 RPM
Spindle Nose Taper: #30 Kwik Change
Max Uniform Table Load: 300 Lbs.
Power Table Feed Rate: .5″ – 35″/Min
Overall Machine Dimensions: 70″ x 60″ x 86″ High
Machine Weight, approx.: 2,300 Lbs
220V / 440V / 3P / 60Hz
Equipped With:
Bijur one shot lube.
New 2 Axis DRO
Servo Powerfeed
Machine is in excellent condition and can be inspected under power at our warehouse in Independence, Missouri.
