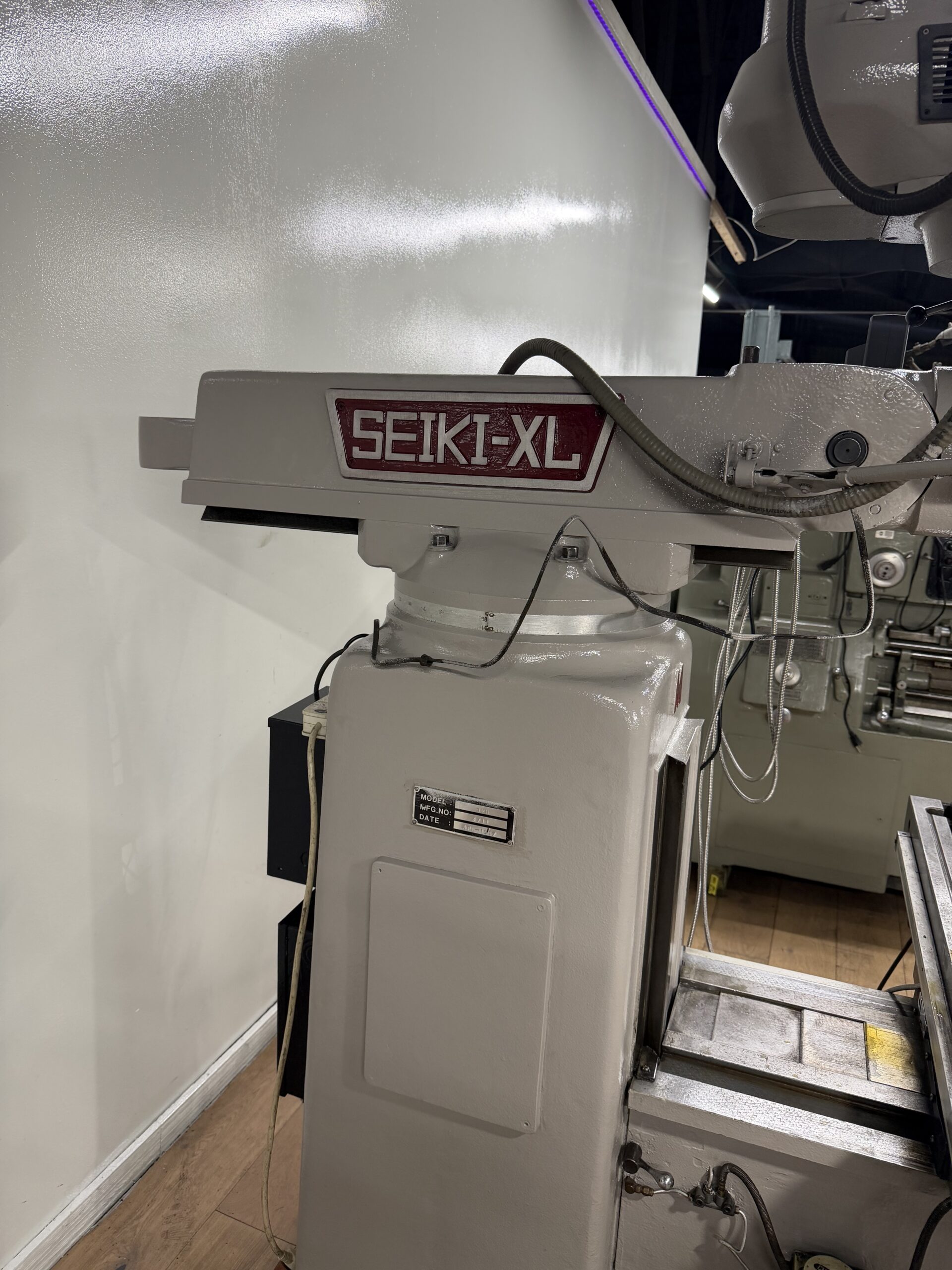

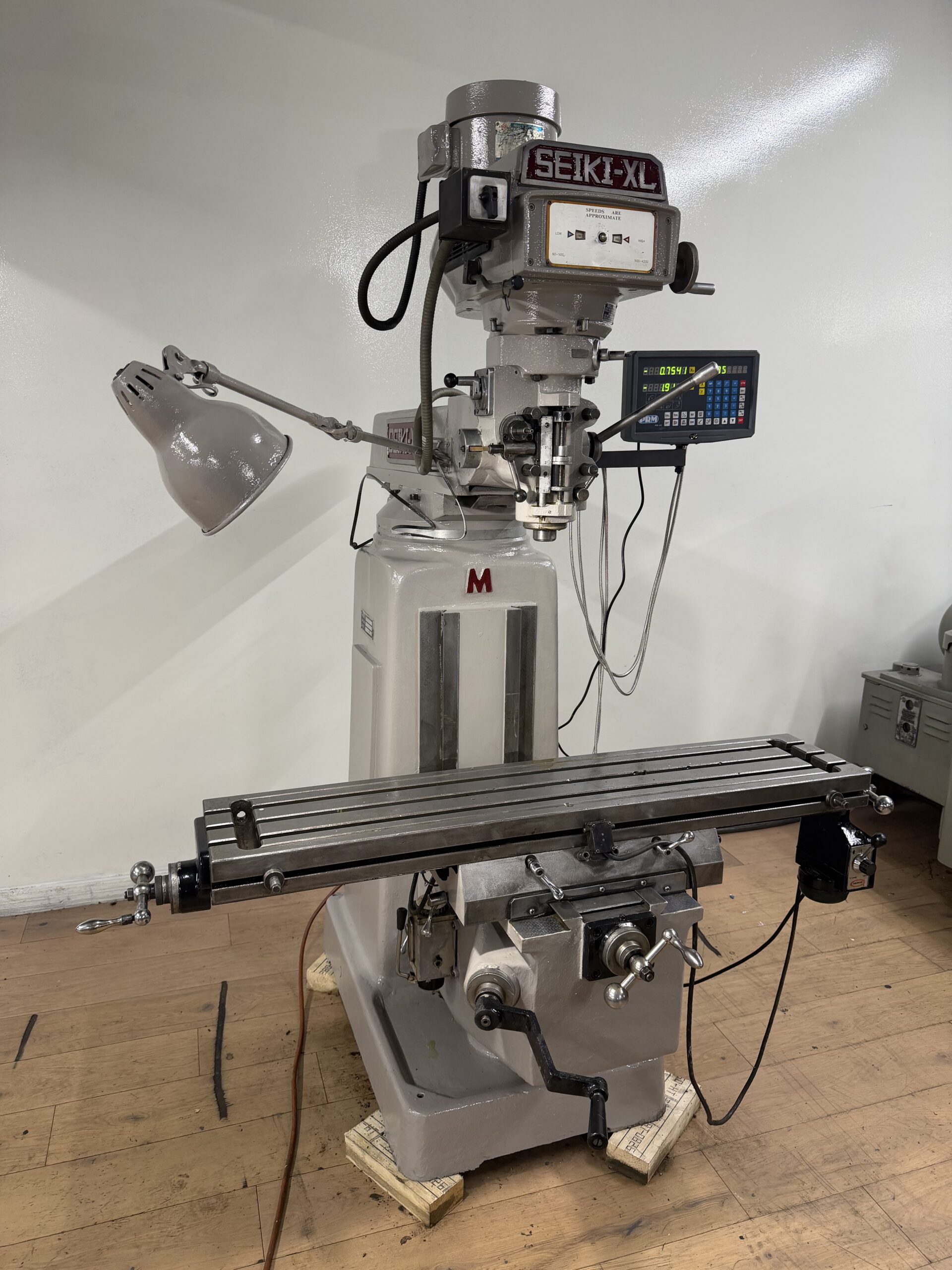

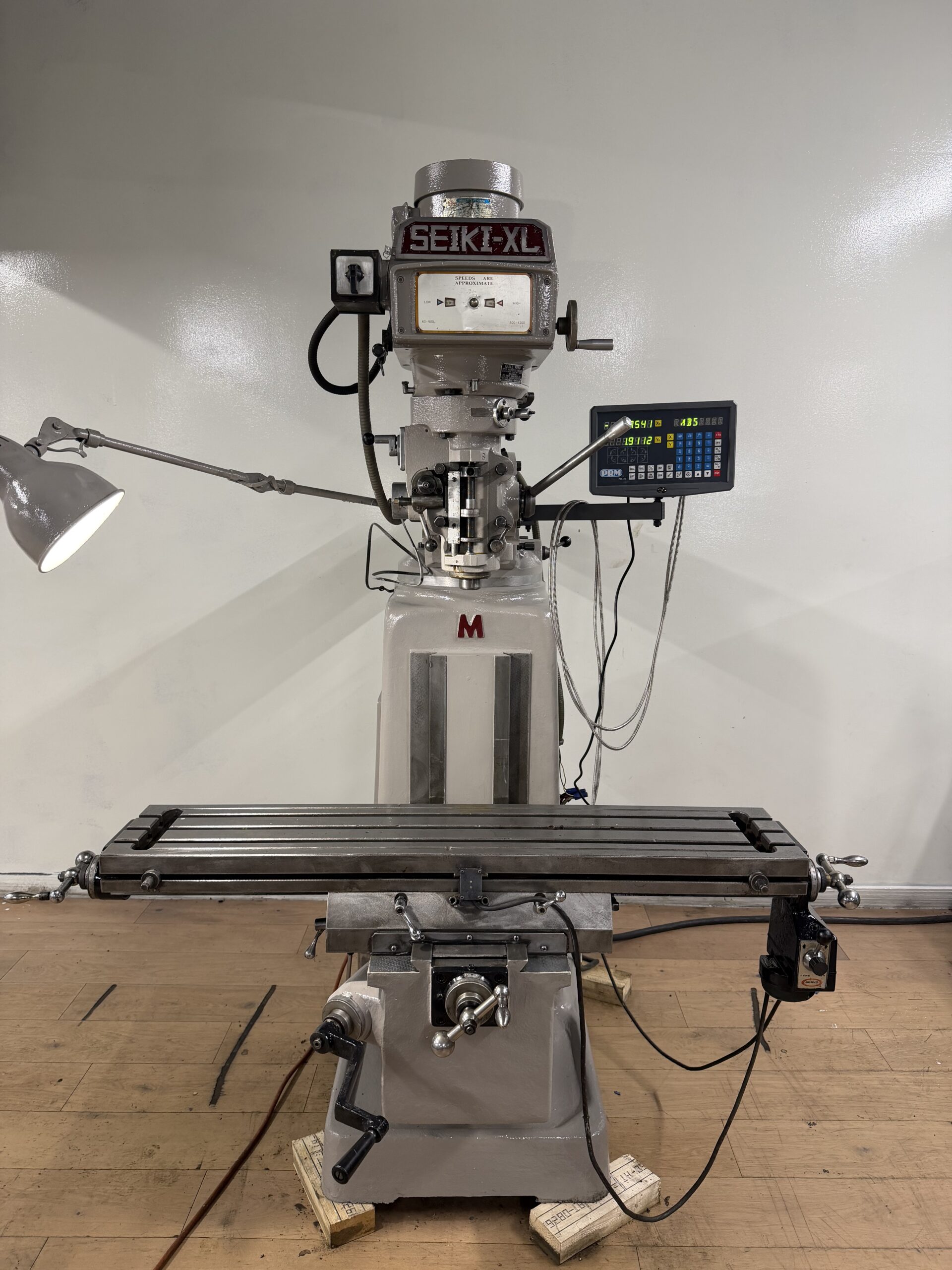

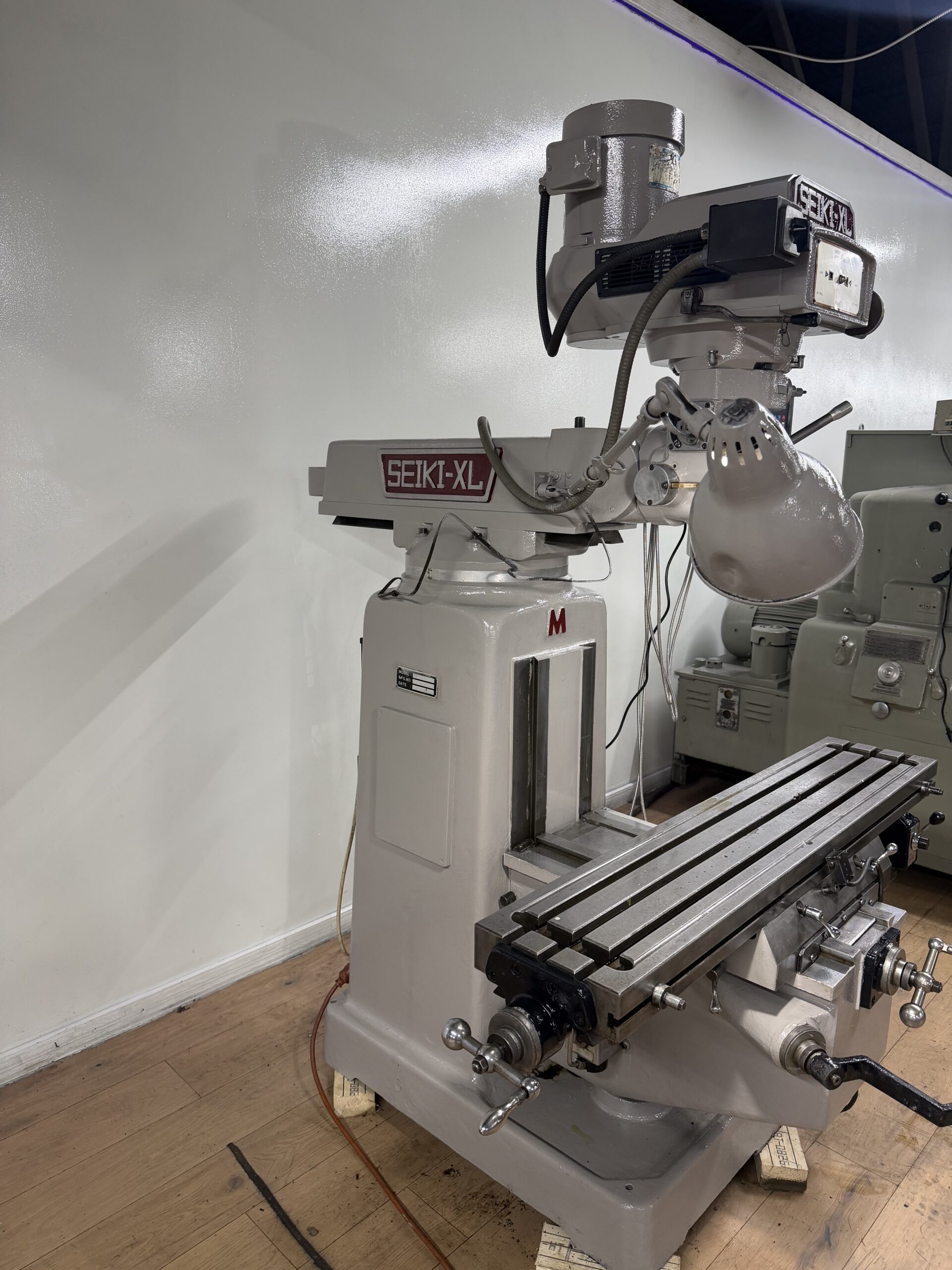

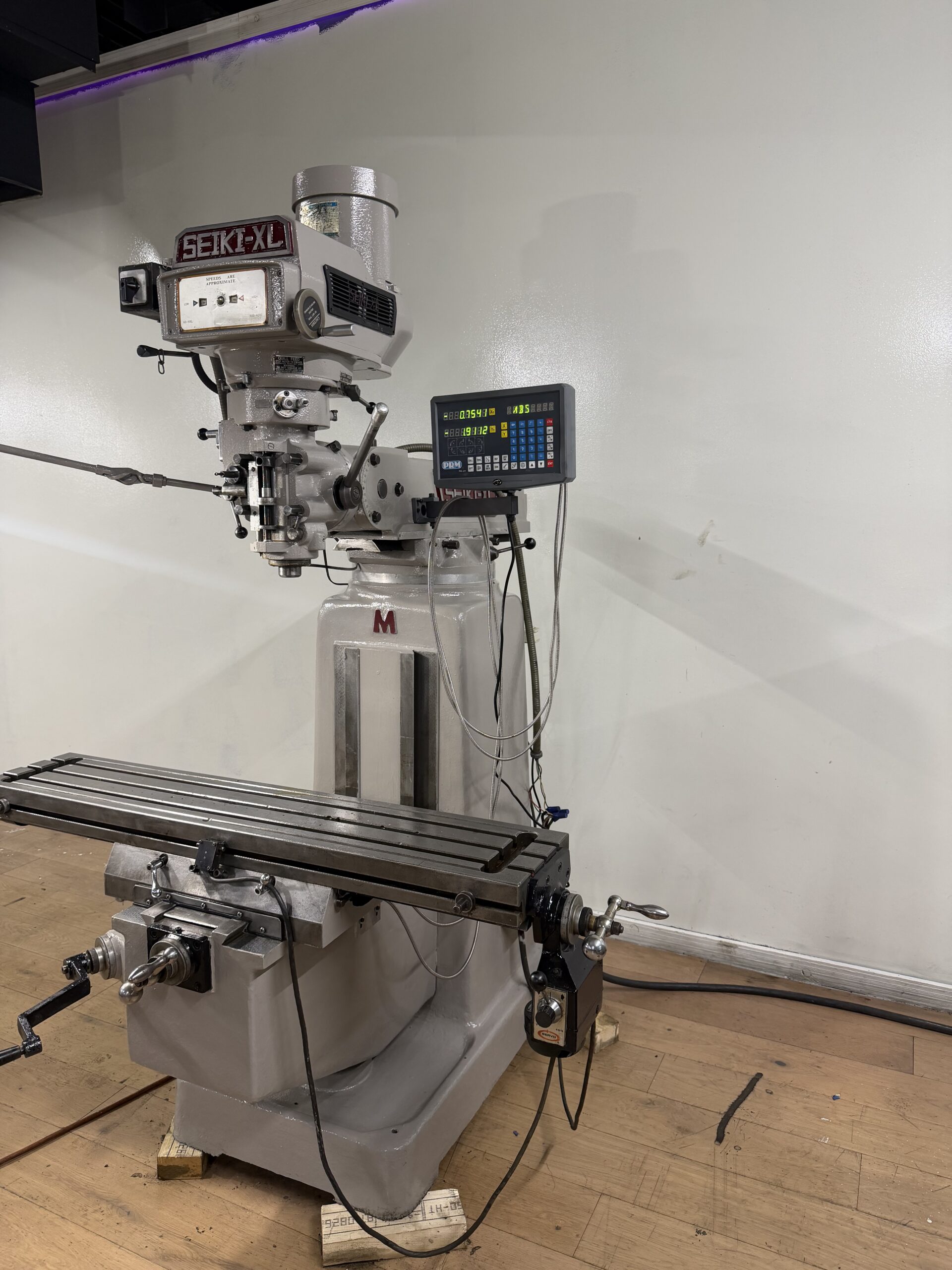

Seiki XL Vertical Milling Machine
Model : 3VH
Serial # 4711
Year : 1987
VIDEO LINK :
Specifications:

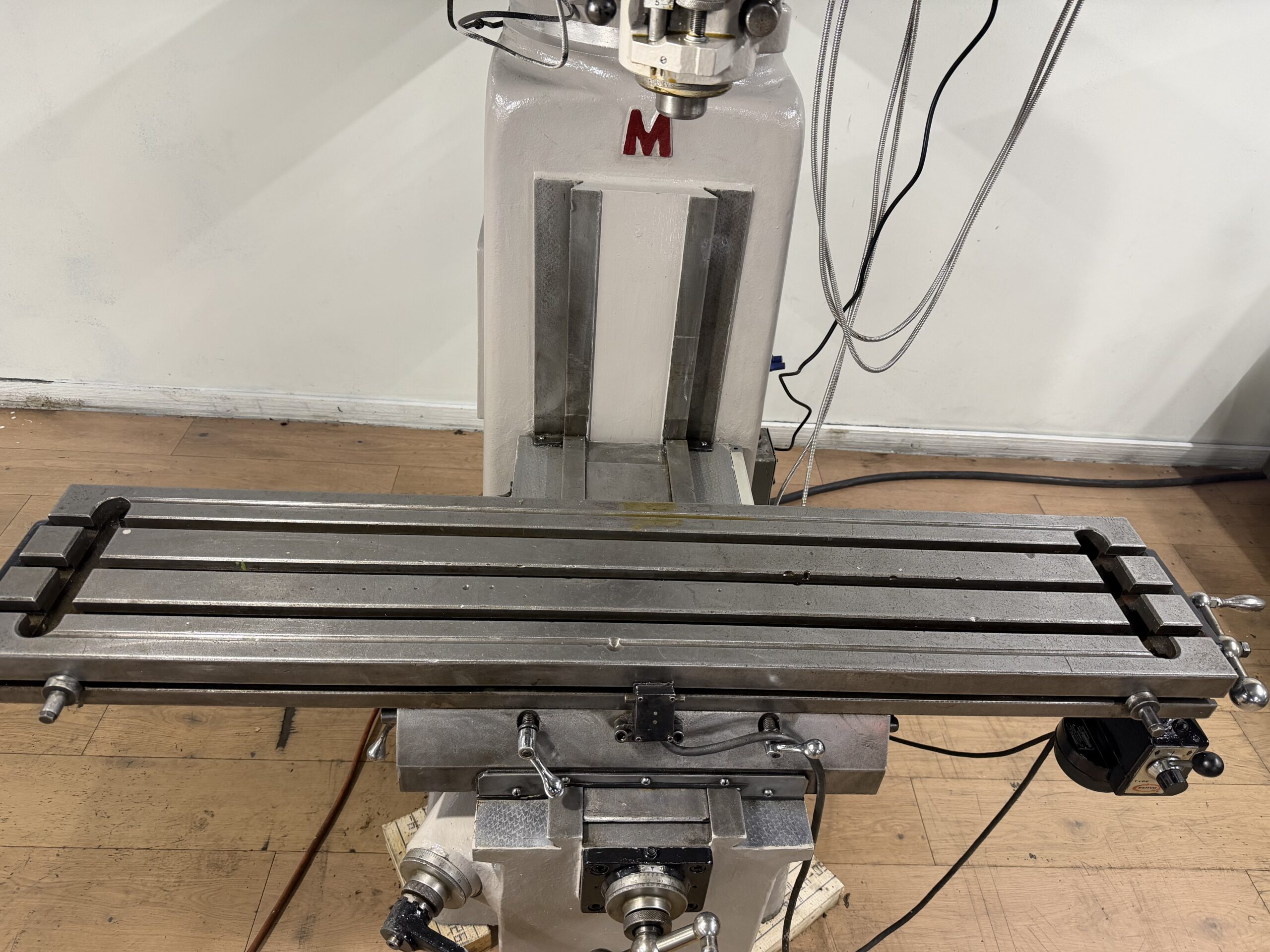

Table Size – 10” x 50”
Longitudinal Travel – 36”
Cross Travel – 16”
Knee Vertical Travel – 16”
Quill Travel – 5”
Spindle Taper – R8
Spindle Motor – 3 HP
Spindle Speeds, Infinitely Variable – 60 to 4200 rpm
Quill Diameter – 3.375”
Quill Power Feeds (3) – 0.0015”, .003”, .008”
Head Tilt Forward & Backward – 45 Degrees
Head Tilts Left & Right – 90 Degrees
Ram Swivel – 360 Degrees
Max Workpiece Weight – 750 Lbs.
Electrics – 3/60/220v
Machine Dimensions, Approx 68” x 59” x 85”
Weight, Approx – 2850 Lbs.
Equipped with :
Powerfeed on X axis

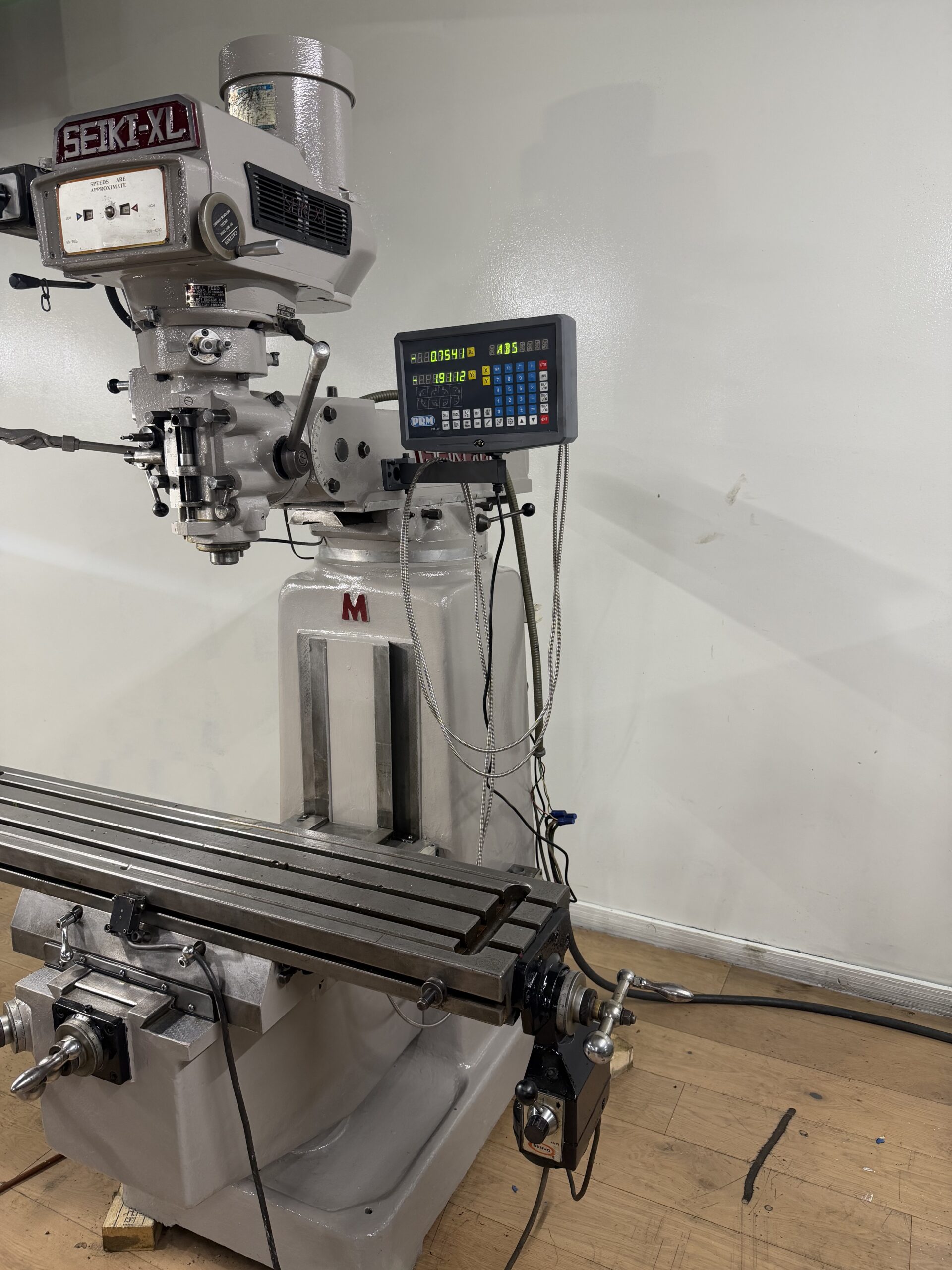

2 Axis DRO
Machine is in excellent condition and can be inspected under power at our warehouse in Independence, Missouri.
